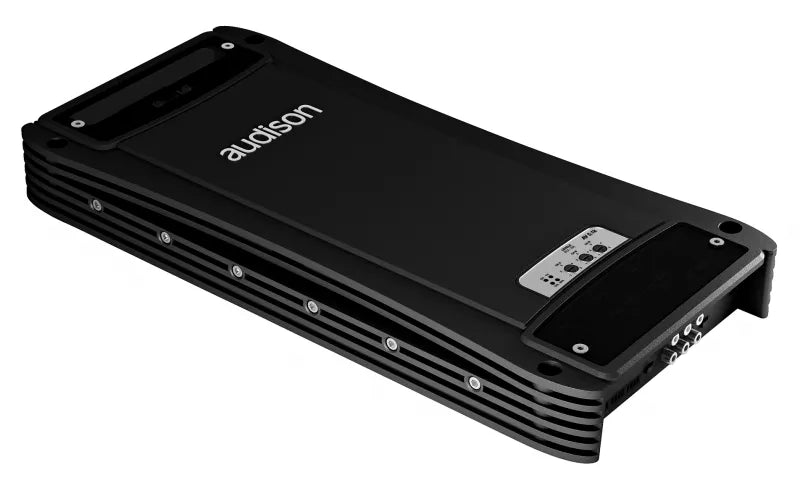

Audison 5.1k, automobilinis garso stiprintuvas

AV 5.1k, tai hibridinės konstrukcijos stiprintuvas, skirtas priekinėms + galinėms + žemų dažnių garsiakalbiams arba daugkartinio stiprinimo priekinėms + žemų dažnių garsiakalbiams.

check_circle_outline highlight_off
Yra prekyboje Išparduota
Nuolaida: 1,039.00 €
Kaina: 1,039.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Audison 5.1k, automobilinis garso stiprintuvas

AV 5.1k, tai hibridinės konstrukcijos stiprintuvas, skirtas priekinėms + galinėms + žemų dažnių garsiakalbiams arba daugkartinio stiprinimo priekinėms + žemų dažnių garsiakalbiams.

  • Galia: 1650 W.
  • Iškraipymai - THD (100 Hz @ 4Ω), C (sub) Ch: 0.3 %.
  • Pralaidumas: (-3 dB) C (sub) Ch: 7 ÷ 350 Hz.



AV 5.1k, 1650 W (RMS) max, five-channels: with its hybrid design, it is the specialist amplifier for front + rear + subwoofer or multi-amplified front + subwoofer systems.

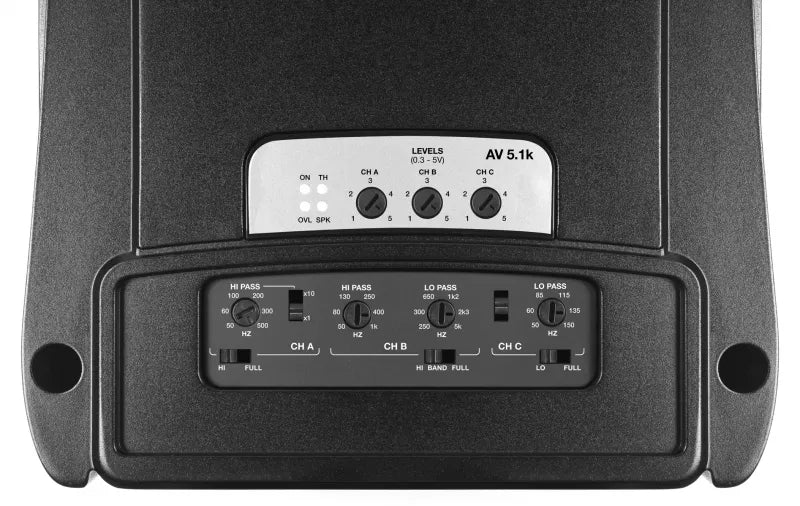

Its high-quality AB Class output stage provides two channels with 250 W (RMS), combined with another pair of A class pure audio channels rated at 75 W (RMS), perfect for active two-way front speaker systems. The D Class mono section provides 1000 W (RMS) for an efficiency and powerful subwoofer output. AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different coloured LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn’t available from the source.


Hi-Res audio

According to the definition of HiRes audio provided by JAS (Japan Audio Society - jas-audio.or.jp), Voce amplifiers exceed the above 40 kHz bandwith analog requirement, providing an astonishing 4 ÷ 60k Hz (@ -3 dB, 2 VRMS, 4 Ω).



Specifikacijos

SPECIFIKACIJOS



POWER SUPPLY

  • Power supply voltage: 11 ÷ 15 VDC
  • Idling current: 3 A
  • Idling current when off: 0.02 mA
  • Consumption @ 14.4 VDC (Max Musical Power): 110 A

AMPLIFIER STAGE

  • Distortion - THD (1k Hz @ 4Ω) A, B Ch: 0.05 %
  • Distortion - THD (100 Hz @ 4Ω), C (sub) Ch: 0.3 %
  • Bandwidth (-3 dB) A, B Ch: 4 ÷ 60k Hz
  • Bandwidth (-3 dB) C (sub) Ch: 7 ÷ 350 Hz
  • S/N ratio (A weighted @ 1V) A, B Ch: 100 dB
  • S/N ratio (A weighted @ 1V) C (sub) Ch: 87 dB
  • Damping factor (1k Hz @ 4Ω) A, B Ch: 100
  • Damping factor (100 Hz @ 4Ω) C (sub) Ch: 80
  • Input sensitivity: 0.3 ÷ 5 V RMS
  • Input impedance: 15k Ω
  • Speaker-In sensitivity: 1.4 ÷ 24 V RMS
  • Speaker-In impedance: 5k Ω
  • Minimum load impedance A / B / C Ch: 4Ω / 2Ω / 2Ω

NOMINAL POWER (RMS) A + B + C Ch @ 12 VDC, THD 0,3% 4Ω:

  • 50 W x 2 + 120 W x 2 + 500 W x 1

OUTPUT POWER (RMS) A + B + C Ch @ 14.4 VDC, THD 1%:

  • 5 Ch: 75 W x 2 (4Ω) + 140 W x 2 (4Ω) + 600 W x 1 (4Ω)
  • 5 Ch: 75 W x 2 (4Ω) + 140 W x 2 (4Ω) + 1000 W x 1 (2Ω)
  • 5 Ch: 75 W x 2 (4Ω) + 250 W x 2 (2Ω) + 1000 W x 1 (2Ω)

CEA SPECIFICATIONS

  • Output power @ 4Ω, 1% THD+N, 14.4 V:
  • 75 W x 2 + 140 W x 2 + 600 W x 1
  • SN ratio (ref. 1W output):
  • 75 W Channels: 80 dBA
  • 140 W Channels: 80 dBA
  • 600 W Channels: 78 dBA

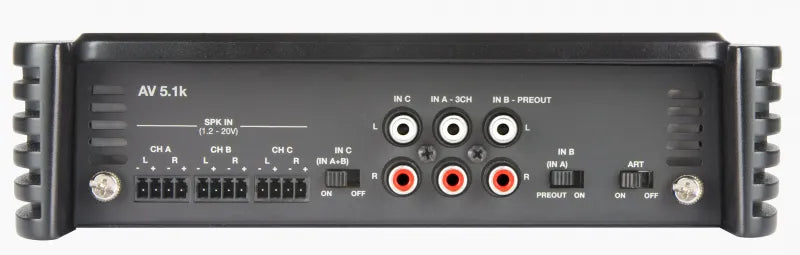

SIGNALS INPUTS / FILTERS

  • Inputs: Pre IN / Speakers IN
  • Outputs: Pre OUT Full Range
  • A Ch Filters (Full / Hi-Pass): 50 ÷ 5k Hz (2 range) @ 12 dB/Oct.
  • B Ch Filters (Full / Hi-Pass / Band-Pass): 50 ÷ 1k Hz (Hi) / 250 ÷ 5k (Lo) @ 12 dB/Oct.
  • C Ch Filters (Full / Lo-Pass): 50 ÷ 150 Hz @ 24 dB/Oct.

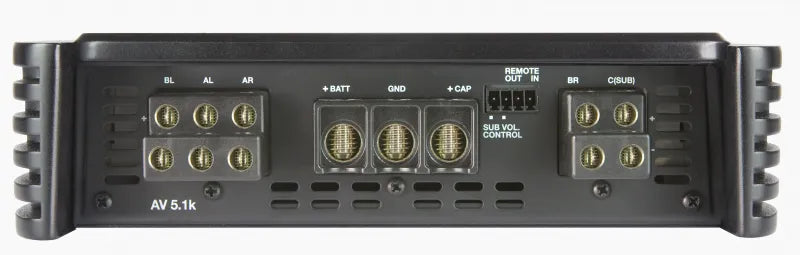

OTHER FUNCTIONS

  • Remote IN: 7 ÷ 15 VDC - 1mA
  • Remote OUT: 12 VDC - 50mA
  • Fuse (Strip type): 100 A
  • Remote SUB volume adj.: (-50 ÷ 6) dB
  • Speakers IN Turn-on (ART): Selectable

SIZE / WEIGHT

  • Max size (mm/inches):
  • 220 x 470 x 58 / 8,66” x 18,50” x 2,28”
  • Weight (kg/lb): 7.2 / 15.87

INSTRUKCIJOS

User Manual (EN).
