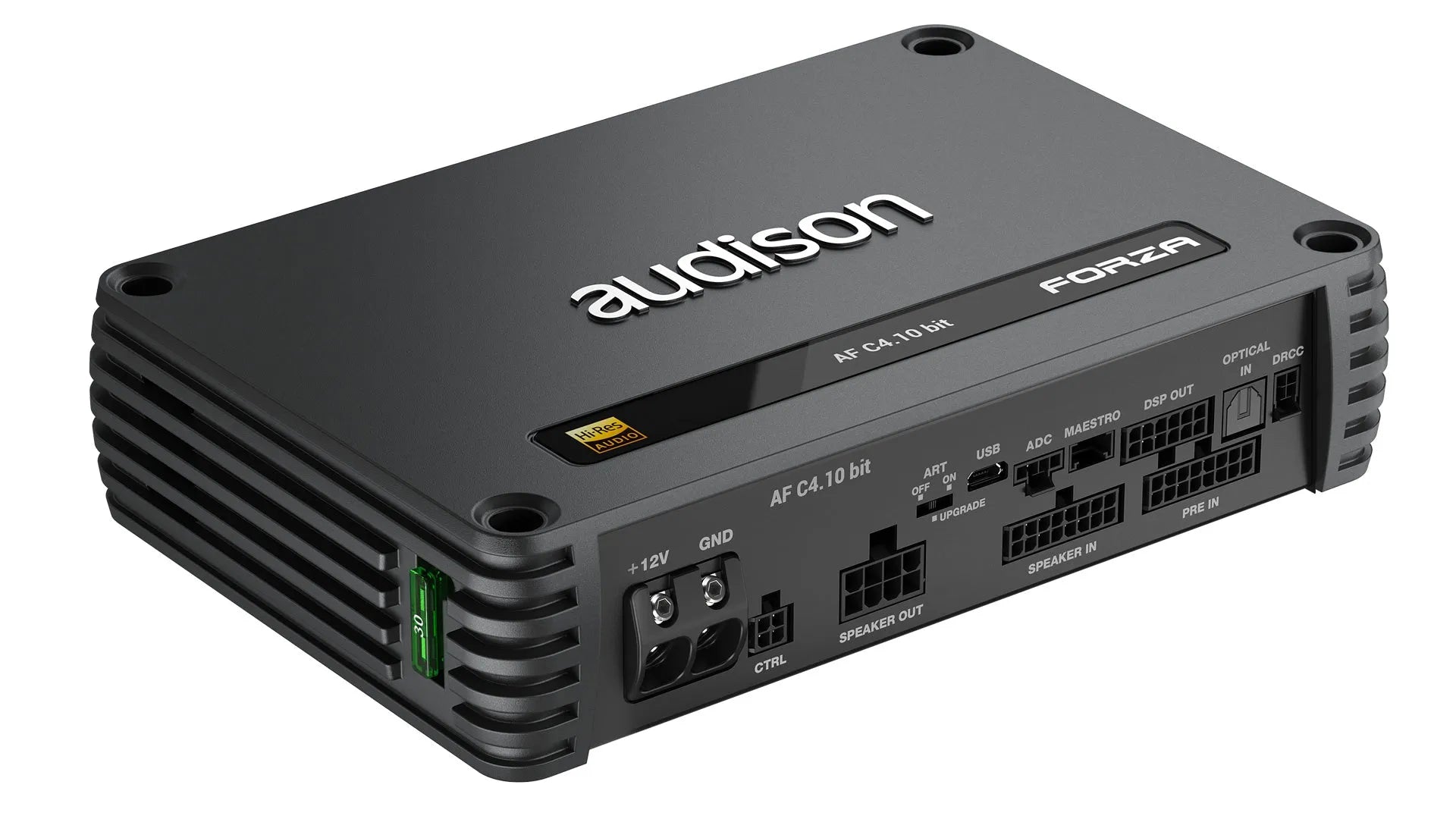

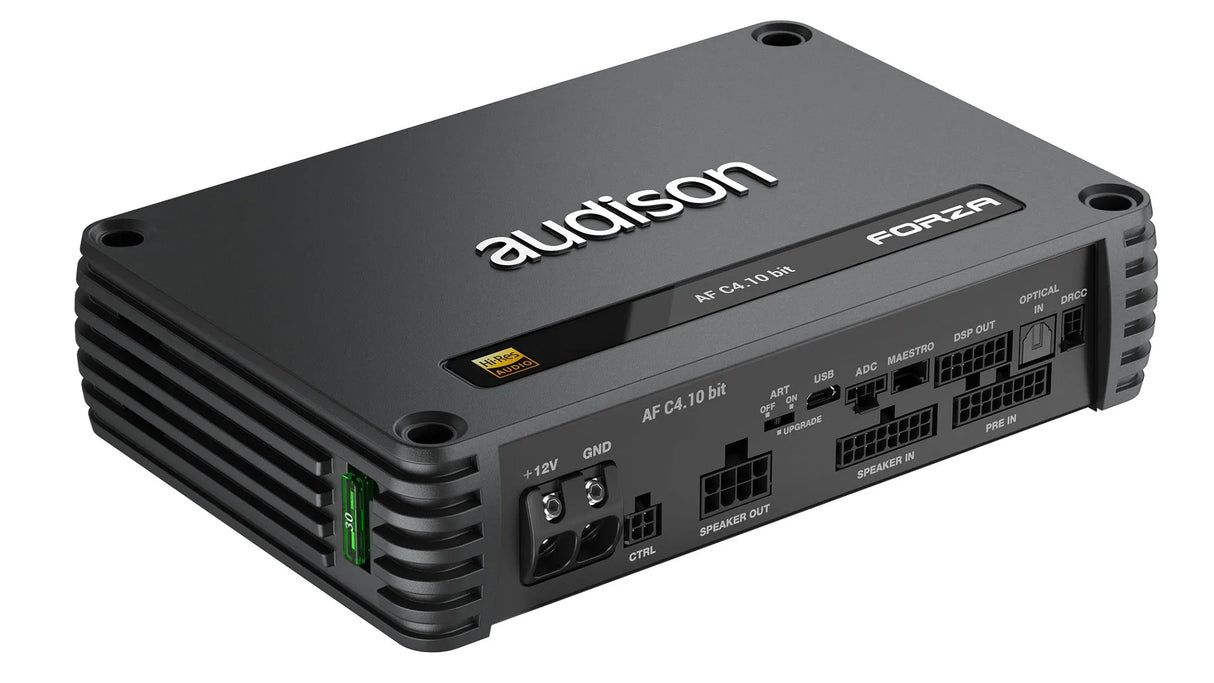

Audison AF C4.10 bit, DSP stiprintuvas

838.00 €

Audison AF C4.10 bit, DSP stiprintuvas - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

AF C4.10 bit gali pasigirti keturiais aukštos kokybės kanalais, naujausios kartos Audison technologijomis bei audiofiliniu garsu.

  • Galia: 4 x 150W.
  • Audison D-Class technologija (D- klasės stiprintuvas).
  • DSP veikia 24 bitų/96 kHz dažniu ir išplėsta garso juosta iki 40 kHz.
  • bit Drive palaikymas.





FEATURES

  • Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
  • Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 81% of efficiency
  • Next-generation bit Drive software platform
  • Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
  • Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
  • Up to 10 output channels (4 amplified, 6 native pre-out outputs, 4 optional pre-outs) controlled by the DSP to expand the system with other amplifiers
  • 8 high/low-level inputs (and an optical Toslink digital input) support total connectivity even with the most complex OEM systems
  • Extension card slot (additional 4 analog or 1 digital inputs)
  • Electrical signal analysis for each input channel ensures proper integration and correction
  • Acoustic analysis (with your USB microphone) integrates the response graph into the equalizer display. This ensures efficient tuning and great sound!
  • Advanced signal routing options allow the technician to go beyond the predefined system definitions in the Configuration Wizard



TECHNOLOGIES

AFBMW ReAMP 3

Next-generation bit Drive software platform – developed for this family of products – simplifies every control and function.

AFBMW ReAMP 3

Native DSP working at 24 bit/96 kHz and an extended audio band up to 40 kHz.

AFBMW ReAMP 3

The acoustic analysis integrates the response graph into the equalizer display ensuring efficient tuning and great sound, compatible with any 24-bit USB microphone.

AFBMW ReAMP 3

The electrical analysis integrates the response graph into the input equalizer display, ensuring efficient tuning.

AFBMW ReAMP 3

Electrical Signal Analysis ensures proper integration and correction for each input channel.

AFBMW ReAMP 3

Enjoy the improved audio performance of the latest generation Audison D-Class technology.

AFBMW ReAMP 3

Maximum versatility thanks to the bridging option for each pair of channels.

AFBMW ReAMP 3

Forza amplifiers have two independent power supplies: the audio amplifier power supply is loosely regulated, which allows superior dynamic performance. The DSP power supply is stiffly regulated, which maintains DSP microprocessor operation even during lower-voltage transient states (i.e., start/stop operation).

AFBMW ReAMP 3

Quick I/O Configuration speeds up system definition and signal routing.

AFBMW ReAMP 3

When connected with Audison B-CON hi-res Bluetooth receiver, this feature manages the Master Volume of the Forza amp thus ensuring full dynamic range signal at the input.

AFBMW ReAMP 3

iDatalink Maestro AR native support for a total integration with OEM infotainment.

AFBMW ReAMP 3

Equipped with eight analog inputs, to support total connectivity even with the most complex OEM systems.

AFBMW ReAMP 3

Automatically sums and reverses OEM equalization.

AFBMW ReAMP 3

Input delay compensation of time-delayed factory outputs prior to signal summing.

AFBMW ReAMP 3

Allows left and right inputs to match in phase before tuning, even if OEM phase processing has been used.

AFBMW ReAMP 3

Universal Speaker Simulator technology on high-level inputs for maximum compatibility with any type of Head-Unit OEM Source.

AFBMW ReAMP 3

10 DSP-processed output channels for total control.

AFBMW ReAMP 3

6 native pre-out channels for maximum versatility.

SPECIFIKACIJOS

AMPLIFIER TECH DATA

Channels 4
Class D-Class
Power supply voltage / fuse 11 ÷ 15 VDC / 1 x 30A
Operating power supply voltage 6.5 ÷ 17.5 VDC
Idling current 1 A
Standby Current Draw 1 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power 29 A
Remote IN 4 ÷15 VDC (1 mA)
Remote OUT 6.5 ÷15 VDC (150 mA)
ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers 1.5 VDC
AST - Automatic Signal Turn on/off (Selectable) 1.5 VDC
Efficiency Rated Power 81%

AMPLIFIER STAGE

Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power 0.03%
Bandwidth @ -1.5 dB 10 Hz ÷ 42 kHz
Damping factor @ 1 kHz, 4Ω, 2 VRMS 95
S/N ratio (A weighted @ 1 V Input) Master Input 98 dBA
S/N ratio (A weighted @ 1 V Input) Optical Input 105
Total Power RMS 600 W
Minimum load impedance
Output Continuous Power (RMS) @14.4 VDC, 1% THD 4 Ch @ 4Ω: 90 W x 4

4 Ch @ 2Ω: 150 W x 4

2 Ch (Bridge 1/2; 3/4) @ 4Ω: 300 W x 2
Adjustable Crossover Yes

CEA SPECIFICATIONS

Output power @ 4Ω, 1% THD+N, 14.4 V 90 W x 4
SN ratio (ref. 1W output) 80 dB

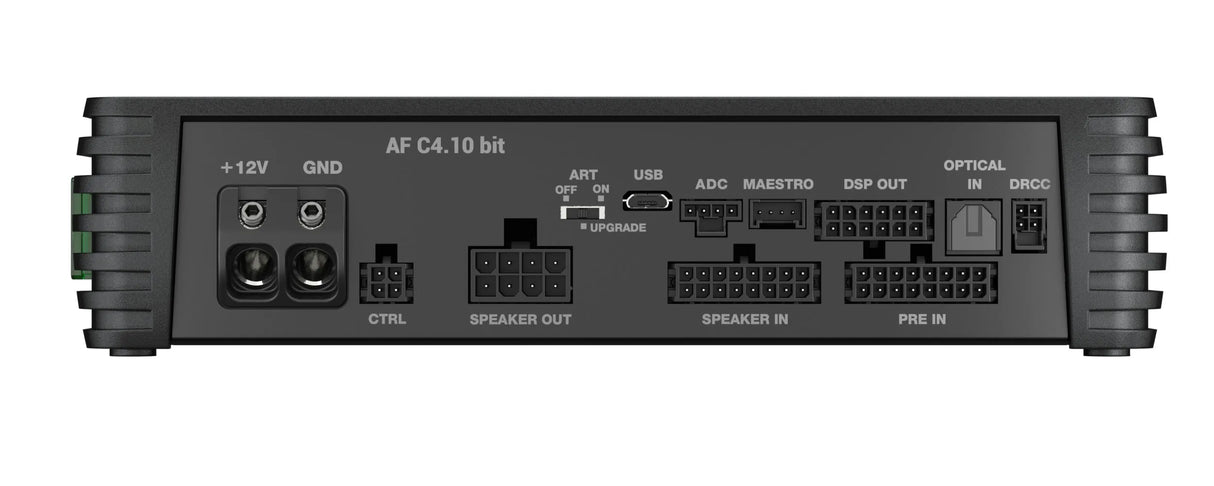

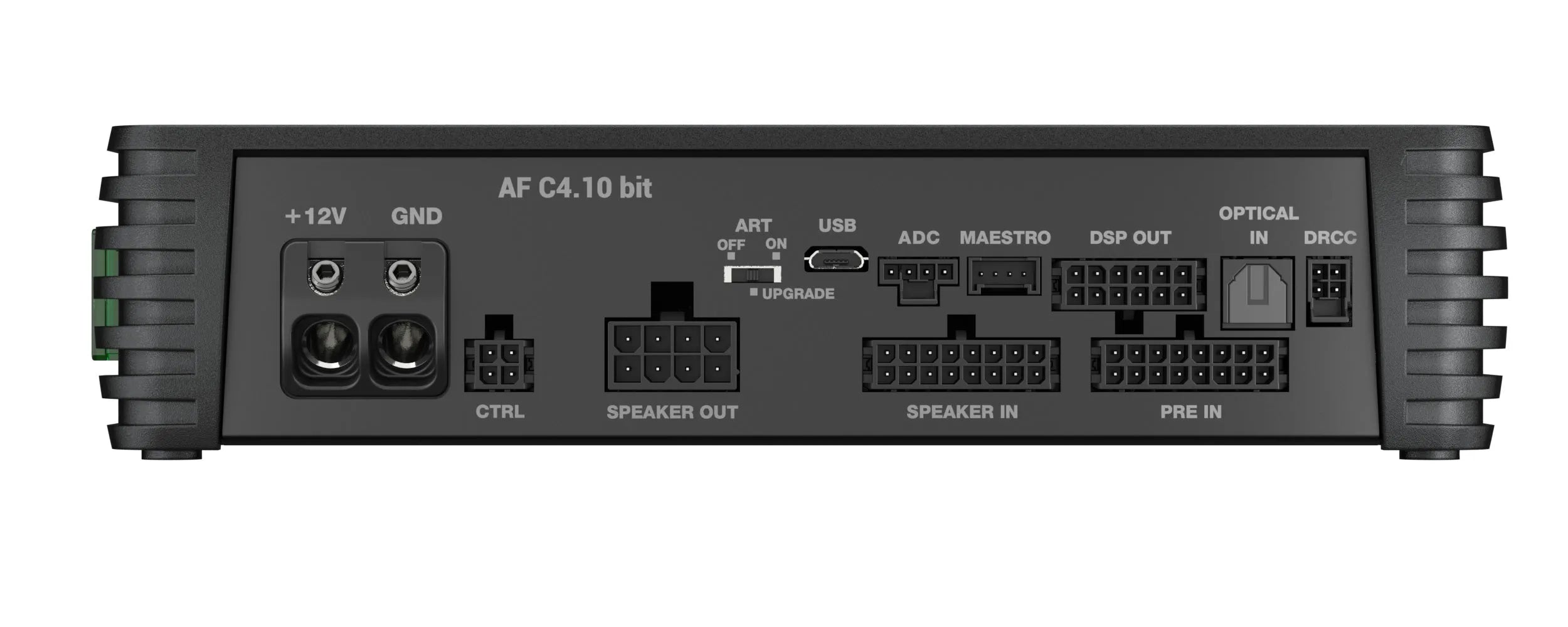

INPUTS / OUTPUTS

Pre-In Inputs 0.6 ÷ 6 VRMS (15 kΩ Imp.)
Digital Input Yes
Pre Outputs 6
Hi Level Inputs 8
Low Level Inputs 8
Speaker-In Inputs 2.2 ÷ 22 VRMS (5 Ω Imp.)
Digital IN 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card

DIGITAL SIGNAL PROCESSOR

Audio DSP Converter Analog Devices ADAU1467 automotive qualified audio processor.

Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance
Filter type Full / High-Pass / Low-Pass / Band-Pass
Filter mode and slope Linkwitz-Riley @ 12/24/36/48 dB/Oct.
Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
QLP @ 6 dB/Oct.
Crossover frequency 20 Hz ÷ 20 kHz
Phase control 0° / 180°, All-Pass filters
Analog Input Equalizer (20 ÷ 20k Hz) 12 Biquad + Delay
Output Equalizer Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
Time Alignment Distance 0 ÷ 510 cm / 0 ÷ 200.8 inches
Time Alignment Delay 0 ÷ 15 ms
Input Output Real Time Audio Monitor RTA

CONTROL CONNECTIONS

DRC Port Input for DRC AC remote control (Optional)
ADC Port Manage other Audison devices that support this standard
1 Wire Customizable functions (+ 12 V activated)
2 Wire Customizable functions (+ 12 V activated)

GENERAL REQUIREMENTS

PC connections Micro USB 1.1 / 2.0 / 3.0 Compatible
Software/PC requirements Windows 10, Windows 11
Video Resolution with screen resize (min. res. 1024 x 768)
Ambient operating temperature range 0 °C to 55 °C (32 °F to 131 °F)
Weight 1.38 kg

DIMENSIONS

AF C4.10 bit
Dimension A 200 mm
Dimension B 134 mm
Dimension C 47 mm



INSTRUKCIJOS

User Manual (EN).
