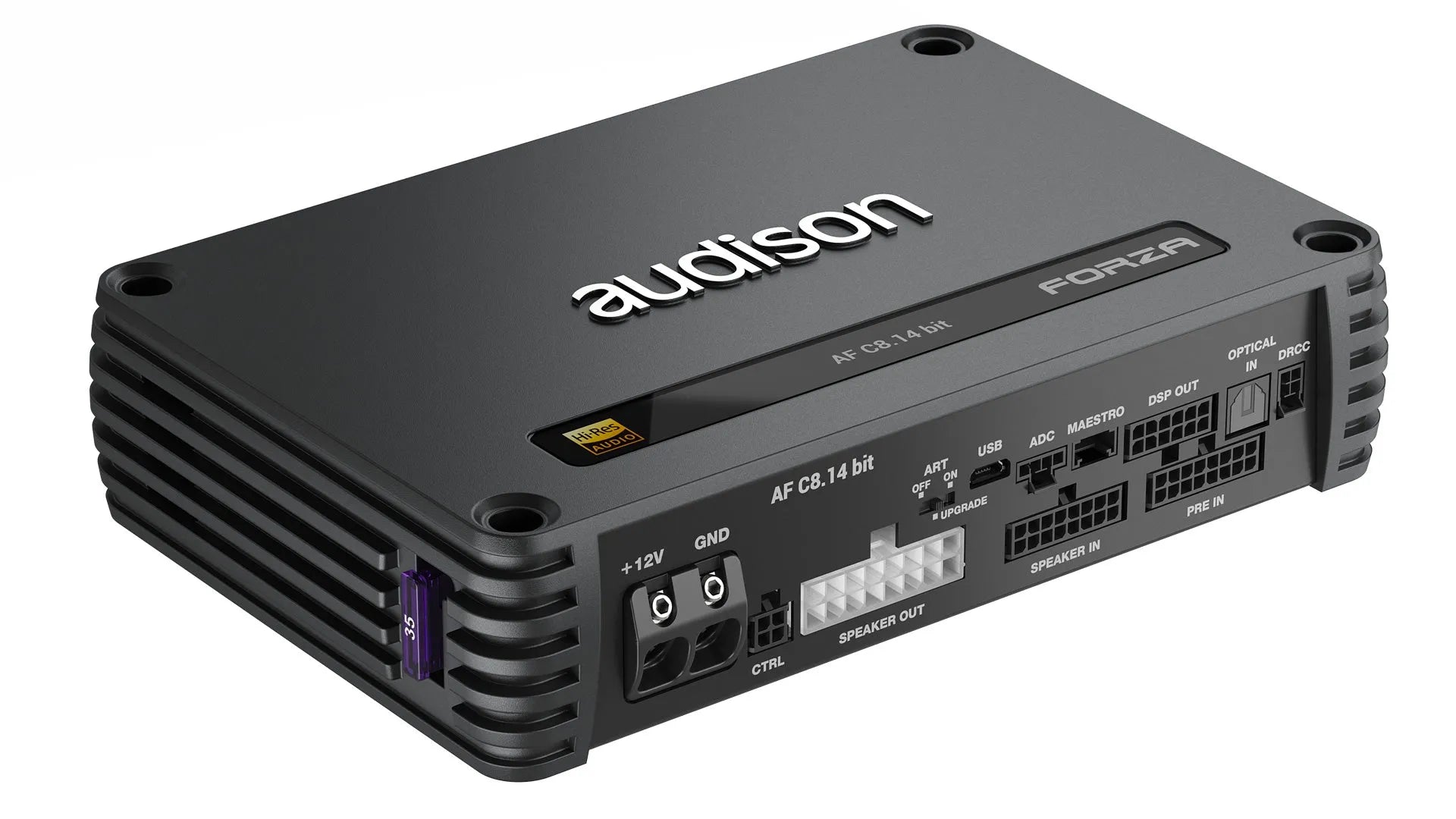

Audison AF C8.14 bit, DSP stiprintuvas
Audison AF C8.14 bit, DSP stiprintuvas yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.
Siuntimas ir pristatymas
Siuntimas ir pristatymas
Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.
Audison AF C8.14 bit, DSP stiprintuvas
- INFORMACIJA
- APRAŠYMAS
- TECHNINIAI DUOMENYS
- DOKUMENTAI
AF C8.14 bit gali pasigirti keturiais aukštos 8-iais kanalais, naujausios kartos Audison technologijomis bei audiofiliniu garsu.
- Galia: 8 x 100W, 4Ω.
- Audison D-Class technologija (D- klasės stiprintuvas).
- DSP veikia 24 bitų/96 kHz dažniu ir išplėsta garso juosta iki 40 kHz.
- bit Drive palaikymas.
FEATURES
- Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
- Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 82% of efficiency
- Next-generation bit Drive software platform
- Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
- Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
- Up to 14 output channels (8 amplified, 6 optional pre-outs) controlled by the DSP to expand the system with other amplifiers
- 8 high/low-level inputs (and an optical Toslink digital input) support total connectivity even with the most complex OEM systems
- Extension card slot (additional 4 analog or 1 digital inputs)
- Electrical signal analysis for each input channel ensures proper integration and correction
- Acoustic analysis (with your USB microphone) integrates the response graph into the equalizer display. This ensures efficient tuning and great sound!
- Advanced signal routing options allow the technician to go beyond the predefined system definitions in the Configuration Wizard
TECHNOLOGIES
Next-generation bit Drive software platform – developed for this family of products – simplifies every control and function.
Native DSP working at 24 bit/96 kHz and an extended audio band up to 40 kHz.
The acoustic analysis integrates the response graph into the equalizer display ensuring efficient tuning and great sound, compatible with any 24-bit USB microphone.
The electrical analysis integrates the response graph into the input equalizer display, ensuring efficient tuning.
Electrical Signal Analysis ensures proper integration and correction for each input channel.
Enjoy the improved audio performance of the latest generation Audison D-Class technology.
Maximum versatility thanks to the bridging option for each pair of channels.
Forza amplifiers have two independent power supplies: the audio amplifier power supply is loosely regulated, which allows superior dynamic performance. The DSP power supply is stiffly regulated, which maintains DSP microprocessor operation even during lower-voltage transient states (i.e., start/stop operation).
Quick I/O Configuration speeds up system definition and signal routing.
When connected with Audison B-CON hi-res Bluetooth receiver, this feature manages the Master Volume of the Forza amp thus ensuring full dynamic range signal at the input.
iDatalink Maestro AR native support for a total integration with OEM infotainment.
Equipped with eight analog inputs, to support total connectivity even with the most complex OEM systems.
Automatically sums and reverses OEM equalization.
Input delay compensation of time-delayed factory outputs prior to signal summing.
Allows left and right inputs to match in phase before tuning, even if OEM phase processing has been used.
Universal Speaker Simulator technology on high-level inputs for maximum compatibility with any type of Head-Unit OEM Source.
10 DSP-processed output channels for total control.
6 native pre-out channels for maximum versatility.
SPECIFIKACIJOS
AMPLIFIER TECH DATA
| Channels | 8 |
| Class | D-Class |
| Power supply voltage / fuse | 11 ÷ 15 VDC / 1 x 35A |
| Operating power supply voltage | 6.5 ÷ 17.5 VDC |
| Idling current | 1.3 A |
| Standby Current Draw | 1 mA |
| Consumption @ 14.4 VDC, 2Ω, Max Musical Power | 34 A |
| Remote IN | 4 ÷15 VDC (1 mA) |
| Remote OUT | 6.5 ÷15 VDC (150 mA) |
| ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers | 1.5 VDC |
| Efficiency Rated Power | 81% |
AMPLIFIER STAGE
| Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power | 0.05% |
| Bandwidth @ -1.5 dB | 10 Hz ÷ 42 kHz |
| Damping factor @ 1 kHz, 4Ω, 2 VRMS | 85 |
| S/N ratio (A weighted @ 1 V Input) Master Input | 98.5 dBA |
| S/N ratio (A weighted @ 1 V Input) Optical Input | 105 |
| Total Power RMS | 800 W |
| Minimum load impedance | 2Ω |
| Output Continuous Power (RMS) @14.4 VDC, 1% THD | 8 Ch @ 4Ω: 65 W x 8 8 Ch @ 2Ω: 100 W x 8 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω: 200 W x 4 |
| Adjustable Crossover | Yes |
CEA SPECIFICATIONS
| Output power @ 4Ω, 1% THD+N, 14.4 V | 55 W x 8 |
| SN ratio (ref. 1W output) | 80 dB |

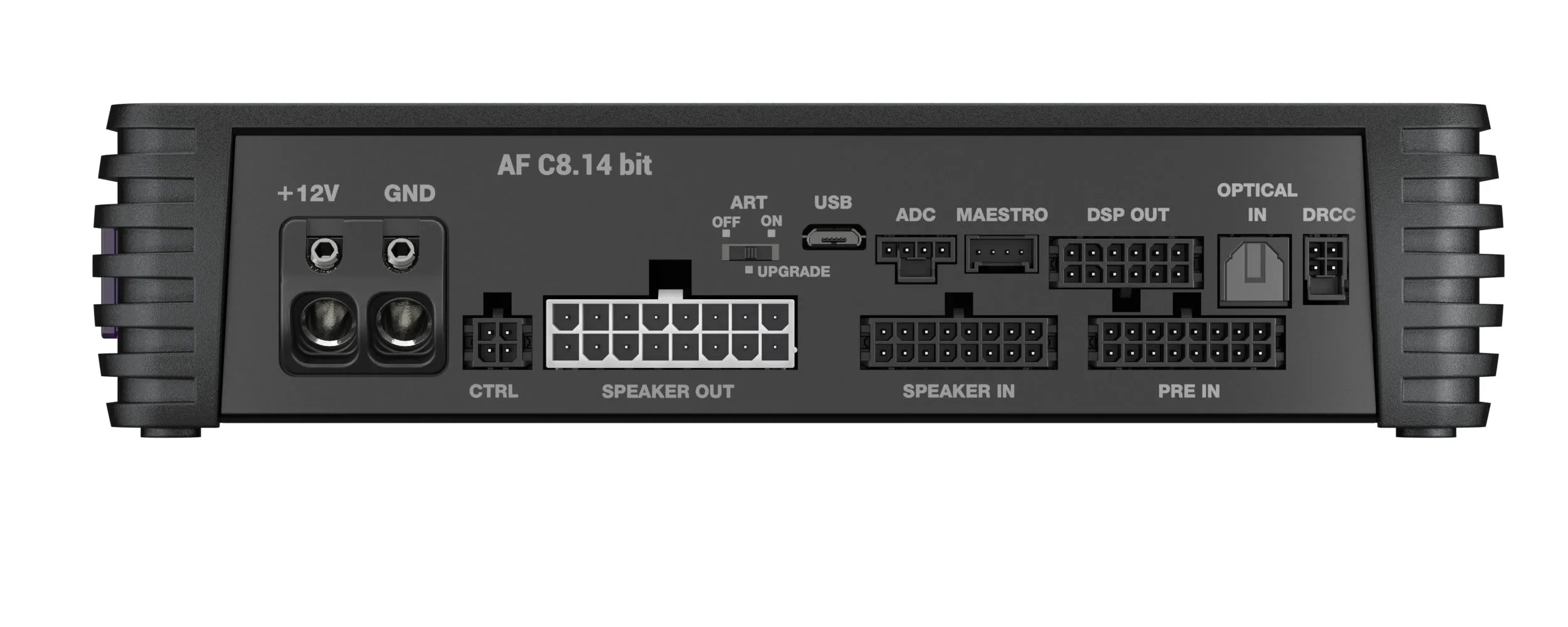

INPUTS / OUTPUTS
| Pre-In Inputs | 0.6 ÷ 6 VRMS (15 kΩ Imp.) |
| Digital Input | Yes |
| Pre Outputs | 6 |
| Hi Level Inputs | 8 |
| Low Level Inputs | 8 |
| Speaker-In Inputs | 2.2 ÷ 22 VRMS (5 Ω Imp.) |
| Digital IN | 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card |
| Input Optical IN | 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card |
DIGITAL SIGNAL PROCESSOR
| Audio DSP Converter | Analog Devices ADAU1467 automotive qualified audio processor processing @ 96 kHz. Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance. |
| Filter type | Full / High-Pass / Low-Pass / Band-Pass |
| Filter mode and slope | Linkwitz-Riley @ 12/24/36/48 dB/Oct. Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct. Bessel @ 6/12/18/24/30/36/42/48 dB/Oct. Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct. QLP @ 6 dB/Oct. |
| Crossover frequency | 20 Hz ÷ 20 kHz |
| Phase control | 0° / 180°, All-Pass filters |
| Analog Input Equalizer (20 ÷ 20k Hz) | 12 Biquad + Delay |
| Output Equalizer | Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz |
| Time Alignment Distance | 0 ÷ 510 cm / 0 ÷ 200.8 inches |
| Time Alignment Delay | 0 ÷ 15 ms |
| Input Output Real Time Audio Monitor | RTA |
CONTROL CONNECTIONS
| DRC Port | Input for DRC AC remote control (Optional) |
| ADC Port | Manage other Audison devices that support this standard |
| 1 Wire | Customizable functions (+ 12 V activated) |
| 2 Wire | Customizable functions (+ 12 V activated) |
GENERAL REQUIREMENTS
| PC connections | Micro USB 1.1 / 2.0 / 3.0 Compatible |
| Software/PC requirements | Windows 10, Windows 11 |
| Video Resolution with screen resize | (min. res. 1024 x 768) |
| Ambient operating temperature range | 0 °C to 55 °C (32 °F to 131 °F) |
DIMENSIONS
 |
|
| Dimension A | 200 mm |
| Dimension B | 134 mm |
| Dimension C | 47 mm |
| 47 mm |
