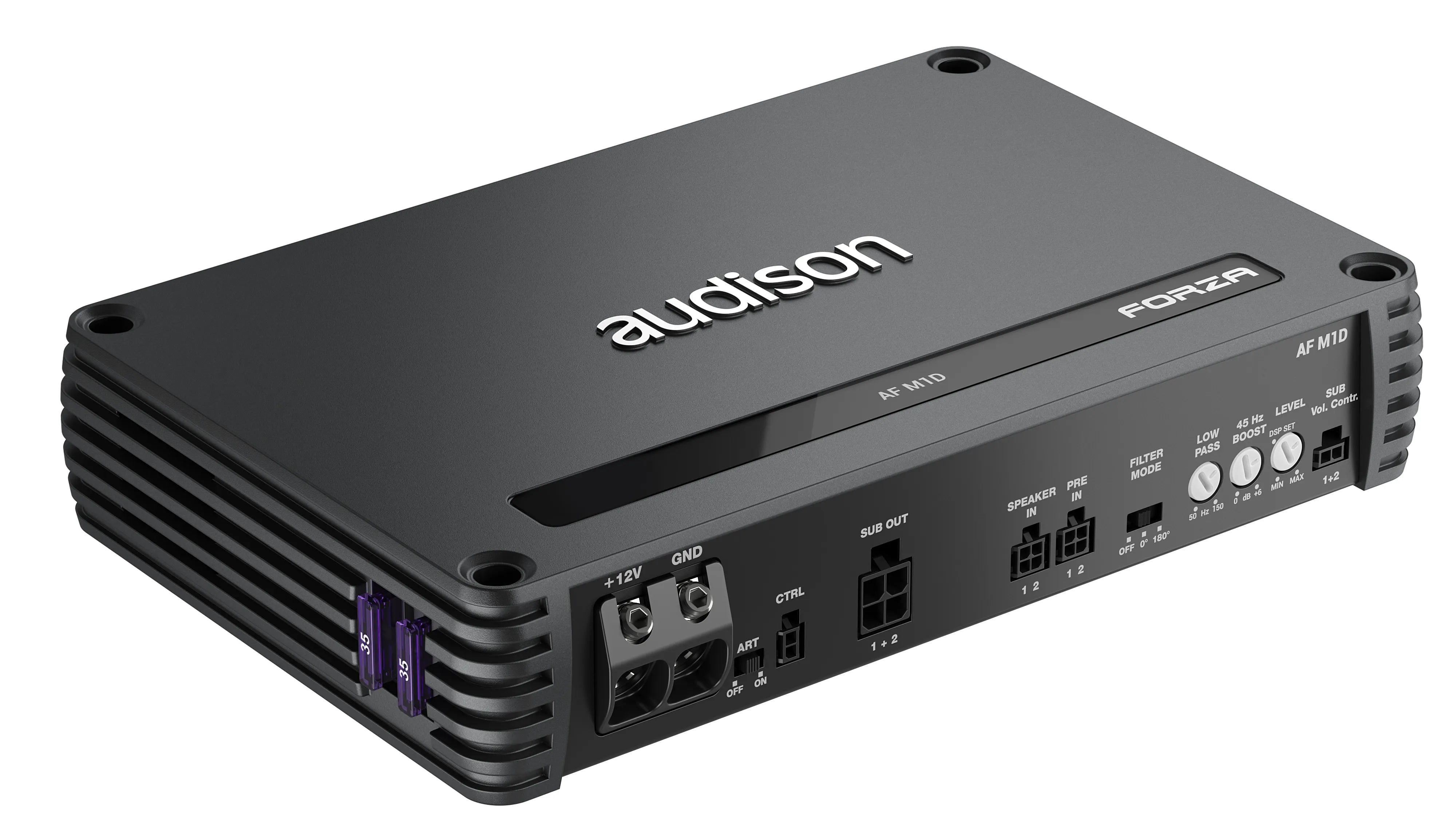

Audison AF M1D, automobilinis garso stiprintuvas

INFORMACIJA

APRAŠYMAS

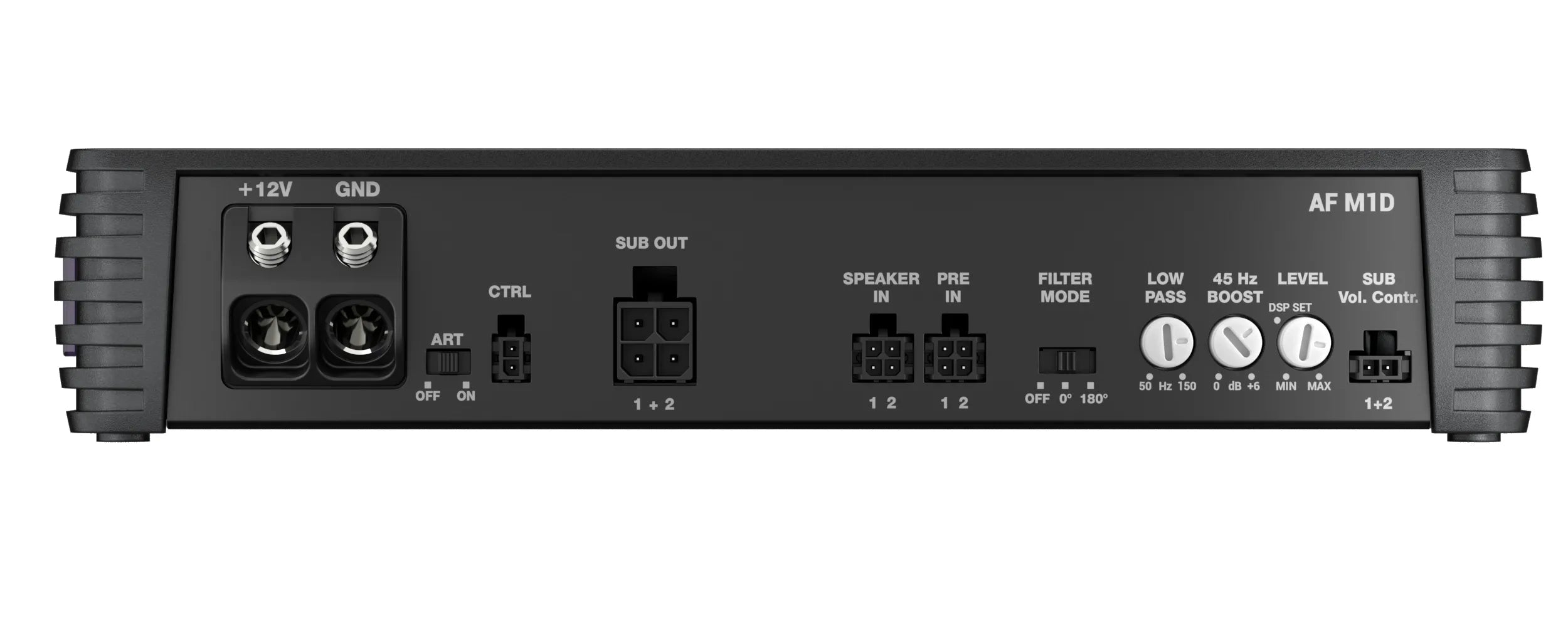

A plug-and-play Input harness is included to make the connection to AF bit amplifiers straightforward. AF D amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso. AF M1D boasts one high-fidelity amplified channel 600W @4Ω*, 1000W @2Ω*, and 1200W @1Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! AF M1D is the only one in the AF D family that can be used also in standalone mode, thanks to a set of manual controls: - adjustable (and defeatable) low-pass 4th-order crossover filter - 0-180° polarity/phase switch - 45 Hz Bass Boost adjustment

Combine these functions with the ART DC turn-on from high-level Inputs, the USS speaker-input loading, and the optional VCR-S2 level knob, and this amp can be used to add subwoofers even in systems which lack an Audison AF bit amplifier!

TECHNINIAI DUOMENYS

Amplifier Tech Data
Channels    1
Class    D-Class
Power supply voltage / fuse    11 ÷ 15 VDC
Operating power supply voltage    6.5 ÷ 17.5 VDC
Idling current    1.3 A
Idling current when off    0.005 mA
Consumption @ 14.4 VDC, 1Ω, Max Musical Power    65 A
Remote OUT    6.5 ÷15 VDC (150 mA)
Remote IN    4 ÷15 VDC (1 mA)
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable)    1.5 VDC
Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power    0.03%
Bandwidth A    (-3 dB, 2 VRMS, 4 Ω): 10 Hz ÷ 500 Hz
S/N ratio A    (A weighted @ 1 V): 105 dBA
Damping factor A    (100 Hz, 4Ω, 2 VRMS): 125
Input sensitivity Pre-In    0.6 ÷ 6 VRMS
Input sensitivity Speaker-In    2.2 ÷ 22 VRMS
Total Power RMS    1000 W
Output power @ 4Ω, 1% THD+N, 14.4 V    600 W
SN ratio (ref. 1W output)    81 dBA
Input Type    Pre-In / Speaker-In
Filter Pass A    Full / Low-Pass 50 ÷ 150 Hz @ 24 dB/Oct.
Inputs/Outputs Phase    (0 ÷ 180 ) deg
Inputs/Outputs Bass Boost    45Hz (adjustable) - (0 ÷ 6) dB
Remote Sub Volume    ±12 dB
Weight    1.95 kg

DOKUMENTAI

Vartotojo vadovas (EN)
