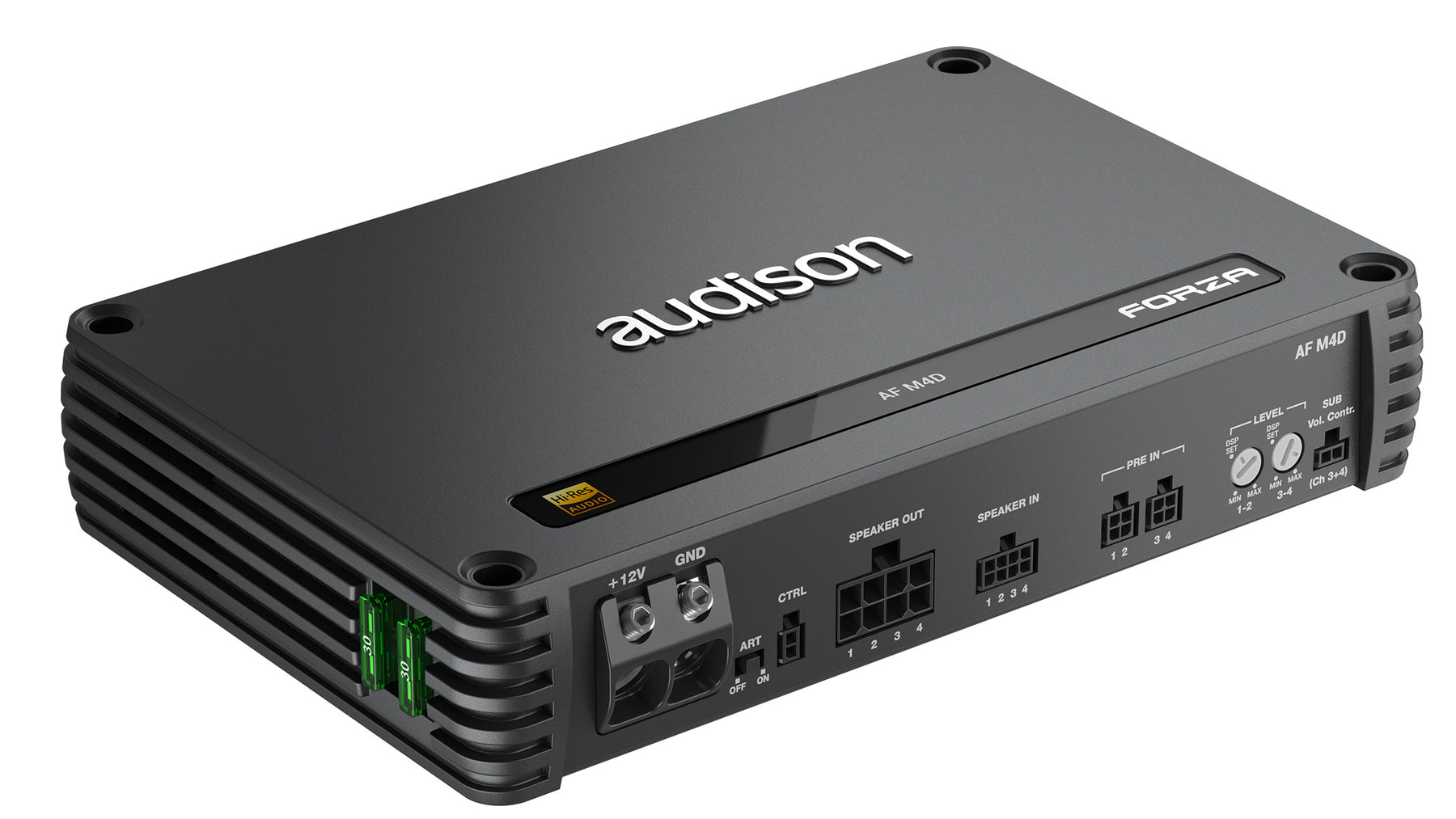

Audison AF M4D, stiprintuvas
Audison AF M4D, stiprintuvas yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.
Siuntimas ir pristatymas
Siuntimas ir pristatymas
Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.
Audison AF M4D, stiprintuvas
- INFORMACIJA
- APRAŠYMAS
- TECHNINIAI DUOMENYS
- DOKUMENTAI
AF papildomi stiprintuvai skirti AF bitų procesoriaus stiprintuvams papildyti galingais stiprintuvo kanalais.
- Galia: 4 x 260 W @ 2Ω.
- D-Klasės stiprintuvas.
- Hi-Res Išplėsta garso juosta iki 40 kHz.
- Lengvai poruojamas su kitais Audison stiprintuvais.
AF companion amplifiers are designed to add powerful amplifier channels to AF bit processor amplifiers. A plug-and-play signal input harness is included to make connection to AF bit amplifiers straightforward. AF companion amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso. AF companions have a “straight wire” architecture, without analog preamp functions such as crossover filtering, and are intended for use with external processors. AF M4D boasts four high-fidelity amplified channels 160W x 4 @4Ω*, 260W x 4 @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 520W x 2 @4Ω*, guaranteeing flexible and powerful performance. *Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
FEATURES
- mproved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
- Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 83% of efficiency
- Hi-Res compatibility performance, with an extended audio band up to 40 kHz
- Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
TECHNOLOGIES
Enjoy the improved audio performance of the latest generation Audison D-Class technology.
Maximum versatility thanks to the bridging option for each pair of channels.
Extended audio band up to 40 kHz.
Universal Speaker Simulator technology on high-level inputs for maximum compatibility with any type of Head-Unit OEM Source.
SPECIFIKACIJOS
AMPLIFIER TECH DATA
| Channels | 4 |
| Class | D-Class |
| Efficiency | 83 % |
| Hi Level Input | Yes |
| Low Level Input | Yes |
| Digital Input | No |
| Power supply voltage / fuse | 11 ÷ 15 VDC |
| Operating power supply voltage | 6.5 ÷ 17.5 VDC |
| Idling current | 1.12 A |
| Idling current when off | 0.007 mA |
| Consumption @ 14.4 VDC, 2Ω, Max Musical Power | 47 A |
| Remote OUT | 6.5 ÷15 VDC (150 mA) |
| Remote IN | 4 ÷15 VDC (1 mA) |
| ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) | 1.5 VDC |
AMPLIFIER STAGE
| Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power | 0.05% |
| Bandwidth A | (-3 dB, 2 VRMS, 4 Ω): 10 Hz ÷ 42 kHz |
| S/N ratio A | (A weighted @ 1 V): 103 dBA |
| Input sensitivity Pre-In | 0.6 ÷ 6 VRMS |
| Input sensitivity Speaker-In | 2.2 ÷ 22 VRMS |
| Total Power RMS | 1040 W |
| Minimum load impedance | 4 Ch 2Ω 2 Ch - (Bridge) 4Ω |
| Output Power (RMS) @14.4 VDC, 1% THD | 4Ch @ 4Ω: 160 W x 4 4Ch @ 2Ω: 260 W x 4 2Ch (Bridge 1/2; 3/4) @ 4Ω: 520 W x 2 |
| Adjustable Crossover | No |
CEA SPECIFICATIONS
| Output power @ 4Ω, 1% THD+N, 14.4 V | 150 W x 4 |
| SN ratio (ref. 1W output) | 80 dB |
INPUTS
| Input Type | Pre-In / Speaker-In |
| Remote Sub Volume | ±12 dB |
OTHER
| Fuse | 2 x 30A |
| Weight | 2.04 kg |
DIMENSIONS
| Dimension A | 240 mm |
| Dimension B | 156 mm |
| Dimension C | 47 mm |
