Audison

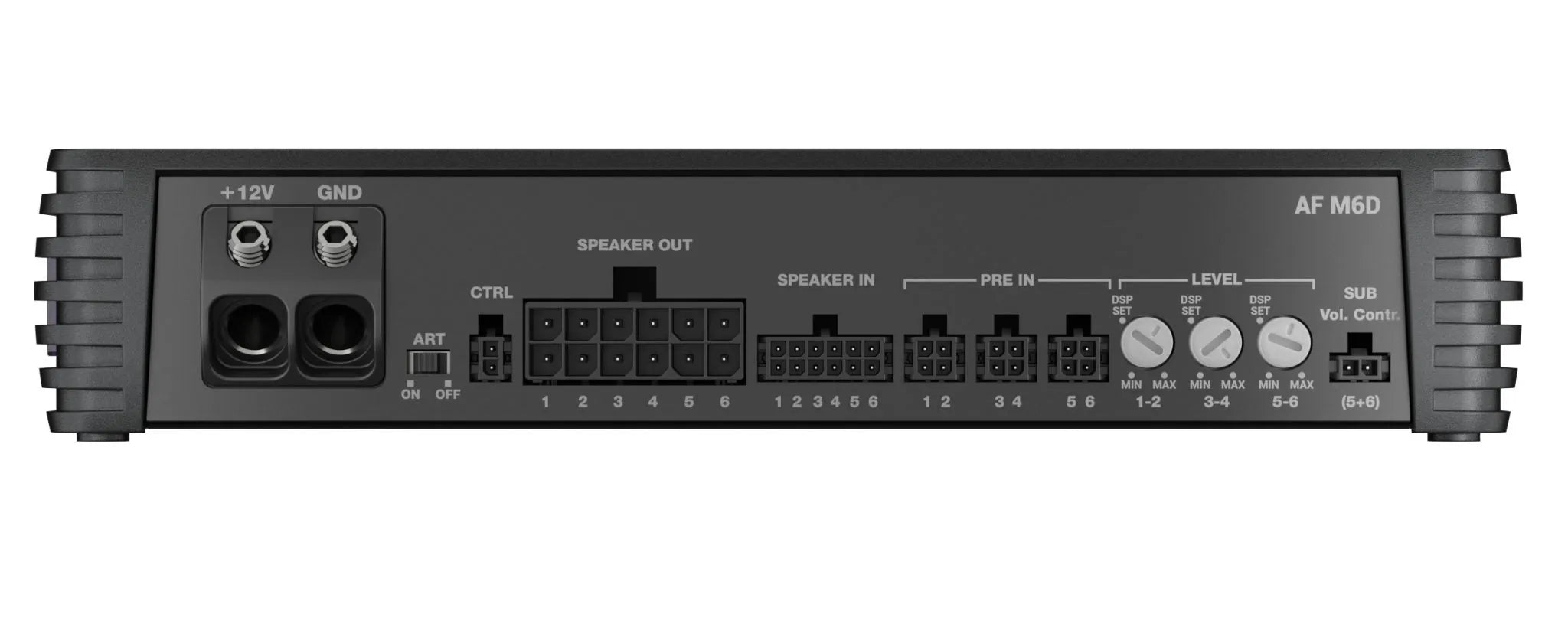

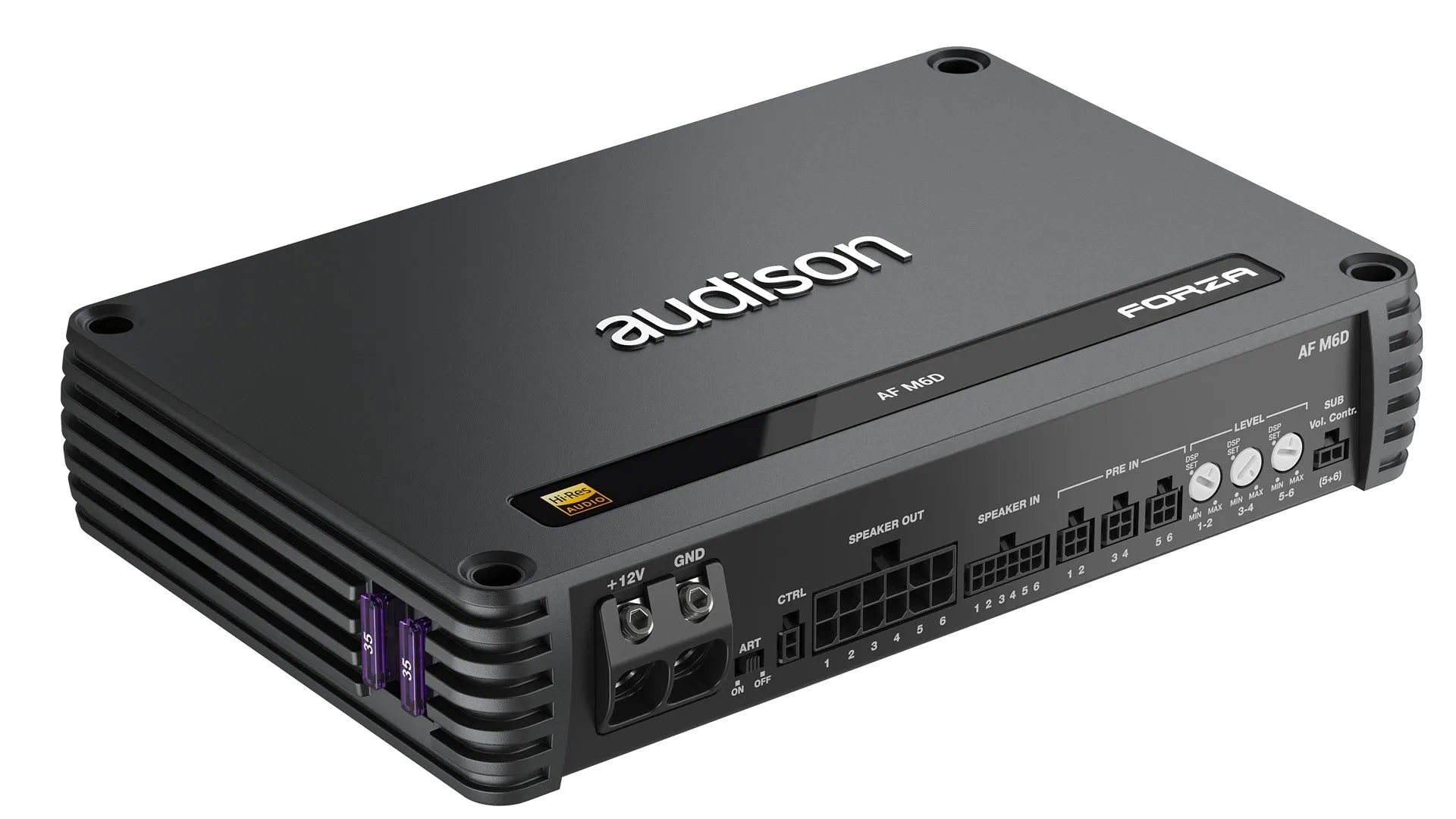

Audison AF M6D, stiprintuvas

665.00 €

Audison AF M6D, stiprintuvas yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.

Siuntimas ir pristatymas

Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.

AF papildomi stiprintuvai skirti AF bitų procesoriaus stiprintuvams papildyti galingais stiprintuvo kanalais.

  • Galia: 6 x 220 W @ 2Ω.
  • D-Klasės stiprintuvas.
  • Hi-Res Išplėsta garso juosta iki 40 kHz.
  • Lengvai poruojamas su kitais Audison stiprintuvais.





AF companion amplifiers are designed to add powerful amplifier channels to AF bit processor amplifiers. A plug-and-play signal input harness is included to make connection to AF bit amplifiers straightforward. AF companion amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso. AF companions have a “straight wire” architecture, without analog preamp functions such as crossover filtering, and are intended for use with external processors. AF M6D boasts six high-fidelity amplified channels 135W x 6 @4Ω*, 220W x 6 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 440W x 3 @4Ω*, guaranteeing flexible and powerful performance.*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

FEATURES

  • Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
  • Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 81% of efficiency
  • Hi-Res compatibility performance, with an extended audio band up to 40 kHz
  • Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs

TECHNOLOGIES

AF LINK CABLE

Enjoy the improved audio performance of the latest generation Audison D-Class technology.

 AF LINK CABLE

Maximum versatility thanks to the bridging option for each pair of channels.

 AF LINK CABLE

Extended audio band up to 40 kHz.

 AF LINK CABLE

Universal Speaker Simulator technology on high-level inputs for maximum compatibility with any type of Head-Unit OEM Source.



SPECIFIKACIJOS

AMPLIFIER TECH DATA

Channels 6
Class D-Class
Efficiency 81 %
Hi Level Input Yes
Low Level Input Yes
Digital Input No
Power supply voltage / fuse 11 ÷ 15 VDC
Operating power supply voltage 6.5 ÷ 17.5 VDC
Idling current 1 A
Idling current when off 0.009 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power 60 A
Remote OUT 6.5 ÷15 VDC (150 mA)
Remote IN 4 ÷15 VDC (1 mA)
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) 1.5 VDC

AMPLIFIER STAGE

Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.04%
Bandwidth A (-3 dB, 2 VRMS, 4 Ω): 10 Hz ÷ 42 kHz
S/N ratio A (A weighted @ 1 V): 103 dBA
Damping factor A (100 Hz, 4Ω, 2 VRMS): 160
Input sensitivity Pre-In 0.6 ÷ 6 VRMS
Input sensitivity Speaker-In 2.2 ÷ 22 VRMS
Total Power RMS 1320 W
Minimum load impedance 6 Ch 2Ω
3 Ch - (Bridge) 4Ω
Output Power (RMS) @14.4 VDC, 1% THD 6 Ch @ 4Ω: 135 W x 6

6 Ch @ 2Ω: 220 W x 6

3Ch (Bridge 1/2; 3/4; 5/6) @ 4Ω: 440 W x 3
Adjustable Crossover No

CEA SPECIFICATIONS

Output power @ 4Ω, 1% THD+N, 14.4 V 130 W x 6
SN ratio (ref. 1W output) 80

INPUTS

Input Type Pre-In / Speaker-In
Remote Sub Volume ±12 dB

OTHER

Fuse 2 x 35A
Weight 1.95 kg

DIMENSIONS

Dimension A 240 mm
Dimension B 156 mm
Dimension C 47 mm

INSTRUKCIJOS

User Manual (EN).
