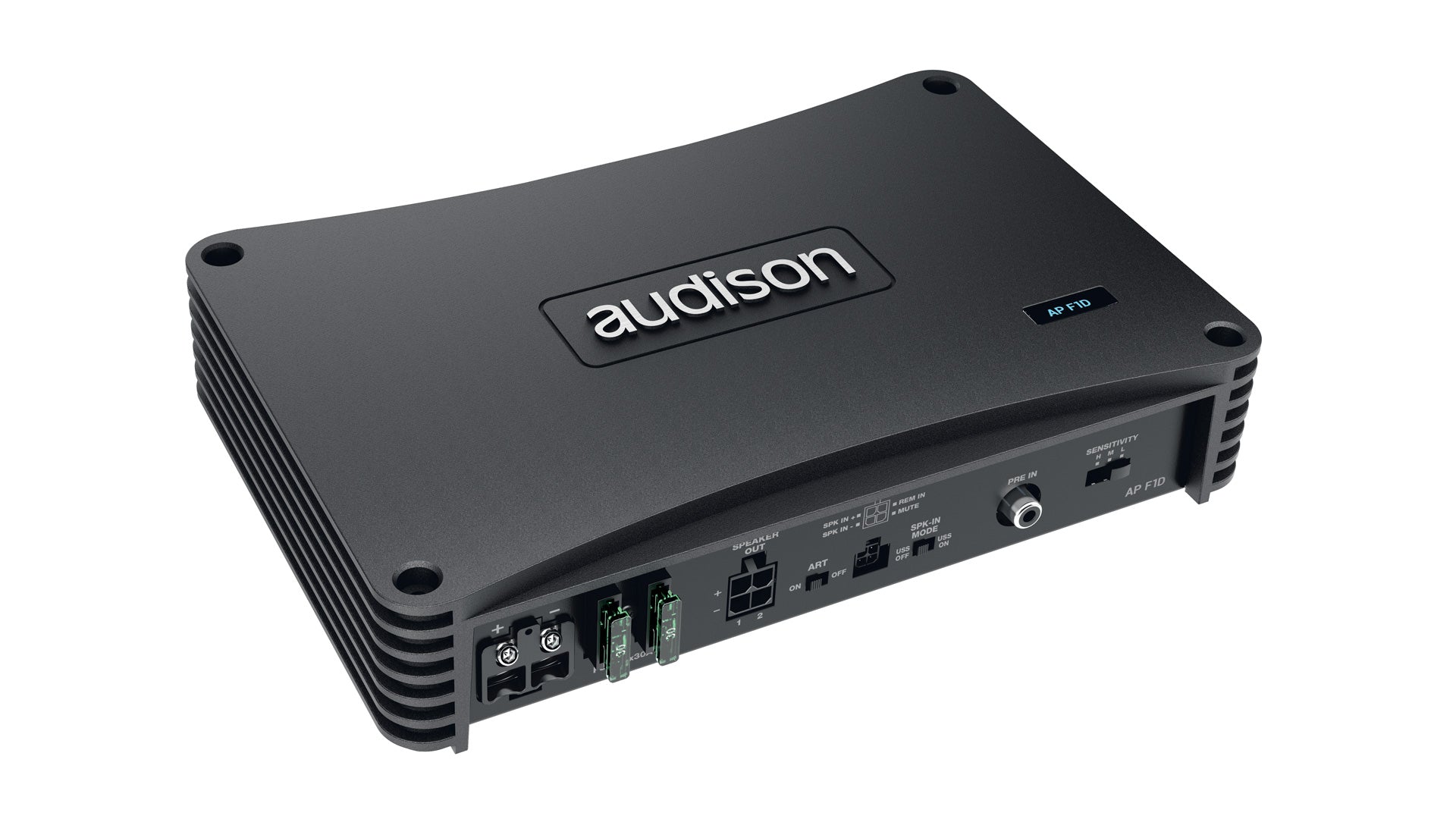

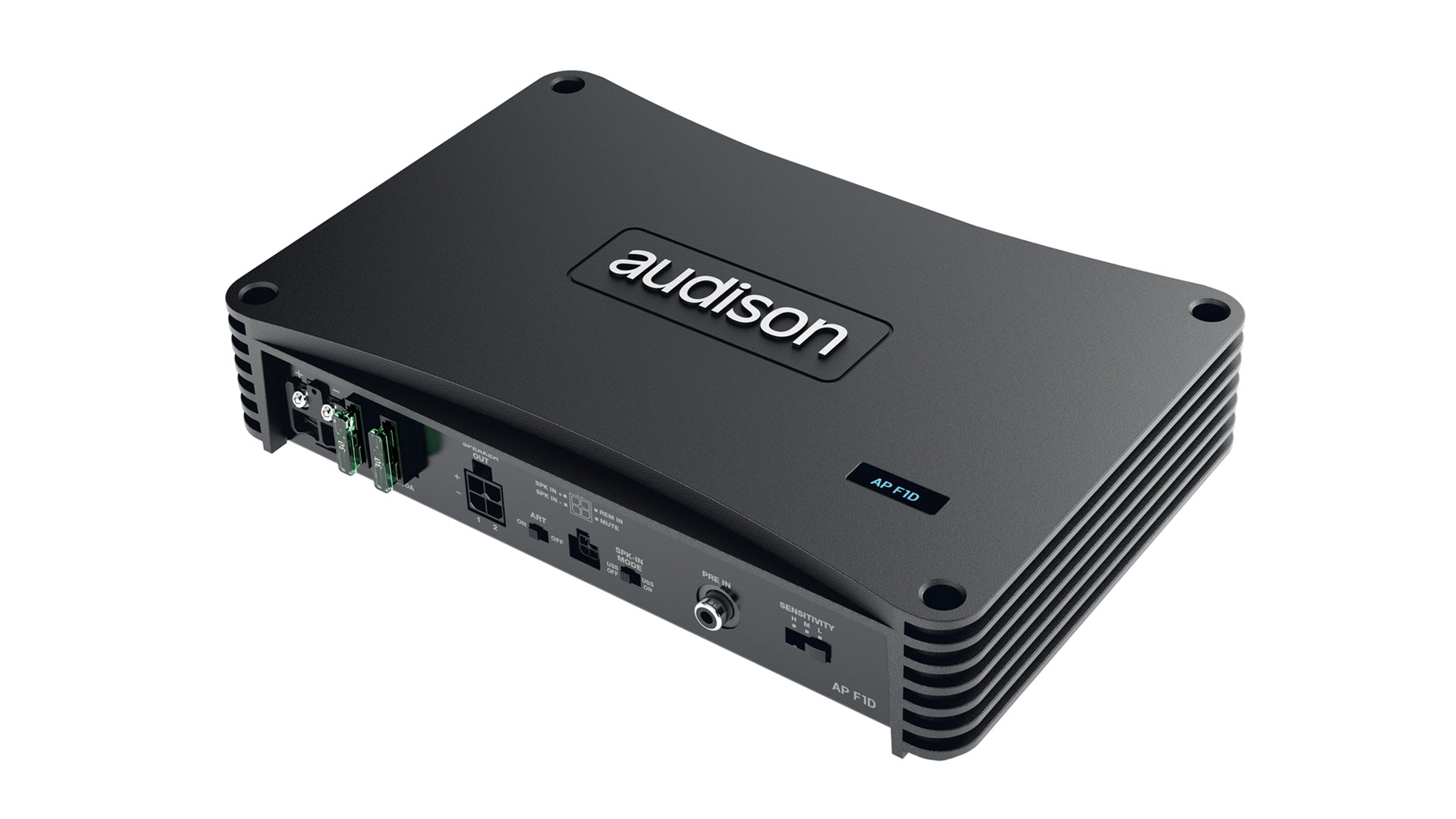

Audison AP F1D, Automobilinis Mono garso stiprintuvas

Audison AP F1D, Automobilinis Mono garso stiprintuvas

AP F1D stiprintuvas buvo sukurtas reikliausiems žemųjų dažnių garsiakalbiams ir yra idealus AP F8.9 bitų išplėtimas.

• Galia: 1000W.
• Pralaidumas: @ -3 dB 10 Hz ÷ 500 Hz.
• Iškraipymai - THD @ 100 Hz, 4Ω, 70 % nurodytos galios.
• Varža: 1 Omas.

The AP F1D amplifier was designed to drive the most demanding subwoofer and is the ideal extension of the AP F8.9 bit. At 1 Ohms it is stable and can supply up to 1000 W of power with extremely compact dimension.

SPECIFIKACIJOS

• Power supply voltage / fuse 11 ÷ 15 VDC / 2 x 30A
• Operating power supply voltage 6.5 ÷ 17
• VDC Idling current 1.3 A
• Idling current when off 0.05 mA
• Consumption @ 14.4 VDC, 2Ω,
• Max Musical Power 50 A Remote IN 6.5 ÷ 15 VDC (1 mA)
• ART - Automatic Remote Turn on/off from
• OUTPUT BTL speakers (Selectable) 2 ÷ 7 VDC
• Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.1%
• Damping factor @ 100 Hz, 4Ω, 2 VRMS 140
• Bandwidth @ -3 dB 10 Hz ÷ 500 Hz
• S/N ratio (A weighted @ 1 V Input) 110 dBA
• Input sensitivity Pre-In Selectable: 0.6 - 2.0 - 6.0 VRMS
• Input sensitivity Speaker-In Selectable: 2.0 - 6.5 - 20 VRMS
• Minimum load impedance 1Ω

OUTPUT POWER (RMS) @14.4 VDC, 1% THD:

• 1Ch @ 4Ω 500 W x 1
• 1Ch @ 2Ω 800 W x 1
• 1Ch @ 1Ω 1000 W x 1

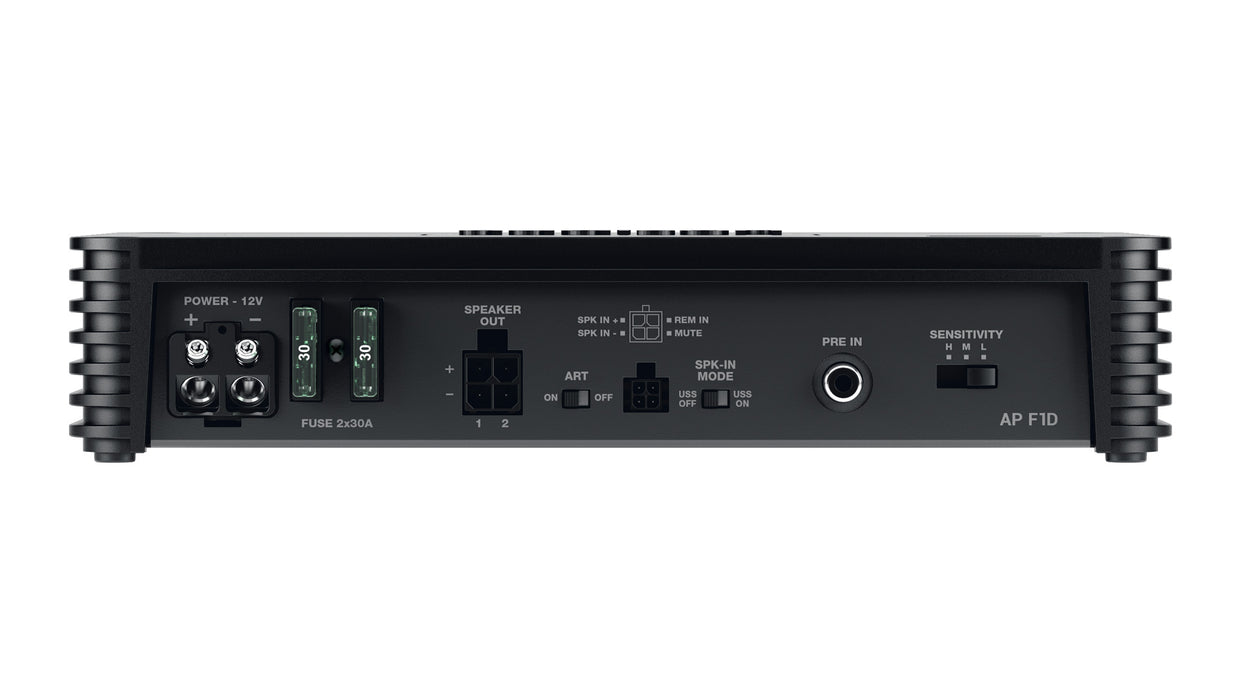

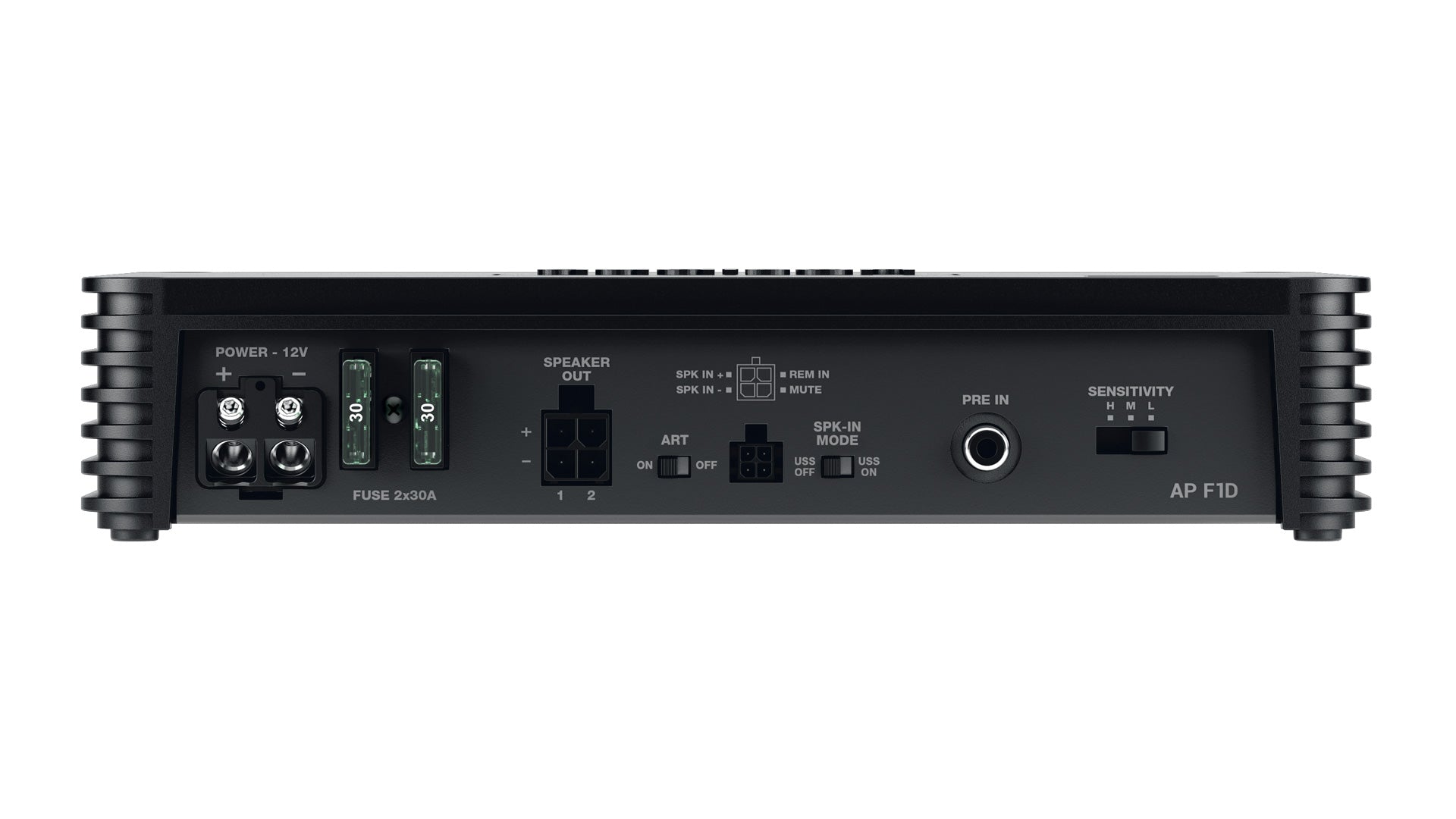

• Pre-In Inputs RCA
• Speaker-In Inputs wired Mute (Energy Saving control) wired (active to groung)
• Ambient operating temperature range 0 °C to 55 °C (32 °F to 131 °F)
• SIZE Max size W x H x D (mm/inch) 238 x 49.5 x 155 / 9.37 x 1.95 x 6.1
• Weight (kg/lbs) 1,92 / 4.23

INSTRUKCIJOS

User Manual (EN).
