Audison AV Quattro, automobilinis garso stiprintuvas

Name: Audison AV Quattro, automobilinis garso stiprintuvas
Brand: Audison
SKU: 66735210
Price: 910.0 EUR
Availability: InStock

"AV quattro" yra keturių kanalų stiprintuvas, kuris gali veikti keturių, trijų ir dviejų kanalų režimu.

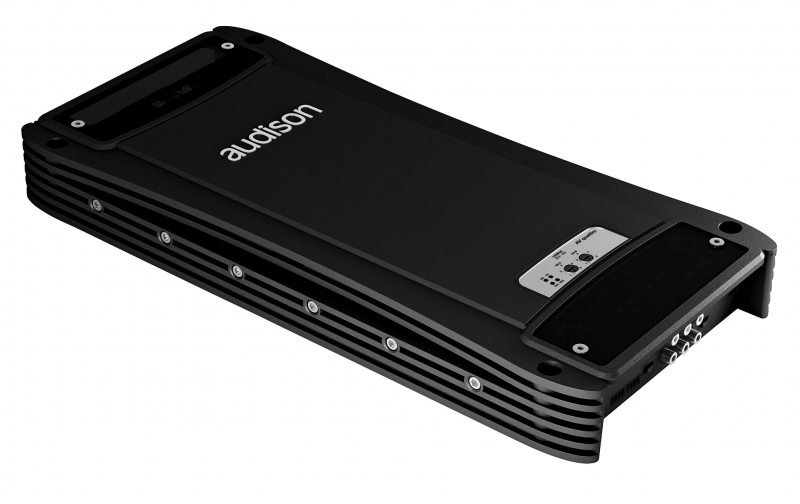

Audison AV Quattro, automobilinis garso stiprintuvas

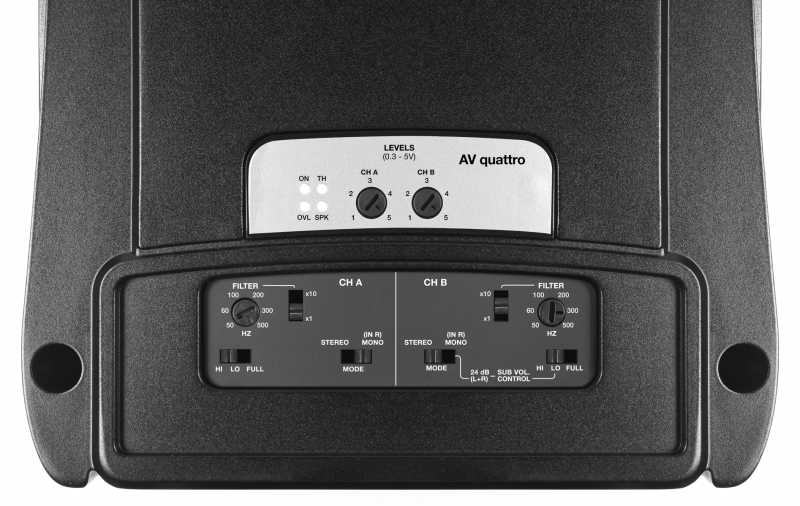

Audison AV Quattro, automobilinis garso stiprintuvas- valdymas

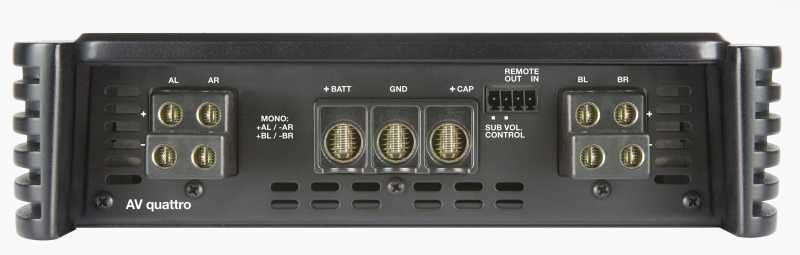

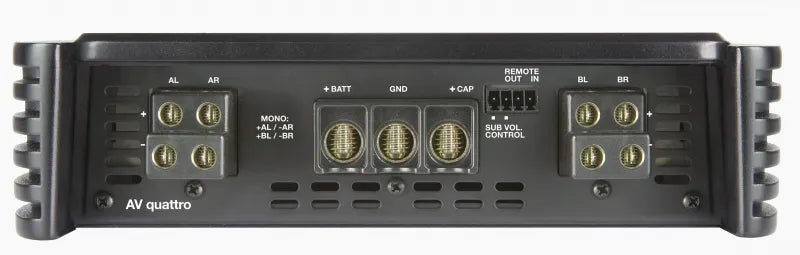

Audison AV Quattro, automobilinis garso stiprintuvas- šonas

local_shipping

Nemokamas pristatymasvisoje Lietuvoje nuo €100+

check_circle_outline highlight_off

Yra prekyboje Išparduota

Kiekis

Kaina: 910.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Pagrindinė info
APRAŠYMAS
TECHNINIAI DUOMENYS
DOKUMENTAI
KOMENTARAI

Audison AV Quattro, automobilinis garso stiprintuvas

"AV quattro" yra keturių kanalų stiprintuvas, kuris gali veikti keturių, trijų ir dviejų kanalų režimu.

Galia: 4 x 120W @ 4Ω.
Iškraipymai - THD (1kHz @ 4Ω): 0,04 %.
Pralaidumas: (-3 dB): 4 ÷ 60k Hz.

AV quattro is a four-channel amplifier which can work in four, three, two channel mode, delivering 1700 W (RMS) power total.
It is designed to handle complex configurations as front/rear and multi-channel systems. AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different coloured LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn’t available from the source; up to 24 dB/Oct. slope crossovers allow to build front-rear, front-sub or multi-amplified systems while still ensuring a non-filtered output signal to expand the system.

Hi-Res audio

According to the definition of HiRes audio provided by JAS (Japan Audio Society - jas-audio.or.jp), Voce amplifiers exceed the above 40 kHz bandwith analog requirement, providing an astonishing 4 ÷ 60k Hz (@ -3 dB, 2 VRMS, 4 Ω).

Specifikacijos

SPECIFIKACIJOS

POWER SUPPLY

Power supply voltage: 11 ÷ 15 VDC
Idling current: 1.8 A
Idling current when off: 0.02 mA
Consumption @ 14.4 VDC (Max Musical Power): 55 A

AMPLIFIER STAGE

Distortion - THD (1kHz @ 4Ω): 0.04 %
Bandwidth (-3 dB): 4 ÷ 60k Hz
S/N ratio (A weighted @ 1V): 100 dBA
Damping factor (1k Hz @ 4Ω): 100
Input sensitivity: 0.3 ÷ 5 V RMS
Input impedance: 15k Ω
Speaker-In sensitivity: 1.4 ÷ 24 V RMS
Speaker-In impedance: 5k Ω
Minimum load impedance: 2Ω
NOMINAL POWER (RMS) @ 12 VDC, THD 0.3%, 4Ω:
100 W
OUTPUT POWER (RMS) @ 14.4 VDC,THD 1%:
4 Ch: 120 W x 4 (4Ω)
4 Ch: 200 W x 4 (2Ω)
4 Ch: 120 W x 2 (4Ω) + 200 W x 2 (2Ω)
3 Ch: 120 W x 2 (4Ω) + 400 W x 1 (4Ω)
3 Ch: 200 W x 2 (2Ω) + 400 W x 1 (4Ω)
2 Ch: 400 W x 1 (4Ω) + 400 W x 1 (4Ω)

SIGNALS INPUTS / FILTERS

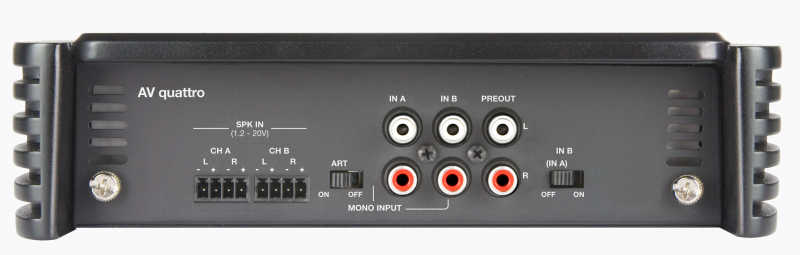

Inputs: Pre IN / Speakers IN
Outputs: Pre OUT Full Range
A Ch & B Ch Filters (Full / Hi-Pass / Lo-Pass):
50 ÷ 50k Hz (2 range) @ 12 dB/Oct.
B Ch Filter (Lo-Pass 24 dB mono):
50 ÷ 500 Hz @ 24 dB/Oct.

OTHER FUNCTIONS

Remote IN: 7 ÷ 15 VDC - 1mA
Remote OUT: 12 VDC - 50mA
Fuse (Strip type): 60 A
Remote SUB volume adj. (B Ch Lo-Pass 24 dB):
(-50 ÷ 6) dB
Speakers IN Turn-on (ART): Selectable

DIMENSIONS:

Max size (mm/inches): 220 x 470 x 58 / 8,66” x 18,50” x 2,28”

INSTRUKCIJOS

User Manual (EN).
