Audison B-CON, Hi-Res Bluetooth imtuvas

"Audison B-CON" yra vienintelis automobiliams skirtas "Bluetooth 5.0®" imtuvas, gavęs JAS (Japonijos garso draugijos) sertifikatą.

check_circle_outline
Užsakoma prekė
Nuolaida: 235.00 €
Kaina: 235.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Audison B-CON, Hi-Res Bluetooth imtuvas

"Audison B-CON" yra vienintelis automobiliams skirtas "Bluetooth 5.0®" imtuvas, gavęs JAS (Japonijos garso draugijos) sertifikatą.

  • Bluetooth 5.0 + EDR
  • Kodekai: LDAC, AAC, SBC.
  • Profilis: Bluetooth A2DP 1.3, AVRCP 1.6.

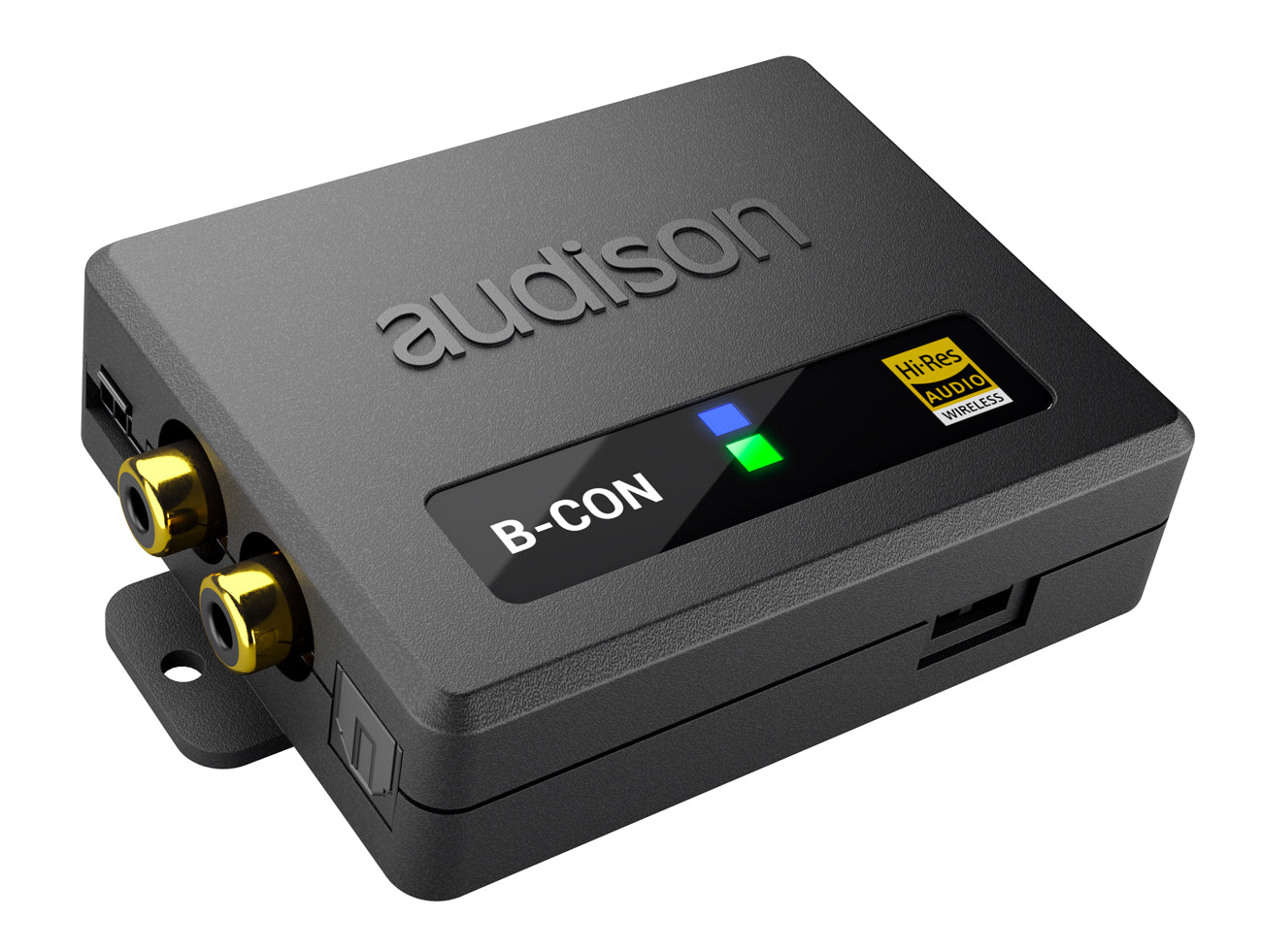

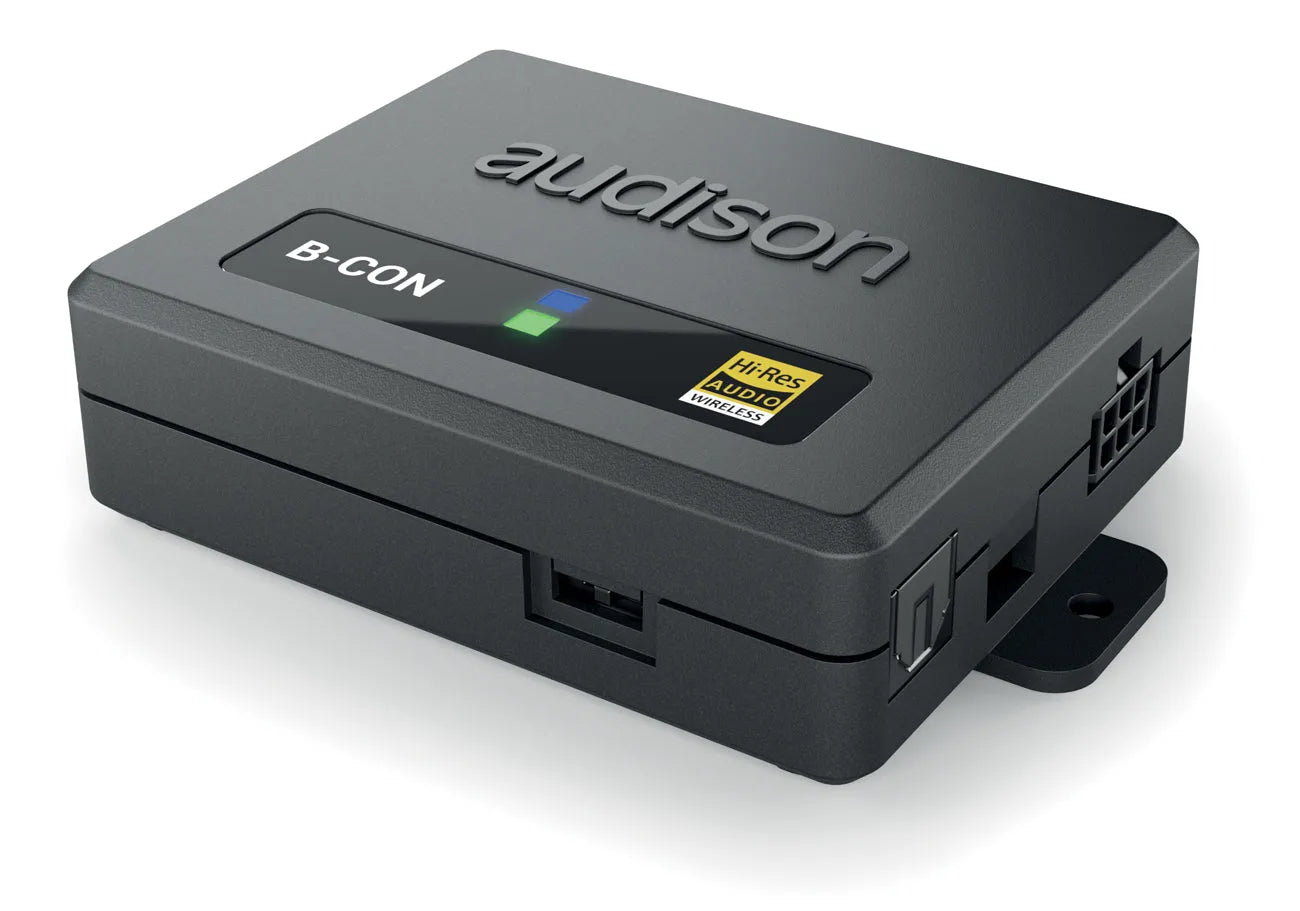

The Audison B-CON is the only Bluetooth 5.0® receiver designed for automotive use that has obtained the “Hi-Res audio wireless” certification from JAS (Japan Audio Society). B-CON is the ideal choice for streaming audio from a Hi-Res player (FIIO, Sony Walkman…) and from the latest generation Android/Apple mobile devices, fully supporting the car’s Hands-Free Bluetooth profile.

B-CON is compatible with all audio formats and reaches maximum performance with uncompressed BT streaming (max 96kHz / 24bit, only with Android LDAC devices), both playing local files and with Apps that provide Hi-Res streaming (Tidal, Qobuz…)

Full DA HD

Pure digital signal transfer with a resolution up to 24 bit / 96 kHz

Hi-Res audio

According to the definition of HiRes audio provided by JAS (Japan Audio Society - jas-audio.or.jp), B-CON achieves the 24 bit / 96 kHz digital to analog conversion processing requirement.

SPECIFIKACIJOS

POWER SUPPLY
Voltage: 6 ÷ 24 VDC
Idling current: 70 mA @ 12 V
Remote IN voltage: 3 ÷ 12 VDC (0.5 mA)
+ 12 Remote IN voltage:/td> 6 ÷ 12 VDC (70 mA)
USB Micro 5 V (500 mA)
BLUETOOTH
Type: Bluetooth 5.0 + EDR
Codec: LDAC, AAC, SBC
Profile: Bluetooth A2DP 1.3, AVRCP 1.6
INPUT
Optical digital: S/PDIF Optical (Max 24 bit/192 kHz)
INPUT/ OUTPUT MANAGEMENT
Digital IN delay switch: 1 sec.
Power Connector: AUX SEL wire, MASTER ENABLE wire
ADC: Serial RS232, to manage other Audison devices that support this standard
Mode Switch: Absolute volume ON/OFF, upgrade mode
OUTPUT
Optical digital: From Optical input: 24 bit/192 kHz
From Streaming Bluetooth: 24 bit 96 kHz max.
Analog: Bandwith (MAX) 20 ÷ 48 kHz
Output Level 2 VRMS
Distortion – THD @1 kHz, 1 VRMS 0.003%
S/N RATIO (A weighted) 100 dBA
SIZE
W x H x D mm / In. 90 x 60,4 x 23 / 3.54 x 2.38 x 0.91
Weight 0,054 / 0.119



INSTRUKCIJOS

User Manual (EN).
