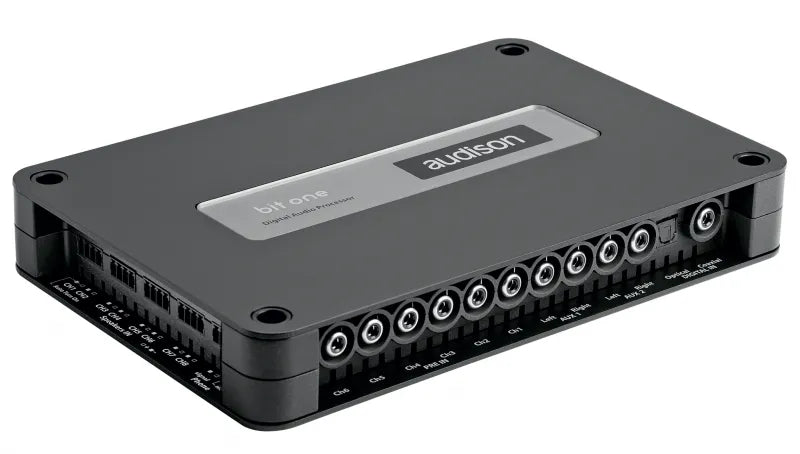

Audison bit One.1, automobilinis skaitmeninio signalo procesorius

Name: Audison bit One.1, automobilinis skaitmeninio signalo procesorius
Brand: Audison
Price: 1221.0 EUR
Availability: InStock

1,221.00 €

Audison bit One.1, automobilinis skaitmeninio signalo procesorius - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

INFORMACIJA
APRAŠYMAS
TECHNINIAI DUOMENYS
DOKUMENTAI

INFORMACIJA

Nepaisant kompaktiško dydžio, "bit One" turi galingą 266 MHz / 32 bitų slankiojo kablelio DSP mikroprocesorių, veikiantį realiuoju laiku ir atliekantį visas išsamiausių sistemų funkcijas.

Kanalai: 8.
DE-EQ technologija.
BIT Drive technologija.
Full DA technologija.

APRAŠYMAS

Despite its compact size, the bit One is equipped with a powerful 266 MHz / 32 bit floating point DSP microprocessor, working in real time on all the functions of the most complete systems. Managed and configured by a simple and intuitive computer software, it is possible to make adjustments to improve the signal through each phase of its path; from input to output.Eight input channels for four different signal typologies (amplified, pre-amplified, coaxial electric and TOSLINK optical digital) and six different sources managed through a remote control, making the bit One a unique interface suitable for any need.Eight analog and/or digital output channels ensure a wide expandability for any audio system configuration.

TECHNINIAI DUOMENYS

SPECIFIKACIJOS

AMPLIFIER TECH DATA

Nominal power supply voltage / Fuse	11 ÷ 15 VDC
Channels	8
Sample Rate	24 bit / 48 kHz
Hi Level Inputs	8
Low Level Inputs	8
Digital Inputs	2
Processing Method	Floating point
Idling current	0.45 A
Switched off without DRC MP	< 0.5 mA
Switched off with DRC MP	< 1.8 mA
Remote IN	7 ÷ 15 VDC (1.3 mA)
Remote OUT	12 VDC (130 mA)

SIGNAL STAGE

Distortion - THD @ 1 kHz, 1 VRMS Output	0.002 %
Bandwidth @ -3 dB	4.5 ÷ 21k Hz
S/N ratio @ A weighted, 4 V Output, 2 V AUX input	102 dBA
Channel Separation @ 1 kHz	77 dB
Max Output Level 0.1% THD	4 V RMS

INPUT STAGE

Low level (Pre)	Ch 1 ÷ Ch 6, AUX1 L/R, AUX2 L/R
High Level (Speaker In)	Ch 1 ÷ Ch 8, Phone In

CROSSOVER

Filter type	Selectable; Hi-pass, Lo-pass, Bandpass, Full Range
Filter mode and slope	Full / Hi-Pass / Low Pass / Band Pass

TIME ALIGNMENT

Delay

0 ÷ 22 ms in 0,02 ms steps (748 cm / 294.5 in.)

GENERAL REQUIREMENTS

PC connections	USB /B (2.0)
PC OS	Windows (Win 2000, XP, Vista, 7)
Video Resolution with screen resize	1024 x 768 px min.

DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).
