blueLOGiC & mObridge BTR-100, Bluetooth modulis

A2DP Bluetooth Audio modulis su 2 x RCA jungtimis.

• Sensorius: 1/4 CMOS.
• Matymo kampas: 140 laipsniai.
• Atsparumo standartas IP68.
• Video RCA jungtis.

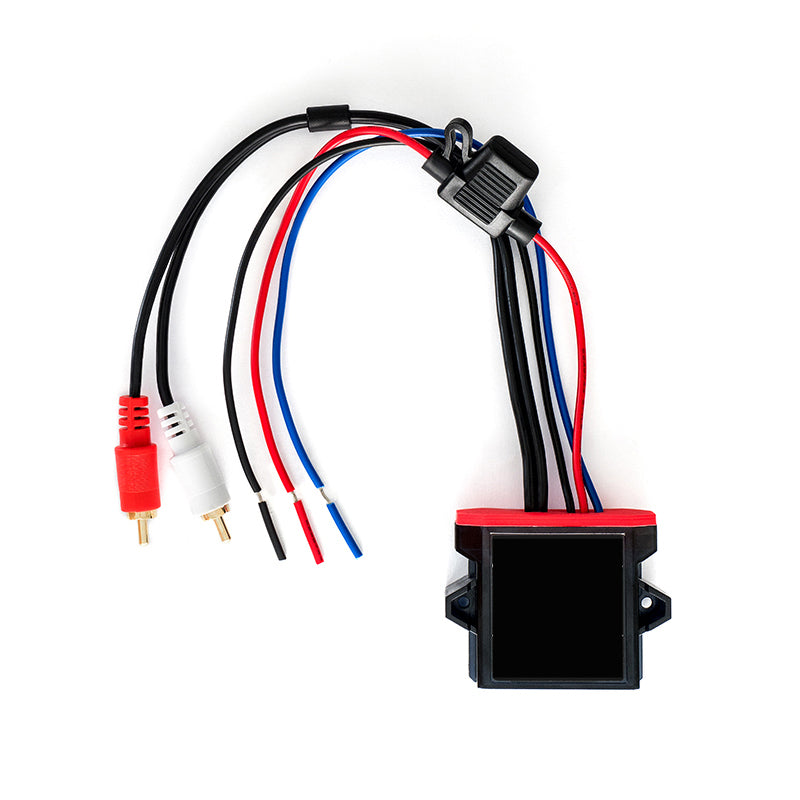

A2DP Bluetooth Audio receiver with 2x RCA-connector for connection to the factory AUX input. Suitable for vehicles and boats with 12 Volt on-board power supply.

Product features

• Connection of up to 9 devices (automatic connection to the last device)
• Splashproof, Marine certified
• Automatic switch-on
• Automatic remote output
• QDL licensed Bluetooth 4.0 CRS I9chip
• A2DP in highest EDR specification
• BT Audio Streaming also to lossless files like Wave, Flac, Lossless, etc.
• RCA output with 1.0V signal output

Connections

• Remote output +12V/20mA, powered during the music playback
• +12V ignition (ACC), Fuse 2A
• Ground
• 2x Male RCA connector

Specifications

• Power +12V DC
• Current consumption 40mA max
• Bluetooth 4.0
• Frequency range 20Hz-20kHz
• Output level 1V RMS
