BOWERS & WILKINS CCM8.5 D, į lubas montuojama garso kolonėlė

BOWERS & WILKINS CCM8.5 D, į lubas montuojama garso kolonėlė

2-jų juostų į lubas montuojamas garsiakalbis. Prekės ženklo kokybę pateisinantis garsas įtrauks, net visko mačiusius audiofilus.

• Galia: 120W.
• Dažnių juosta: (-6dB) 35Hz - 40kHz
• Jautrumas: 88 dB.
• Varža: 8 omai.

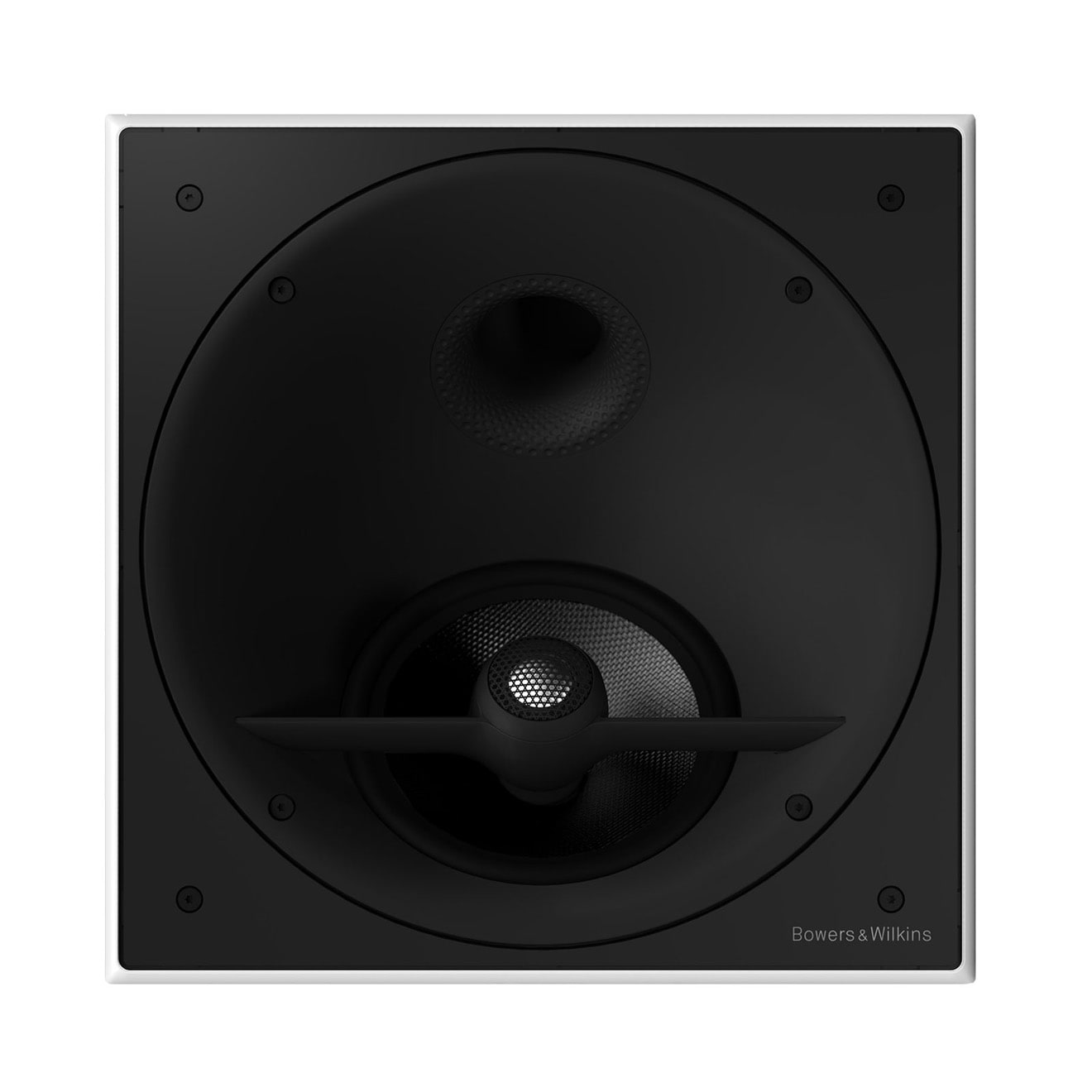

CCM8.5 D is a two-way in-ceiling loudspeaker which offers high-quality acoustics in an incredibly discreet package. It features a decoupled Diamond dome tweeter and a single 7inch bass/midrange Continuum driver with anti-resonance plug. All the drive units are located in a rotatable mini-baffle which allows the user to ‘toe in’ the drive units of the loudspeaker for the best performance. For optimum discretion when installed, the Continuum cone is given a dark finish.

SPECIFIKACIJOS

• Description 2-way in-ceiling loudspeaker
• Drive Units 1x 25mm (1in) Aluminium Carbon BracedTweeter with Nautilus Tube Aluminium Tweeter ‘wing’ allows time alignment
• 1x 180mm (7in) woven blue Kevlar cone bass/midrange driver with anti-resonance plug Continuously rotatable mini-baffle allows “toe-in” Flowport
• Frequency range (-6dB) 35Hz - 40kHz
• Power handling 120W
• Sensitivity 88dB
• Impedance 8(minimum 3.3)
• Frame outer 351mm x 351mm (13.8in x 13.8in)
• Cut-out 331mm x 331mm (13in x 13in)
• Cut-out allowance 8mm (0.31in)
• Protrusion 8mm (0.31in)
• Back box 701mm x 343mm x 177mm (27.6in x 13.5in x 6.9in)

User Manual (EN).
