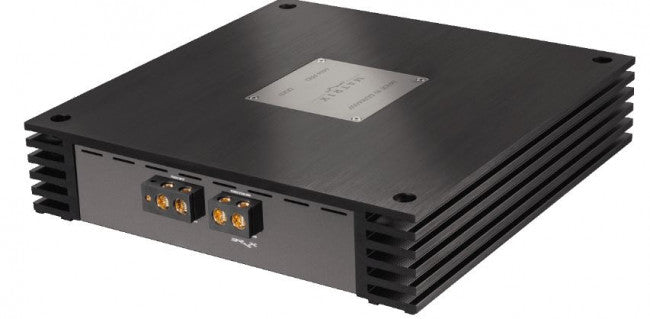

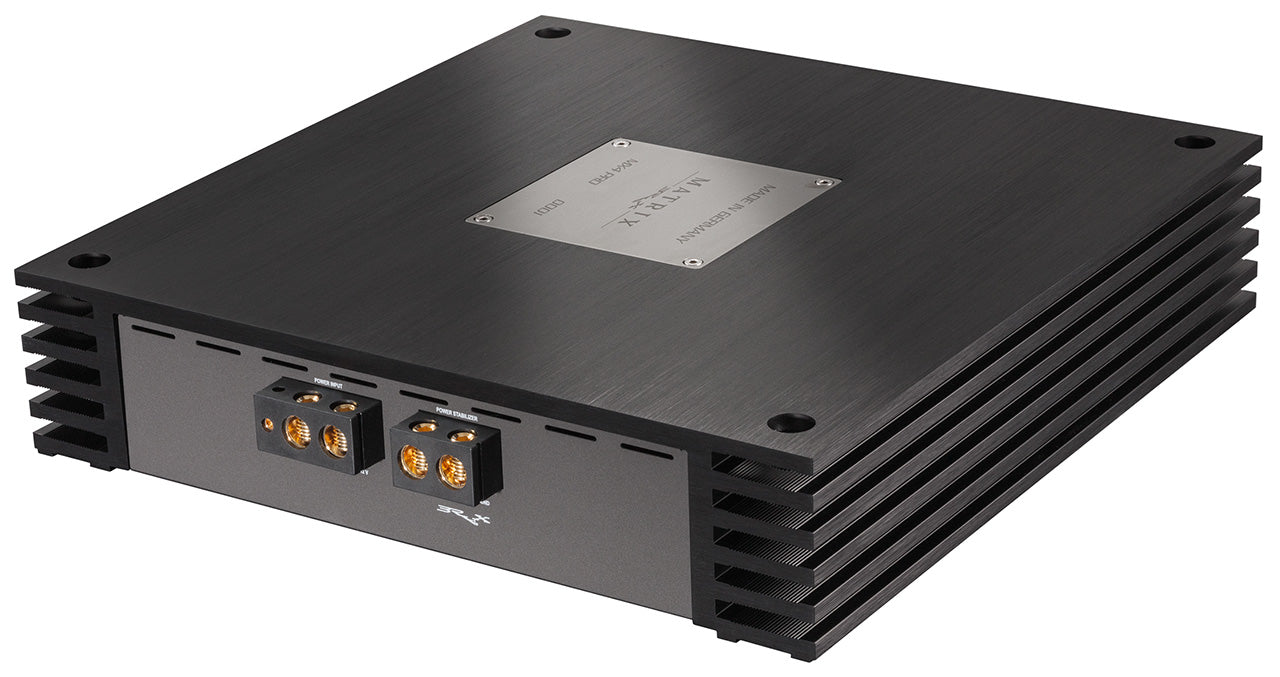

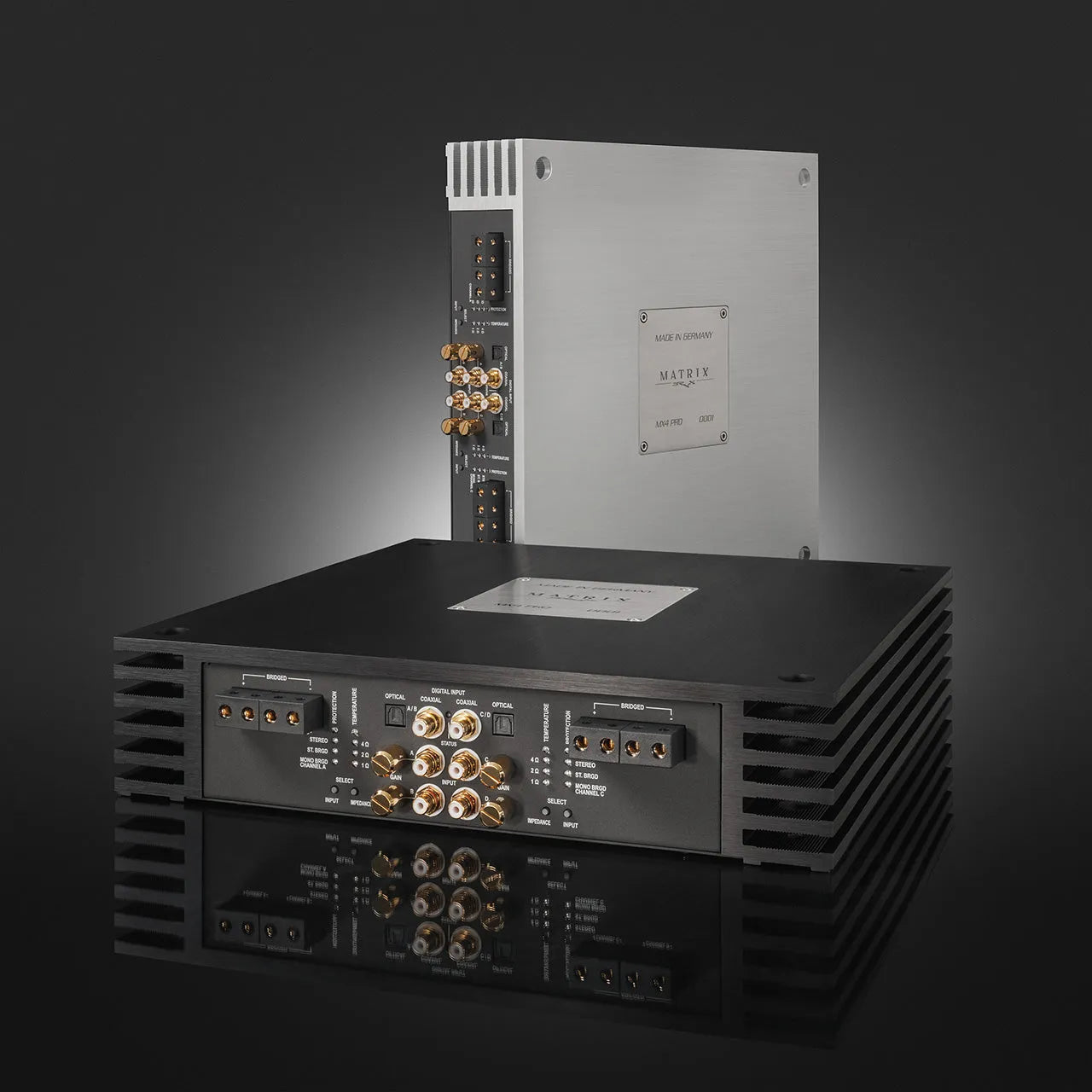

BRAX MX4 PRO, automobilinis stiprintuvas 2x600W

INFORMACIJA

Iš naujo ribas apibrėžiantis BRAX MX4 PRO stiprintuvas pakelia stiprintuvų lyderio kartelę dar aukščiau!

• Galia: 1200W.
• Dažnių juosta 10 Hz - 80 kHz.
• AB klasės stiprintuvas.
• RCA / Cinch 1.0 - 8.0 V.

APRAŠYMAS

Can the world's best amplifier be made even better? Our engineers faced this enormous challenge when developing the MX4 PRO. Because at the level of a BRAX product, every detail must be constantly scrutinized and optimized, even if it seems insignificant at first glance. Only in this way is it possible to continually push the boundaries – both in terms of sound and technology. Ultimately, we have succeeded in redefining the standards in amplifier construction with the MX4 PRO. It is the perfect symbiosis of state-of-the-art components and ingenious circuitry improvements, without neglecting the traditional virtues and traditions for which the BRAX brand enjoys the highest reputation worldwide.

It goes without saying that Audiotec Fischer is the only manufacturer ever to use exclusively hand-selected transistors in the production of every BRAX amplifier . These transistors are classified into over 300 classes using proprietary measuring instruments and then assembled accordingly. This unique process guarantees not only the smallest production tolerances, but above all, unique measurement and performance values.

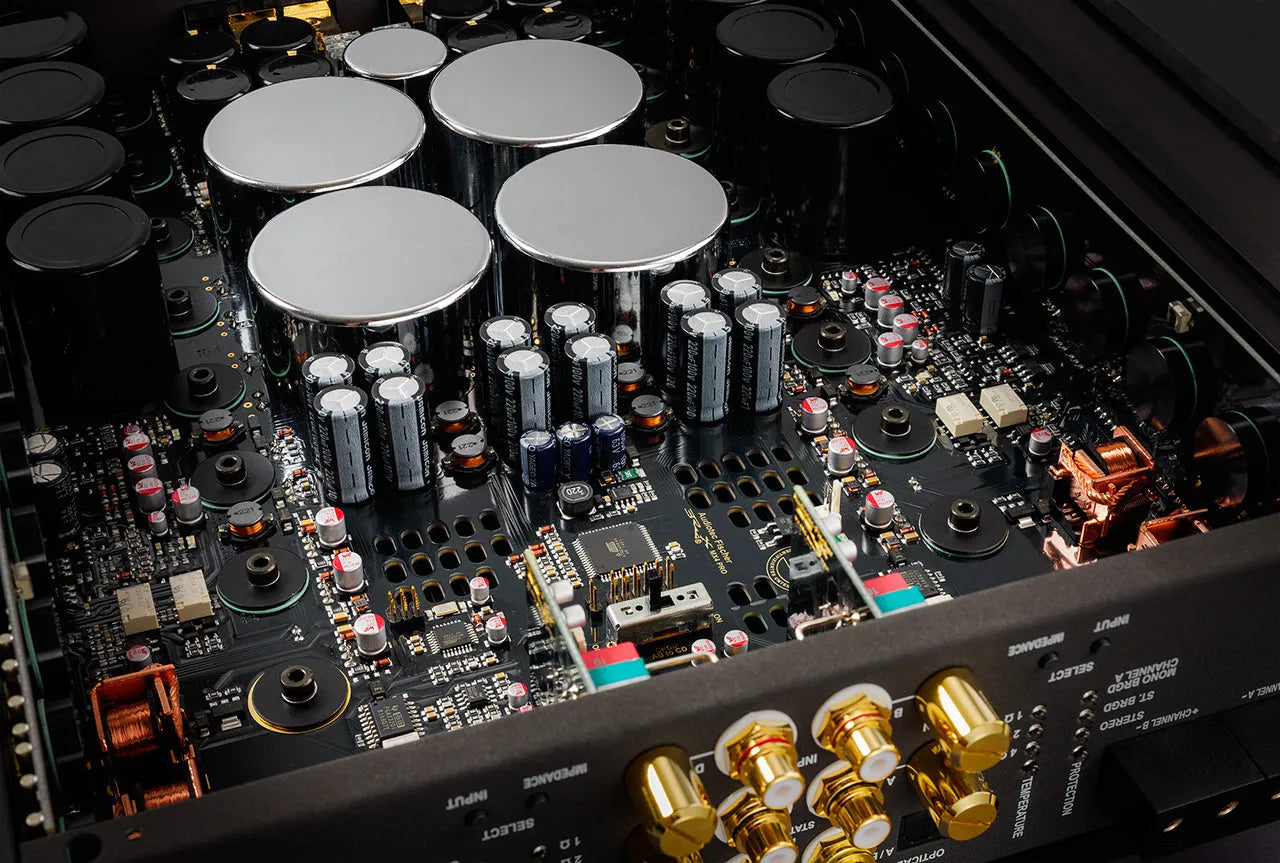

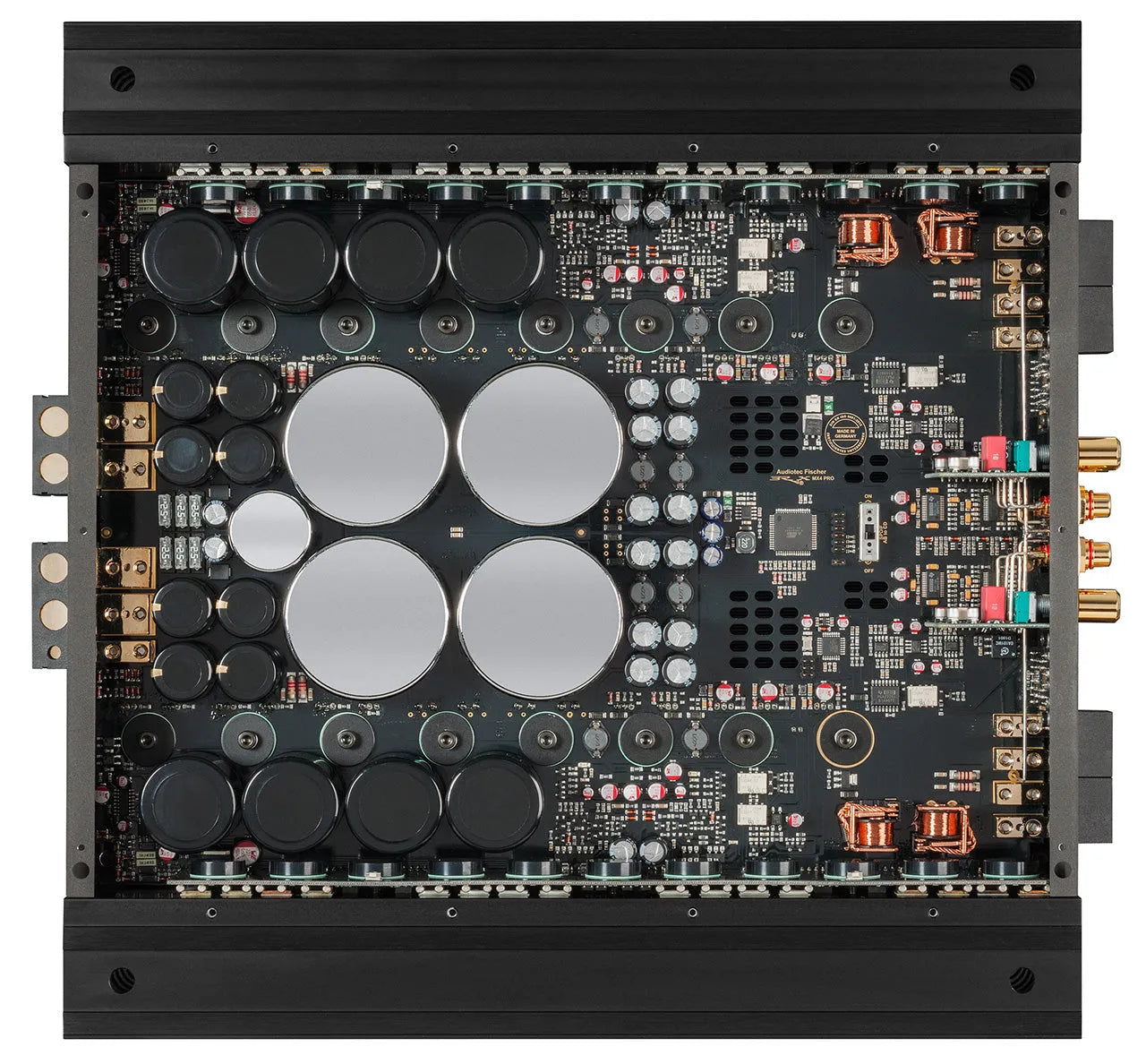

A significant contribution to the overall performance is also made by the enormous effort put into supplying power to all components. Separate and stabilized power supplies for two channels each guarantee optimal operating conditions for the individual amplifier stages. The electrolytic buffer capacitors, specially manufactured for Audiotec Fischer and featuring extremely low internal resistance thanks to 8-way contacting, are now just as legendary as the encapsulated high-performance toroidal transformers, which can deliver more than 1,800 watts of power. A completely redesigned circuit board layout with four solid copper layers ensures maximum power delivery capability – so it's no surprise that the MX4 PRO, with 4 x 300 watts RMS, can deliver even more power than ever at the speaker terminals.

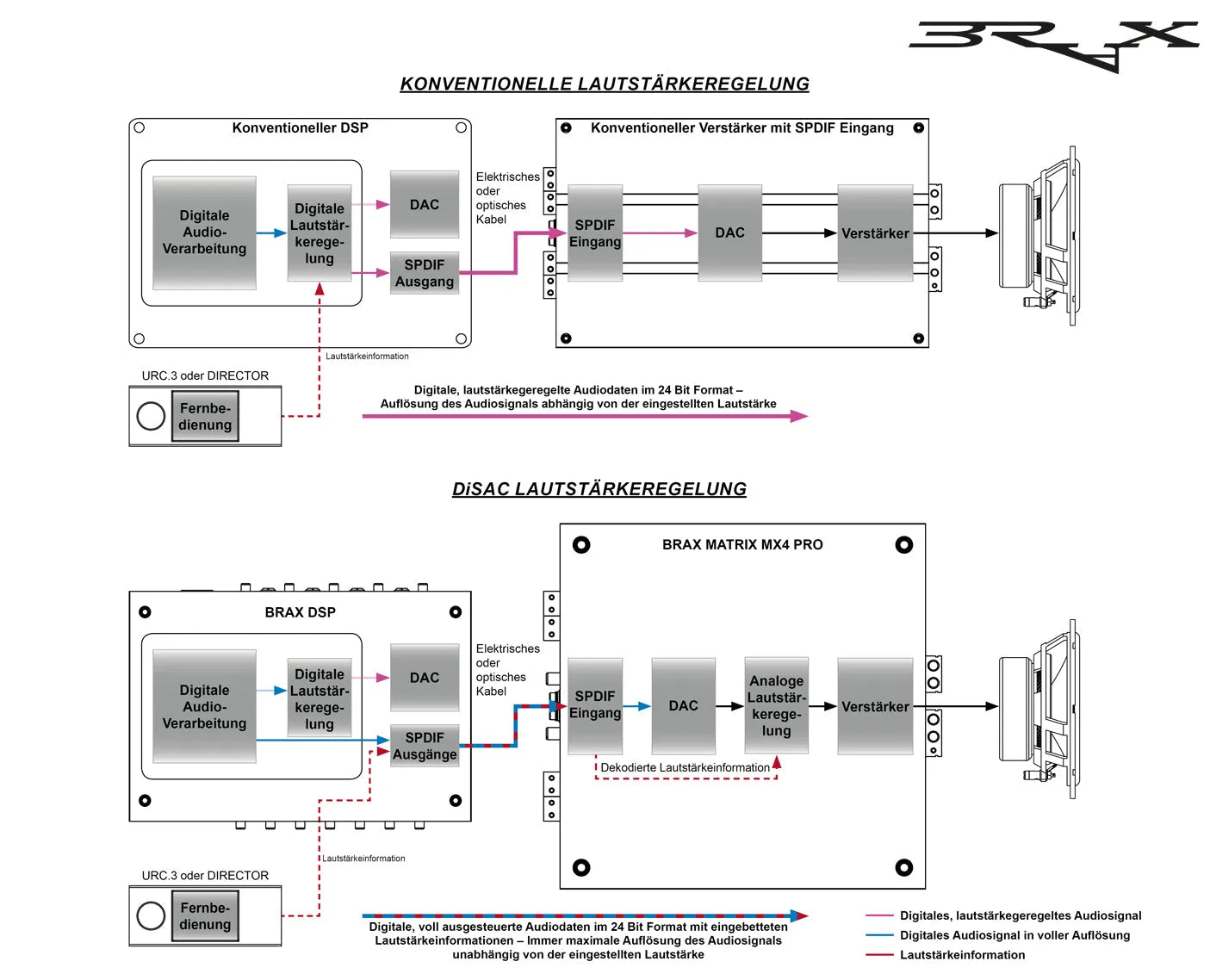

But that's not all – the MX4 PRO is also a prime example of bridging the gap between analog amplifier technology and the digital age. A previously unprecedented effort has been put into volume control of the digital signal inputs. In an absolute first in the car audio segment, in conjunction with the BRAX DSP, the signal level is controlled without reducing the digital resolution, only immediately before the output stages that drive the speakers, thus ensuring completely lossless analog signal quality. The BRAX DSP embeds the volume information in the digital SPDIF data stream and decodes it again in the MX4 PRO. This alone illustrates our engineers' striving for absolute perfection.

This meticulous attention to detail naturally extends to production. Each individual device is manufactured exclusively to order, individually tailored to the customer's specifications, and its serial number is recorded in a service database. This makes each amplifier truly unique, worthy of the "High-End Car HiFi Made in Germany" label.

SAVYBĖS

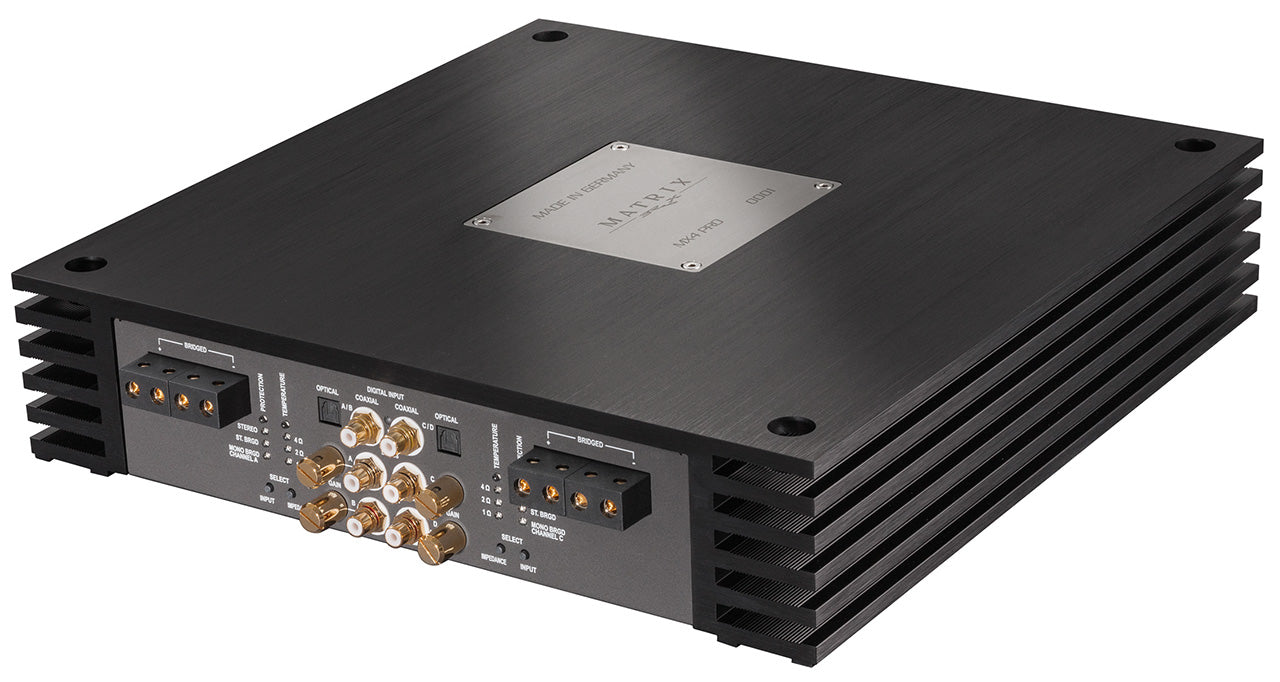

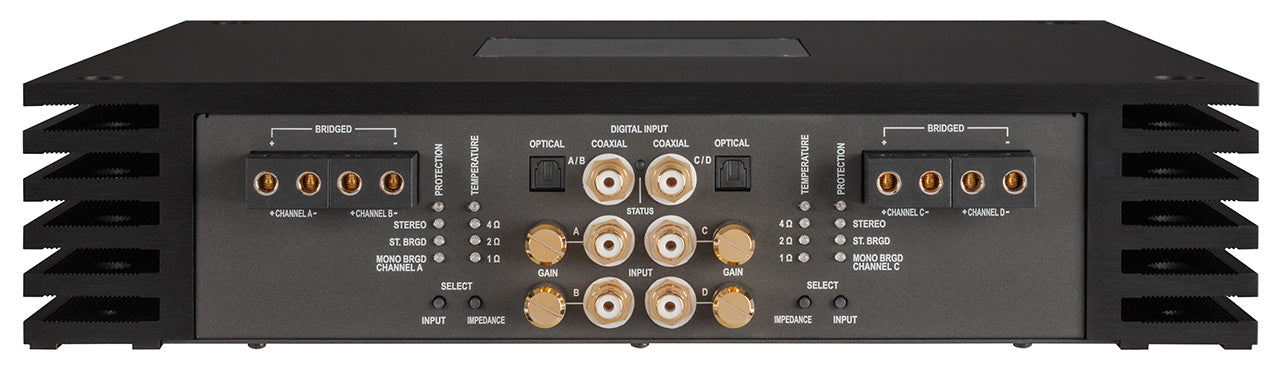

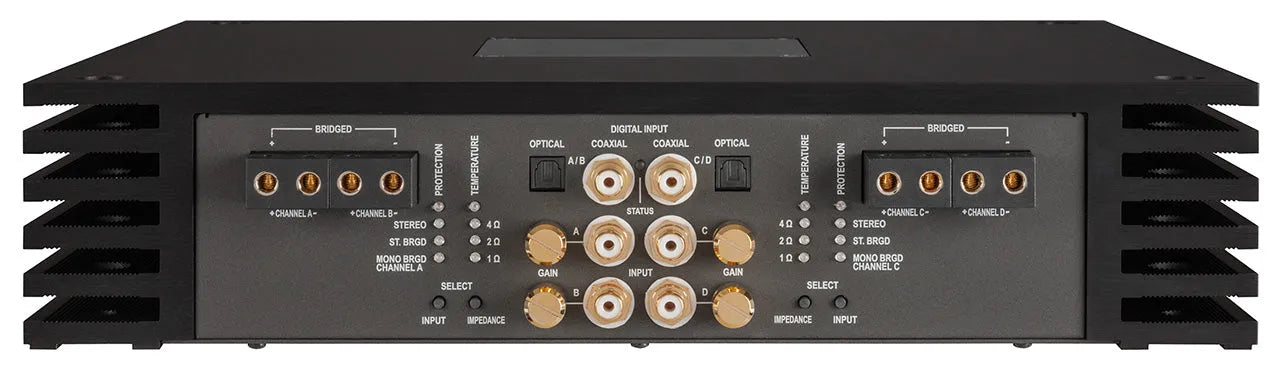

• Two digital stereo digital inputs in SPDIF format (optical and electrical) with a sampling rate up to 192 kHz
• DiSAC (Digital Signal Analog Controlled) volume control for the digital signal inputs, controllable via BRAX DSP
• Optimized quad-layer PCB design for maximized power and signal flow and increased output power
• Lossless switching of the input signals via relays with gold-plated contacts
• Best possible impulse response due to abstinence of coupling capacitors in the signal path
• Incredible damping factor of more than 1,400 @ 4 Ohms for perfect speaker control
• Maximized signal-to-noise ratio due to power supply synchronization
• Extremely complex and regulated switch-mode power supply
• Eightfold-contacted capacitors with a total capacitance of 40,000 μF and lowest possible ESR as well as a 300 A suppressor choke coil to smooth power supply peak currents

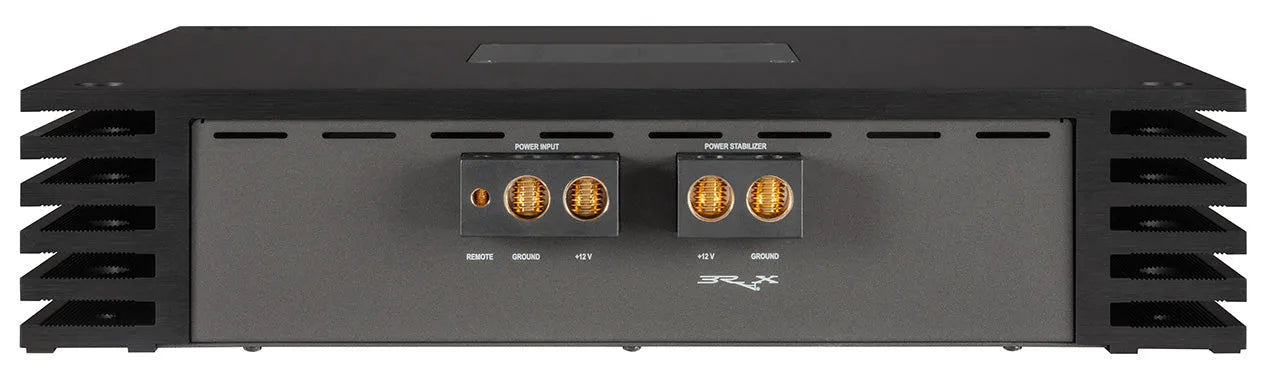

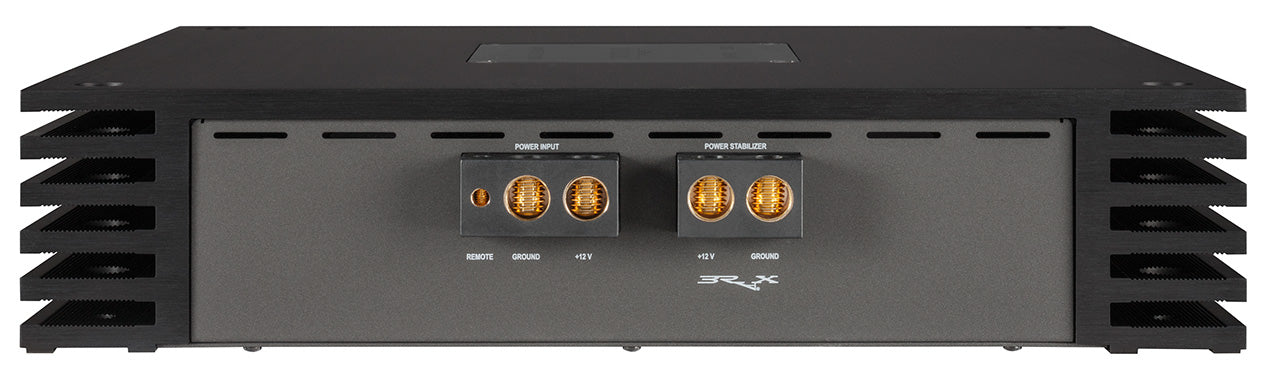

• Separate connector for BRAX power stabilizer
• Loudspeaker protection circuit via sophisticated high current power relays
• Specially designed toroidal transformers made of high permeability core materials for highest possible saturation currents
• 32 hand-selected high-end MOSFET transistors for lowest tolerances and outstanding measurement data
• Engraved serial number on a stainless steel plate
• Impedance independent output power of  300 Watts RMS per channel
• 4, 2 and 1 Ohms stable
• Processor and temperature controlled fan in bottom plate
• Massive heat sink made of a special aluminum alloy for optimum cooling of all power transistors

TECHNINIAI DUOMENYS

PAKUOTĖJE

• 1 x High-End Amplifier BRAX MATRIX MX4 PRO
• 1 x BRAX MATRIX T-shirt
• 3 x Allen key
• 1 x Certificate
• 1 x Hand-signed instruction manual

Naudotojo instrukcija / User manual.
