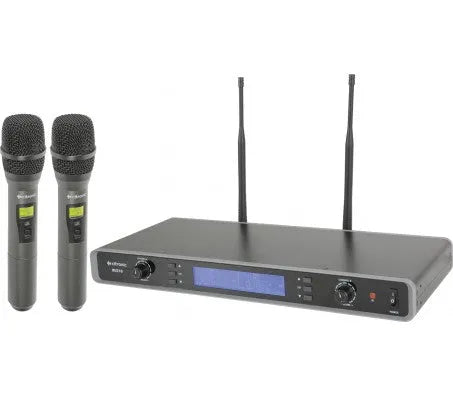

Citronic RU210H, UHF belaidžių mikrofonų sistema

Moderni belaidė UHF mikrofonų sistema Jūsų renginiams pagyvinti.

• Maitinimas:  12-18Vdc, 500mA (adapteris komplekte)

• Baterijos mikrofonams:  4 x AA (komplekte).

• Stoties dažnis:  863 - 865MHz (81 pasirenkami dažniai)

• Veikimo atstumas:  60m

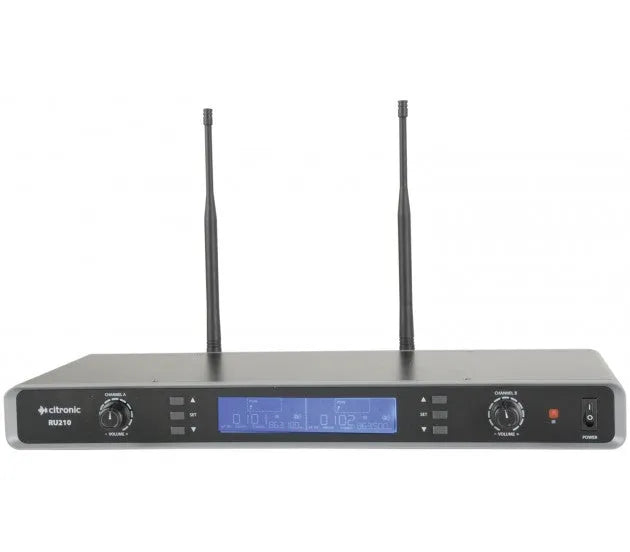

Dual channel PLL tuneable UHF wireless systems available with handheld or bodypack transmitters with neckband and lavalier microphones. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronized to the transmitter via infra-red at the touch of a button. Up to 2 RU210 systems can be operated together on the EU licence-free band.

SPECIFIKACIJOS

• PLL tunable with 81 UHF frequencies

• Licence free operation in EU

• Pilot tone & mute circuit for stable signal

• Available in handheld or neckband/lavalier versions

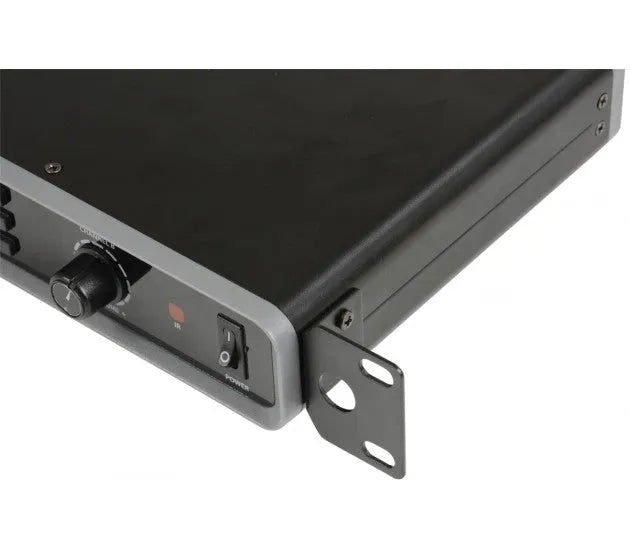

• Rack-mounting accessories included

• Supplied with mains adaptor and 4 x AA batteries

• Power supply:  12-18Vdc, 500mA (mains adaptor included)

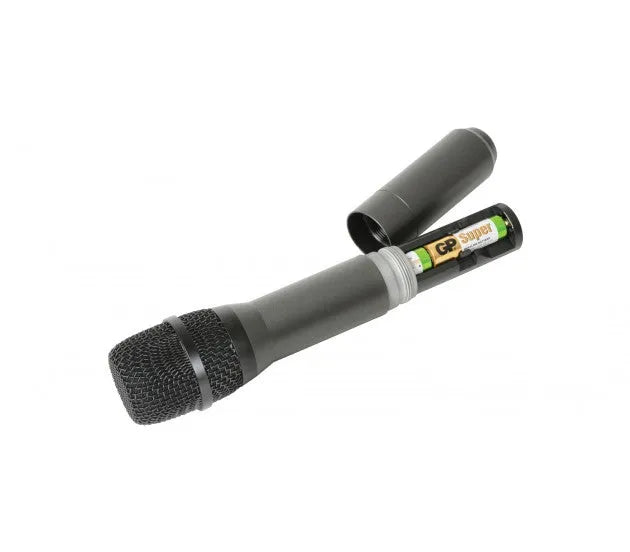

• Batteries:  4 x AA (2 per transmitter - included)

• Carrier frequency:  863 - 865MHz (81 selectable frequencies)

• Range:  60m

• Signal to noise ratio:  >105dB

• THD:  <0.5% @ 1KHz

• Frequency response:  50Hz-18KHz ±1 dB

• Image rejection:  >85dB

• Output impedance:  2.2k Ohms

• Output level:  400mV (balanced), 200mV (unbalanced)

• Dimensions : receiver:  44 x 409 x 190mm

• Weight : receiver:  1.37kg
