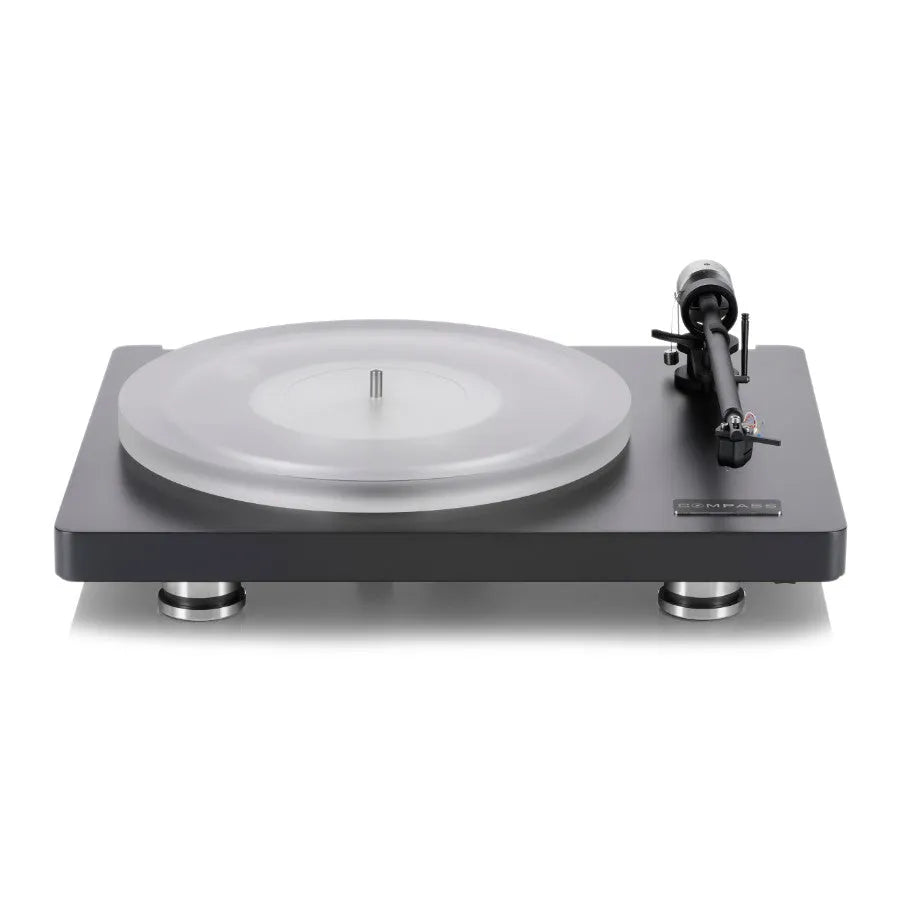

Clearaudio Compass, patefonas

INFORMACIJA

Clearaudio Compass -  tai Vokietijoje pagamintas, grojimui paruoštas high-end klasės patefonas, sujungiantis precizišką mechaniką, rezonavimams atsparią konstrukciją ir minimalistinį dizainą. Jame integruotas naujas T1 tonearmas ir specialiai sukurtas N1 MM galvutės derinys, užtikrinantis itin tikslų, aiškų ir muzikaliai sodrų patefono skambesį. Stabilus variklis, akrilinis diskas ir plieninė bazė garantuoja tylų darbą bei išskirtinį tikslumą, o visas įrenginys pristatomas pilnai sureguliuotas – tereikia išpakuoti ir mėgautis muzika.

Greičiai: 33 ⅓ ir 45 aps./min.
Diskas: 20 mm akrilinis su CNC aliuminio sub-disku
Tonearmas: naujas T1 aliuminio
Galvutė: N1 MM, išėjimo įtampa ~3.3 mV, elipsinė adata

APRAŠYMAS

Experience high-end sound like never before with Clearaudio’s Compass turntable. This ready-to-play system distills the essence of analog sound reproduction, delivering uncompromising quality for a truly immersive experience. Focused on the essentials, our expertise has crafted a precision bearing, meticulous platter, and specially developed tonearm and cartridge. Handmade in Germany, the Compass combines purist design with technical sophistication, ensuring a sound that exceeds expectations.

High-End Sound, Compact Thinking

Clearaudio opens the door to genuine high-end technology with the ready-to-play Compass turntable: compact, uncompromising, and accessible. The result of over two years of development, the Compass distills the full fascination of analog sound reproduction into a singular experience, for everyone who wants not just to listen to music, but to truly feel it.

Focus on the Essentials

To make high-quality vinyl enjoyment possible in this price segment, we concentrated our expertise on the elements that matter most to sound quality. At its heart lies a precision bearing combined with a meticulously crafted platter and sub-platter system. Added to this are the new T1 tonearm – a compact version of our proven Satisfy tonearm – and the specially developed N1 MM cartridge. Together, they create a sound experience that far exceeds the expectations for compact-class systems.

Where Sound Meets Craftsmanship

Every acoustically relevant component, from tonearm and cartridge to bearing, is manufactured with utmost care at our facility in Erlangen. Precisely machined parts, selected materials, and a design focused on durability embody the Clearaudio signature quality: handmade in Germany.

Perfectly Minimalist Design

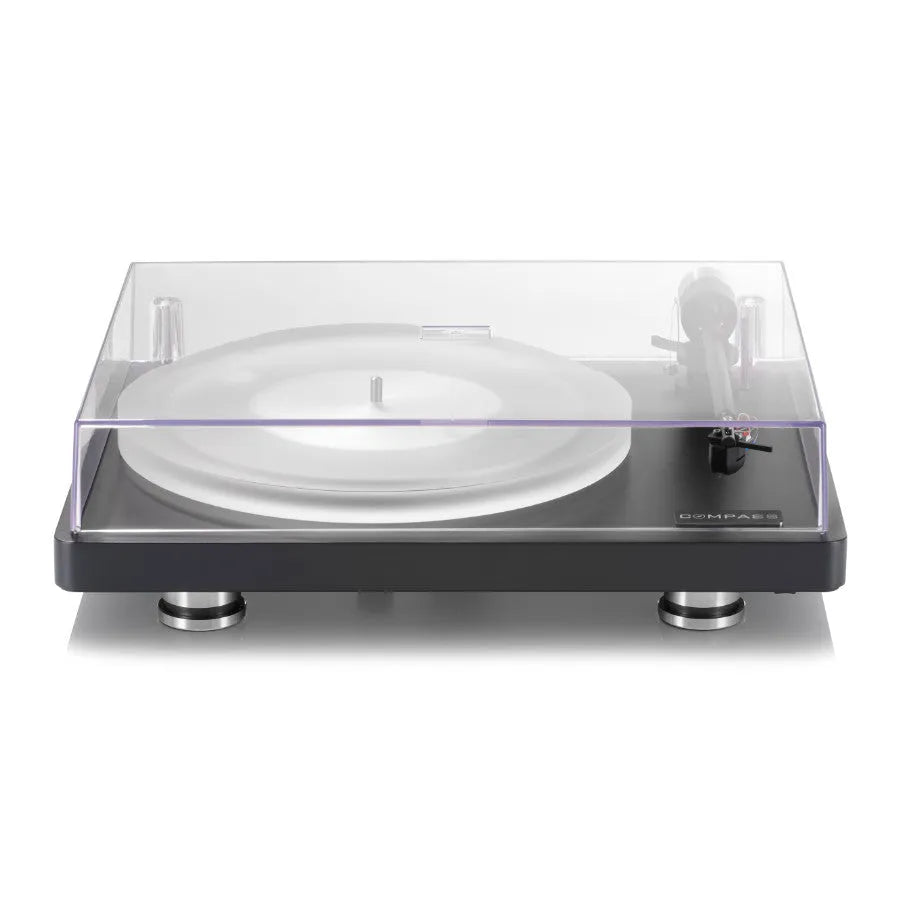

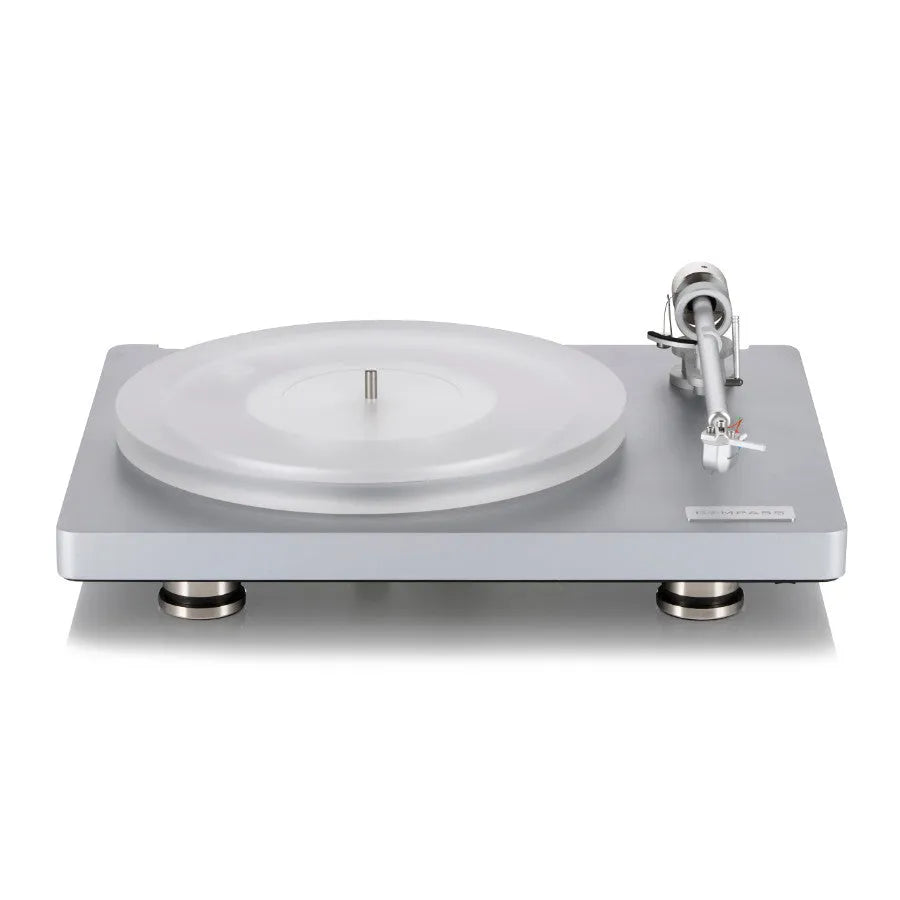

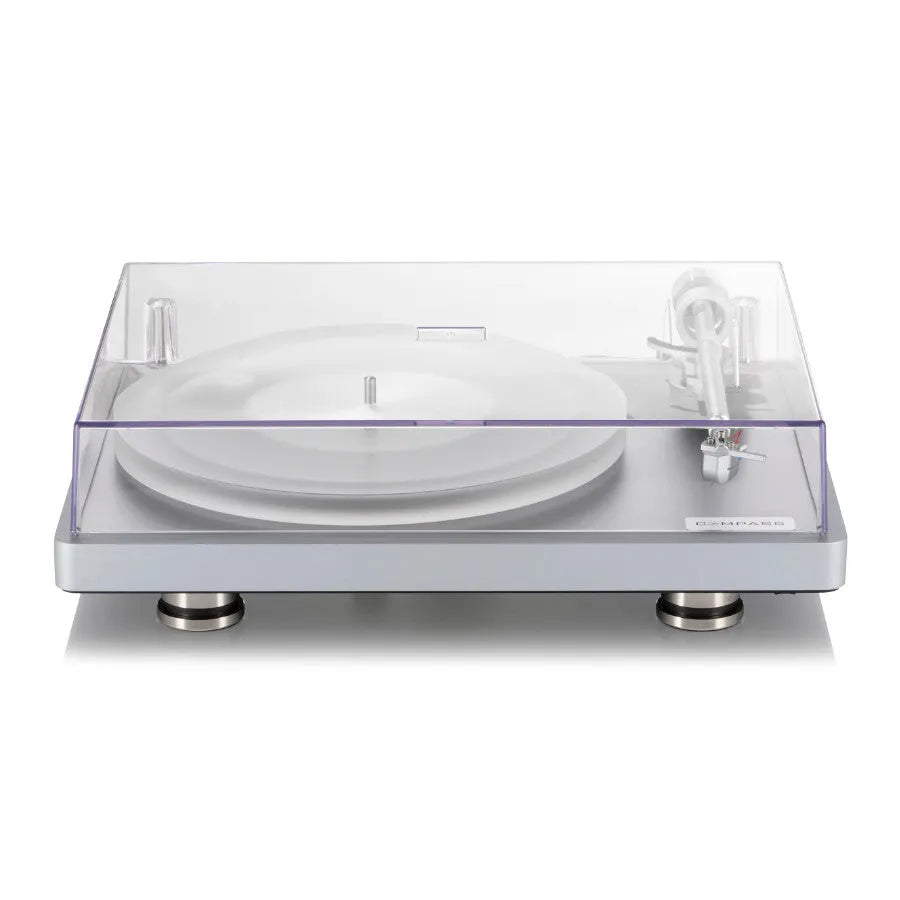

The Compass impresses not only with its sound but also with its clear design language. Available in black or silver, its look blends purist elegance with technical sophistication. A solid steel plate on the underside ensures stability and supports low-resonance performance. A high-quality acrylic dust cover with stainless steel hinges protects the turntable without disrupting the design.

Unbox, Set Up, Turn Up

The Clearaudio Compass is delivered fully assembled and ready to play, allowing direct entry into the world of high-fidelity music enjoyment. A user-friendly toggle switch on the underside of the unit selects the desired speed, while the precisely engineered tonearm is gently lowered using a turned aluminum lever. Height-adjustable feet with integrated decoupling ensure optimal smoothness of operation.

TECHNINIAI DUOMENYS

Turntable
Construction details:    Resonance-optimised turntable, Turntable chassis comprises medium-density wood fibre (silver / black), Steel bottom plate for additional weight, Including decoupling elements
Speed options:    33 ⅓, 45, U/min
Drive unit:    Decoupled and resonance damped 12V DC motor, Flat belt-drive, Plug-in power supply unit, designed for worldwide use with all networks and power frequencies
Bearing:    Polished and tempered steel spindle in a sintered bronze bushing, running on a teflon thrust-pad.
Platter:    20mm /0.787 inches main platter, made out of acrylic with excellent dimension stability / precision CNC machined aluminium sub-platter.
Speed accuracy (measured):    +/- 0,05 %
Power consumption:    Max. consumption: 4 watts; Consumption in operation: 1.95 watts; Standby: 0.74 watts; Off mode: 0.0 watts (switched off at the bottom)
Total weight:    Approx. 8kg (incl. tonearm and cartridge)
Dimensions (W/D/H):    Approx. 17.13 x 13.39 x 4.72 inches (incl. Dustcover); Approx. 435 x 340 x 120mm (incl. dustcover)
Tonearm „T1“
Construction details:    Radial tonearm with external anti-skating counterweight
Material:    Aluminium (black/silver), Counterweight: stainless steel
Cartridge balance range:    2.5g - 17.0g
Overhang:    17.12mm
Total length:    305.00mm
Effective length:    239.12mm
Mounting distance  (tonearm pivot to spindle):    222.00mm
Offset angle:    24.02°
Wiring:    1.1m Clearaudio Direct Wire PLUS terminated with RCA
Weight:    Approx. 390g (incl. counterweight)
Cartridge „N1“
Total mass:    12.6g (± 0.2g)
Frequency response:    20Hz - 20kHz
Output voltage (1kHz, 5cm/s):    ~ 3.3mV
Channel separation (1kHz):     20dB
Channel balance (1kHz):    2dB
Tracking ability:    80μm
Recommended tracking force:    2.2g (± 0.3g)
Coil impedance (1kHz):     0.66kΩ
Coil inductance:     400mH
Load resistance:     47kΩ
Load capacitance:     100pF
Cantilever / stylus shape:    Aluminium / elliptical
Compliance:    15μ/mN
Cartridge body:    Aluminium
