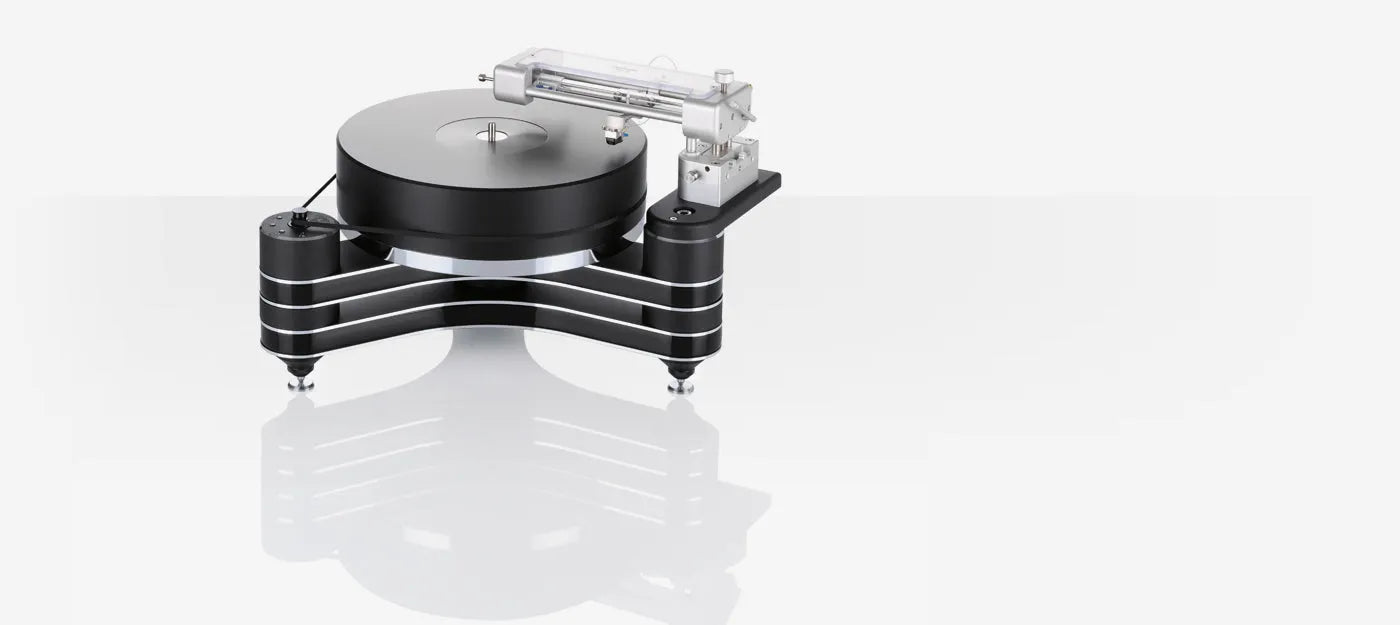

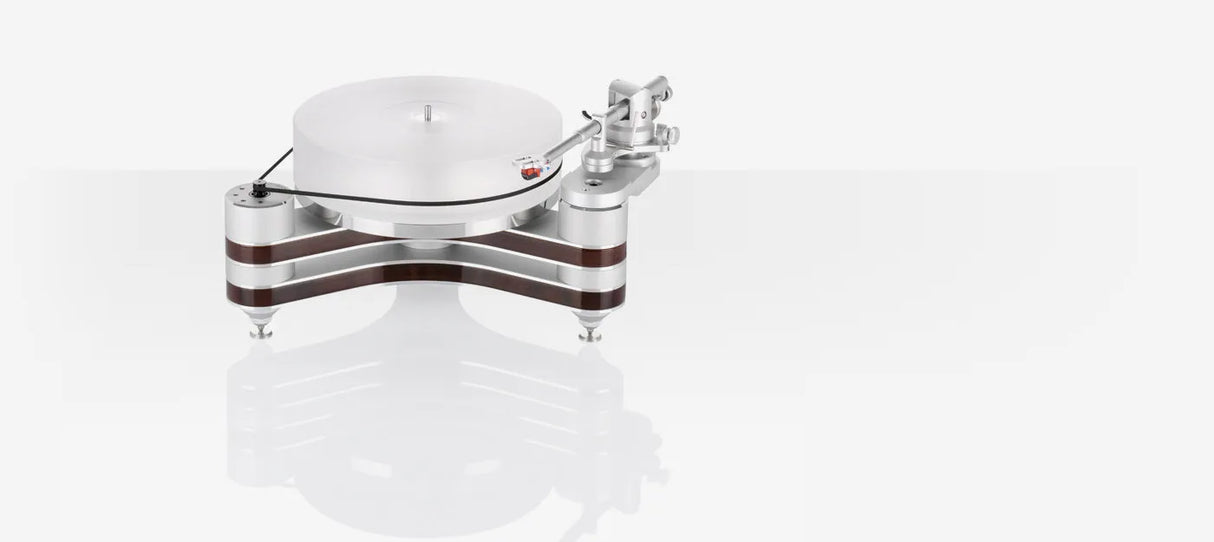

Clearaudio Innovation, patefonas (įvairių spalvų)

An infrared sensor combined with Clearaudio's optical speed control (OSC) ensures an outstanding level of speed stability – a prerequisite for optimal listening. A high-torque decoupled DC motor effortlessly rotates the precision-machined 70mm-thick platter made of high-density acrylic. The platter rotates in a virtually frictionfree environment atop the 15mm-thick stainless steel sub platter, thanks to Clearaudio's patented ceramic magnetic bearing (CMB). A convenient choice of three rotational speeds is also at your fingertips, and it is possible to install a second tonearm.

Construction details:
Resonance–optimised chassis shape
Made of bullet proof wood and aluminium with precision CNC machined surface
All turntable feet are finely adjustable
Playback with two tonearms possible
Speed options:    33 ⅓, 45, 78rpm
Drive unit:
High torque 24V DC motor exclusively made for Clearaudio; Optical Speed Control (OSC) in real time through infrared sensor
Decoupled DC motor in chassis; resonance damping device; belt-drive
Bearing:    Clearaudio CMB ceramic magnetic bearing in main platter / upper drive platter assembly. Inverted bearing in lower drive platter.
Platter:    70mm / 2.75 inch main platter, made out of synthetic material with high-density and excellent dimension stability, precision CNC machined surface, solid stainless steel sub-platter, dynamically balanced
Speed accuracy (measured):    < ± 0.05%
Power consumption:    Max. consumption: 9.3 watts
Consumption in operation: 2.5 watts
Standby mode: 2.5 watts
Off mode: 0.0 watts
Total weight:    Approx. 24kg (without tonearm and power supply)
Dimensions (W/D/H):    Approx. 18.11 × 19.09 × 8.66 inches (with tonearm base, without tonearm)
Dimensions (W/D/H):    Approx. 460 × 485 × 220mm (with tonearm base, without tonearm)

Vartotojo vadovas (EN)
