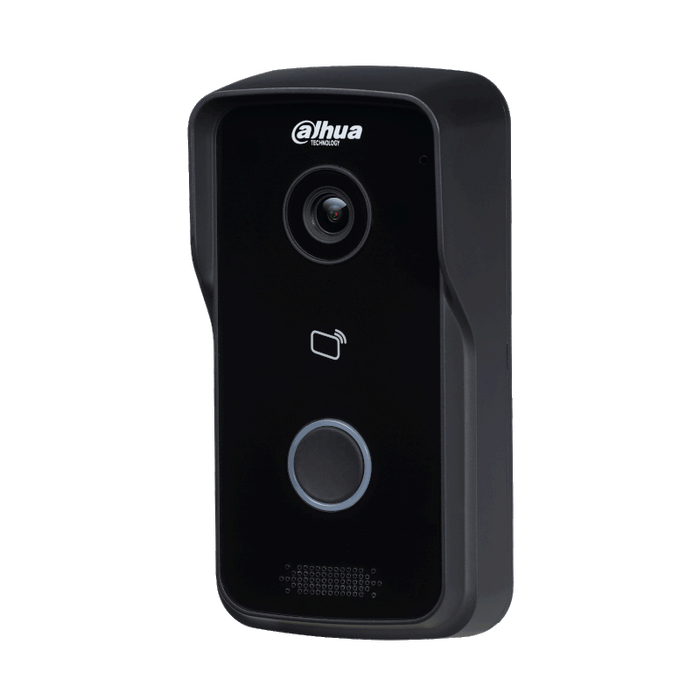

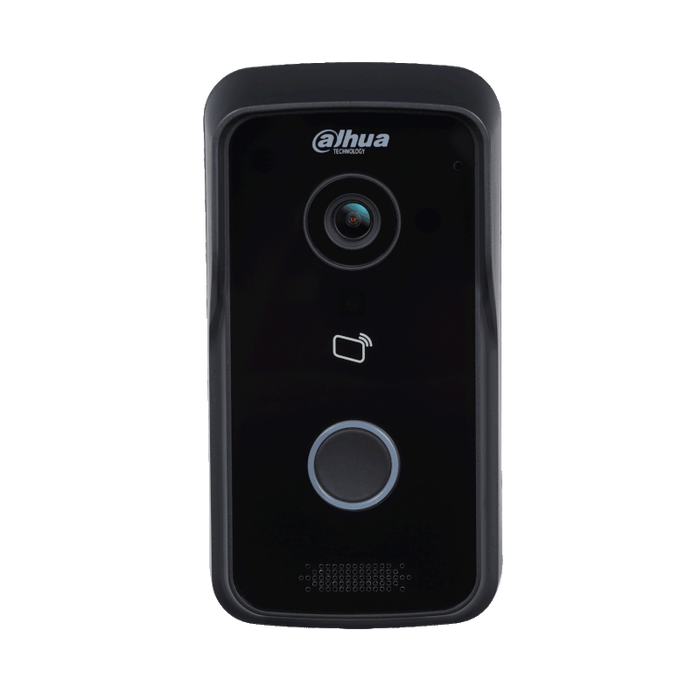

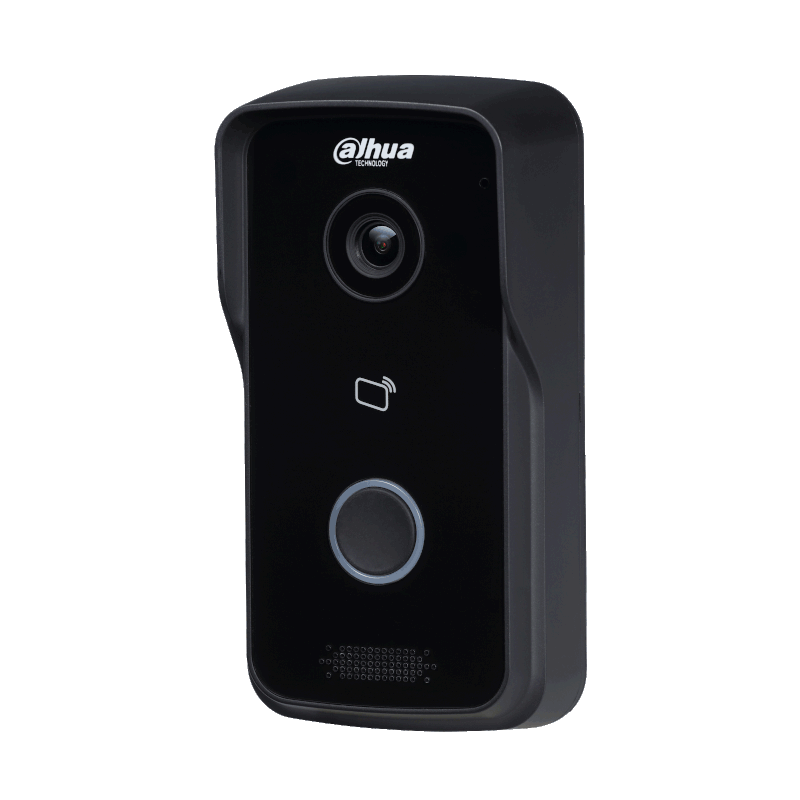

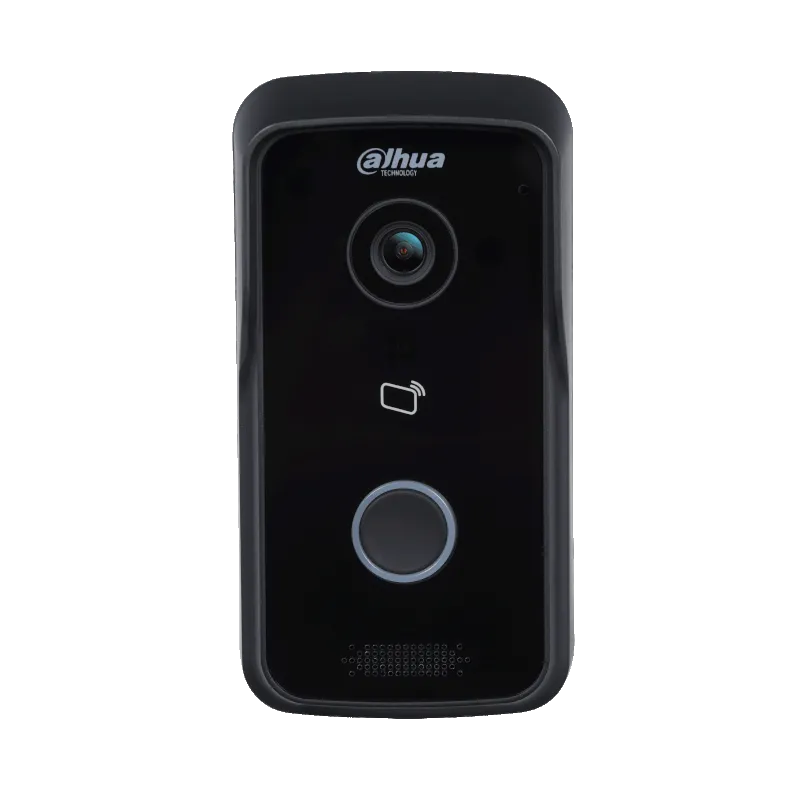

Itin plataus funkcionalumo domofonas su kamera.
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Embedded processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded LINUX operating system |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Button Type |
Mechanical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Internet Protocol |
SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Baisc |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera |
1/4" 1MP CMOS high definition, low illumination/WDR, color/IR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle of View |
Horizontal: 107°; vertical: 61°; diagonal: 122° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
3D noise reduction |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Resolution |
Main stream: WVGA, 720P, D1 Sub stream: CIF, WVGA, QVGA, 1080P, D1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate |
PAL: 25 fps NTSC: 30 fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
256K to 4M |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Light Compensation |
Auto IR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
D/N |
ICR auto switch |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
G.711a; PCM; AAC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
Built-in speaker |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Mode |
Two-way voice call |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Enhancement |
Echo suppression and cancellation/digital noise reduction |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Bit Rate |
16KHz, 16Bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication |
Full digital |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Unlock Mode |
Card/App remote/indoor monitor unlock |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card Type |
IC card |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection |
Video motion detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Auto Snapshot |
Auto snapshot can only be enabled on indoor monitors |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Leave Photos and Messages |
Yes (SD card is needed) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Web Configuration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card Reading Distance |
3cm–5cm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
PC+Acrylic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Capacity |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card |
10,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electric Lock |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Exit Button |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Door Status Detection |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lock Control |
1, normally closed by default |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
1 10Mbps/100Mbps network port (8-core white ribbon cable) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tamper |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color |
Black |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply Mode |
12V DC 1A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Surface mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Accessory |
Brackets and alarm ribbon cable |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
135mm×70.4mm×34.4mm (5.31"×2.77"×1.35") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade |
IP65 (silicone sealant is needed, see the quick start guide) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
-30°C to +60°C (-20°F to +60°F ) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%RH–90%RH (non-condensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude |
Beneath 3000 m (9842.52 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Standby≤1W, working≤5W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
326 g (0.72 lb) |
