Dali OPTICON 8 MK2 5.1.2, Namų kino garsiakalbių komplektas

OPTICON MK2 serijos garsiakalbių diapazonas yra aiškus, neiškraipytas, malonus ir nuoseklus, puikiai papildantis muzikos, radijo, srautinio transliavimo, TV ar filmų šaltinius.

check_circle_outline highlight_off
Yra prekyboje Išparduota
Translation missing: lt.product.general.sku_html
Nuolaida: 6,022.00 €
Kaina: 6,022.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

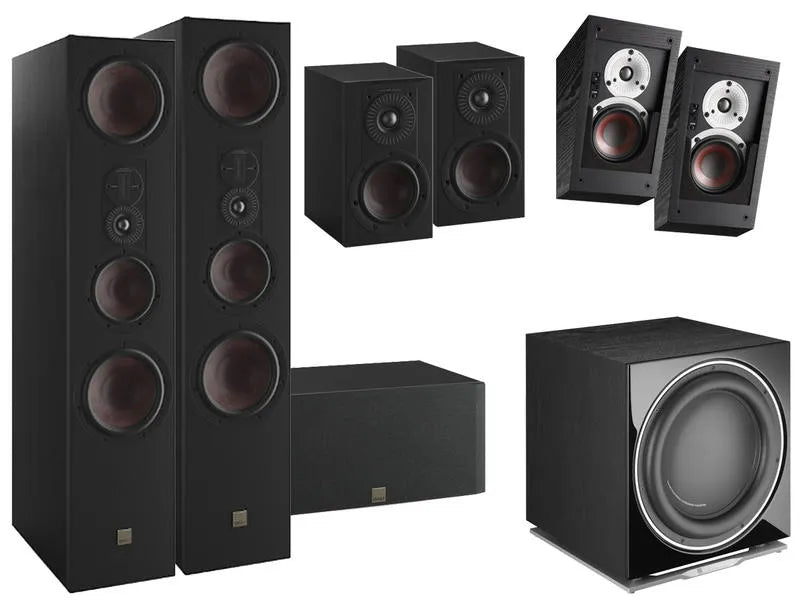

Dali OPTICON 8 MK2 5.1.2, Namų kino garsiakalbių komplektas

OPTICON MK2 serijos garsiakalbių diapazonas yra aiškus, neiškraipytas, malonus ir nuoseklus, puikiai papildantis muzikos, radijo, srautinio transliavimo, TV ar filmų šaltinius.

  • 2 x OPTICON 8 MK2 Grindinė kolonėlė.
  • 2 x OPTICON 1 MK2 Lentyninė kolonėlė.
  • 1 x OPTICON VOKAL MK2 Centrinė kolonėlė.
  • 2 x ALTECO C-1 Dolby Atmos® kolonėlė.
  • 1 x SUB E-14 F Žemų dažnių kolonėlė.

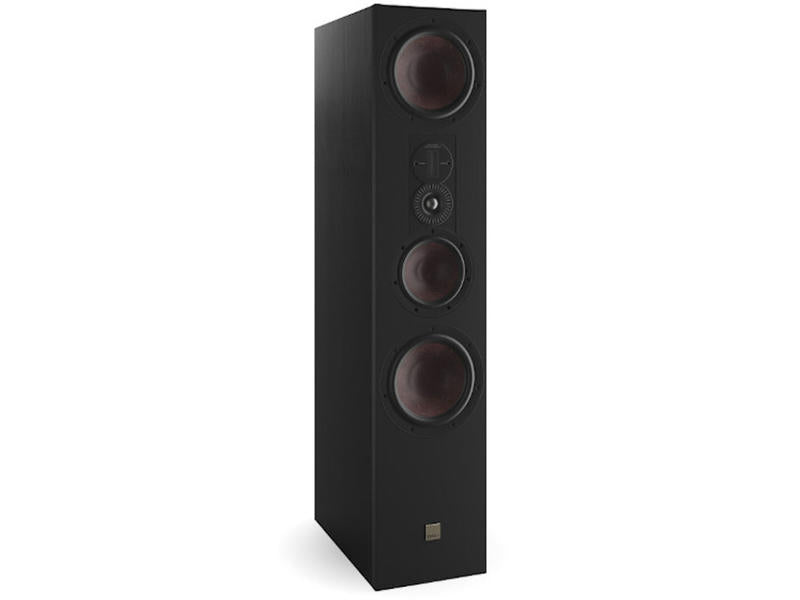

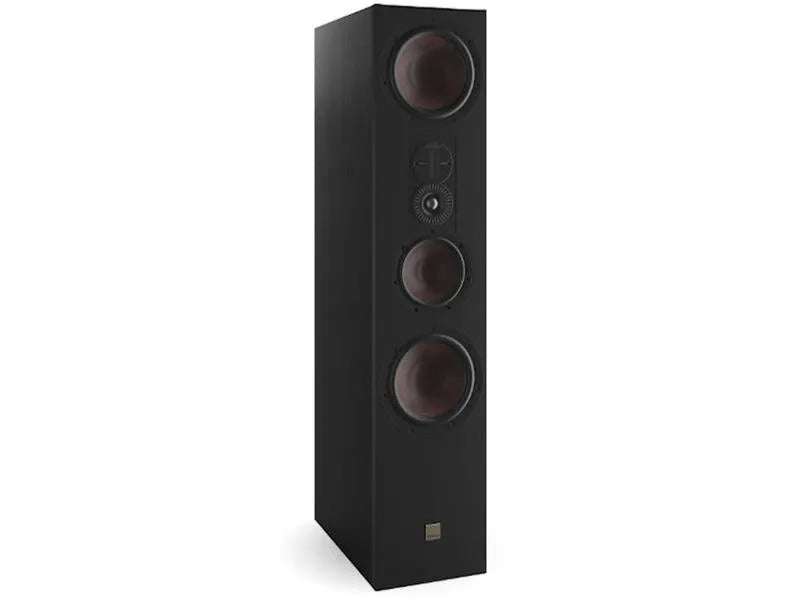

OPTICON 8 MK2

The large-scale, floor-standing OPTICON 8 MK2 is the powerhouse of the new OPTICON MK2 series. It is the sole threeway system in the series. It combines two 8” Wood Fibre diaphragm, SMC magnet bass drivers with a 6½” Wood Fibre diaphragm, SMC magnet system midrange driver. The OPTICON 8 MK2 offers optional bi-wiring to enable its bass and midrange/high frequency sections to be connected independently. The driver array of the OPTICON 8 MK2 locates the midrange and hybrid tweeter drivers between the two widely spaced bass drivers. This is done firstly in order to position the mid and high frequency drivers near typical seated ear height, and secondly to take advantage of the smoother low frequency room response that results from spaced bass drivers. The OPTICON 8 MK2 driver array helps make room positioning easier. Above the midrange driver, the OPTICON 8 MK2 incorporates a DALI hybrid tweeter that combines the new, CALLISTO derived 29mm soft dome driver alongside a 17mm x 45mm ribbon element. The OPTICON 8 MK2 enclosure incorporates separate internal sections for each driver with non-parallel dividing panels suppressing internal resonance and also significantly aiding enclosure rigidity. Each low frequency section is fitted with its own Dual Flare reflex port. Thanks to its size and true three-way format, the OPTICON 8 MK2 offers a level of performance unavailable from any other OPTICON model. It combines immense low frequency bandwidth, volume potential and dynamic accuracy with the extraordinary detail and clarity that arises from the use of a dedicated midrange driver. High frequencies from the hybrid tweeter are explicitly detailed and informative yet simultaneously smooth and endlessly listenable.

OPTICON 1 MK2

The OPTICON 1 MK2 is a compact stand mount speaker designed to be installed close to room boundaries or wall mounted in modest listening spaces. Its drivers comprise a 4¾” Wood Fibre diaphragm, SMC magnet bass/midrange unit and a newly designed 29mm soft dome tweeter derived from that employed in the CALLISTO series. The Dual Flare reflex loaded 5 Litre enclosure enables the OPTICON 1 MK2 to deliver remarkable bass performance for its size that integrates perfectly with the inherent midrange and high frequency quality of its drivers. The OPTICON 1 MK2 is supplied with a simple keyhole slot wall mounting bracket.

OPTICON VOKAL MK2

The OPTICON VOKAL MK2 brings a 6½” Wood Fibre diaphragm, SMC magnet bass/midrange driver and the DALI hybrid tweeter together in an enclosure format designed specifically for centre channel applications in multi-channel audio-visual systems. The OPTICON VOKAL MK2 enclosure dimensions and proportions are specifically configured to enable its installation in audio-visual furniture units, and its front facing reflex ports mean that even fully enclosed mounting is feasible. The OPTICON VOKAL MK2 is specifically voiced to play the centre channel role, but at the same time it displays all the characteristic qualities that enable it to dovetail perfectly in a full OPTICON MK2 audio visual system.

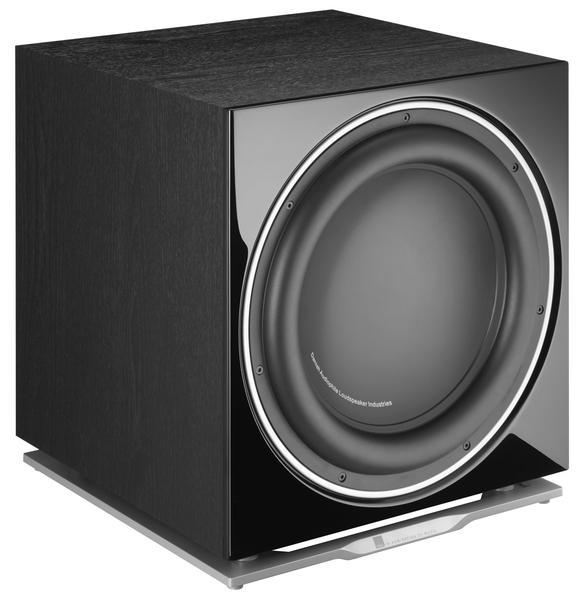

SUB K-14 F

  • Whether the task is to fill the room with stereo music or to feel the subtle tremor from a movie soundtrack the new DALI SUB K-14 F will deliver!
  • Build around a 14” aluminium long stroke woofer and with a 500 watts class D amplifier the DALI SUB K-14 F has the power and the control for both impressive movie- and delightful music reproduction. Connect the sub to your amplifier through LFE or line-out, and prepare to be pushed down in your seat.









SPECIFIKACIJOS

OPTIKON 8 MKII Specifikacijos

  • Frequency range (+/-3 dB) [Hz] 38 - 30.000
  • Sensitivity (2.83V/1m) [dB] 88.5
  • Nominal Impedance [ohm] 4
  • Maximum SPL [dB] 112
  • Recommended Amplifier Power [Watt] 40 - 300
  • Crossover frequency [Hz] 380 / 2,200 / 14,000
  • Crossover principle 3+½-way
  • High frequency driver 1 x 29 mm soft dome 1 x 17 x 45 mm ribbon
  • Low Frequency / mid-range Driver(s) 2 x 8” / 1 x 6½”
  • Enclosure type Bass reflex (mid-range closed box)
  • Bass Reflex Tuning Frequency [Hz] 29.5
  • Connection Input(s) Bi-wire / Bi-amp
  • Recommended placement Floor
  • Recommended distance from rear wall to speaker’s rear panel [cm] 30 - 150
  • Dimensions (H x W x D) [mm] 1141 x 241x 450
  • Dimensions (H x W x D) [inches] 44.9 x 9.5 x 18.1
  • Weight [kg/lb] 37.1/ 81.8
  • Included accessories Spike set, rubber feet, manual
  • produkto matmenys: 450 x 241 x 1141 mm
  • svoris neto: 37.10 kg
  • minimalus kiekis: 2 vnt.
  •

    OPTIKON 1 MKII Specifikacijos

    • Frequency range (+/-3 dB) [Hz] 62 - 25.000
    • Sensitivity (2.83V/1m) [dB] 85
    • Nominal Impedance [ohm] 4
    • Maximum SPL [dB] 105
    • Recommended Amplifier Power [Watt] 25-100
    • Crossover frequency [Hz] 3.000
    • Crossover principle 2-way
    • High frequency driver 1 x 29 mm soft dome
    • Low Frequency / mid-range Driver(s) 1 x 4¾”
    • Enclosure type Bass reflex
    • Bass Reflex Tuning Frequency [Hz] 60
    • Connection Input(s) Single
    • Recommended placement Stand/Shelf/Wall
    • Recommended distance from rear wall to speaker’s rear panel [cm] lut.80
    • Dimensions (H x W x D) [mm] 261 x 152 x 231
    • Dimensions (H x W x D) [inches] 10.28 x 6.0 x 9.1
    • Weight [kg/lb] 4.9/ 10.8
    • Included accessories Rubber feet, manual
  • produkto matmenys: 152 x 231 x 261 mm
  • minimalus kiekis: 2 vnt.
  •

    OPTIKON VOKAL MKII Specifikacijos

    • Frequency range (+/-3 dB) [Hz] 47 - 30.000
    • Sensitivity (2.83V/1m) [dB] 88
    • Nominal Impedance [ohm] 4
    • Maximum SPL [dB] 109
    • Recommended Amplifier Power [Watt] 30-150
    • Crossover frequency [Hz] 2.400 / 14.000
    • Crossover principle 2+½-way
    • High frequency driver 1 x 29 mm soft dome+ 1 x 17 x 45 mm ribbon
    • Low Frequency / mid-range Driver(s) 1 x 6½”
    • Enclosure type Bass reflex
    • Bass Reflex Tuning Frequency [Hz] 44
    • Connection Input(s) Single
    • Recommended placement Shelf
    • Recommended distance from rear wall to speaker’s rear panel [cm] 0 - 30
    • Dimensions (H x W x D) [mm] 201 x 435 x 312
    • Dimensions (H x W x D) [inches] 7.9 x 17.1 x 12.3
    • Weight [kg/lb] 10.6/ 23.4
    • Included accessories Rubber feet, manual
  • produkto matmenys: 435 x 312 x 201 mm
  • svoris neto: 10.60 kg
  • minimalus kiekis: 1 vnt.
  •

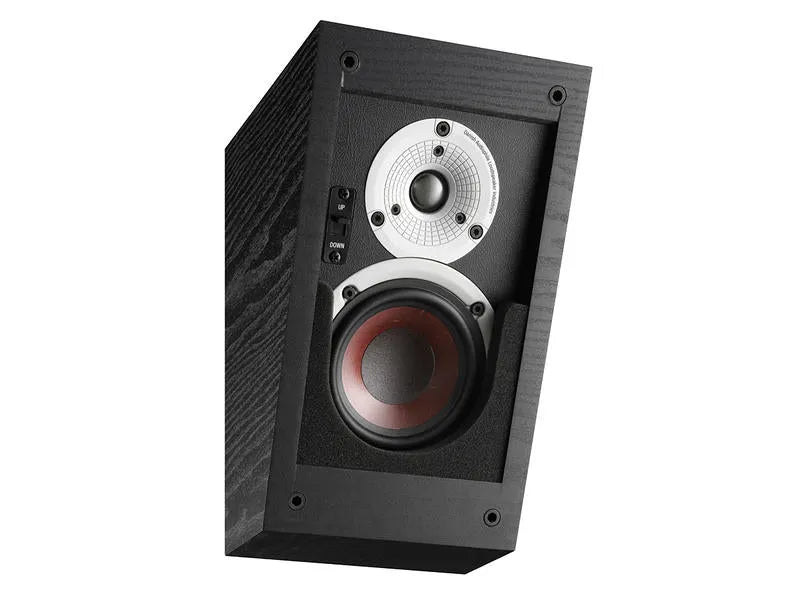

    ALTECO C-1 Specifikacijos

    • Dažnių atkūrimas (±3 dB): 74 - 26,000 Hz
    • Jautrumas (2,83 V/1 m): 83 dB
    • Nominali varža: 6 Ohm
    • Rekomenduojama stiprintuvo galia: 40 - 100 W
    • Filtro dažnis: 2,100 Hz
    • Aukštadažnis: 1x 21 mm, Minkštas tekstilės kupolas
    • Žemų dažnių garsiakalbis: 1x 4.5", anglies pluošto
    • Uždaro tipo kolonėlė
    • Rekomenduojama kabinti ant sienos arba statyti ant kolonėlės
    • Rekomenduojamas atstumas nuo sienos: 1 - 50 cm
  • produkto matmenys: 160 x 190 x 255 mm
  • svoris neto: 2.80 kg
  • minimalus kiekis: 2 vnt.
  •



    OPTIKON SUB E-14 F Specifikacijos

    • Frequency Range (+/-3 dB): 29 Hz - 160 kHz

    • Maximum SPL: 115 dB
    • Crossover Frequency: 40 - 120 Hz
    • Input Impedance: 10 Ω
    • Connection Inputs: RCA (Stereo), LFE (mono)
    • Max. Output Power: 500 W RMS
    • Continous IEC Amplifier Output: 450 W RMS
    • Maximum Power Consumption: 650 W
    • Subwoofer available without grille
  • produkto matmenys: 395 x 430 x 425 mm
  • svoris neto: 26.40 kg
  • minimalus kiekis: 1 vnt.
