Dali PHANTOM E-60 WR, į lubas montuojama kolonėlė

INFORMACIJA

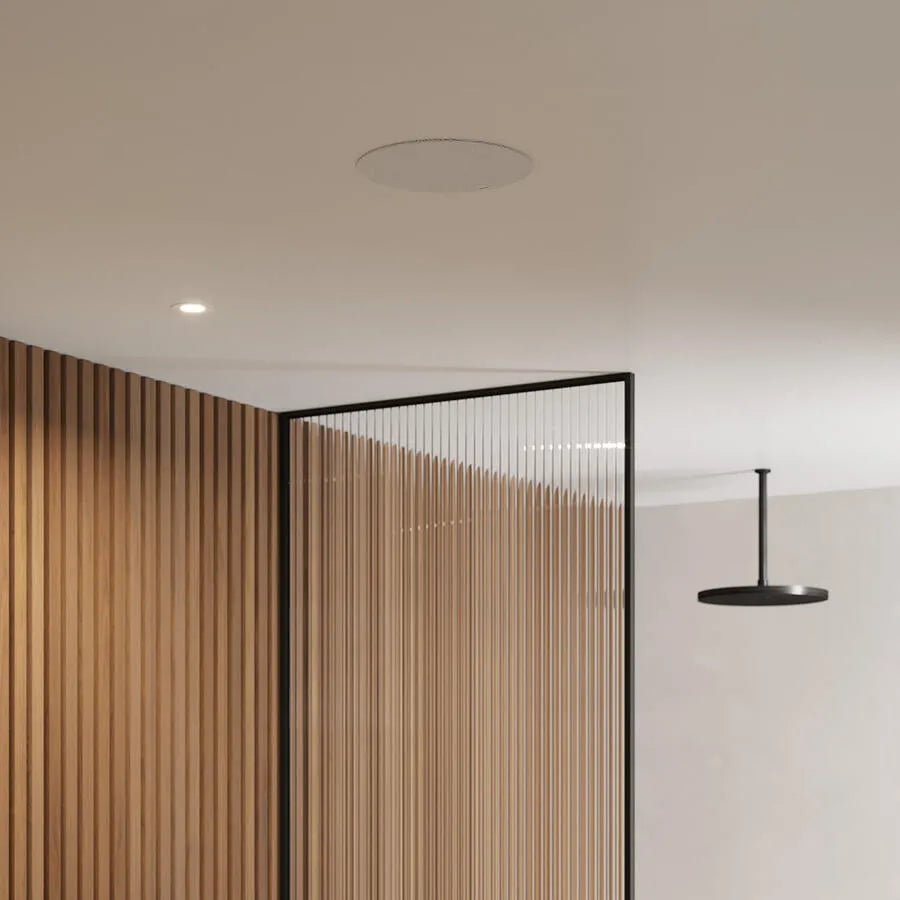

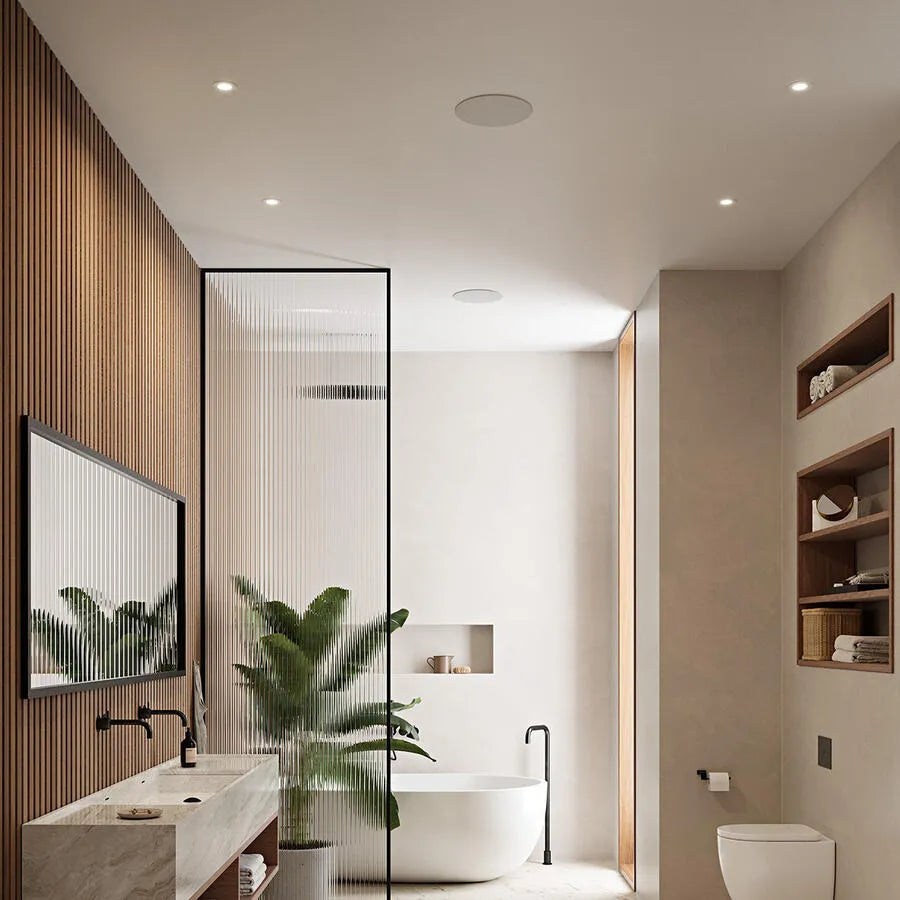

Dali PHANTOM E-60 WR - tai universali ir patvari į lubas montuojama garso kolonėlė, sukurta veikti sudėtingose aplinkose. Dėka IP65 atsparumo ir veikimo temperatūros nuo –20°C iki +60°C, ji idealiai tinka montavimui vonios kambariuose, pirtyse, skalbyklose, SPA zonose ir dengtose lauko terasose.

Dažnių diapazonas (+/–3 dB): 52 – 25 000 Hz
Jautrumas (2.83V/1m): 88 dB
Nominali varža: 8 Ω
Maksimalus SPL: 105 dB
Rekomenduojama stiprintuvo galia: 30-120 W

APRAŠYMAS

The E-60 WR offers class-leading performance and versatility. With added weather resistance and IP65-rated ingress protection, the E-60 WR in-ceiling loudspeaker is suitable for almost any location, from high-humidity bathrooms to covered outdoor terraces.

Engineered weather resistance
With its engineered weather-resistant features suitable for covered outdoor and high-humidity locations, the in-ceiling loudspeaker can fill almost every space with high-quality sound.

Class-leading sound quality
This speaker delivers exceptional sound quality in its class, thanks to features like the tilted driver, which minimises driver and baffle resonance for reduced distortion and colouration.

Functional versatility
It's more than just an in-ceiling loudspeaker - it's a high-performance sound solution for almost any ceiling location and any application.

Easy installation
The intuitive dogleg clamp system makes installation simple – no special tools required.

ENGINEERED WEATHER RESISTANCE

Suitable for outdoor & high humidity

With its engineered, weather-resistant features, the E-60 WR in-ceiling loudspeaker is suitable for covered outdoor and high-humidity locations. With a working range of -20 to +60°C and IP65 rating, it's ready to take on the elements. So whether you want background music for the laundry room, bathroom or spa, or immersive multi-channel sound on the terrace, the E-60 WR delivers.

CLASS-LEADING SOUND QUALITY

High-performance drivers and low-loss surround

The bass/midrange driver incorporates a stiff yet light polypropylene cone and a very low-loss rubber surround for uncoloured and natural midrange combined with deep and rich low frequency performance. The E-60 WR's 25 mm textile dome tweeter offers an impressively extended and detailed upper frequency response.

FUNCTIONAL VERSATILITY

Fine-tuned for any space

The E-60 WR is more than an in-ceiling loudspeaker – it's a high-performance sound solution for almost any ceiling and application. Install one or two speakers in your bathroom for high-quality tunes as you shower or several on the terrace for an immersive multi-channel audio space.

EASY INSTALLATION

No special tools required

The dogleg clamp system makes for straightforward installation without the need for special tools. Simply connect the cables to the spring terminals, insert the speaker and turn the four clamp screws to tighten it into place. The speaker is also slim enough to fit into almost any standard ceiling.

PAINTABLE MAGNETIC GRILLE

Add a splash of colour to your home

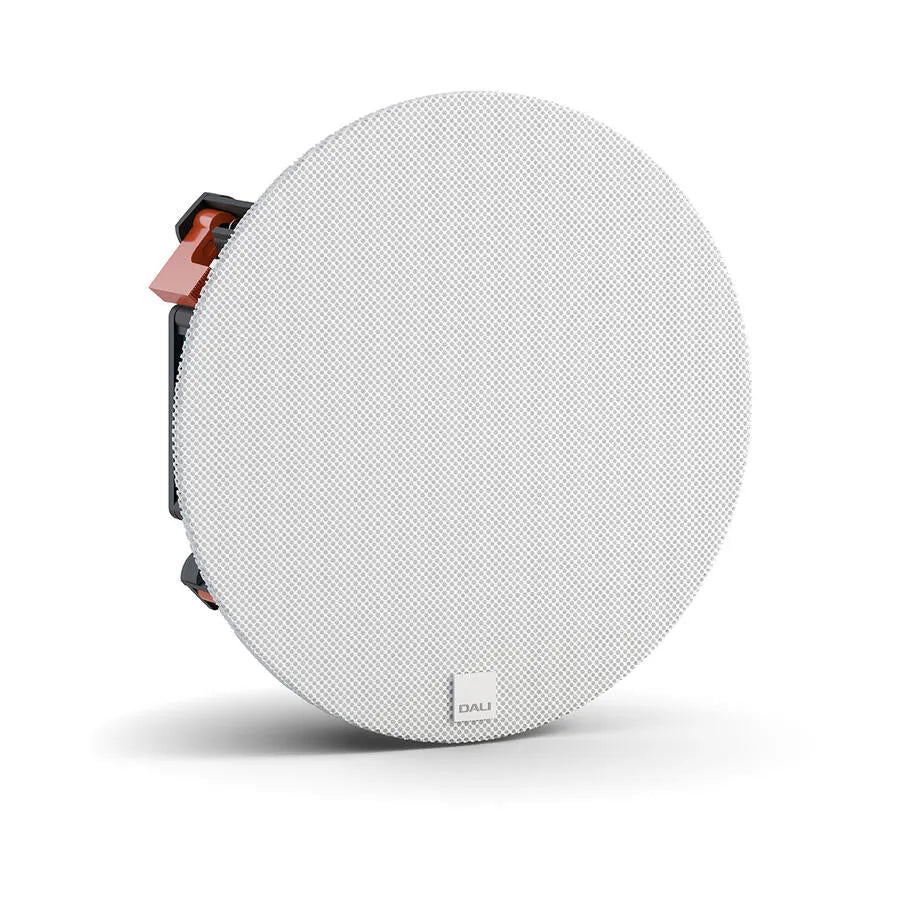

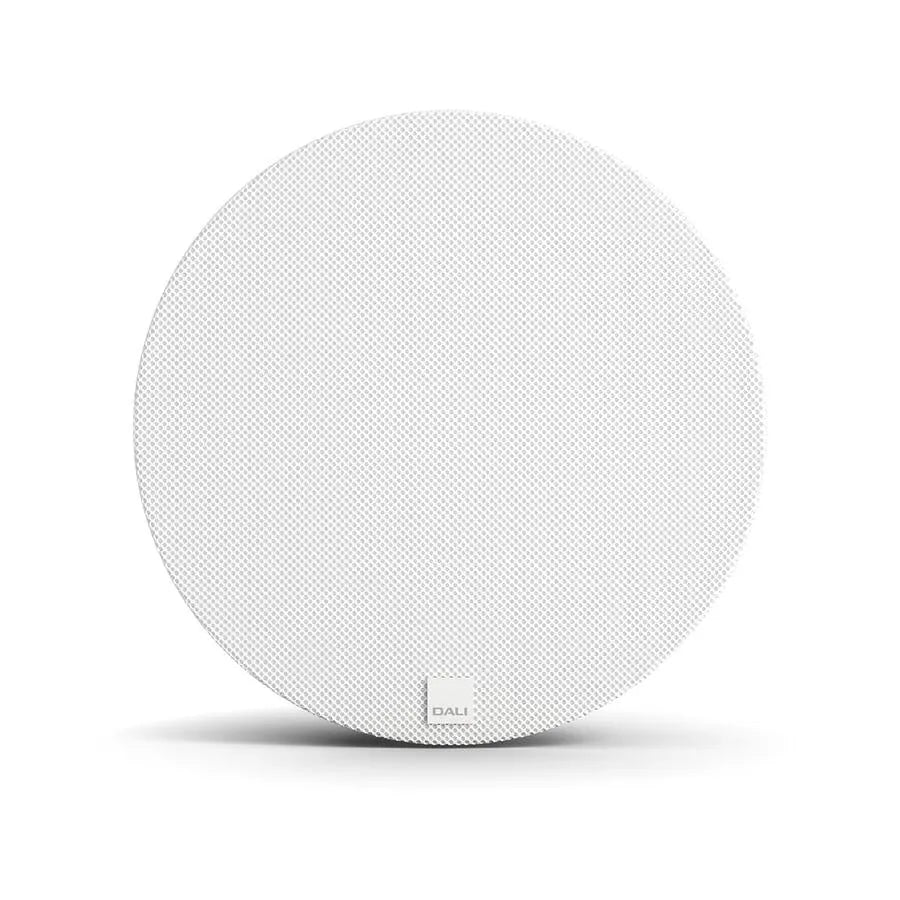

The white magnetic grille helps the E-60 WR blend discreetly into any room, while the paintable surface lets you add a splash of colour for an aesthetic twist. The grille is also electroplated to add extra protection against the elements.

TILTED DRIVERS

Directional sound for a better experience

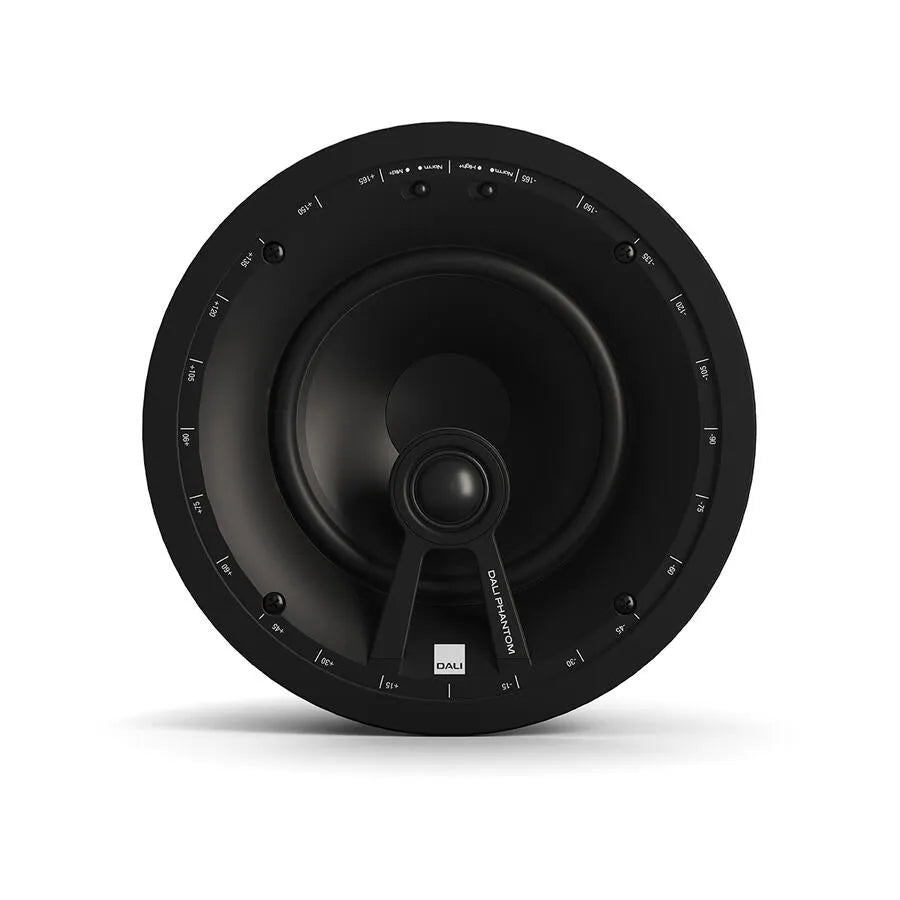

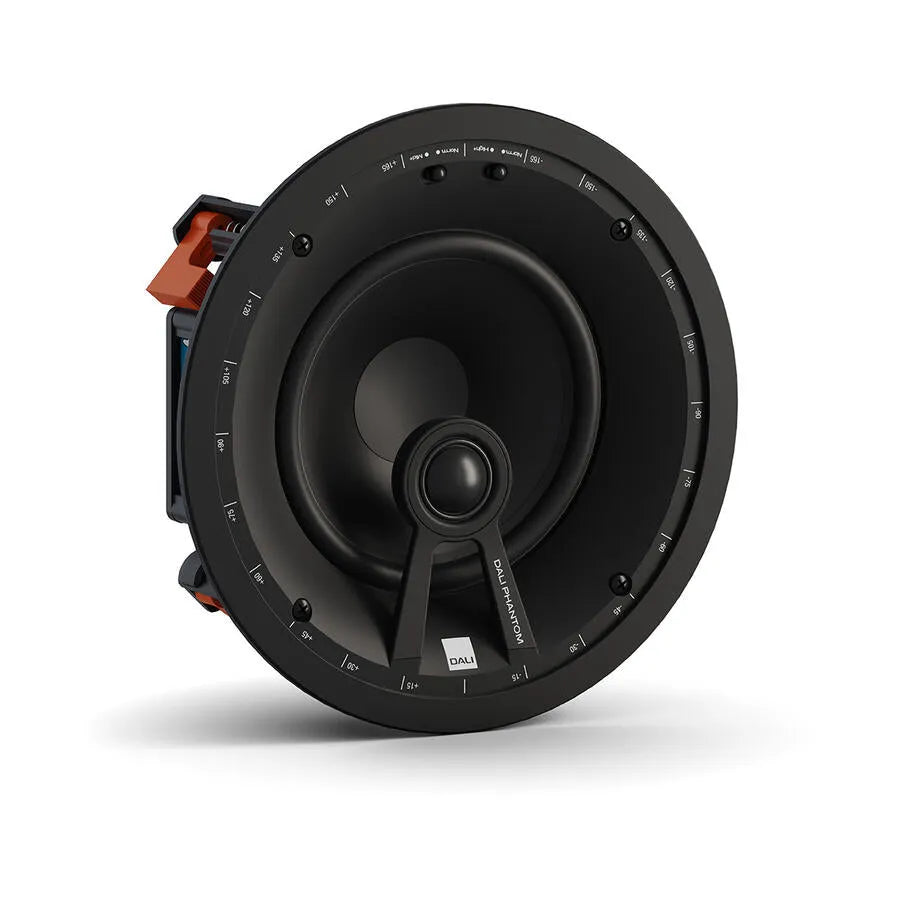

The 5° off-axis tilt of the E-60 WR drivers means you can rotate the speaker to direct more sound towards the primary listening position. The tilted design also minimises resonance from the driver and baffle, which helps to lower distortion and colouration for a more accurate audio reproduction.

TECHNINIAI DUOMENYS

Specifications

Crossover Frequencies [Hz]
3,300

Crossover Principle
2-way

Frequency Range [+/- 3 dB] [Hz]
52 - 25,000

High Frequency Driver(s)
1 x 25 mm soft dome

Low Frequency/Midrange Driver(s)
1 x 6½ inch

Maximum SPL [@ 1m] [dB]
105

Nominal Impedance [ohms]
8

Sensitivity [2.83V/1m] [dB]
88

Temperature Range
-20°C to +60°C / 4°F to 140°F

DOKUMENTAI

Vartotojo vadovas (EN)
