DD Audio ATC-400

INFORMACIJA

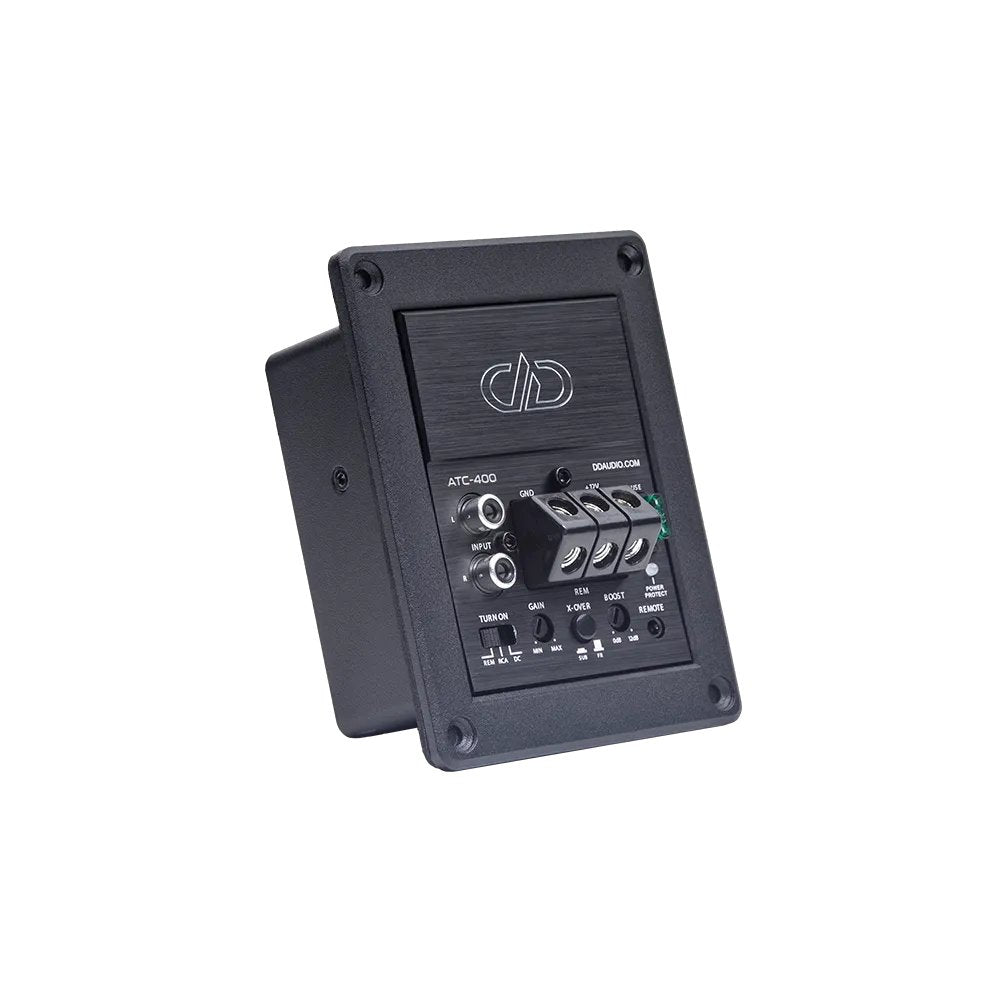

The DD Audio ATC-400 is a terminal amplifier designed to replace the original terminal on the DD Audio LE series enclosures.

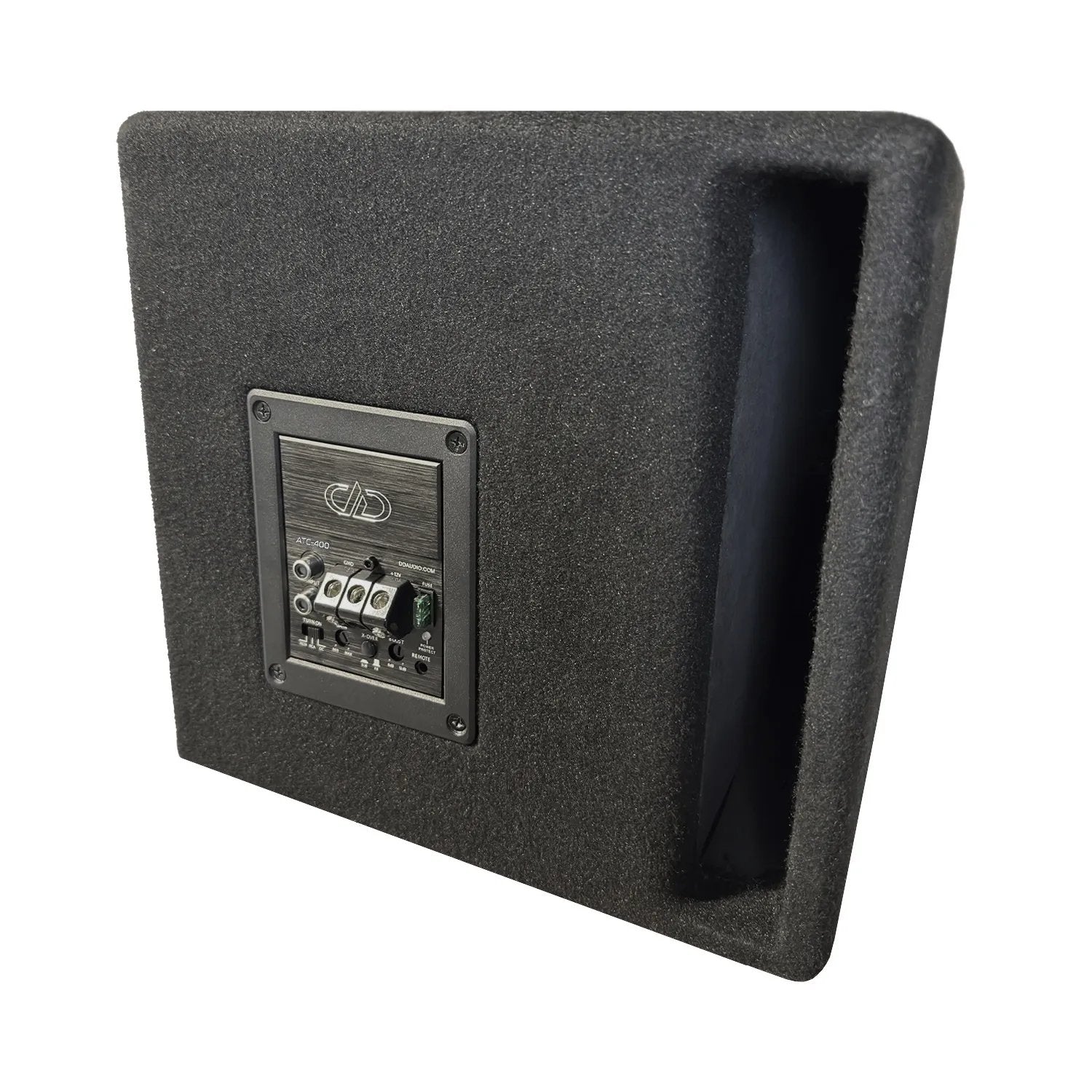

The installation is very easy: remove the original terminal and cut or detach the cable from it. After this, connect the enclosures cables to the ATC-400′s speaker cables (we recommend tinning the cables together and using heat shrink tubing to protect the cables), after this you can screw the amplifier to the enclosure.

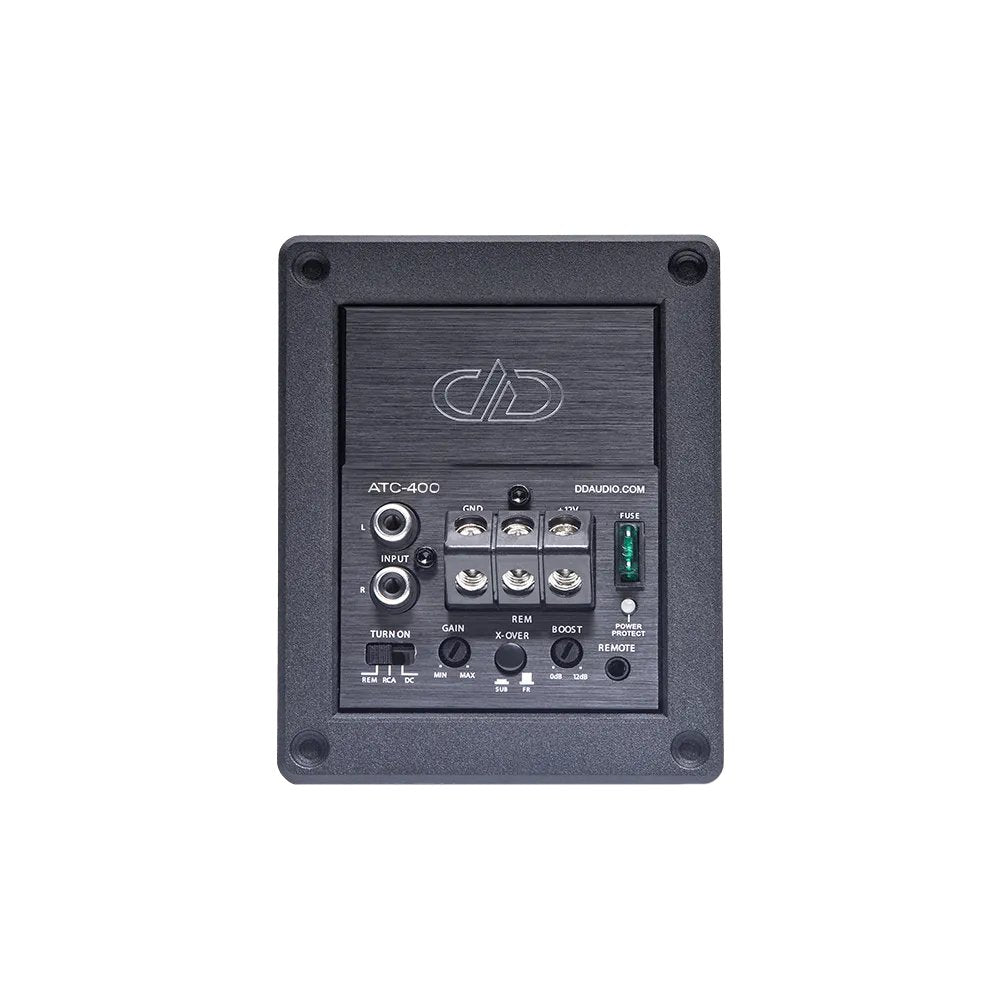

The DD Audio ATC-400 amplifier has two crossover filter selections: SUB (SUBWOOFER) and FR. ( FULL RANGE ). When using the SUB selection, the available frequencies are 30-80 Hz, and when using the FR selection, available frequencies are 80 Hz - 25 KHz.

The ATC-400 has a remote switch: with the REM setting, it uses a traditional trigger cable, with the RCA setting, the device wakes up when a signal is received to the RCA connectors and with the DC setting device wakes up when a High level signal is received to the RCA connectores ( the adapter must be purchased separately )

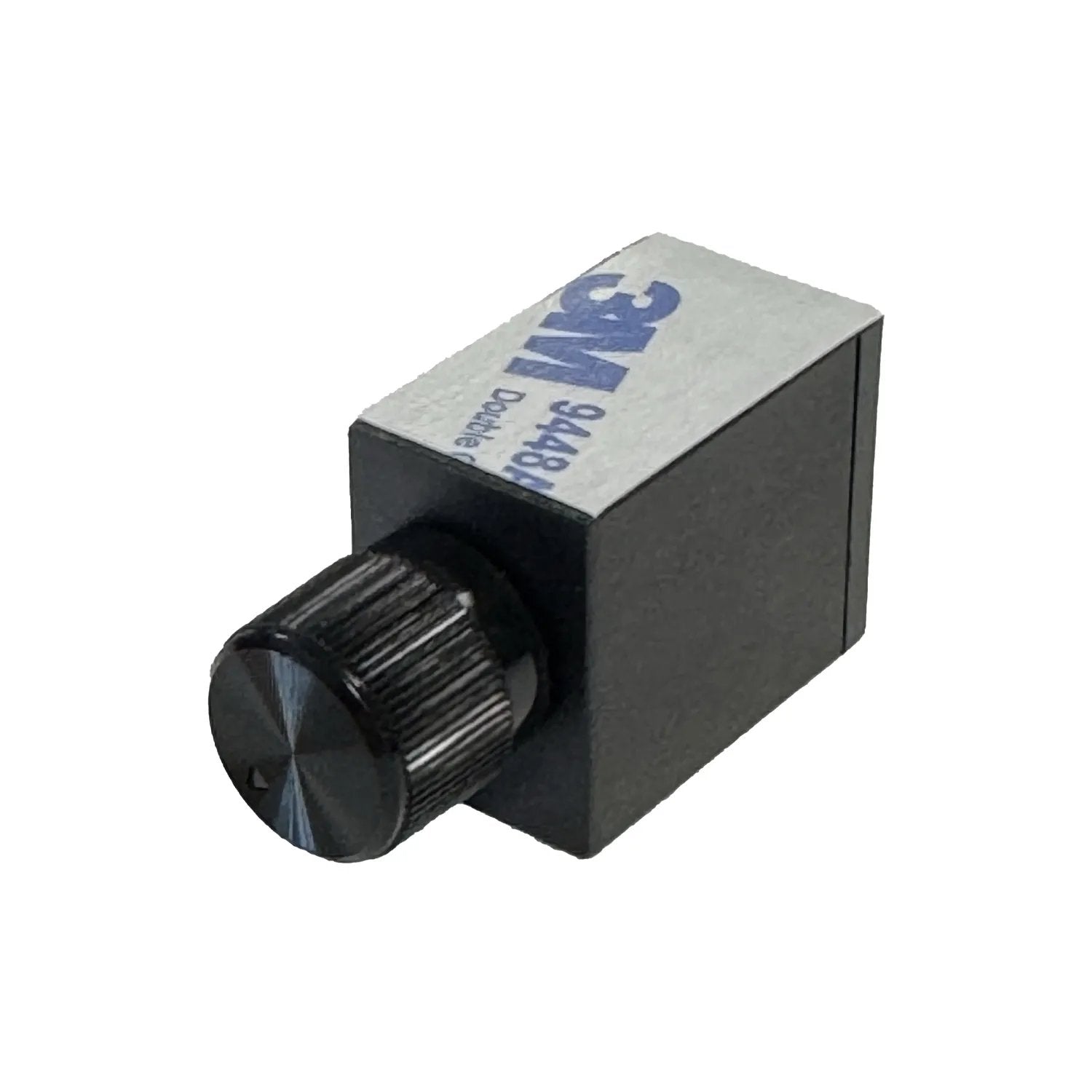

The package includes a wired bass level controller.

(Note! The amplifier is also perfectly suitable for playing subwoofers other than LE enclosures )

Techniniai duomenys

Operating Voltage: 8 - 16
Test Voltage: 14.4
Output Channel(s): 1
Continuous Wattage @4ohm: 100
Continuous Wattage @2ohm: 225
Continuous Wattage @1ohm: 325
Dynamic Wattage: 500
Max Current Draw (Amps): 40
RCA Input Voltage Sensitivity: 8 - 0.2
RCA Input S/N: 100
Damping Factor: 150
THD: 1%
Frequency Response (Hz): SUB: 30 - 80 / FR: 80 - 20k
High Pass Filter: 80
Sub-Sonic Filter: 30
Low-Pass Filter: 80
Remote Control: Remote Included in Box
Power Wire Gauge: 4
Speaker Wire Gauge: 12
Dimensions (Inches): 2.93 x 3.75 x 2
Dimensions (MM): 74.5 x 95.5 x 52.2
