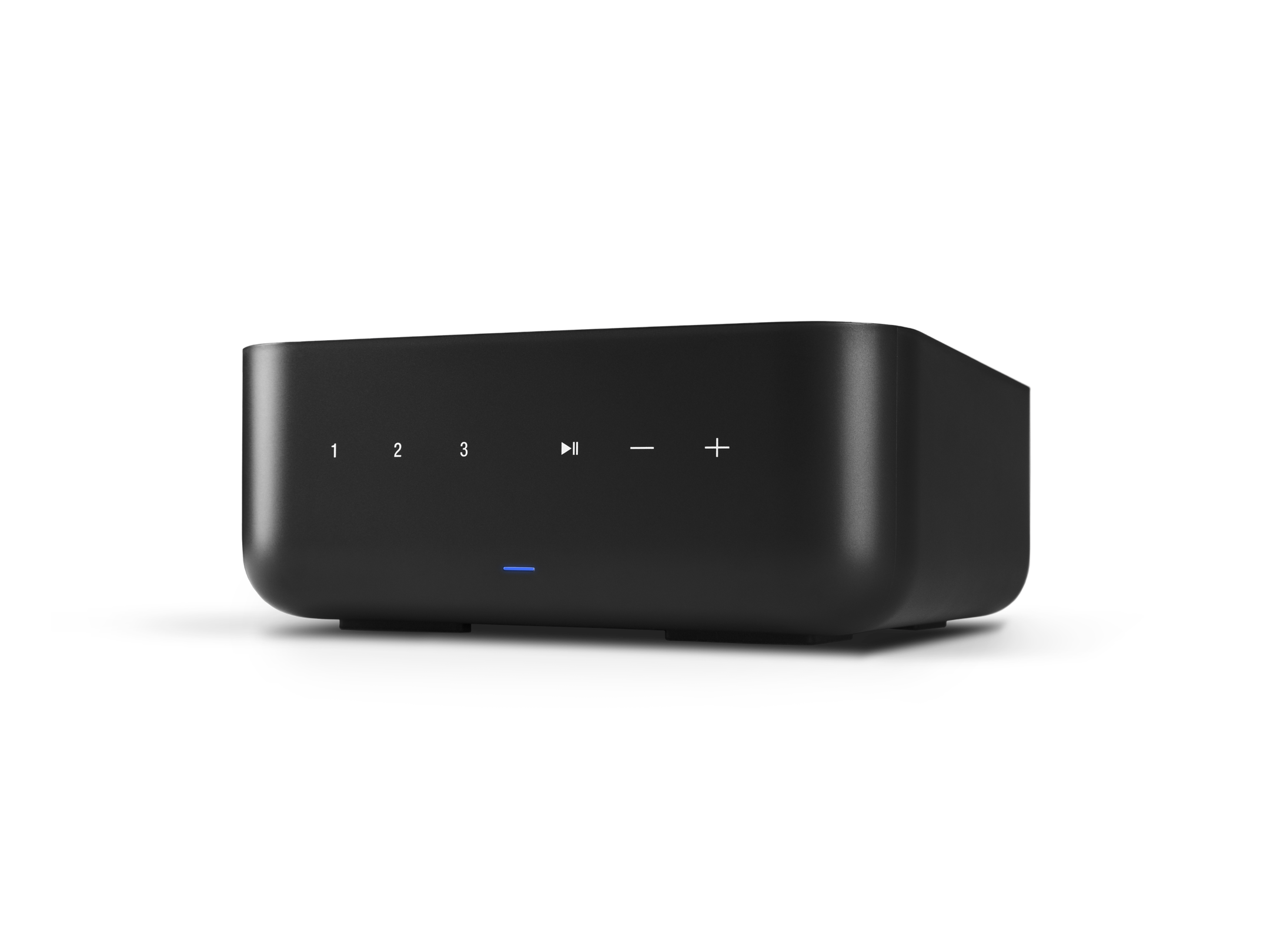

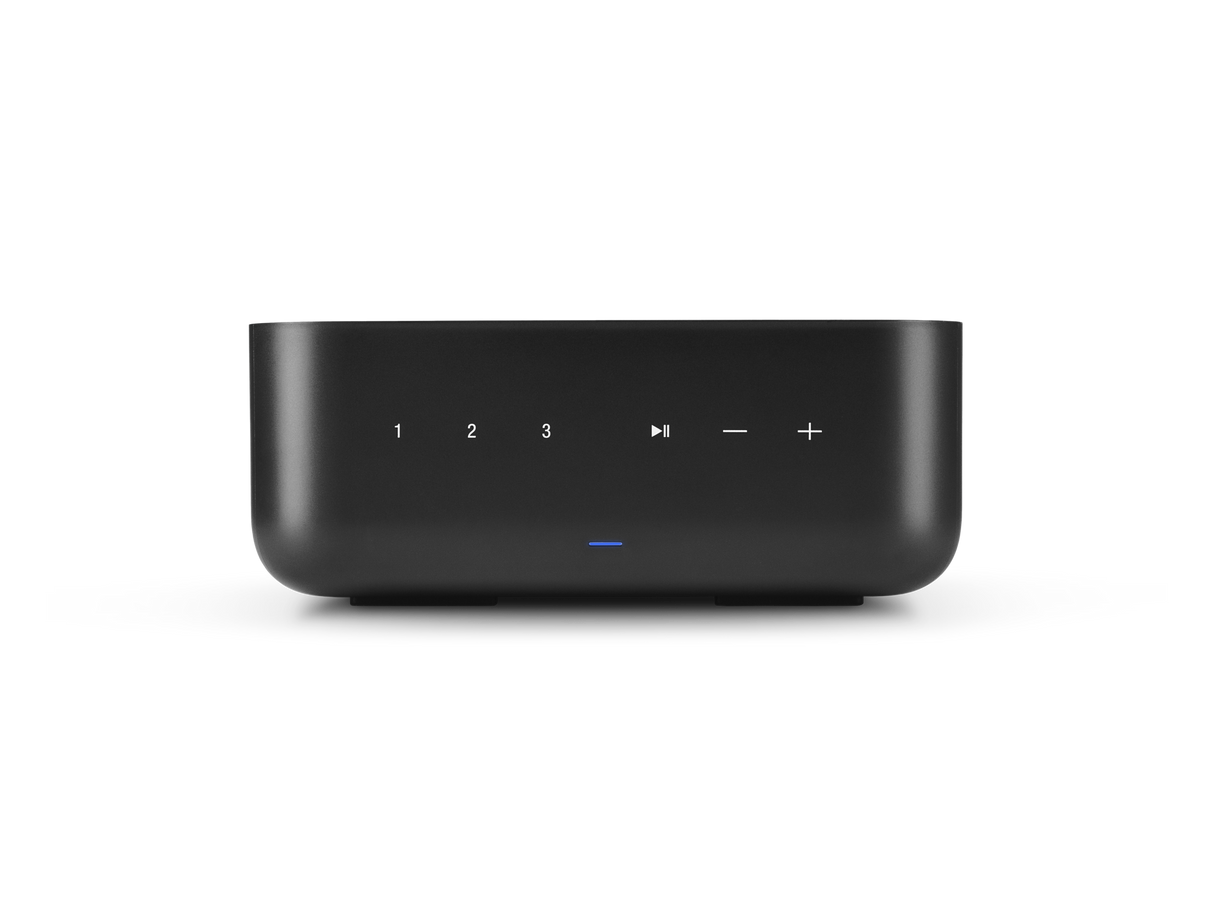

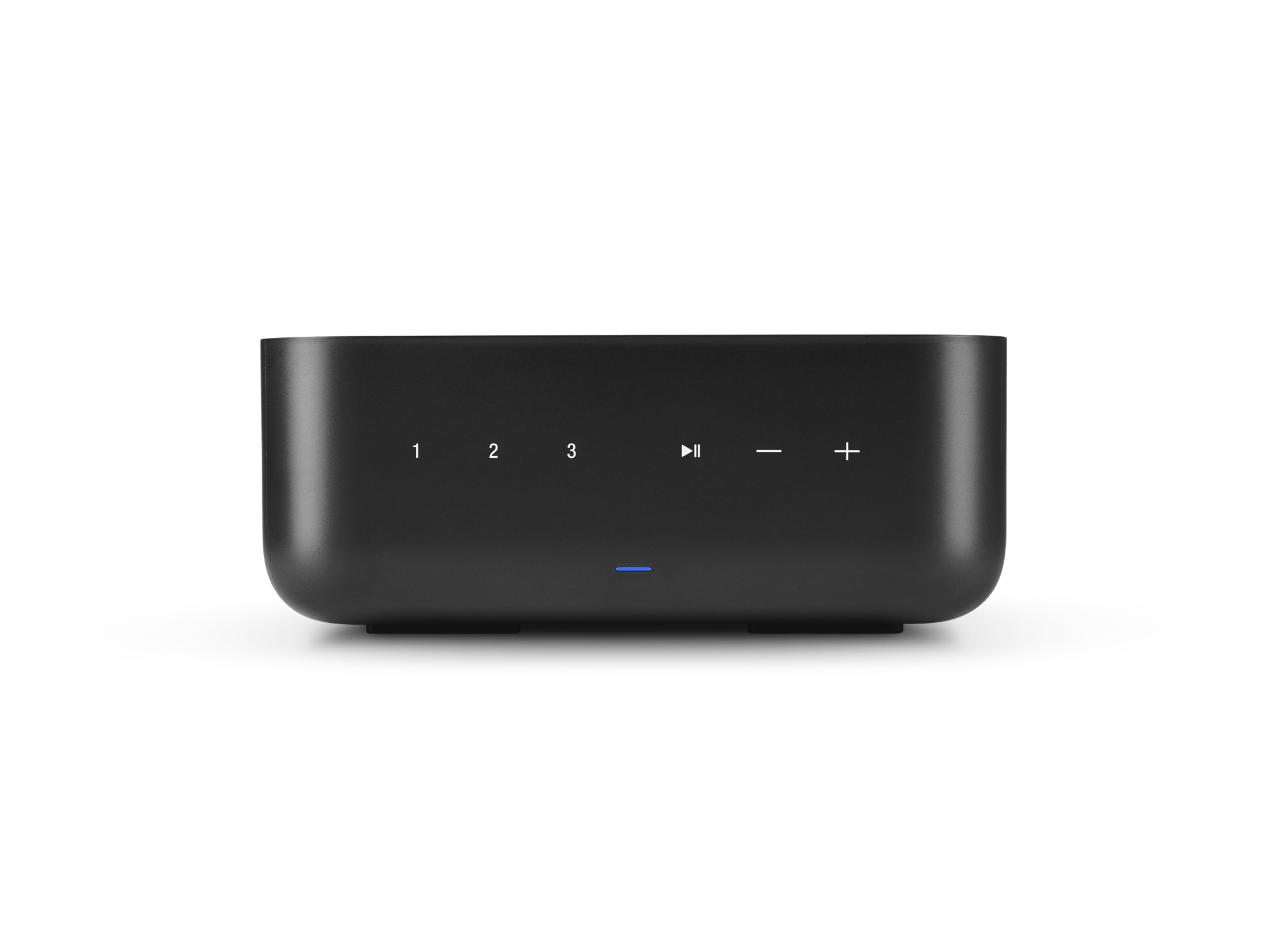

Denon Home AMP, tinklinis stiprintuvas su HDMI eARC ir Hi-Res palaikym

INFORMACIJA

Denon Home AMP - kompaktiškas, galingas ir bevielis muzikos transliavimo stiprintuvas su HEOS™ platforma. Jis gali įgarsinti bet kurią kolonėlių porą Jūsų namuose: lubines, sienines, lauko ar lentynines. Prijungus prie HEOS, garsą galima perduoti į bet kurį HEOS įrenginį ir mėgautis tikru multi-room komfortu.

Galia: 100 W + 100 W (8 Ω) / 125 W + 125 W (4 Ω) – Class D stiprintuvas
Palaikomos muzikos paslaugos (HEOS, gali keistis ir gali būti prieinamos vietoje): „Pandora“, „Spotify“, „TuneIn“, „SiriusXM“, „Amazon Music“, „Tidal“, „Tidal HiRes“, „iHeartRadio“, „Deezer“, „Deezer HiFi“, „Mood:Mix“, „Sony Hi-Res“, AWA, „QPlay“, „SoundCloud“.
Streaming: HEOS®, AirPlay 2, Spotify Connect, Tidal HiRes, Bluetooth 4.2
Wi-Fi: Dual-band 802.11 a/b/g/n/ac + Ethernet

APRAŠYMAS

Compact Wireless Streaming Amplifier with Powered by HEOS™
Power any pair of loudspeakers in your home and easily connect them to HEOS® for seamless, multi-room control.

Denon Amplification
Power any loudspeaker in any room of the home, such as in-ceiling, in-wall, outdoor, or bookshelf speakers. Stream music with HEOS®. Group Denon Home Amp with any other HEOS-enabled devices for whole-home audio.

Music at your command
Stream from all your favorite music streaming services or local sources.

Enhance your TV audio
Easily connect the Denon Home Amp to your TV through the HDMI eARC input.

Elevate your whole-home listening experience
The Denon Home Amp comes with an impressive 100w per channel, 8ohm, 20-20kHz, 0.05% THD.

With a powerful class D amplifier and premium build quality and design, the Denon Home Amp can power loudspeakers anywhere you want them.

Enjoy the ease of streaming music with superior detail and precision. With HEOS®, the Denon Home Amp supports ALAC, FLAC, and WAV files up to 192kHz/24-bit, as well as DSD 2.8MHz and 5.6MHz tracks.

With HDMI eARC, you can play your TV audio with a single HDMI connection, making it easier than ever to connect a pair of speakers to a TV.

With HEOS®, play the same song in every room or select a different song for each connected room—the choice is yours. With Denon Home speakers, sound bars, network players, or AV receivers with HEOS®, easily play all your music in multiple rooms from your favorite music service or source.

HEOS® puts whole-home sound at your fingertips
Imagine a world where filling your home with music is as easy as hitting Play. That’s HEOS. Wirelessly stream your favorite music and audio entertainment to every room. Control it all with the free HEOS app. Get up and running in minutes and start streaming without the stress. The HEOS app makes setup quick and seamless—no wires, no hassles, just pure sonic bliss.

Sonic Innovation
For the Past 110 Years
For more than a century, we've crafted cutting-edge audio products that deliver the ultimate detail. Our Japanese heritage inspires us, and each product is hand-tuned by our sound master. Prepare to hear sound differently.

TECHNINIAI DUOMENYS

Amplifier
Power Amplifier Rated output & THD (8ohm)
100 W+100 W (8 Ω/ohms, 20 Hz to 20 kHz, T.H.D. 0.05 %)
Power Amplifier Rated output & THD (4ohm)
125 W + 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.1%)
Frequency Response
20 Hz to 20 kHz : ±1.5 dB
Connected loudspeaker Impedance
4 – 16 Ω/ohms

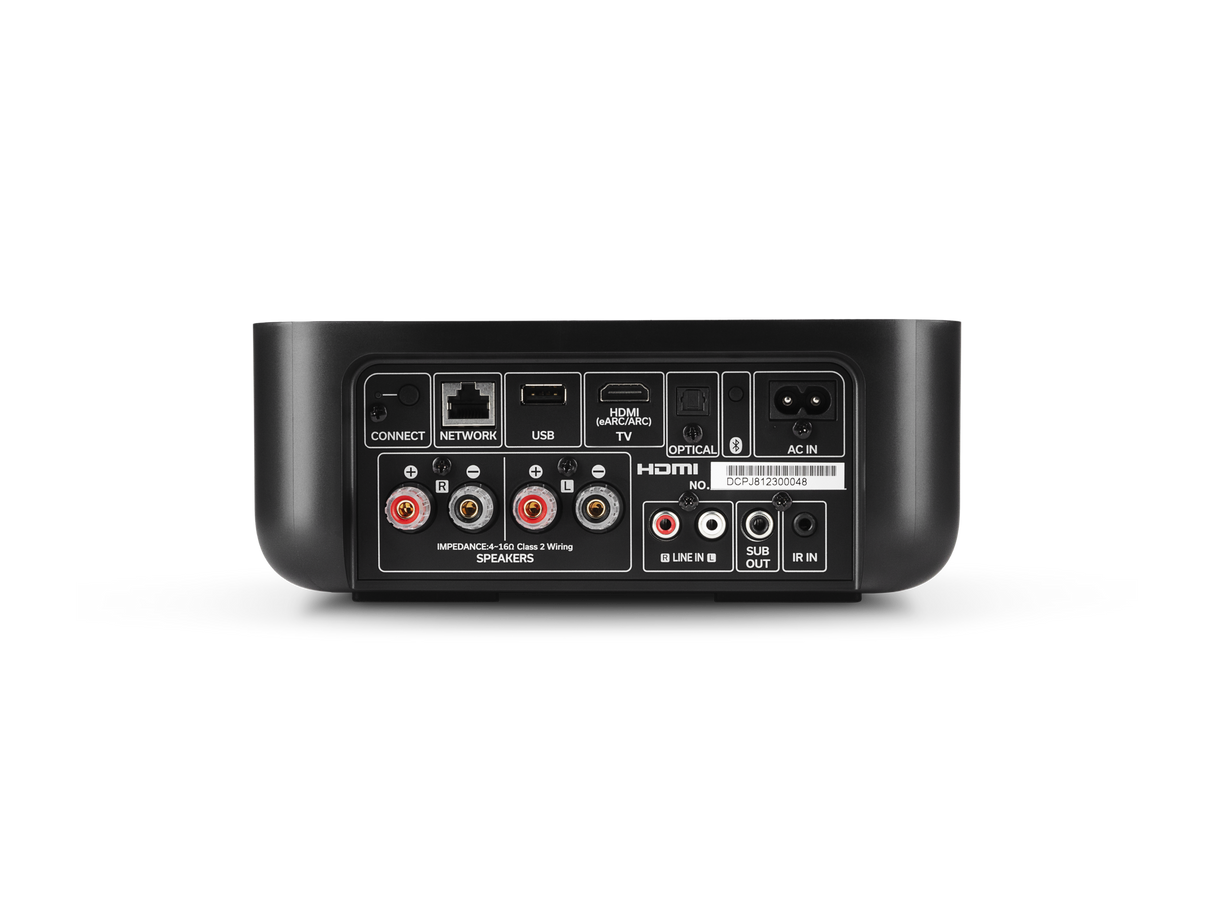

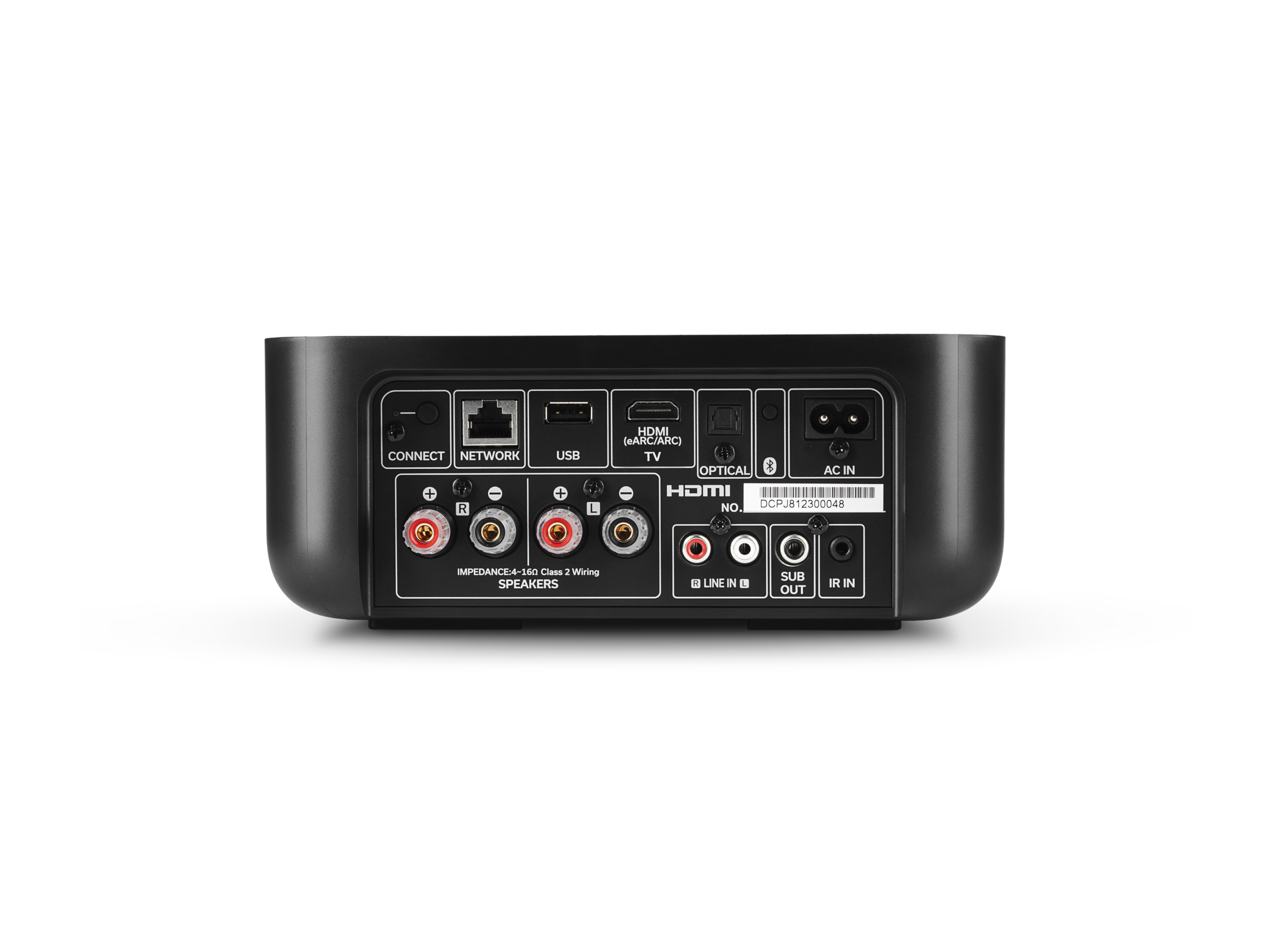

Audio Inputs / Outputs
Loudspeaker Binding Posts
4-way binding posts
Digital Inputs
HDMI (eARC), TOSLINK
Analog Inputs
RCA L/R
Subwoofer Out
RCA Mono
Audio Options
Channel Assignments
Stereo (Default), Dual Mono
Volume Limit
80-100%
Balance
-15dB to +15dB
Adjustable High Pass / Low Pass Filters
40-250 Hz / 40-120 Hz
EQ
Bass, Treble -5dB to +5dB
Sound Modes
Stereo, Direct, Virtual, Denon Dialog Enhancer, Night Mode
TV Sound Grouping
Yes
Audio Format Support
Decoding
Dolby Digital +, Dolby Digital, LPCM, DSD
Stereo PCM / Multi-channel PCM
Yes / Yes
Stereo File Formats (HEOS network share or USB)
WMA: up to and including 192 kbps AAC & MP3: up to and including 320 kbps WAV, ALAC, FLAC: up to and including 24-bit/192kHz DSD: 2.8 MHz, 5.6MHz
Streaming Technologies
Bluetooth Receive
BT 4.2
AirPlay
Airplay 2
Roon
Roon Ready
Spotify
Spotify Connect
Music Services and Sources
Music Services Supported (HEOS, subject to change and local availability)
Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
Music stored on mobile device
Yes (iOS, Android or Kindle Fire)
NAS (Network Attached Storage)
Network share, DLNA
USB Storage Device Playback
Yes (FAT32, NTFS formatted drives)
Networking & Control
Wired Connectivity
Ethernet
Wireless Connectivity
Dual band, 802.11 a/b/g/n/ac
IR Input
3.5mm
IR Learning
Yes
Control System Compatibility via TCP/IP
Crestron, Control4, AMX
HEOS App
iOS, Android, Kindle Fire
General
Product Color
Black
User Interface

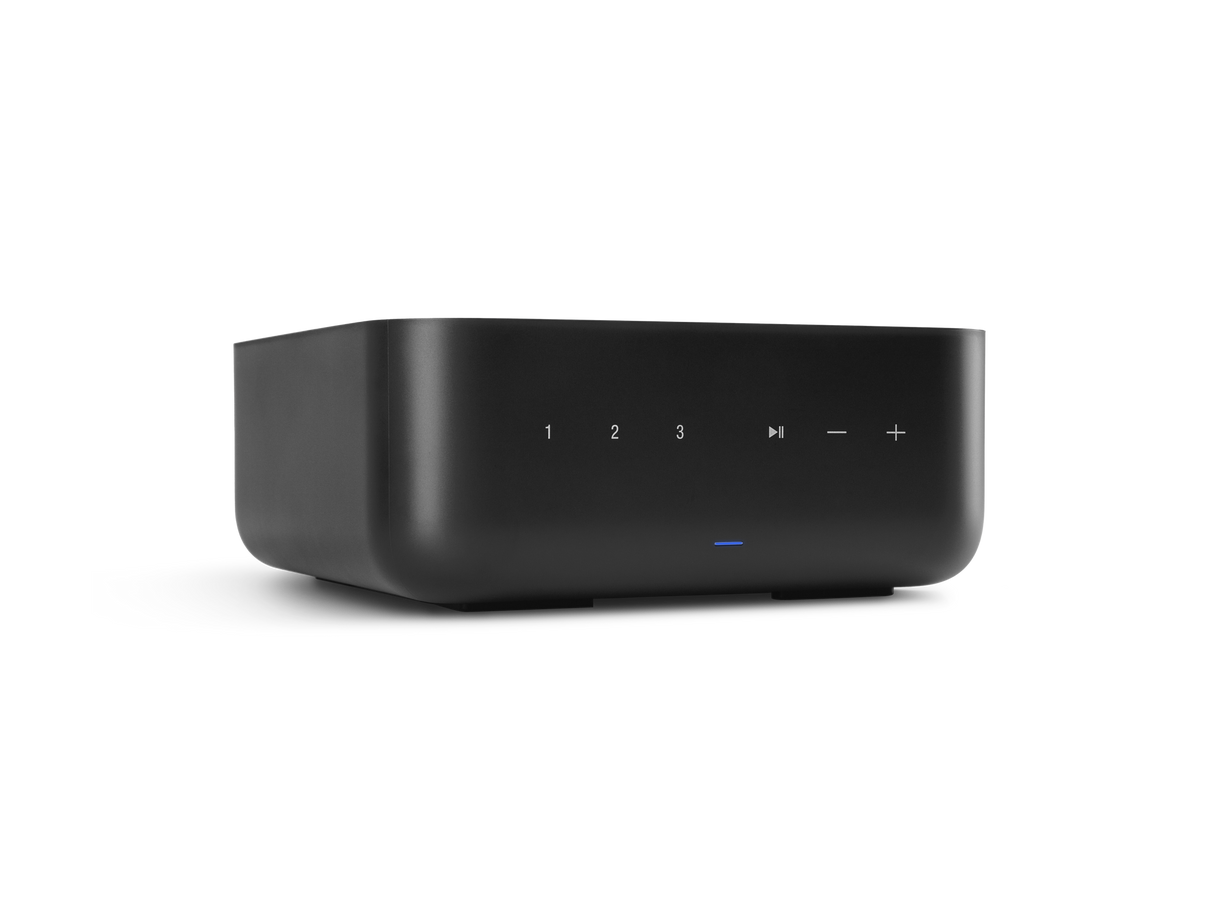

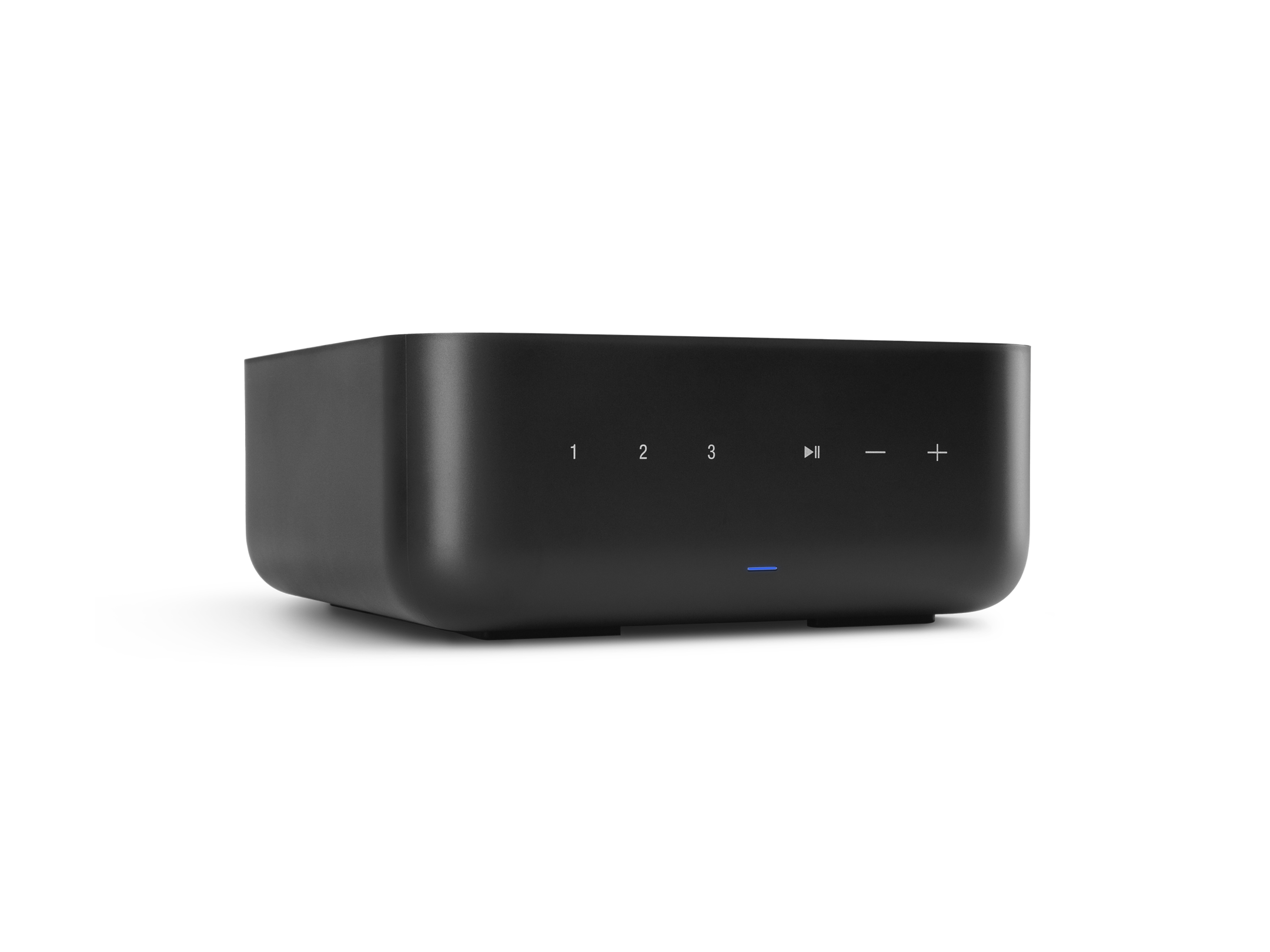

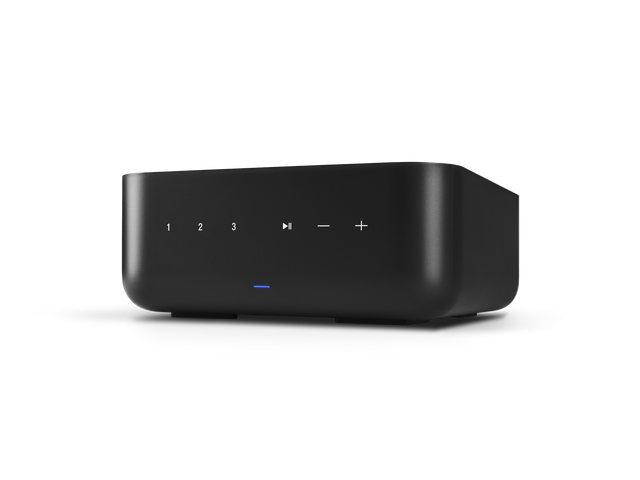

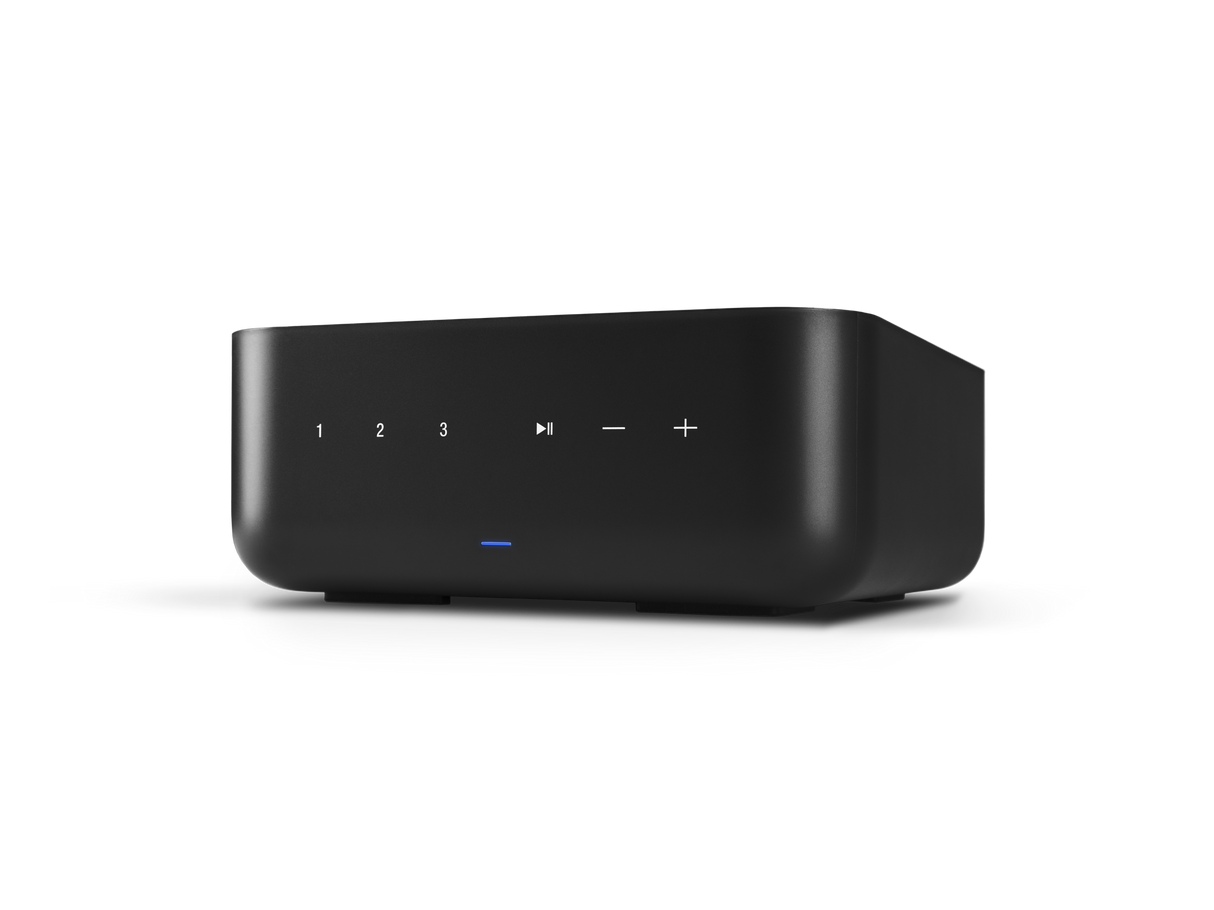

Volume up/down, Play / Pause, Quick Select 1/2/3, Multi colored LED status indicator, Connect button (rear), Bluetooth button (rear)
Dimensions (H x W x D) Inches
3.4 x 8.54 x 9.21 Inches
Dimensions (H x W x D) mm
86.2 x 217 x 234mm
Weight (lbs)
4.5 pounds
Weight (kg)
2 KG

DOKUMENTAI

Vartotojo vadovas (EN)
