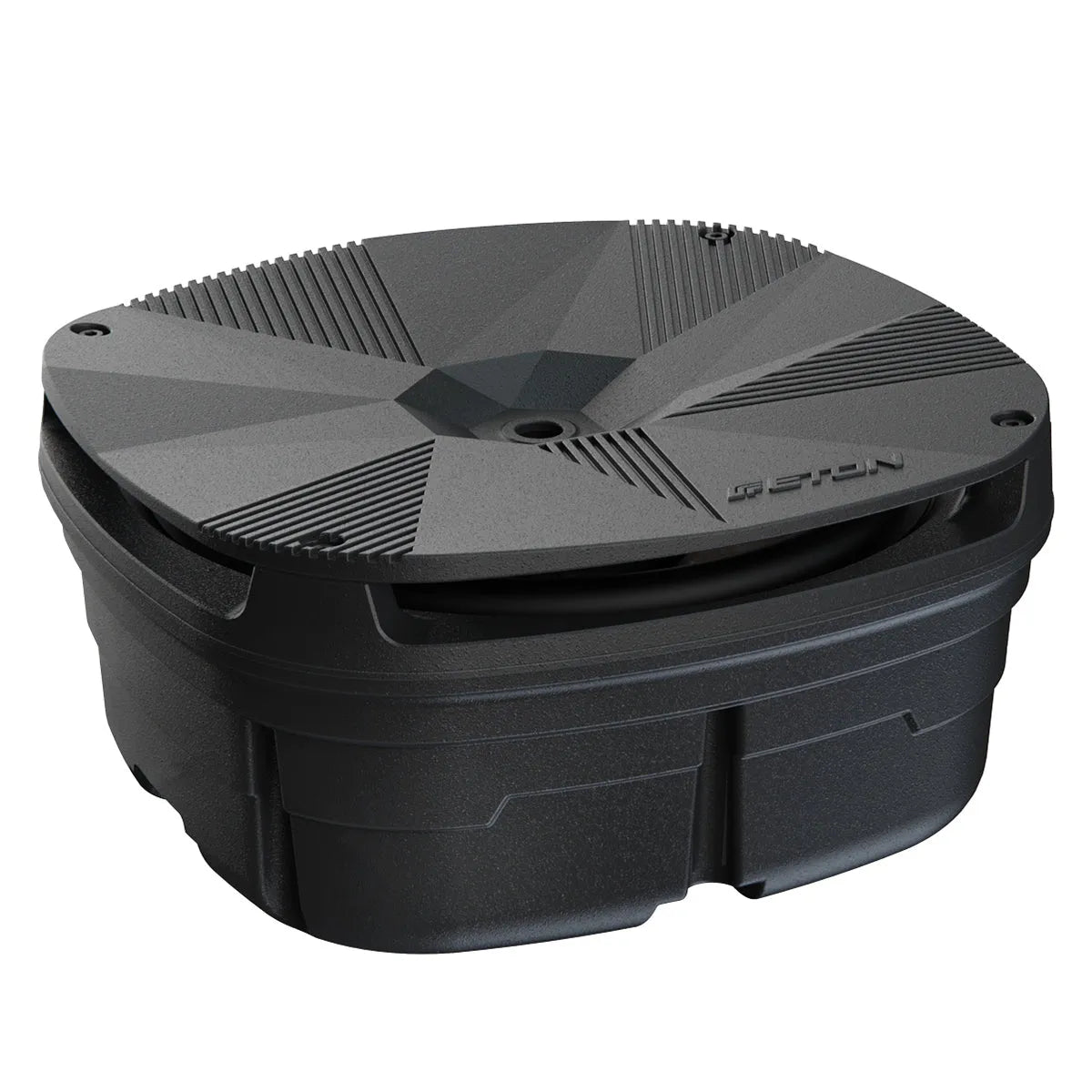

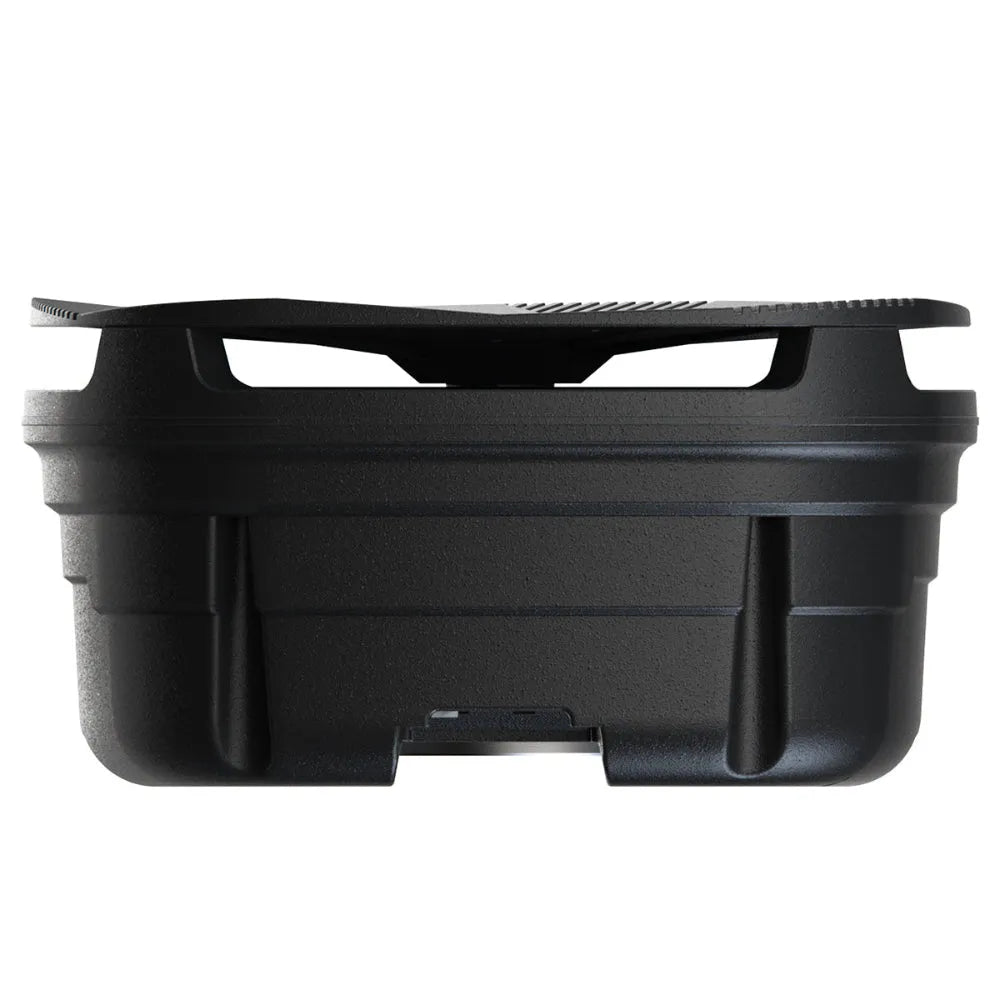

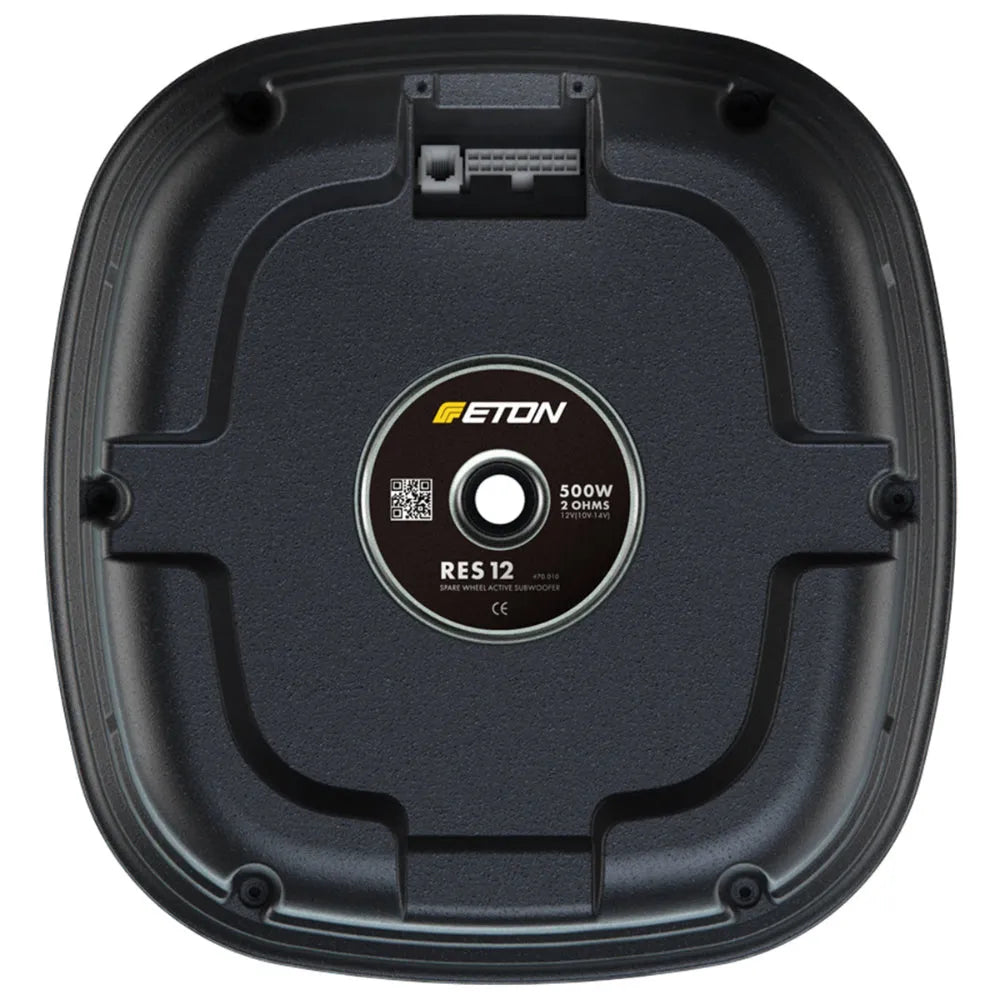

Eton RES 12, 30cm aktyvus žemų dažnių garsiakalbis, 500 W

INFORMACIJA

Eton RES 12 - tai galingas aktyvus žemų dažnių garsiakalbis (subwooferis), sukurtas montuoti atsarginio rato vietoje, todėl leidžia mėgautis stipriu ir giliu bosu neprarandant vietos automobilio bagažinėje. Integruotas stiprintuvasturi 200 W RMS galią ir iki 500 W MAX galią, todėl subwooferis gali atkurti galingą ir dinamišką bosą. Integruotas žemų dažnių filtras, automatinio įsijungimo funkcija ir nuotolinis garso lygio valdiklis leidžia lengvai pritaikyti sistemą pagal klausymo poreikius.

Varža: 2 Ω
Nominali galia (RMS): 200 W
Maksimali galia: 500 W
Garso slėgis: 91 dB
Integruotas stiprintuvas: taip
Montavimo vieta: atsarginio rato vieta (nuo 15" ratlankio)

APRAŠYMAS

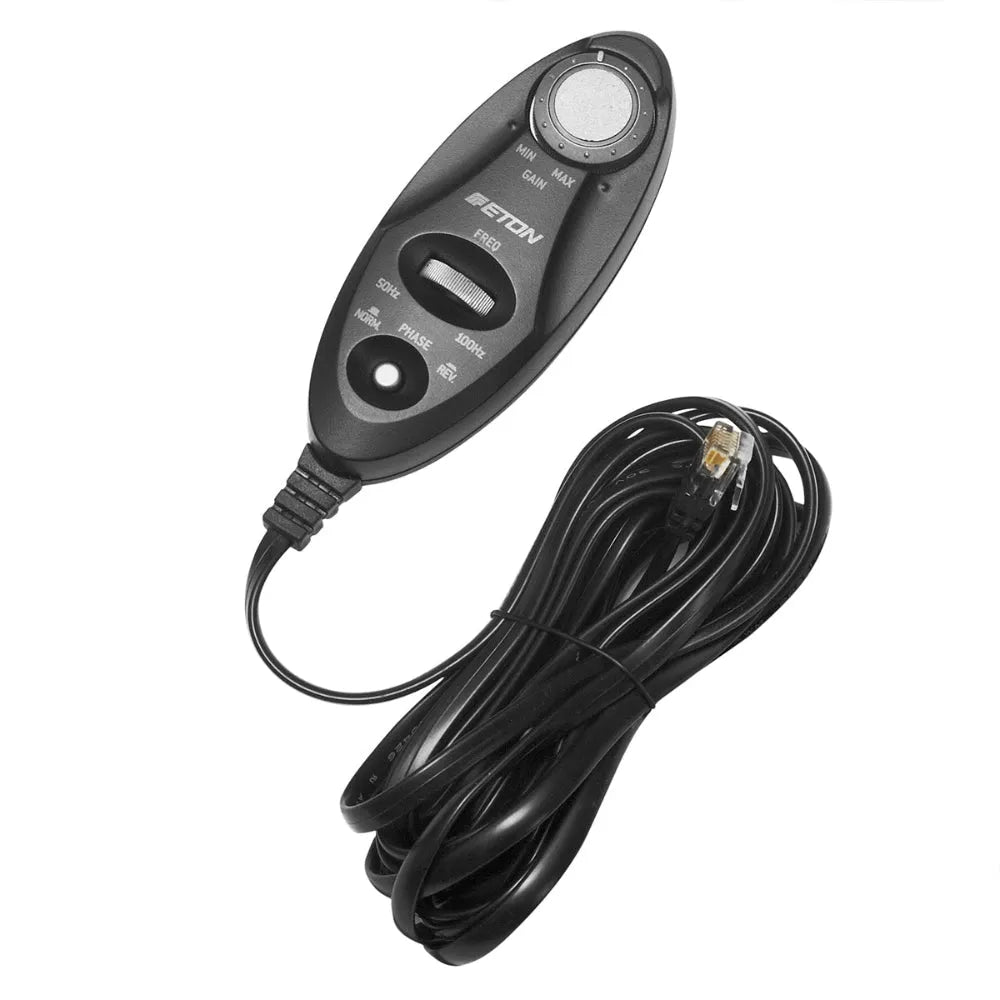

The RES subwoofer series stands for hidden rich bass! The special feature of this series is the hidden mounting in the spare wheel (from 15 "rim), i.e. it can be the subwoofer hidden in the spare wheel well mounted and still be carried the original emergency wheel. Thanks to the solid aluminum die-cast housing and the special design, this is possible! The new RES 12 has an extremely powerful 300 mm (12") subwoofer with ferrite magnet and stiffened aluminum membrane for extreme kick bass and powerful low bass passages. The special design of the driver, allows easy mounting in the center of the subwoofer, so the original mounting spike of the emergency wheel can still be used. The RES 12 has an extremely powerful active module with 500 W music power and low-pass filter and switch-on detection DC/SIG. Incl. level remote control with Phaseshift, Engineered in Germany.

Product features

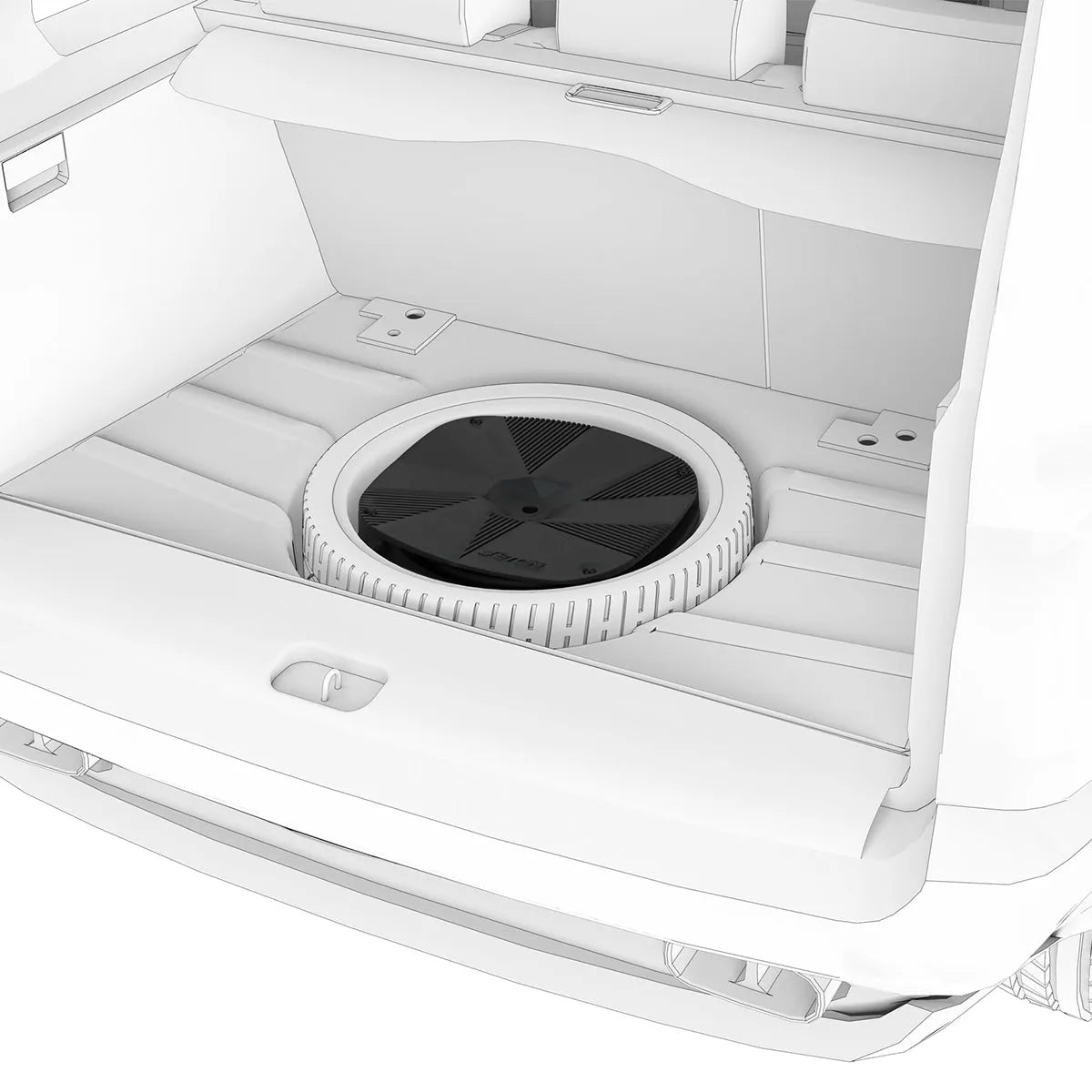

300 mm (12") active subwoofer for the inside of the spare wheel (from 15" rim size and more) or directly mountable in the spare wheel well. The new RES 12 in ETON Stealth design is simply screwed in the middle thanks to the special design and can thus be secured with the original mounting pin of the spare wheel. Thus, hidden bass is possible, but without having to do without the spare wheel! The extremely rigid aluminum diaphragm in combination with the strong ferrite magnet and the special double-bead result in hard kick bass full! In terms of low frequency response, the RES 12 also convinces, deep bass passages are no problem! The integrated active amplifier module provides a whopping 200 W RMS at 2 ohms and 500 W music power handling, high- and low-level inputs with integrated low-pass filter 50 - 100 Hz, phase shift via level remote control, auto-turn on function (SIG/DC), suitable for vehicles with start-stop function, dimensions (LxWxH) 341 x 321 x 164 mm, incl. mounting accessories and installation accessories, connection cable and level remote control.

TECHNINIAI DUOMENYS

Subwoofer 300 mm (12")
Impedance 2 Ω
Nominal power RMS200 W
Music power 500 W
Sound pressure level 91 dB

DOKUMENTAI

Vartotojo vadovas (DE)

Eton RES 12 – CAR & HIFI 6/2022 testo apžvalga (DE)
