EverSolo

EverSolo DAC-Z8, Skaitmeninis- analoginis signalo keitiklis (DAC).

699.00 €

EverSolo DAC-Z8, Skaitmeninis- analoginis signalo keitiklis (DAC). yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.

Siuntimas ir pristatymas

Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.

DAC-Z8 yra kompaktiškas skaitmeninis-analoginis keitiklis, pasižymintis puikiu atlikimu ir dideliu našumu.

  • DAC: ES9038Pro.
  • Audio procesorius: XMOS XU316.
  • OPA: OPA1612*10.
  • Valdymas per aplikaciją.
  • Ausinių stiprintuvas.



APRAŠYMAS

ES9038Pro DAC

The heart of the DAC-Z8, its digital-to-analog conversion stage, is equipped with an excellent ESS ES9038Pro chip. This ensures low distortion and noise for a truly convincing high-fidelity music experience. In addition, the DAC-Z8’s audio circuitry is specifically calibrated to deliver its full potential.

XMOS XU316 USB Interface

The USB input of the DAC-Z8 is combined with an XMOS XU316 interface, which is able to process audio data quickly and efficiently for optimal signal transmission. This chip also supports high-resolution streams up to PCM 32bit 768kHz and DSD512 Native, as well as MQA files.

MQA

The EverSolo DAC-Z8 supports the decoding of MQA (Master Quality Authenticated) files from its USB, Toslink optical and coaxial inputs. This format allows to enjoy a sound quality as close as possible to the original studio recording.

High precision clocks

The DAC-Z8 is equipped with two very high precision clocks on the frequencies 45.1584MHz and 49.152MHz. These allow you to enjoy a high quality decoding, ensuring a very low jitter for a detailed and precise sound.

Optimized I/V circuit

The I/V circuit of the DAC-Z8 consists of 8 OPA1612 OPAs. It uses multi-channel signal shunting compensation technology, with the 8 OPAs corresponding to the 8 output channels of the I/V conversion stage, ultimately providing a two-channel parallel output. In addition to the high-precision resistors, this circuitry assists in the lossless amplification of the XLR, RCA and headphone outputs, improving channel separation, dynamic range and sonic integrity.

Amplifier circuit & Balanced preamp output

The DAC-Z8’s analog audio circuitry is fully balanced. The XLR, RCA and headphone outputs are all processed by a balanced differential amplifier circuit for low noise and improved channel separation. The high-fidelity preamplifier circuitry provides precise and efficient volume control.

Bluetooth 5.0

In addition to a complete connectivity, the DAC-Z8 has a Bluetooth 5.0 Qualcomm QCC5125 receiver, which allows you to broadcast your music remotely, from a smartphone or a tablet for example, while supporting the codecs of high-resolution transmission aptX HD and LDAC for a high quality restitution in wireless.

Digital DSP filters

The EverSolo DAC-Z8 offers no less than 7 PCM filters and 4 DSD filters. These allow you to adapt the sound reproduction of the device according to your listening preferences and your audio system

Headphone Amplifier

The DAC-Z8’s headphone amplifier also performs very well and is capable of providing comfortable power to accompany headphones with impedance from 16 to 300Ω without difficulty. This one also has a two-step gain control to accommodate both demanding headphones and more sensitive earphones.

Control app

The DAC-Z8 can be controlled via the free EverSolo Control App available on Android and iOS. The latter allows access to the vast majority of the parameters available on the device.



TECHNINIAI DUOMENYS

SPECIFIKACIJOS

Model: EverSolo DAC-Z8

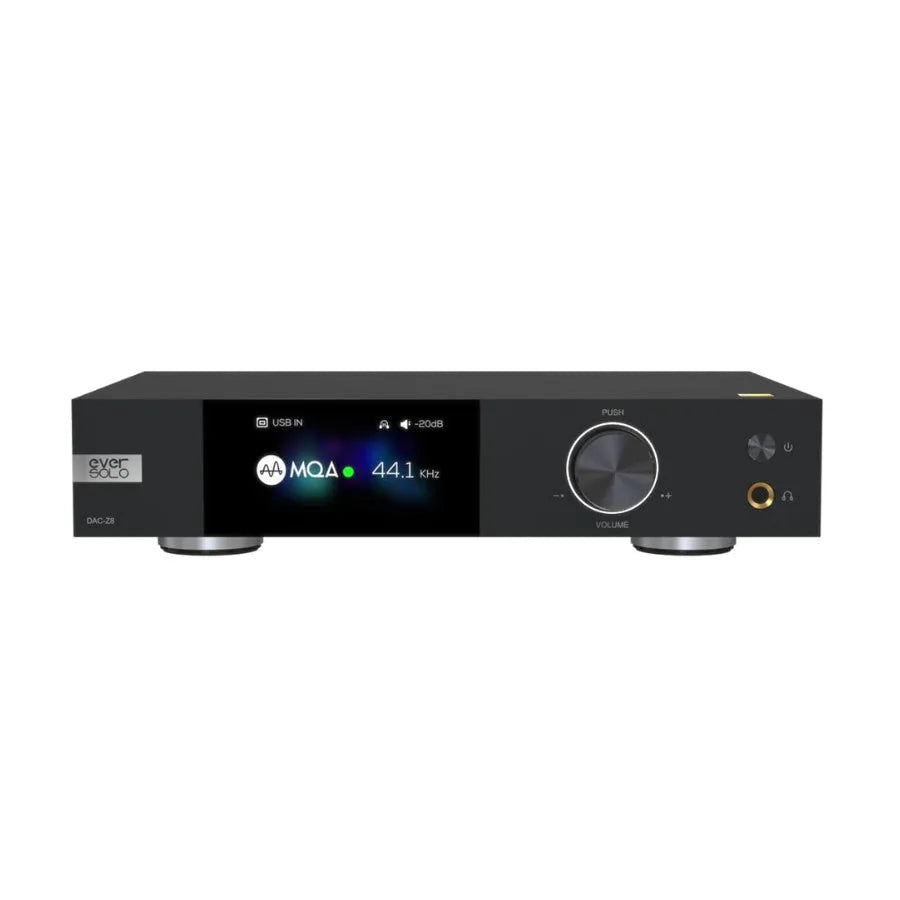

Display Screen: 3-inch LCD Screen
Chassis: Aviation aluminum alloy
DAC: ES 9038Pro
Audio Processor: XMOS XU316
OPA Chip: OPA1612*10
Power Supply: Low noise switching power supply
Bluetooth Audio Input: Qualcomm QCC5125 Bluetooth module, BT5.0
Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol
USB-B DAC Input: Compatible with Windows (7, 10), Mac, Android and IOS
Up to stereo DSD512, PCM 768KHz 32Bit and MQA
USB-C DAC Input: Compatible with Windows (7, 10), Mac, Android and IOS
Up to stereo DSD512, PCM 768KHz 32Bit, MQA
Optical Audio Input: Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA
Coaxial Audio Input: Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA

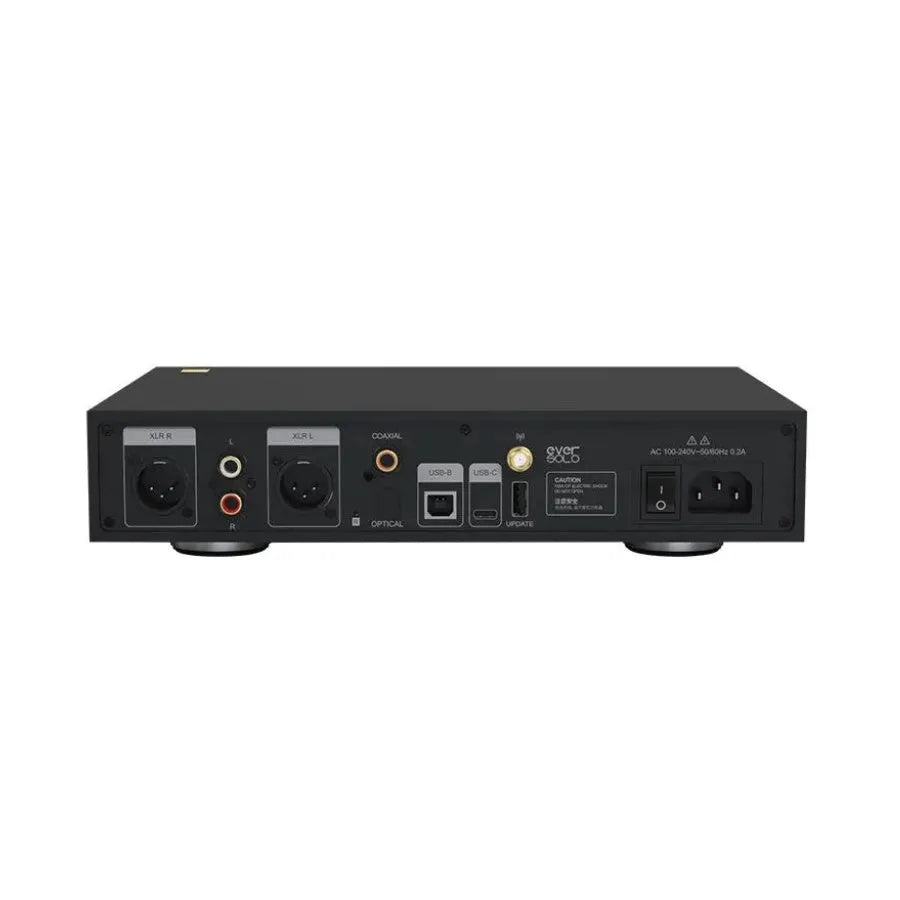

Analog Audio Output: Preamp output: XLR (balanced), RCA;
Headphone amp output: 6.35mm single-ended
USB Port: USB2.0*1（only for firmware upgrade）
Control Methods: Remote control, mobile APP control and knob control
Headphone Impedance: 16-300Ω （low gain mode:16-32Ω/high gain mode: 32-300Ω）
XLR Audio Characteristics: Output level(Vrms): 4.1Vrms@0dBFS
THD+N@A-wt: 0.000062%@1kHz（-124dB@1kHz）
THD+N@No-wt：0.000069%@1kHz（-123dB@1kHz）
Noise@No-wt: <1.2uVrms
SNR @No-wt: 133dB@1kHz
Frequency response: 20Hz-20kHz(±0.1dB)
Crosstalk: -130dB@1kHz
DNR @No-wt: 133dB@1kHz
RCA Audio Characteristics: Output level (Vrms): 2.3Vrms@0dBFS
THD+N@A-wt: 0.000086%@1kHz(-121dB@1kHz)
THD+)@No-wt: 0.000097%@1kHz(-120dB@1kHz)
Noise @No-wt: <1.5uVrms
SNR @No-wt: 126dB@1kHz
Frequency response: 20Hz-20kHz(±0.1dB)
Crosstalk: -123dB@1kHz
DNR@No-wt: 126dB@1kHz
Headphone (low gain mode): Output level(Vrms): 1.2Vrms@0dBFS
Maximum undistorted power: 45 mW@32Ω
THD+N@A-wt: 0.00015%@1kHz(-116dB@1kHz)
THD+N@No-wt: 0.00018%@1kHz(-115dB@1kHz)
Noise @No-wt: <2uVrms
SNR@No-wt: 124dB@1kHz
Frequency response: 20Hz-20kHz(±0.1dB)
DNR @No-wt: 119dB@1kHz
Headphone (high gain mode): Output level(Vrms): 2.8Vrms@0dBFS
Maximum undistorted power: 26 mW@300Ω
THD+N@A-wt: 0.00016%@1kHz(-116dB@1kHz)
THD+N@No-wt: 0.00016%@1kHz(-116dB@1kHz)
Noise@No-wt: <2uVrms
SNR@No-wt: 124dB@1kHz
Frequency response): 20Hz-20kHz(±0.1dB)
DNR @No-wt: 124dB@1kHz
Power Input: AC 110~240V 50/60Hz
Rated Power: 9W
Dimensions: 270mm(W) * 187mm(D)* 50mm(H)
Packing List: Remote control*1, power cable*1, USB cable*1, product manual*1
