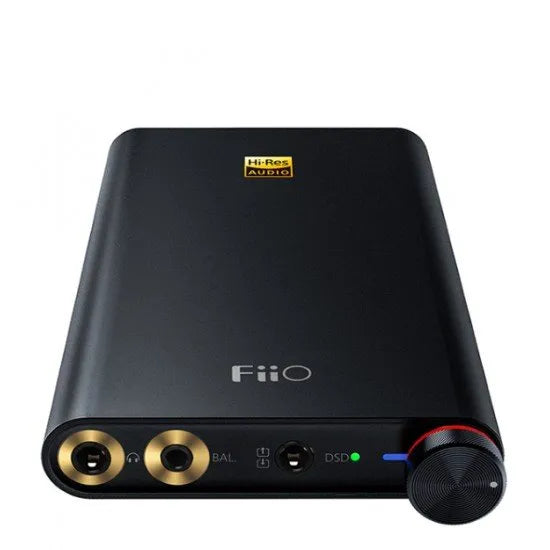

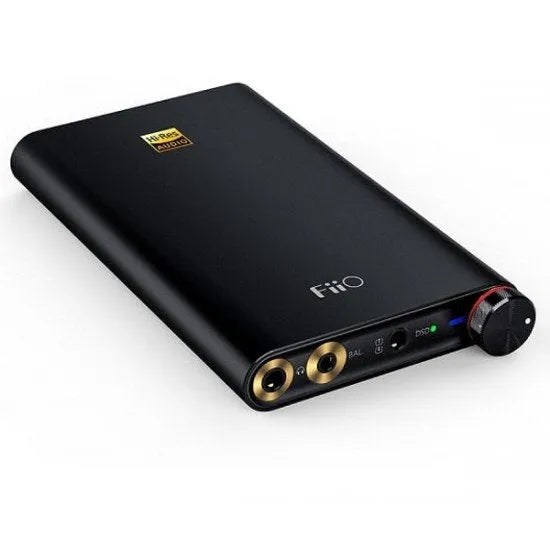

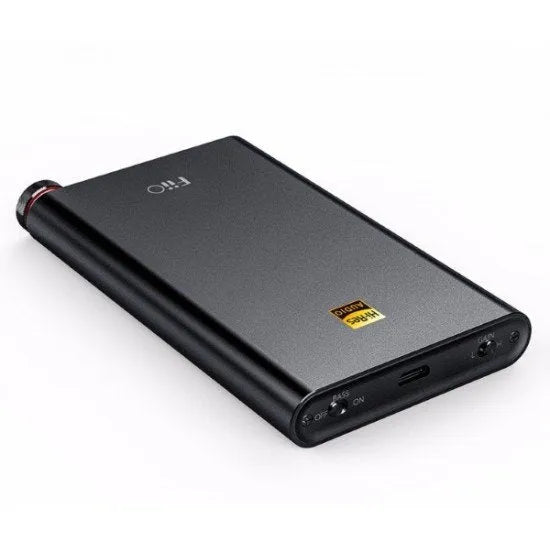

FIIO Q1 MARK II, nešiojamas ausinių stiprintuvas



check_circle_outline highlight_off
Yra prekyboje Išparduota
Translation missing: lt.product.general.sku_html
Nuolaida: 119.00 €
Kaina: 119.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

FIIO Q1 MARK II, nešiojamas ausinių stiprintuvas



Kompanktišas nešiojamas ausinių stiprintuvas su itin plačiu funkcionalumu ir ergonomišku dizainu.
  • Galia 75 mW (32Ω) / 220 mW (32Ω) Balanced output
  • Signalo palaikymas 384kHz/32bit
  • SNR: >115dB(AUXIN).
  • USB/DAC keitiklis.





Native DSD decoding chips worthy of a flagship

Being equipped with the XMOS platform allows the Q1 Mark II to support decoding of more formats with outstanding performance – it is capable of decoding up to 384 kHz /32 bit PCM as well as up to DSD256 (the latter is indicated by a green light). When combined with the two separate crystal oscillators, each designed to handle different sampling rates to achieve the utmost accuracy in digital-to-analog conversion, the Q1 Mark II becomes an affordable product that punches well above its weight in terms of versatility and performance.

Q1MKII产品介绍_04

Exceptional DAC and amplifier parts in an intelligent design

The Q1 Mark II uses some of the finest components in its well-thought-out design. The DAC employed is the AKM AK4452, which decodes high sampling rate formats with a high signal-to-noise ratio and low distortion. The headphone amplifier chip in the Q1 Mark II is in fact the very same one used in the X7 Mark II's AM3A amplifier module, the audiophile-approved OPA926 with extremely low noise output. Finally, low-pass filter duties for line output are handled by Texas Instruments' OPA1662.

飞傲官网-FiiO-音乐乐无限!_15

Innovative ADC volume adjustment technology

The Q1 Mark II employs a clever ADC volume adjustment mechanism – by accurately reconstructing the ADC curve, problems such as volume imbalance between the left and right channels and noise when adjusting the volume are all avoided while also greatly enhancing volume adjustment accuracy with each turn of the knob.


SPECIFIKACIJOS


Specifications

Output Power:                           75mW(PO/32Ω)

                                                    >220mW(BAL/32Ω)
Supported Sampling Rates:      384kHz/32bit
DSD Support:                               DSD64/128/256
THD+N:                                       <0.003%(USB DAC)

                                                    <0.002%(AUX IN)
Battery Capacity:                         1800mAh
Battery Life:                                 20h(AUX IN

                                                   >1Oh (USB DAC)
SNR:                                           >115dB(AUXIN)

                                                   >110dB(USB DAC)
Dimensions:                               About 99×59×12.5(mm)
Headphone Impedance:            16-1500(BAL)
Weight:                                       About101g


INSTRUKCIJOS

User Manual (EN).
