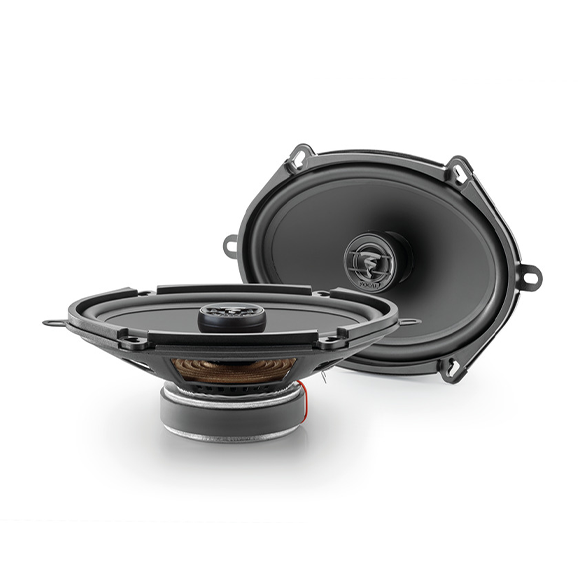

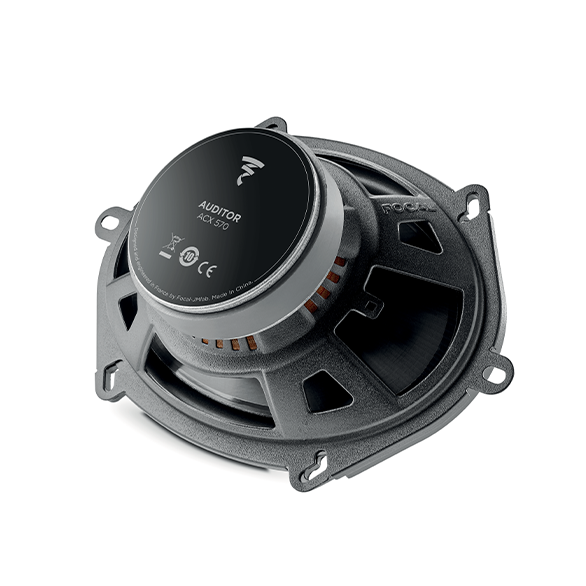

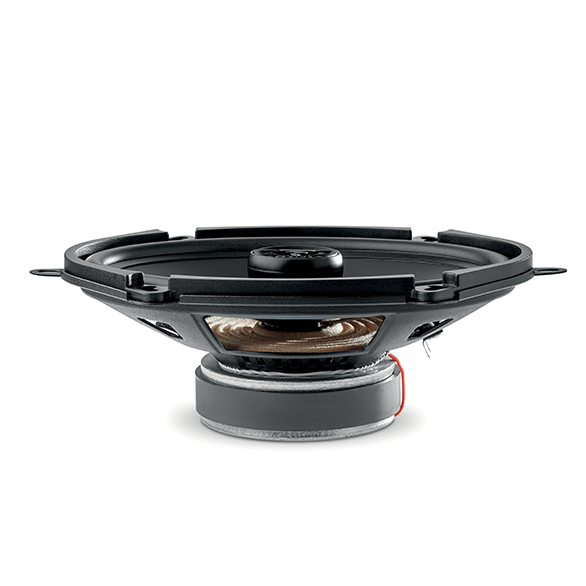

Focal ACX 570, Koaksialiniai automobiliniai garsiakalbiai

Focal ACX 570, Koaksialiniai automobiliniai garsiakalbiai

Dviejų juostų koaksialiniai ACX 570 garsiakalbiai pasižymi neutraliu ir dinamišku garsu, tiksliais aukštaisiais dažniais ir geresne garso sklaida.

• Rekomend. stiprintuvo galia: 60 W.
• Jautrumas (2,83 V/1 m): 91.6 dB.
• Dažnių diapazonas: 60 Hz - 21 kHz.
• Varža: 4 Ω.

Like all the Auditor kits, the 2-way coaxial elliptical kit ACX 570 delivers neutral and dynamic sound, precise treble and an improved soundstage thanks to its woofer with polypropylene cone and its adjustable, inverted dome mylar tweeter.
Measuring 5 ^1/8” x 7 ^1/8” (13 × 18cm), it provides a large sound diffusion surface while reducing the height of the product for easy, quick and invisible installation in the vehicle.
ACX 570 can be linked with other electronics or directly connected to the vehicle’s original amplifier to enhance your in-car listening experience. Its high sensitivity guarantees an unrivalled level of performance in its category. It is perfect for a début Focal system and/or for improving your original sound system.

SPECIFIKACIJOS

• Type: 2-way elliptic coaxial kit
• Woofer: 130x180 mm
• Depth: 59.5 mm
• Cone: Polypropylene
• Maximum power: 120 W
• Nominal power: 60 W RMS
• Sensitivity (2.83V/1m): 91.6 dB
• Frequency response: 60 Hz - 21 kHz
• Impedance: 4 Ω
• Voice-coil diameter: 25 mm
• Magnet: Ferrite
• Suspension: Butyl
• Tweeter: Inverted dome tweeter
• Crossover: Integrated

INSTRUKCIJOS

User Manual (EN).
