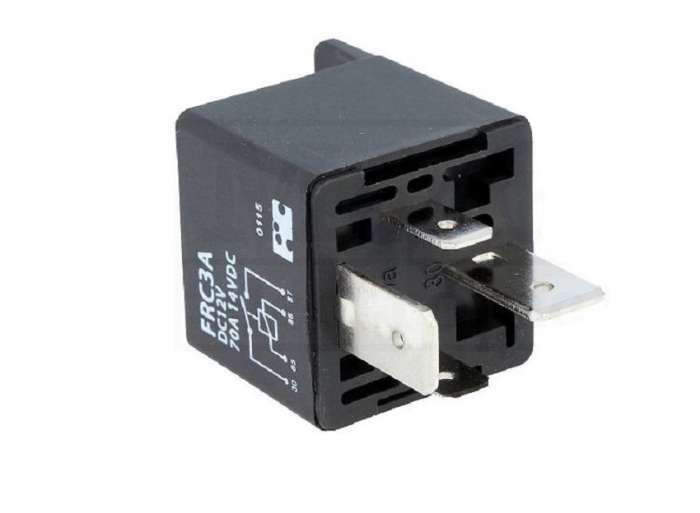

FORWARD INDUSTRIAL 12V 70A FRC3-12F, rėlė

3.50 €

FORWARD INDUSTRIAL 12V 70A FRC3-12F, rėlė - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

12V 70A FRC3-12F, rėlė.

  • Ciklai: 100000.
  • Veikimo laikas: 10ms.
  • Varža: 80Ω.



SPECIFIKACIJOS

Manufacturer FORWARD INDUSTRIAL CO.
Mounting on panel
Mechanical durability 10000000 cycles
Leads 6,3x0,8mm terminals; 9,5x1,2mm connectors
Weight 47g
Electrical life 100000 cycles
Contacts configuration SPST-NO
Rated coil voltage 12V DC
Type of relay electromagnetic
Operate time 10ms
Contact resistance 30mΩ
Release time 10ms
Coil resistance 80Ω
Relay variant car
Coil voltage min. 7.8V DC
Coil voltage max. 18V DC
Contact current max. 70A
Relay series FRC3
Coil current 150mA
Coil power consumption 1.8W
DC contacts rating @R 60A / 14V DC
Body dimensions 29x29x26.5mm
Switched voltage max. 75V DC
Operating temperature -40...85°C
