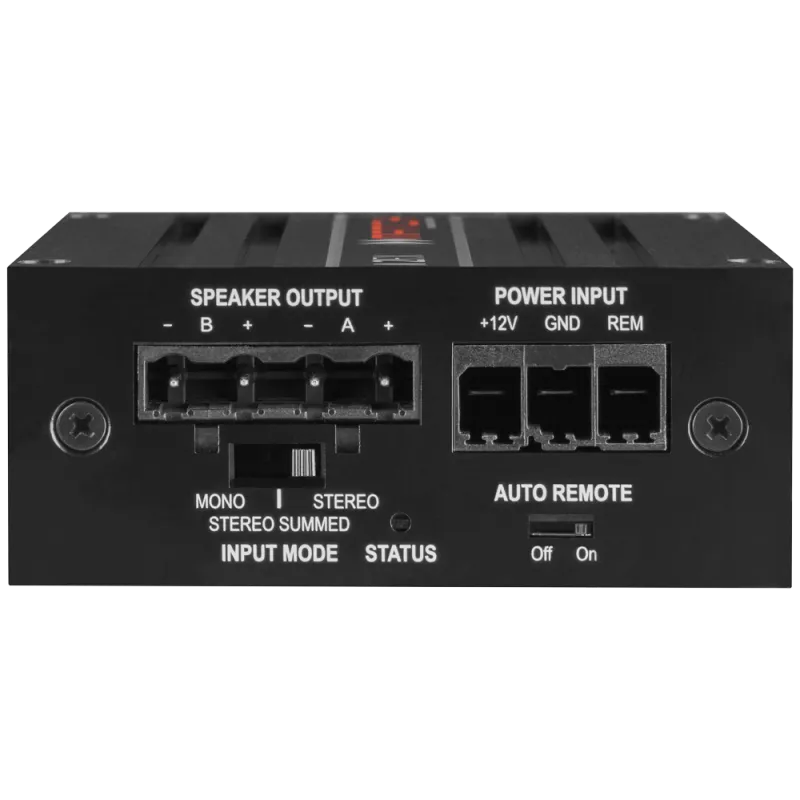

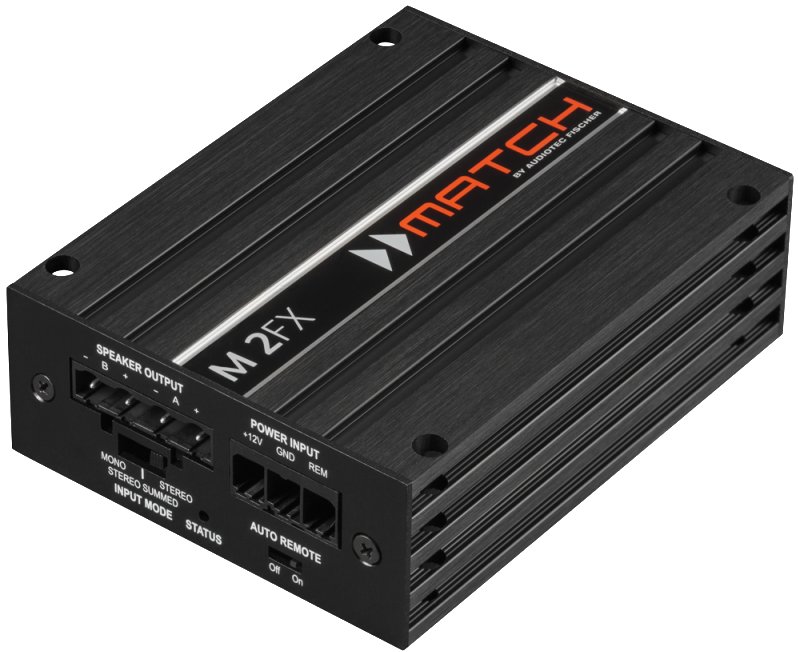

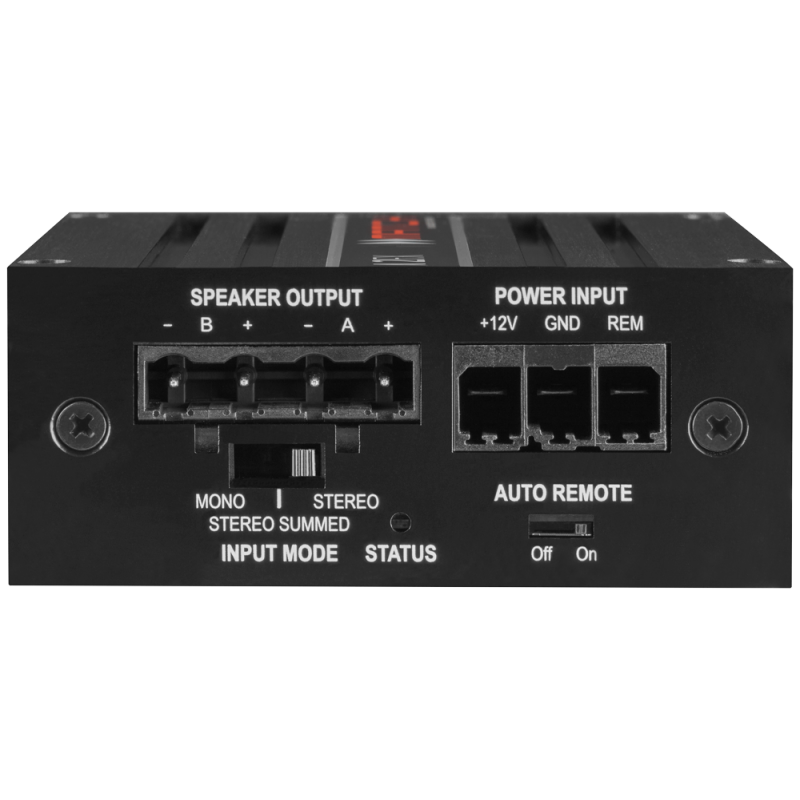

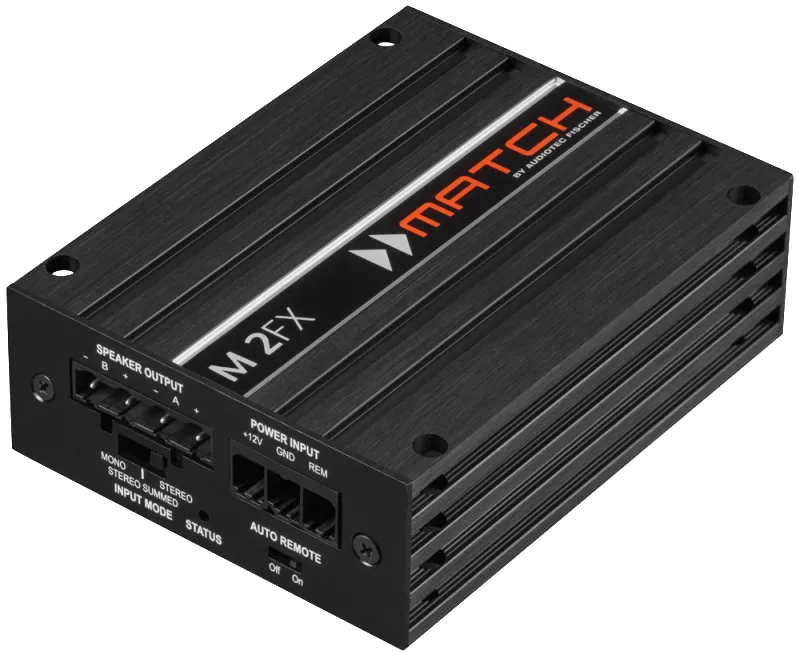

Garso stiprintuvas Helix Match M 2FX, 2x440W

Itin kompaktiškas ir mažytis dviejų kanalų stiprintuvas, pasižymi didžiule galia, bei mažais matmenimis.

• Galia RMS / MAX. :
  - prie 4 Omų 2 x 125 / 250 W
  - prie 2 Omų 2 x 220 / 440 W
• Dažnių diapazonas: 15 Hz – 40,000 Hz
• Damping faktorius >100
• Matmenys: 35 x 85 x 110 mm
• Iškraipymas: <0,01%

Papildomos funkcijos:
Visiškai stabilizuotas vidinis maitinimo šaltinis su Start-Stop galimybe, Highlevel įėjimas su automatine įjungimo funkcija ir pažangia diagnostikos klaidos apsauga (ADEP)

• Įėjimo varža RCA / Cinch 10 kOhms
• Įėjimo varža Highlevel 13 omų
• RCA / Cinch 2 - 6 voltų
• Darbinė įtampa: 9,6 - 16 voltų
• Įėjimo jautrumas: 4 - 11 voltų
• Automatinis nuotolinis jungiklis

Vartotojo vadovas

• Ultra compact 2-channel Class GD amplifier
• Excellent sound quality combined with maximum efficiency
• Extremely stable – well suited for driving subwoofers with 2 x 2 Ohms impedance
• Integrated, active crossover with highpass and lowpass
• Line input and highlevel input with ADEP circuit
• Automatic Remote switch

Class GD amplifier technology

Audiotec Fischers unique Class GD concept combines the benefits of Class G technology with the main principle of a Class D amplifier. The result is an exceptional high efficiency that outperforms conventional Class D amplifiers. By varying the internal supply voltage depending on the amplifier’s input signals, idle losses are significantly reduced and overall efficiency is close to maximum at any time. So heat dissipation is almost negligible thus allowing smallest heat sinks and most compact form factors for space saving and hidden installation concepts, that were not previously possible.

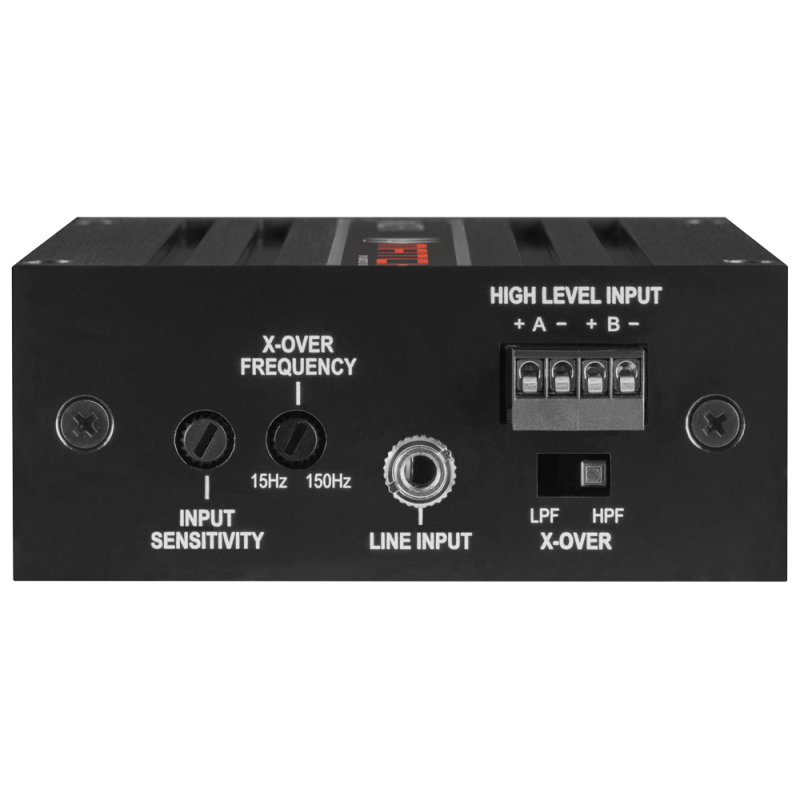

Smart highlevel input

The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appears - but not with the M 2FX. The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.

Start-Stop capability

The switched power supply of the MATCH M 2FX assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.
