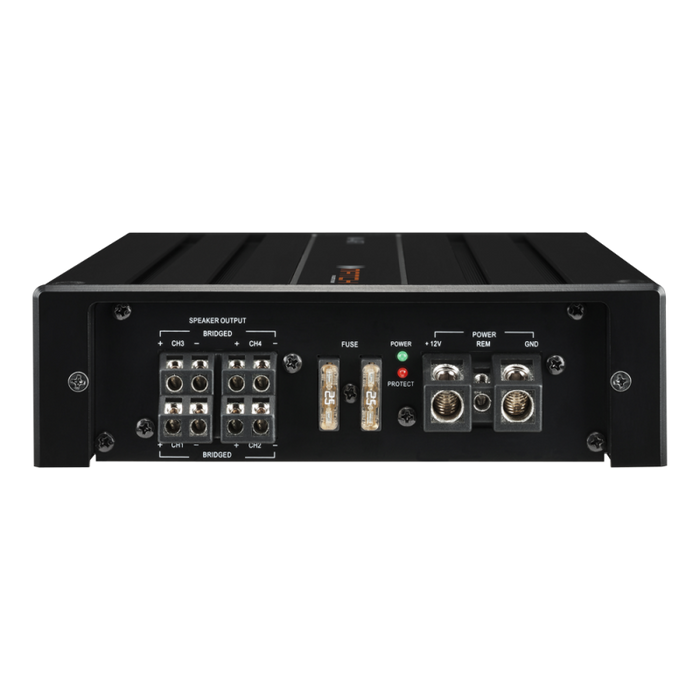

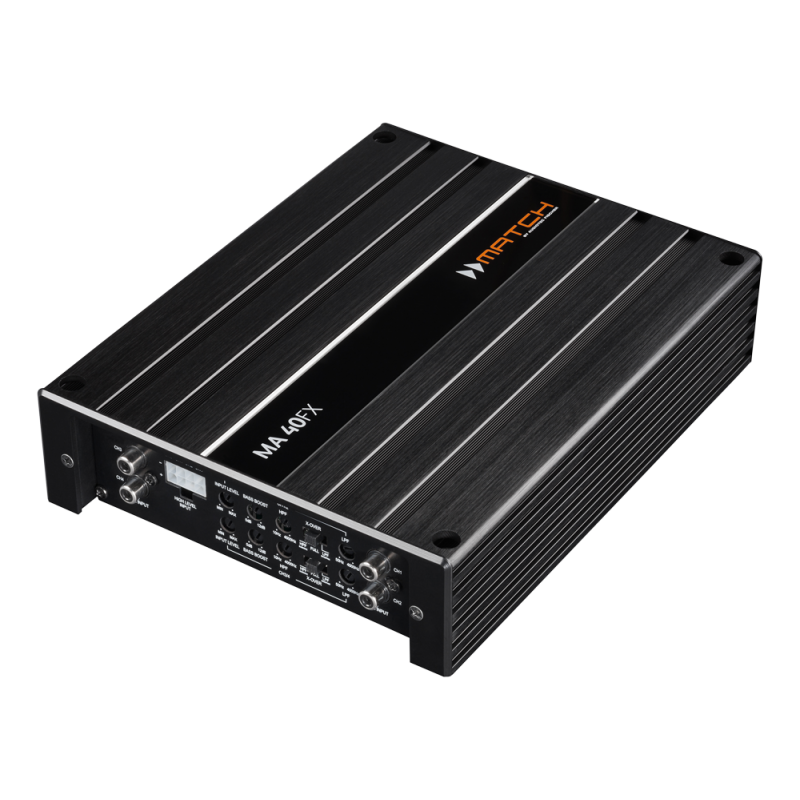

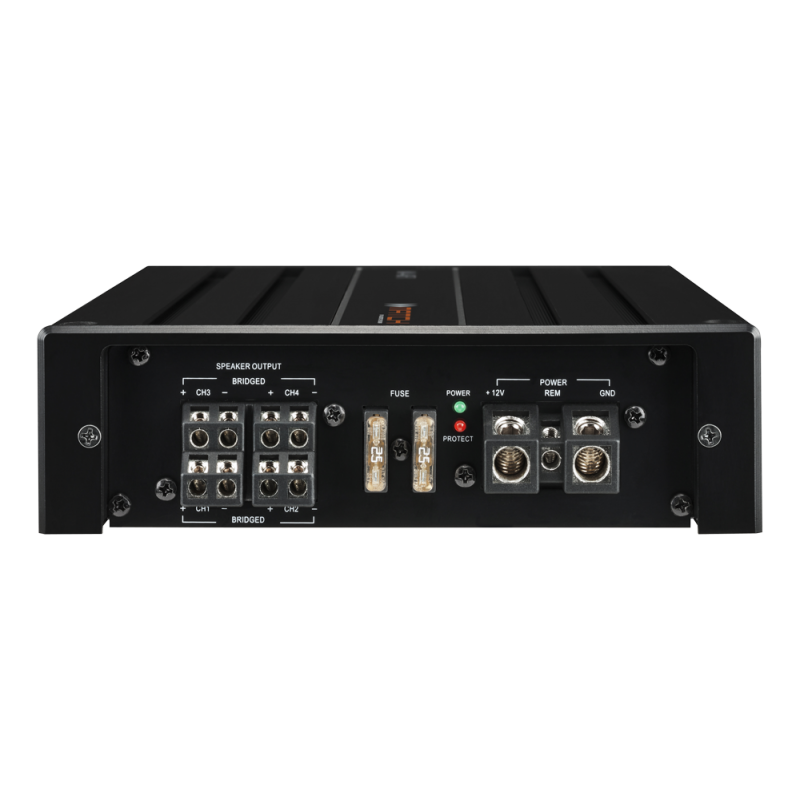

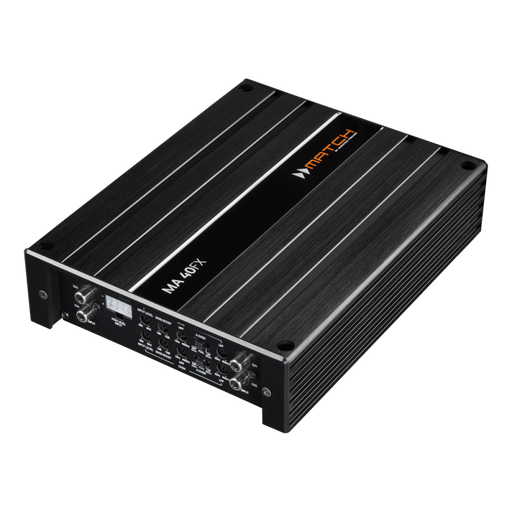

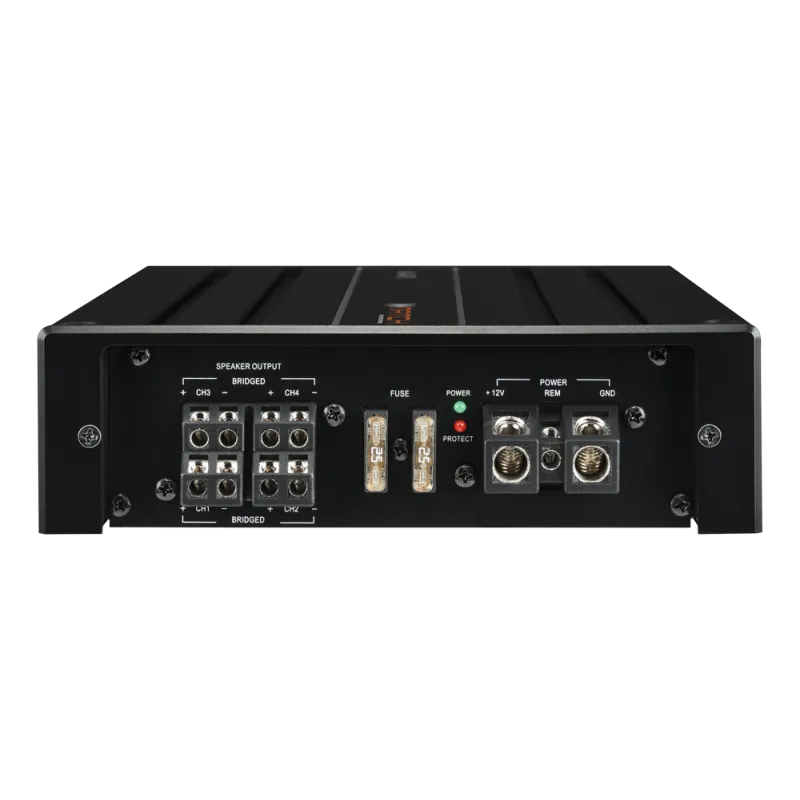

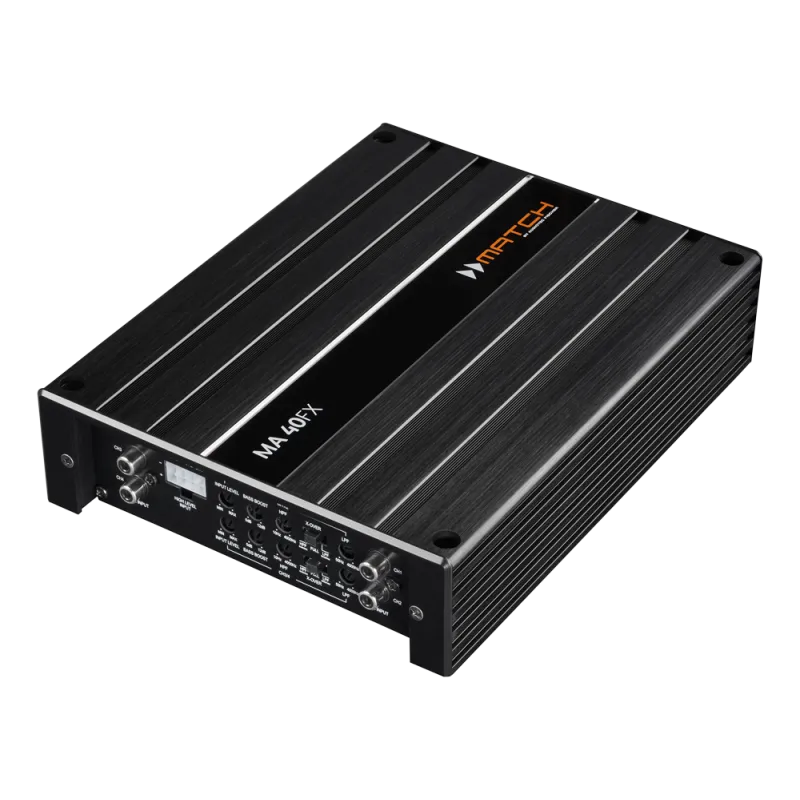

Garso stiprintuvas Helix Match MA 40FX, 4x150W

299.00 €

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

4 kanalų skaitmeninis stiprintuvas su integruotu aktyviu crossover.
  • Galia RMS / MAX:
    prie 4 omų -  4 x 75W / 150W
    prie 2 omų -  4 x 140W / 280W
    tiltu prie 4 omų -  2 x 280W / 560W
  • Dažnių diapazonas: 10 Hz - 30,000 Hz
  • Jautrumas: 91 dB
  • Damping faktorius > 60
  • Įėjimo varža Highlevel: 30 Omų su DEP
  • Matmenys: 53 x 184 x 235 mm
  • Aukštų dažnių (HP) filtras: 10 Hz - 4,000 Hz
  • Žemų dažnių (LP) filtras: 50 Hz - 4,000 Hz
  • Bandpass: 10 Hz - 4,000 Hz
  • Bass Boost: 0 - 12 dB @ 45 Hz
  • Compact, powerful 4-channel Class D fullrange amplifier
  • 2 Ohms stable and bridgeable
  • 4-channel RCA low level input
  • Balanced highlevel speaker inputs with automatic turn-on and “Diagnostics Error Protection” circuit
  • Fully adjustable active crossover with highpass, lowpass, bandpass and bass boost
  • Surface Mounted Technology combines minimum space requirements with highest reliability

Loads of power in a small footprint – advanced, highly integrated Class D technology in latest SMD design makes it possible. No matter whether if configured as 4-channel/3-channel or 2-channel amp, the MA 40FX delivers more than plenty of power to drive even low-efficiency speakers to the limits The integrated crossover network with its versatile adjustment possibilities and the variable BassBoost will be a warrantor for the right acoustical setup.

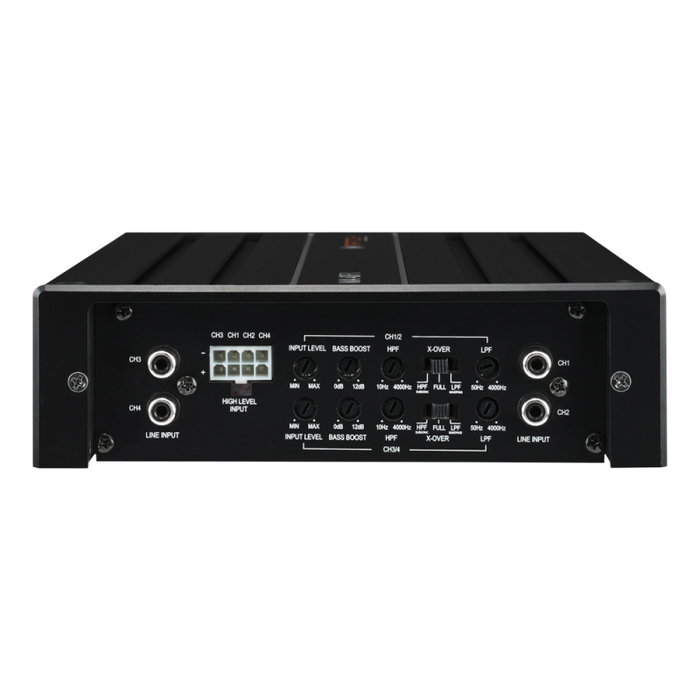

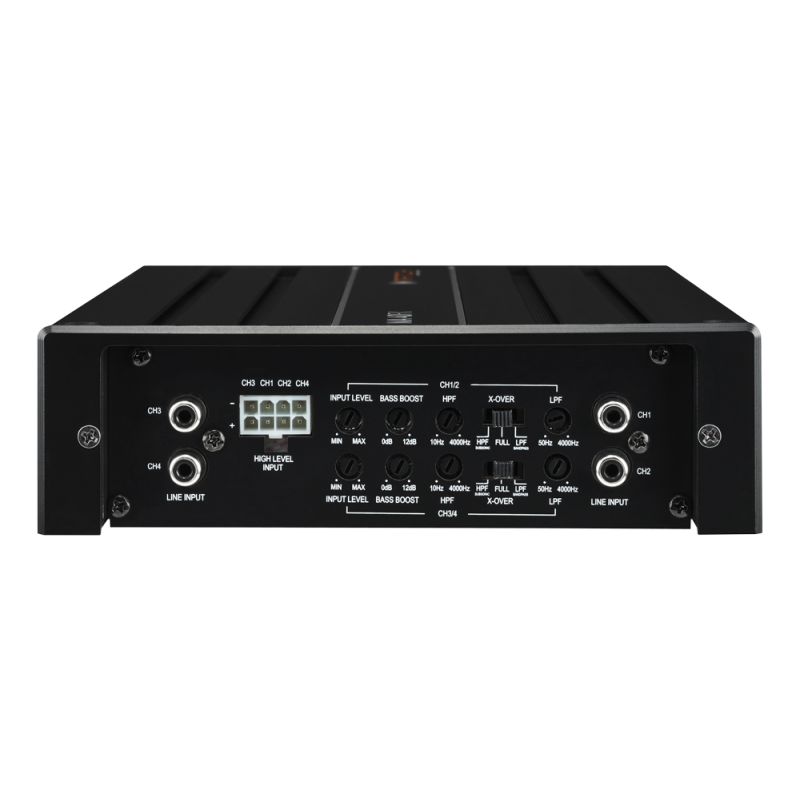

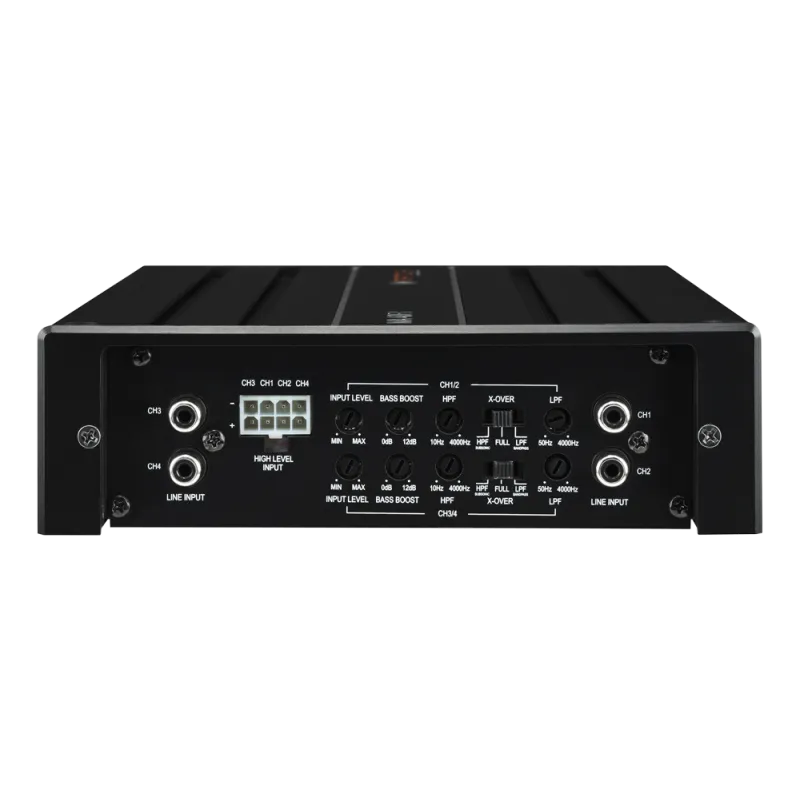

The input jacks are demonstrating the flexibility of the MA 40FX – besides the RCA inputs you wil find specially designed highlevel inputs for direct connectivity to OE car radios.
