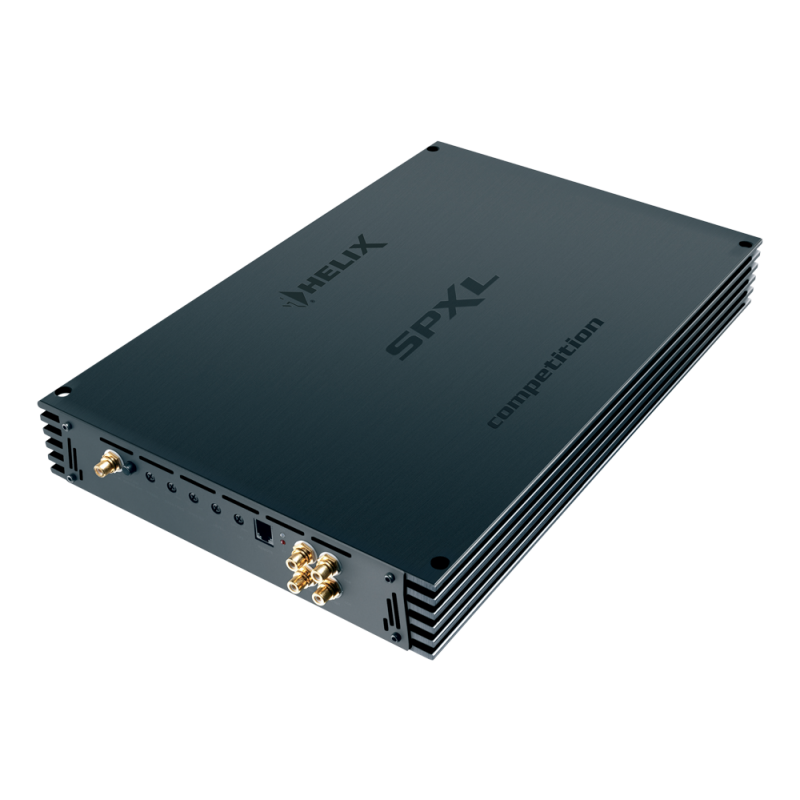

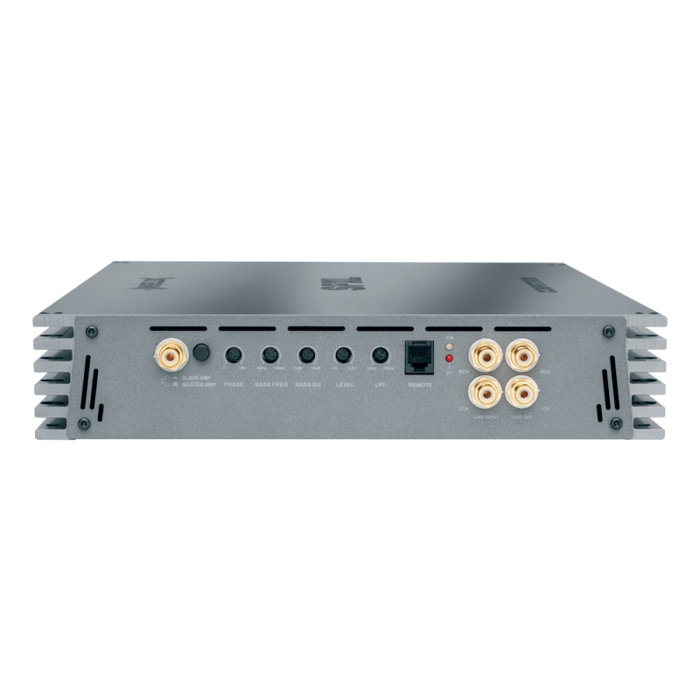

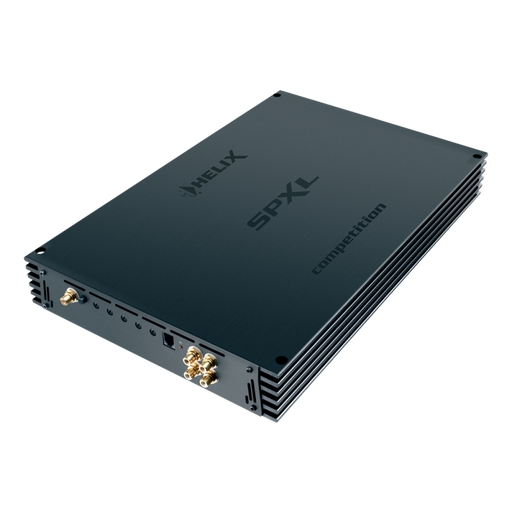

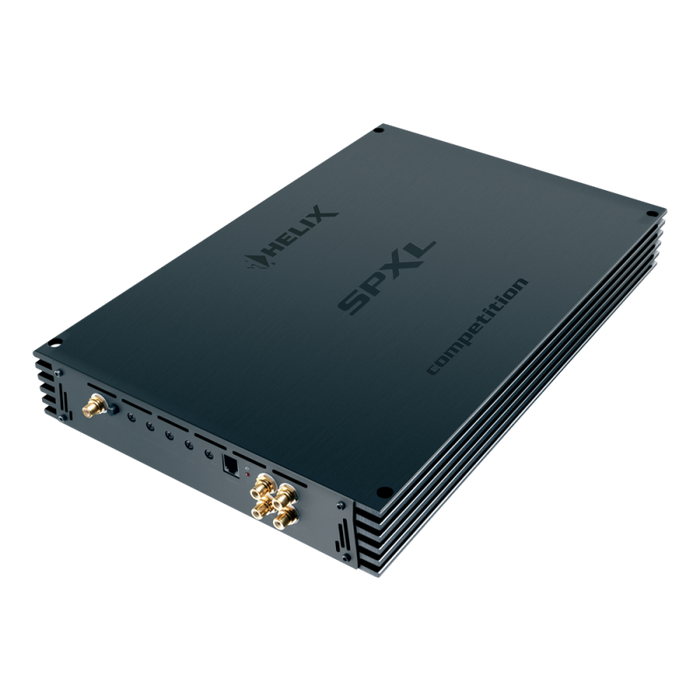

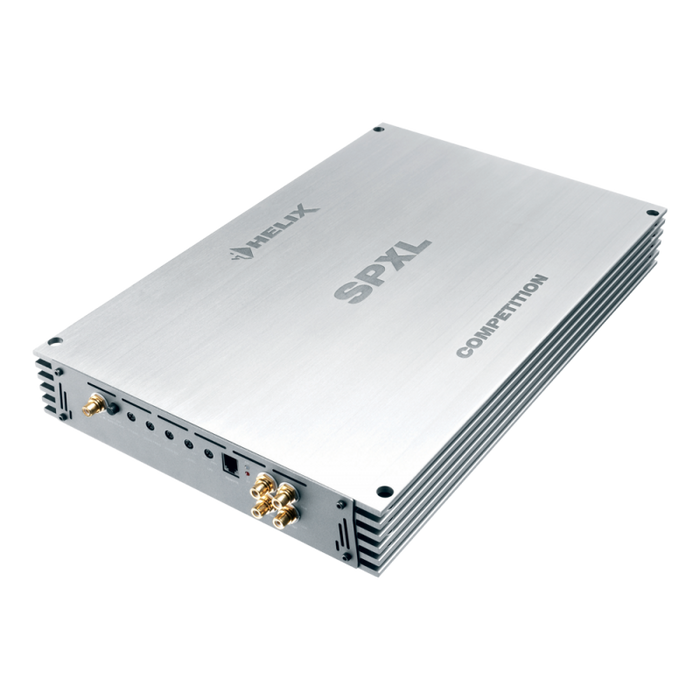

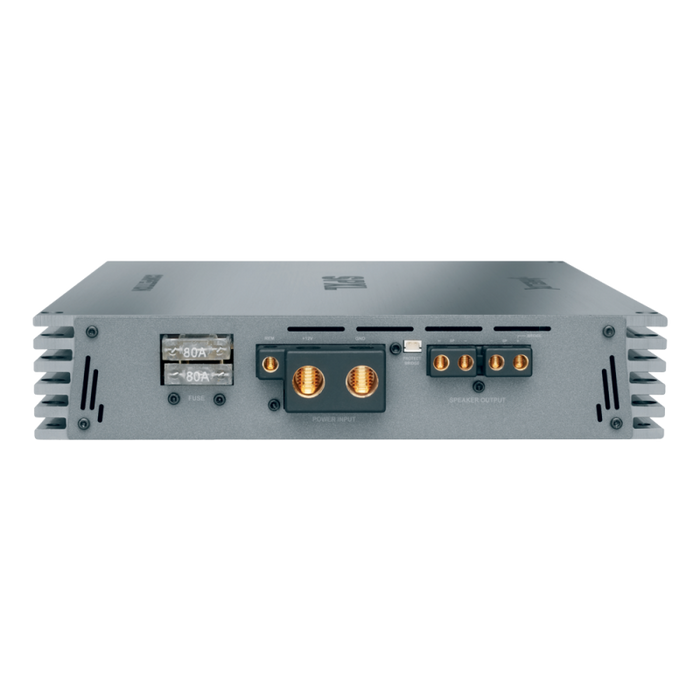

Garso stiprintuvas Helix SPXL 1000, 2720W

INFORMACIJA

• Galia RMS / MAX:
  prie 4 omų 1 x 750W / 1275W
  prie 2 omų 1 x 1200W / 2040W
  prie 1 omo 1 x 1600W / 2720W
• Dažnių diapazonas: 10 Hz - 250 Hz
• Damping faktorius: > 450
• Įėjimo jautrumas: 0.2 - 6 V
• Matmenys: 55 x 430 x 277 mm

APRAŠYMAS

There are lots and lots of powerful amps out there – but only those that unconditionally control the connected loudspeakers with a grip of iron and an extremely high damping factor bear the name of HELIX. The output stages of the competition line are what the high ender calls “wired for power”. Whether it’s sheer power or enormous musical sensitivity – these power packs know every trick in the book. If you finally want to stop looking for the perfect amp, then this is where the search will end.

FEATURES

• Subwoofer amplifier in Class D technology
• Huge output power for a high control at absolute levels
• Extremely stable output stage with selected MOSFET transistors - 1 Ohm stable
• Integrated, active crossover with lowpass, subsonic and bass boost
• Master-/Slave-Mode for connecting two amplifiers in bridged mode
• Cable remote control
• RMI (Realmixed Input) for generating an optimised mono-summing signal from the left and right channels
• Line-Out for connecting another amplifier
• Smart protection circuits against overheating, over- and undervoltage, speaker short circuiting, low impedance and faulty connection
• 24 carat gold-plated solid connection terminals for lossless signal and power transmission

TECHNINIAI DUOMENYS

• Bass boost 0 - 18 dB / 40 - 120 Hz
• Lowpass 35 - 250 Hz adjustable
• Phase shift 0° - 180° adjustable
• Total harmonic distortion (THD) < 0.33 %
• Signal-to-noise ratio > 96 dB

Komplekte

• 1 x Amplifier HELIX SPXL 1000
• 1 x Cable remote control
• 1 x Allen key
• 1 x Fastening material
• 1 x Instruction manual

DOKUMENTAI

Vartotojo vadovas
