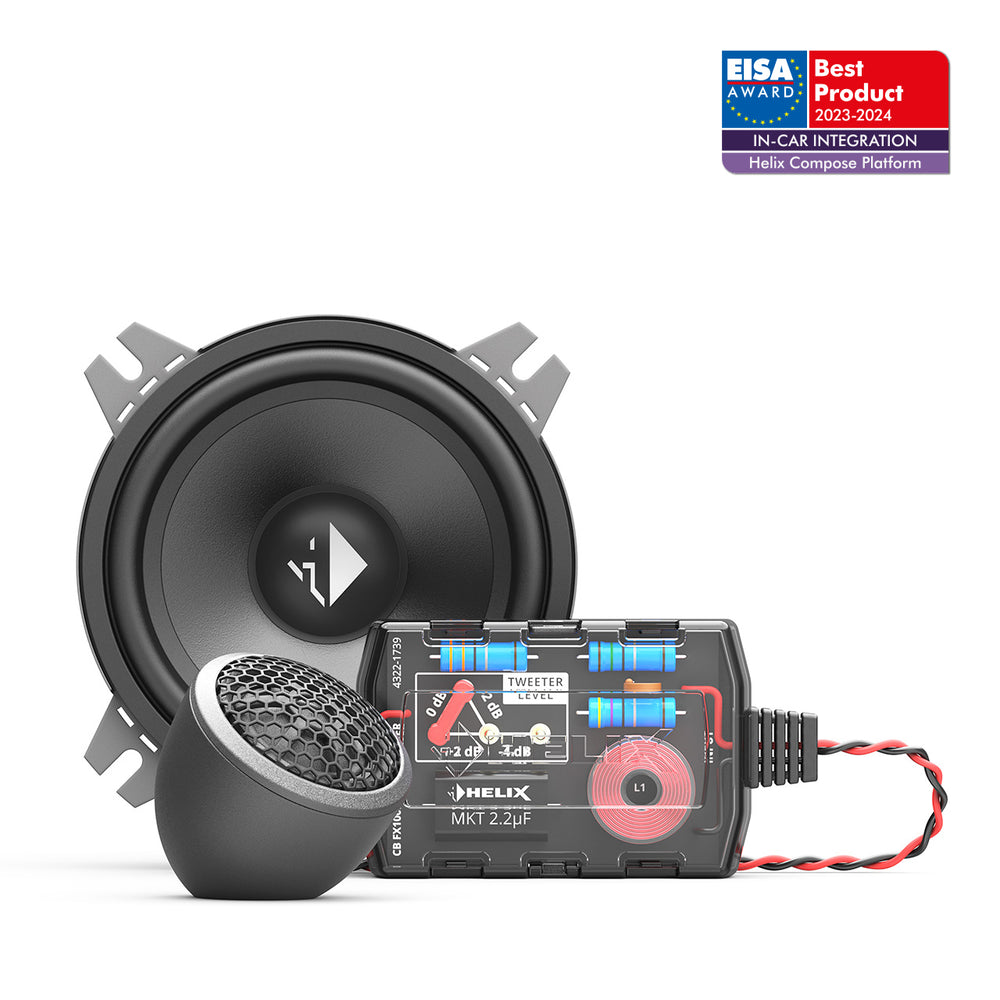

Helix Compose CB K100.2-S3, 90W, 10cm komponentiniai garsiakalbiai

Helix Compose Basic 100mm / 4″ - 2-way standalone kit

The Compose Series speakers are optimised for Helix/Match DSP processors.

The Helix Basic is the most affordable collection in the Compose series, with an excellent price/quality ratio!

Like the other Compose models, the Basic is designed to be stationary in the car, which means that it is optimised specifically for in-car use.

One of the key elements of the Compose range is a patented mounting system called FlexMount, based on specially developed speaker adapters.
This technology allows you to fit Compose Basic speakers to an almost infinite number of car models by simply changing the fitting ring to suit your car.

SPECIFIKACIJOS

Power handling RMS / Max. P 60 / 90 Watts
Frequency response 100 Hz - 22,000 Hz
Impedance Z 3 Ω
Sensitivity SPL 88 dB @ 2.83V / 1m
84 dB @ 1W / 1m
Outer diameter ø
Tweeter: 32.0 mm / 1.26”
Midrange: 99.2 mm / 3.91”

Installation diameter ø
Tweeter: 32.0 mm / 1.26”
Midrange: 89.5 mm / 3.52”

Installation depth
Tweeter: 9.8 mm / 0.39”
Midrange: 48.9 mm / 1.93”

Dimensions crossover
103.3 x 50.4 x 25.0 mm /
4.07 x 1.98 x 0.98”


Midrange
Impedance Z 3 Ω
DC resistance Re 3.1 Ω
Resonance frequency Fs 116 Hz
Mechanical Q factor Qms 5.05
Electrical Q factor Qes 0.97
Total Q factor Qts 0.81
Compliance Cms 250 μm/N
Equivalent air volume Vas 0.9 L
Force factor B*l 4.2 Tm
Cone area Sd 50 cm2
Moving mass Mms 7.5 g
Mechanical resistance Rms 1.09 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height

8.9 mm
Max. linear excursion Xmax +/- 2.5 mm

Tweeter
Impedance Z 4 Ω
Resonance frequency Fs 2000 Hz
Voice coil diameter ø 20 mm

INSTRUKCIJOS

User Manual (EN).
