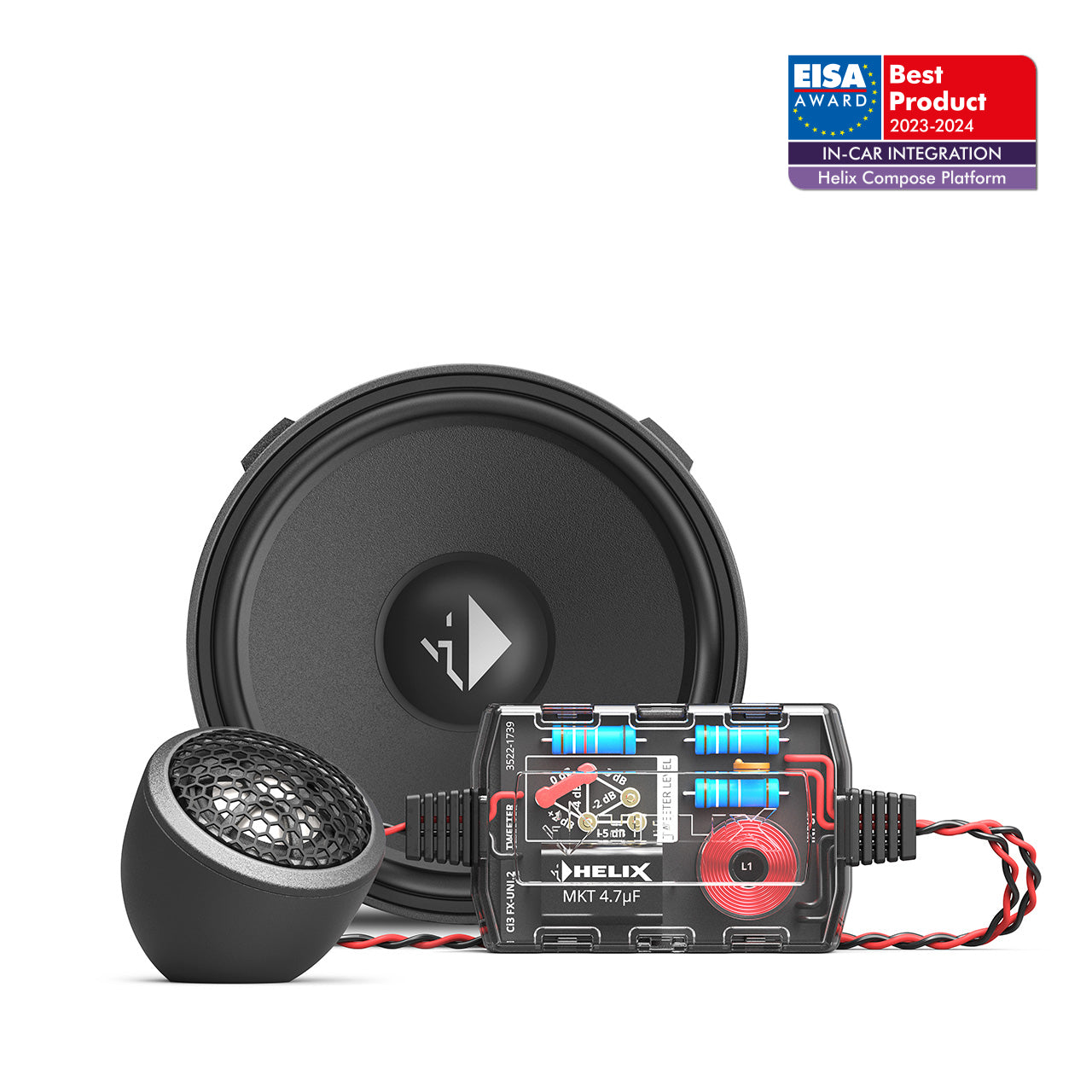

Helix Ci3 K100.2FM-S3, garsiakalbių rinkinys automobiliams

HELIX COMPOSE i3 serija yra aukščiausios kokybės atskira serija, pasižyminti puikiu kainos ir kokybės santykiu.

• Rekomend. stiprintuvo galia: 80W (RMS).
• Dažnių juosta: 120 Hz - 25,000 Hz.
• Jautrumas SPL 91 dB @ 2.83V / 1m.
• Varža: 3 Omai.

The HELIX COMPOSE i3 series is a top-quality standalone series with an excellent price/quality ratio.

Compose Series speakers are optimised for Helix/Match DSP processors.

The Compose i3 series are made of high quality materials:

- Titanium calotte tweeter with excellent sound quality.

- The midbass has a very lightweight, coated paper cone for accurate and detailed reproduction.

- The body of the midbass is made of a polymer composite, reinforced with glass beads to obtain a very rigid and non-tracking material.

- High-performance magnets.

- Separate high quality split filter with 6-step treble level control.


One of the key elements of the Compose series is a patented mounting system called FlexMount, based on specially developed speaker adapters.
This technology allows you to mount i3 speakers on an almost infinite number of car models by simply changing the fitting ring to suit your car.

FlexMount adaptor rings are either supplied with the speaker or can be purchased separately ( be sure to check out our FlexMount range ).

SPECIFIKACIJOS

Power handling RMS / Max. P 80 / 120 Watts
Frequency response 120 Hz - 25,000 Hz
Impedance Z 3 Ω
Sensitivity SPL 91 dB @ 2.83V / 1m
87 dB @ 1W / 1m
Outer diameter ø
Tweeter: 32.0 mm / 1.26”
Midrange: 98.0 mm / 3.86”

Installation diameter ø
Tweeter: 32.0 mm / 1.26”
Midrange: 89.0 mm / 3.50”

Installation depth
Tweeter: 9.8 mm / 0.39”
Midrange: 30.0 mm / 1.18”

Dimensions crossover
103.3 x 50.4 x 25.0 mm /
4.07 x 1.98 x 0.98”


Midrange
Impedance Z 3 Ω
DC resistance Re 3.0 Ω
Resonance frequency Fs 146 Hz
Mechanical Q factor Qms 4.49
Electrical Q factor Qes 1.02
Total Q factor Qts 0.83
Compliance Cms 280 μm/N
Equivalent air volume Vas 1.1 L
Force factor B*l 3.4 Tm
Cone area Sd 53 cm2
Moving mass Mms 4.3 g
Mechanical resistance Rms 0.87 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height

4.8 mm
Max. linear excursion Xmax +/- 2.0 mm

Tweeter
Impedance Z 4 Ω
Resonance frequency Fs 1800 Hz
Voice coil diameter ø 20 mm

Features
Tweeter
Ultra compact, titanium dome, neodymium magnet and FlexMount20

Midrange
Paper with Cenosphere coating, FlexConnect terminal, neodymium magnet and FlexMount100

Crossover
Tweeter: 12 dB highpass, protection and level adjustment

INSTRUKCIJOS

User Manual (EN).
