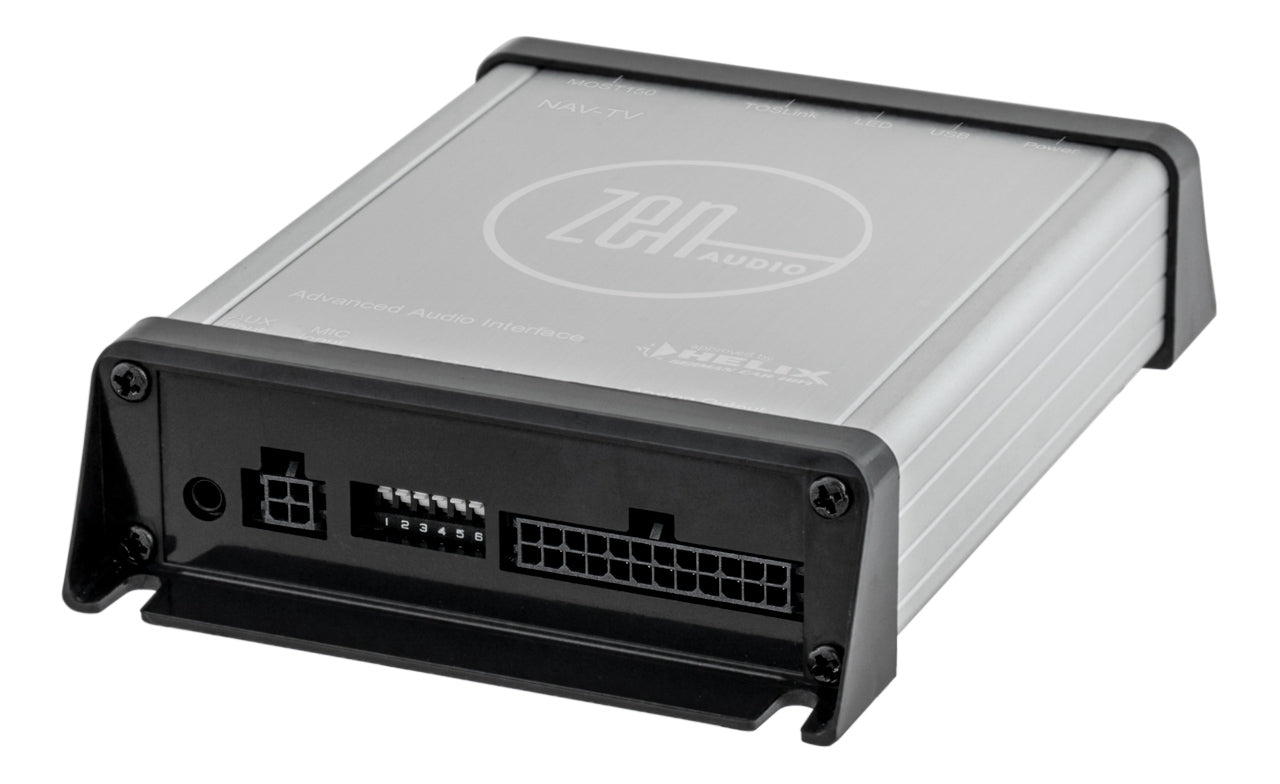

HELIX NAV-TV ZEN M, pradinio stiprintuvo interfeisas

849.00 €

HELIX NAV-TV ZEN M, pradinio stiprintuvo interfeisas yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.


Siuntimas ir pristatymas

Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.

ZEN-V MOST®150 pradinio stiprintuvo interfeisas iš Helix. Šis interfeisas  skirtas, kad palengvinti DPS/ DSP stiprintuvų pajungimą.

  • Dažnių juosta: 20 - 22.000 Hz.
  • Signalų konverteris: BurrBrown 32 BIt.
  • Išėjimai: 12 x Cinch 1 x optical SPDIF (48 kHz / 24 Bit).





MOST®150 preamplifier interface approved by HELIX

The ZEN-M MOST®150 preamplifier interface from NAV-TV enable the seamless installation of aftermarket DSP / DSP amplifiers in vehicles with premium sound systems without affecting the appearance or properties of the vehicle. Under the label approved by HELIX, we guarantee the specification for the European market and top quality, audiophile and material, as you are used to from HELIX. The ZEN-V MOST®150 preamplifier interface is compatible with selected vehicles from Mercedes.

Smart operation

The MOST®150 preamplifier interface produces a full linear audio output without delay or equalization of the factory audio signal, so no summing devices or an audio correction DSP are required, even in vehicles that use compensation microphones. The installation of the interface does not require any changes to the vehicle and is compatible with reinforced factory systems. In combination with a DSP amplifier, the factory amplifier is replaced. The volume control for Fader, Balance and Bass / Treble are retained via the factory radio. Echo cancellation for the factory Bluetooth hands-free system is also still supported. The device offers a 500 mA remote output for controlling BRAX, HELIX and MATCH devices and also maintains the factory sound control.

Dolby DTS and Dolby Surround compatible

The ZEN-M produces a 12 channel analog output with a S/N Ratio of 112dB. For vehicles with video playback capability, it supports 7.1 and 5.1 audio at the analog signal outputs. The unit provides a 500mA output for controlling aftermarket devices and, additionally, retains the factory equalizer.

Best possible audio signal

For use with a DSP or DSP amplifier, the ZEN-M MOST preamplifier interface is equipped with a variable digital TOSLink output, which can be used simultaneously with the analog outputs - thus maintaining the Fader function of the car radio – or by itself. The variable digital output enables control of the system volume via the factory radio and steering wheel control without having to access an additional remote controller.

Easy configuration

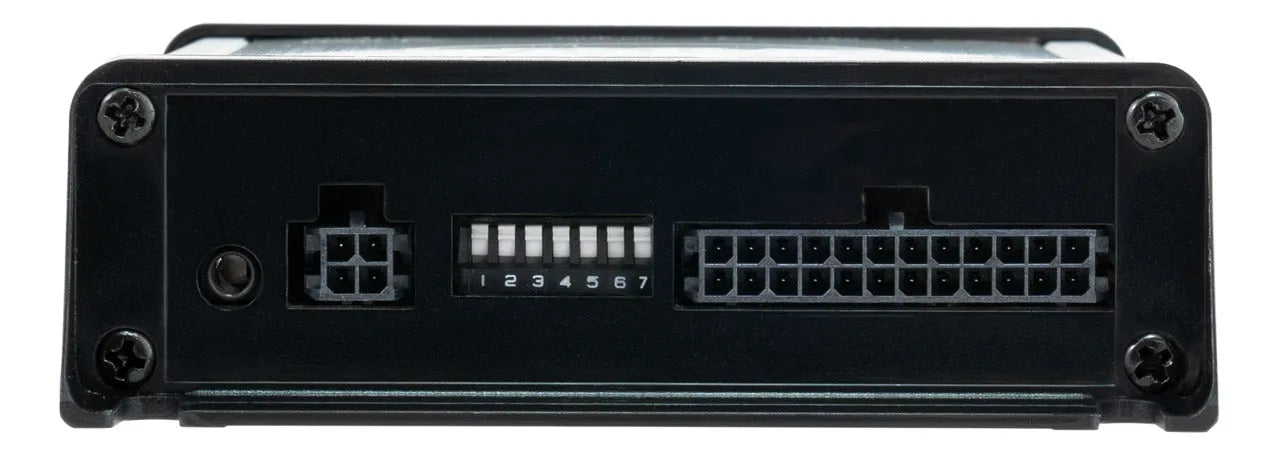

Various functions of the interface can be easily configured using DIP switches.

Functions selectable by the user:

  • Simple time delay driver-optimized setting
  • Audio output with maximum signal or -12 dB attenuation
  • Loudness on or off

Features

  • Interface for generating a digital stereo signal in optical SPDIF format and 12 analog channels from the MOST®150 data bus
  • Interface for generating an analog 7.1 and 5.1 audio signal - for vehicles with video playback function with Dolby DTS and Dolby Surround.
  • Allows easy integration of a DSP product into modern vehicles with premium sound systems
  • Suitable for vehicles fromMercedes. You can find more information on vehicle compatibility in our adapter database
  • Suitable for vehicles from Mercedes. You can find more information on vehicle compatibility in our adapter database
  • Vehicle-specific configuration by simply setting jumpers - no additional software required
  • Remote output for switching additional components on and off
  • Transmission of important vehicle signals (e.g. parking sensors)
  • Volume and tone control via the original radio
  • Start up to 6 volts supply voltage
  • Very compact dimensions for easy integration into the vehicle


      SPECIFIKACIJOS

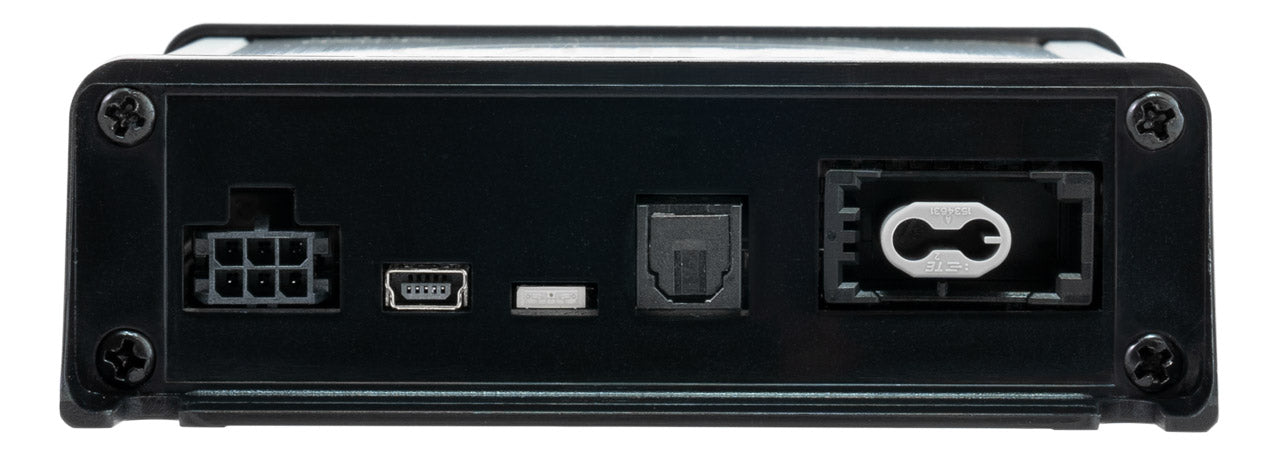

      Input 1 x MOST150

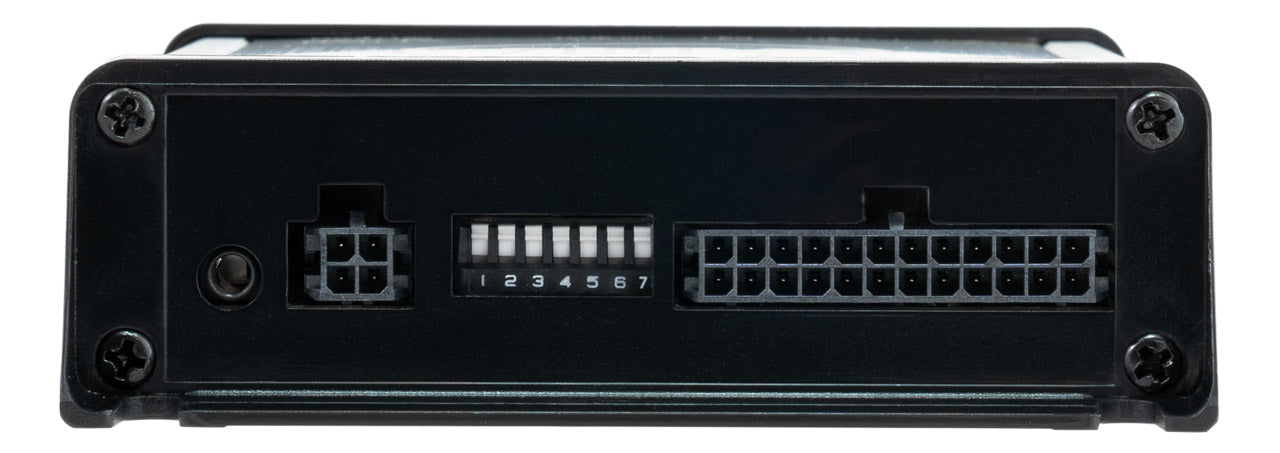

      Output 12 x Cinch
      1 x Optisch SPDIF (48 kHz / 24 Bit)
      Frequency responce
      20 - 22.000 Hz
      Output voltage
      2,1 Volt RMS
      Signal converters
      BurrBrown 32 BIt
      Max. remote output current 500 mA
      Operation voltage
      7 - 20 Volt
      Current draw
      350 mA
      Dimensions (H x W x D)
      35 x 105 x 150 mm

      Compatibility

      Manufacturer Model Model year Radio Notes
      Mercedes A 2015 - 2018 NTG5, NTG5.1, NTG5.2, NTG5.5 (E, S, Maybach) from 09/2015
        B  2015 - 2018 NTG5, NTG5.1, NTG5.2
        C 2015 - 2018 NTG5, NTG5.1, NTG5.2
        C 2019 - 2020 NTG5, NTG5.1, NTG5.2
        CLS 2015 - 2018 NTG5, NTG5.1, NTG5.2
        E 2015 - 2016 NTG5.5 (E, S, Maybach)
        E 2017 - 2020 NTG5.5 (E, S, Maybach)
        G 2016 - 2018 NTG5, NTG5.1, NTG5.2 from 10/2016
        GL 2016 - 2018 NTG5, NTG5.1, NTG5.2 from 09/2016
        GLA 2015 - 2015 NTG5, NTG5.1, NTG5.2 from 09/2015
        GLC 2016 - 2018 NTG5, NTG5.1, NTG5.2
        GT AMG 2015 - 2018 NTG5, NTG5.1, NTG5.2
        ML 2015 - 2015 NTG5, NTG5.1, NTG5.2 from 09/2015
        ML 2016 - 2018 NTG5, NTG5.1, NTG5.2
        Maybach 2015 - 2020 NTG5.5 (E, S, Maybach)
        S 2014 - 2018 NTG5, NTG5.1, NTG5.2
        S 2019 - 2020 NTG5, NTG5.1, NTG5.2
        SLC 2016 - 2018 NTG5, NTG5.1, NTG5.2
        V 2014 - 2018 NTG5, NTG5.1, NTG5.2

      PAKUOTĖJE?

      1x ZEN-AUDIO ZEN-M
      1x MOST fiber optic cable
      1x 12 channel analog output connection cable
      1x Power connection cable
      1x Fastening material
      1x Instruction manual

      INSTRUKCIJOS

      User Manual (EN).
