HELIX PF K100.2, automobiliniai komponentiniai garsiakalbiai

199.00 €

HELIX PF K100.2, automobiliniai komponentiniai garsiakalbiai yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Įženkite į HELIX garso pasaulį su mūsų PURE F garsiakalbių serija. Dėl 3 omų technologijos galingosios F serijos garsiakalbiai iš jūsų stiprintuvo išgauna maksimalią galią. Kartu su išskirtinėmis garso charakteristikomis, pasižyminčiomis galingais žemais dažniais, aiškiais vidutiniais ir detaliais aukštaisiais dažniais, neabejotinai patirsite jaudinančią garso patirtį.

  • Rekom. stiprintuvo galia: 40-80W.
  • Dažnių juosta: 100 Hz - 22,000 Hz.
  • Jautrumas: 90 dB @ 2.83V / 1m.

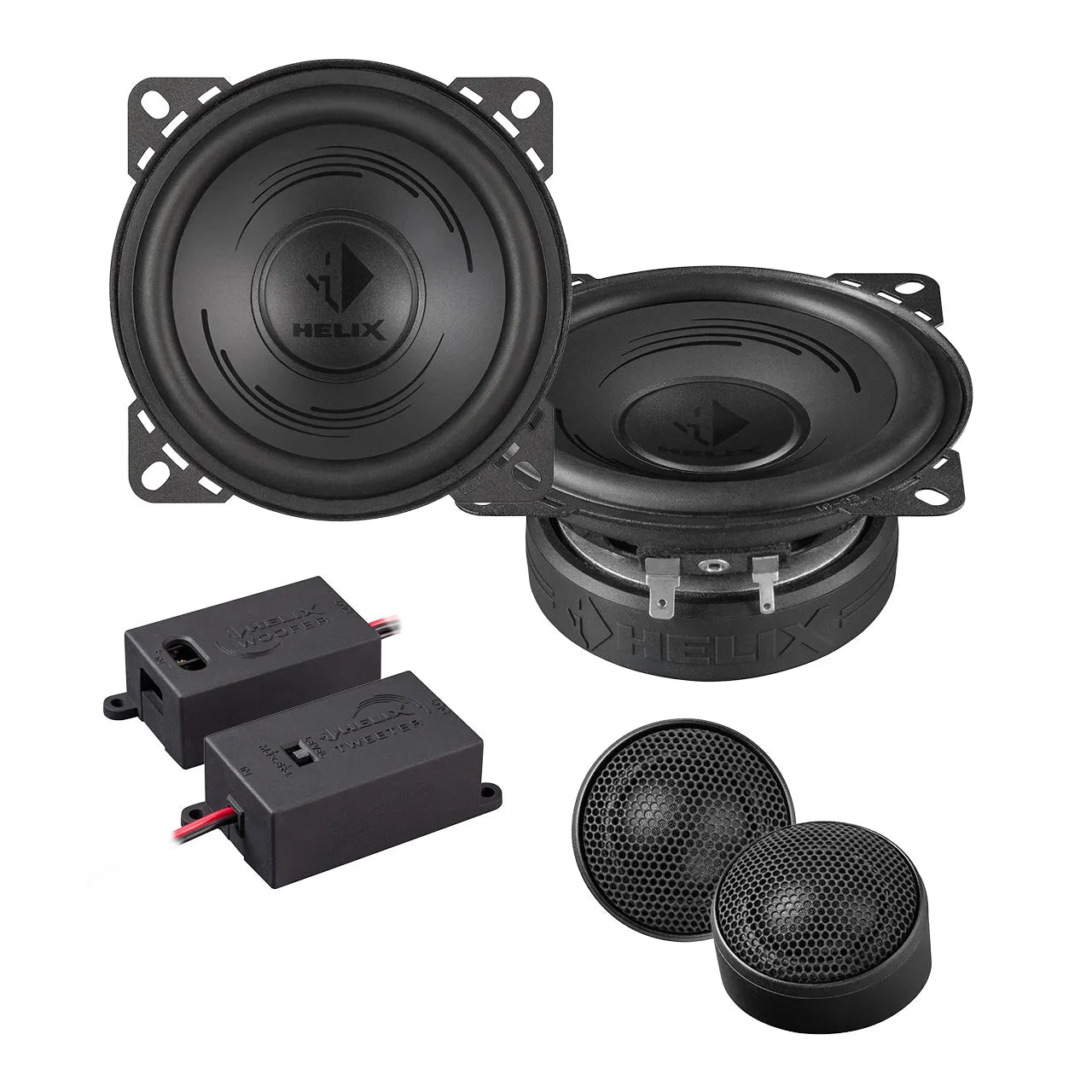

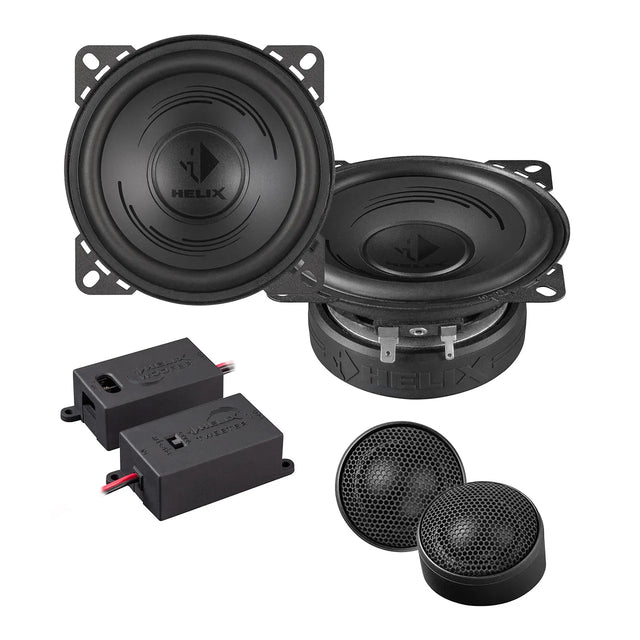

HELIX PF K100.2

The entry into the HELIX sound world

Enter the HELIX sound world with our PURE F speaker series. The powerful F-Series gets the maximum power out of your amplifier thanks to its 3 Ohms technology. In combination with the exceptional sound performance with powerful bass, clear mids and detailed highs, an exciting sound experience is bound to occur.

Easiest integration at its best!

The best sound isn’t any good if the installation causes trouble.
The PURE F loudspeakers demonstrate with their well thought-out design in every detail, how it is done the right way. This starts with the low installation depth of the drivers, which consider the increasingly limited space in modern vehicles. In addition, the system offers an extensive range of installation accessories with innovative bayonet lock for the extremely compact tweeter, which allows any installation option you can imagine, up to simplifications in the wiring thanks to our "Flex-Crossover" design.

Maximum flexibility – the "Flex-Crossover”

The sophisticated, two-part and immensely space-saving "Flex-Crossover" maximizes installation flexibility, for example when the tweeter is positioned in the A-pillar and the woofer in the door. This offers decisive advantages, especially in space-critical installations. In addition, the tweeter crossover is equipped with a two-stage level adjustment, which allows adaptation to both personal listening taste and the installation situation.

Cool design – noble materials

The timeless and stylish design of the F loudspeaker series with the dynamic Space-Line styling of the woofer cone is by no means an end in itself, but rather the result of the use of high-quality materials. The carbon fibres embedded in the polypropylene cone of the woofer optimize the midrange reproduction, whereas the coated silk dome of the tweeter guarantees exceptionally airy highs.

Features

  • High sound quality with deep bass, clear mids and detailed highs
  • Powerful speaker system with high efficiency thanks to 3 Ohms technology
  • Low installation depths for trouble-free installation in almost all vehicles
  • Elegant HELIX design with black matt cone finish and black shiny Space Line styling
  • Tweeter

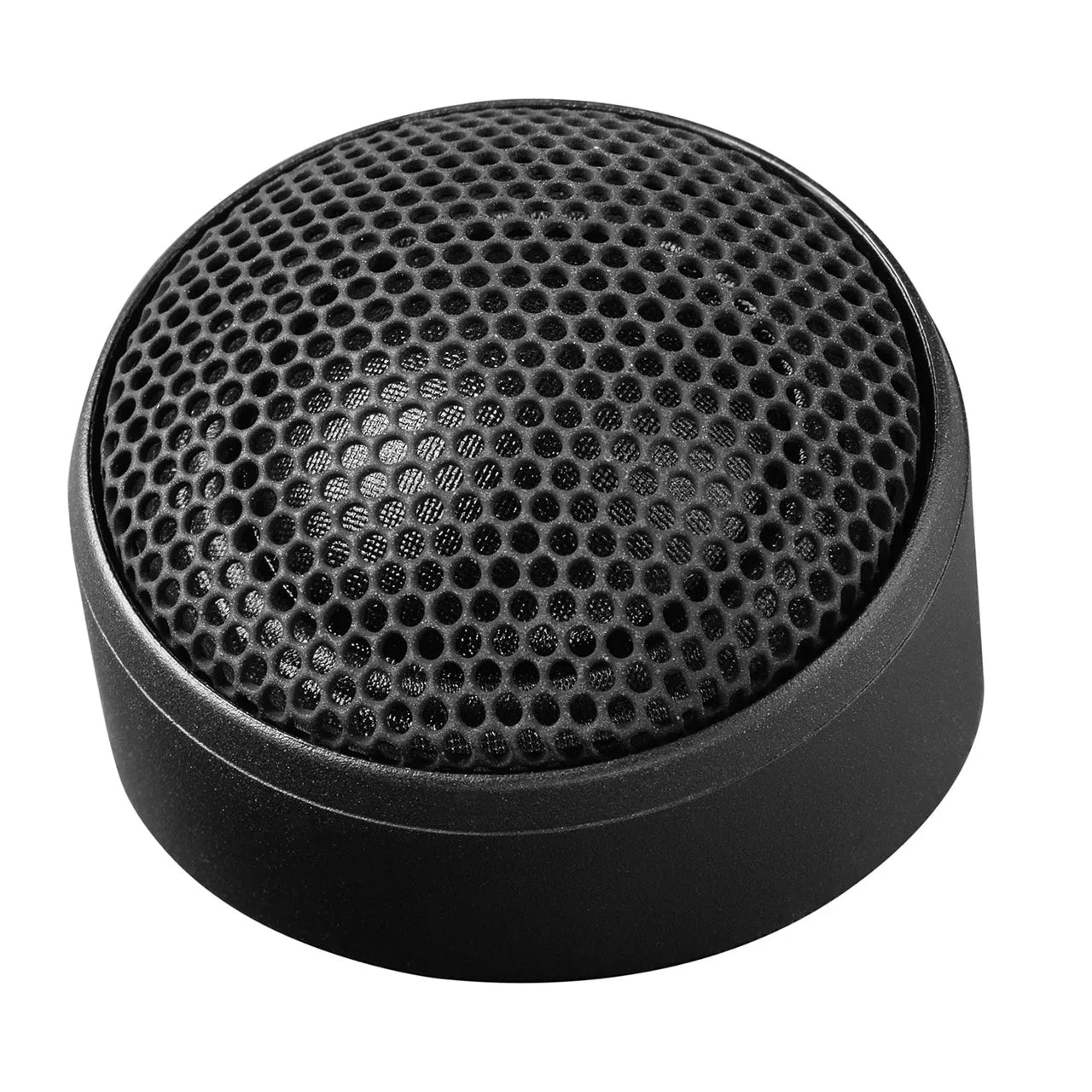

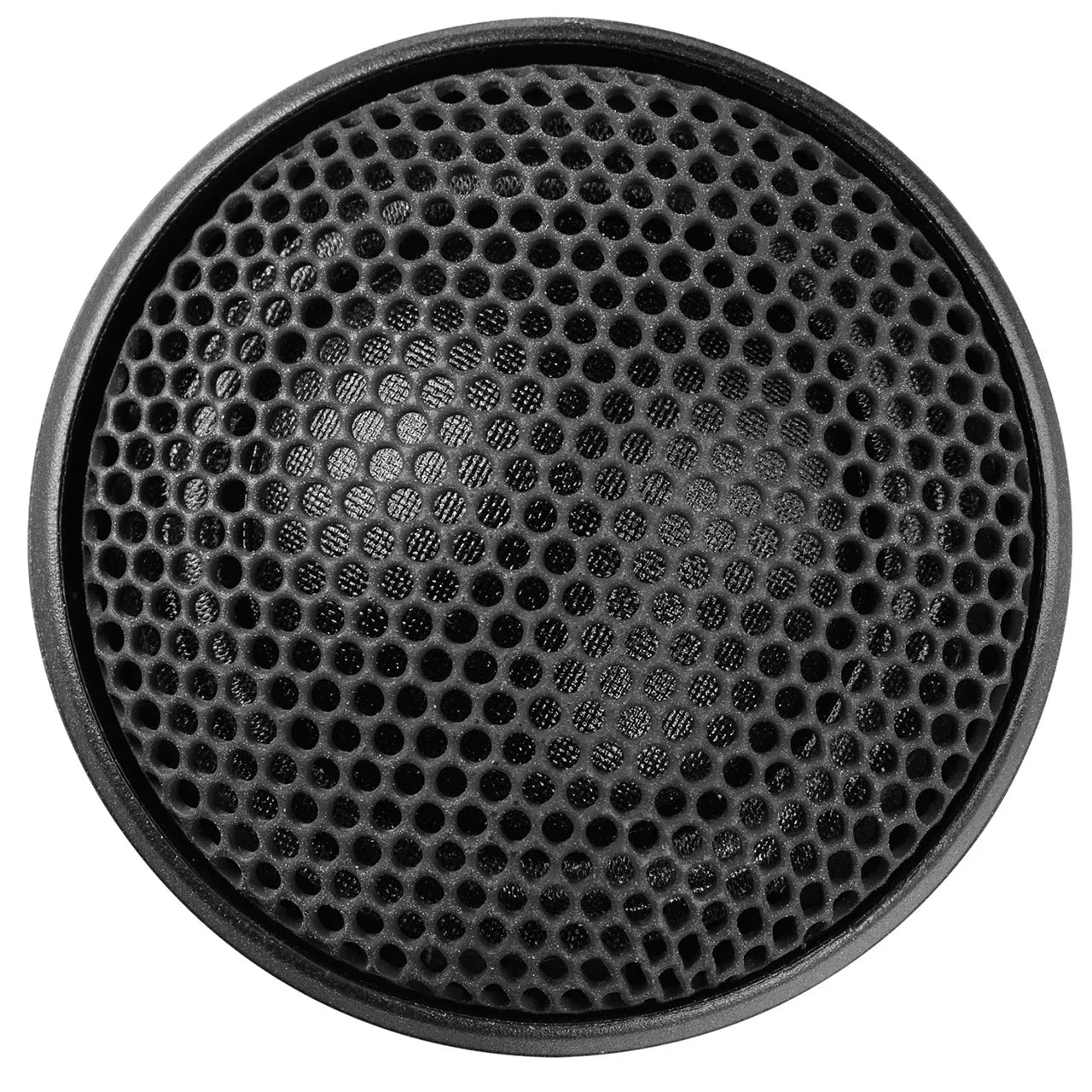

    • 0.75” / 20 mm silk dome tweeter with neodymium magnet for brilliant and clear treble response even at high levels
    • Intelligent, ultra-compact tweeter design and various mounting pods to fit a wide variety of installation requirements
    • Removeable grille for easy integration behind factory grilles in the vehicle´s original mounting locations
  • Woofer

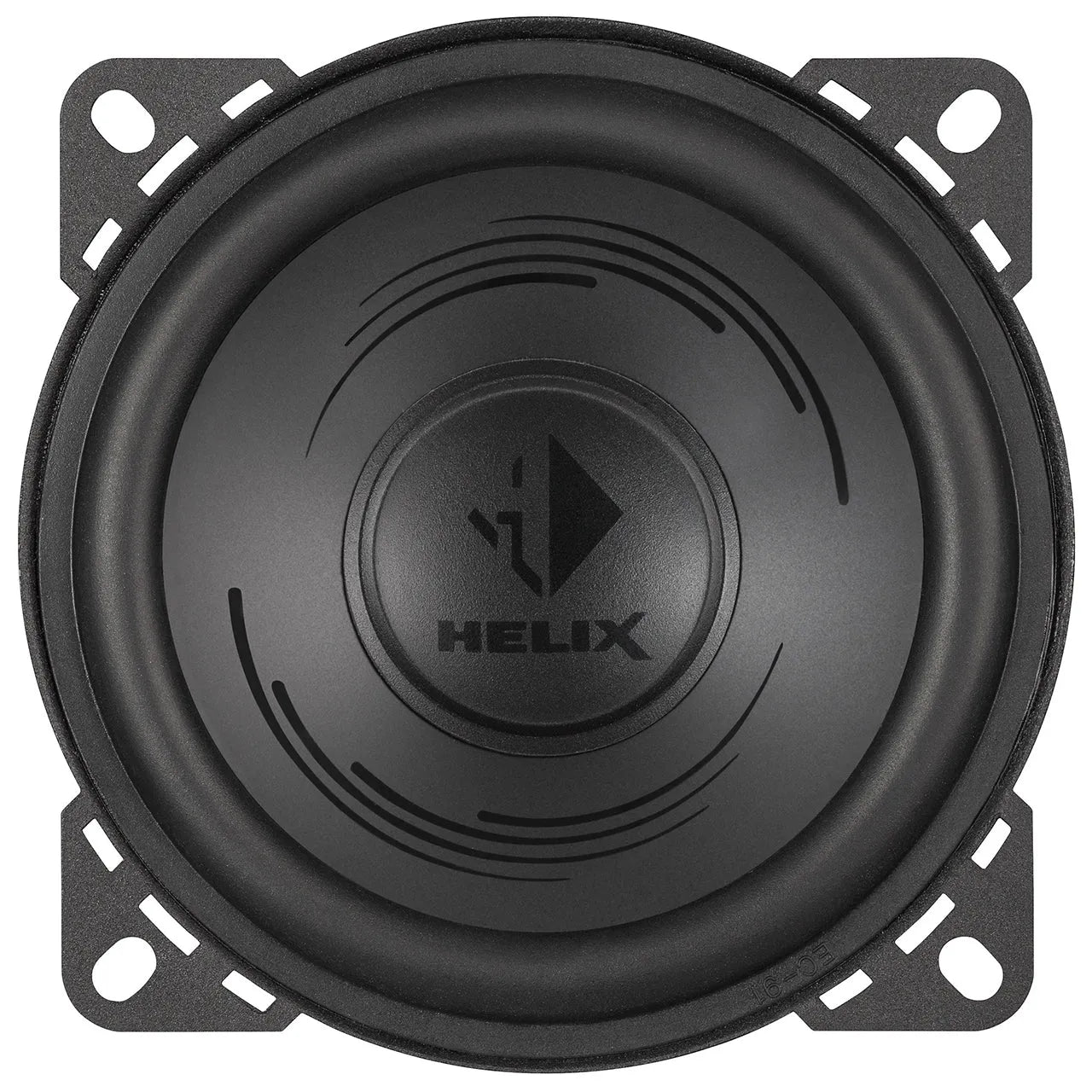

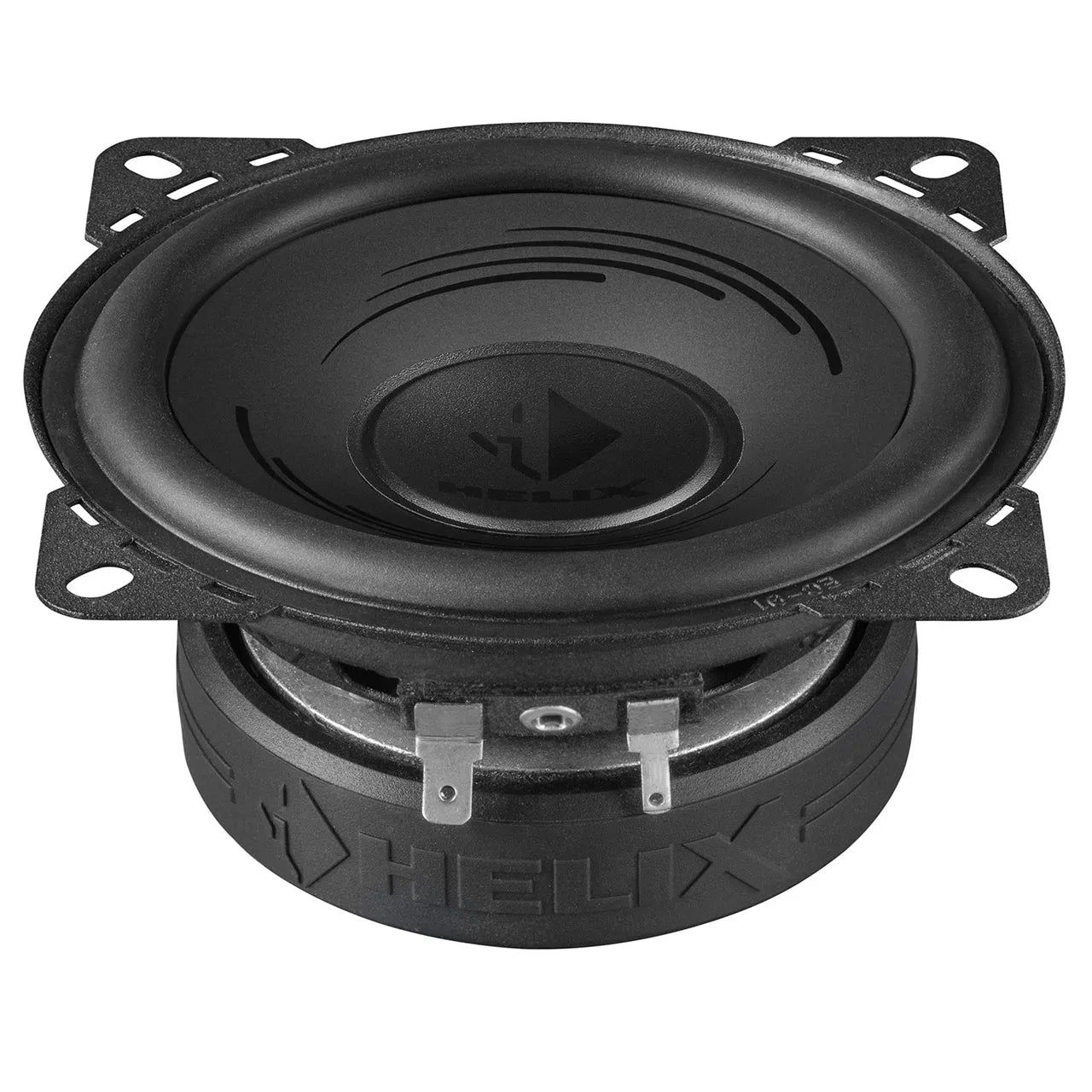

    • 4" / 100 mm woofer with rigid cone made of injected polypropylene with embedded carbon fibers provides essential stiffness with a high inner damping
    • Powerful magnet system with optimum control for powerful and clear depths
    • Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling
  • Flex-Crossover
    • Separate, two-parted crossover for versatile connection options – well suited for installations in vehicles with separate mounting positions of the tweeter and woofer
    • Extensively fine-tuned crossover with 12 dB slope for the tweeter and 6 dB for the woofer
    • 2-stage tweeter level adjustment with integrated tweeter protection for perfect listening experience

SPECIFIKACIJOS

Power RMS / Max. 40 / 80 Watts
Frequency response 100 Hz - 22,000 Hz
Impedance 3 Ω
Sensitivity 90.0 dB @ 2.83V / 1m
86.0 dB @ 1W / 1m
Cone material TW: Silk dome
M:
W: Injected  polypropylene with embedded carbon fibers
Crossover Separate, 6/12 dB slope and tweeter protection
Outer diameter TW: - 33.1 mm / 1.30"
        - OE mount: 36 mm / 1.42”
        - flush mount: 42 mm / 1.65”
        - angle mount: 36 mm / 1.42”
M: -
W: 102.4 mm / 4.03"
Installation diameter   TW: - 33.1 mm / 1.30"
        - OE mount: 36 mm / 1.42”
        - flush mount: 36 mm / 1.42”
        - angle mount: –
M: -
W: 93 mm / 3.66"
Installation depth TW:  - 9.8 mm / 0.38"
         - OE mount: 16,8 mm / 0.66”
         - flush mount: 11 mm / 0.43”
         - angle mount: –
M: -
W: 45 mm / 1.77"
 Dimensions crossovers 75.5 x 35.1 x 24 mm / 2.97 x 1.38 x 0.95”

PAKUOTĖJE?

2 x Tweeter HELIX PF T20-S
2 x Woofer HELIX PF W100
2 x Two-part Flex-Crossover
6 x Tweeter mounting accessories
1 x Mounting material
1 x Instruction manual
1 x Mounting pattern



INSTRUKCIJOS

User Manual (EN).
