HELIX S 3M, vidutinių dažnių garsiakalbis

S 3M garsiakalbis yra tobulas komponentas kiekvienai kokybiškai 2-jų juostų garso sistemai.

check_circle_outline highlight_off
Yra prekyboje Išparduota
Translation missing: lt.product.general.sku_html
Nuolaida: 139.00 €
Kaina: 139.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

HELIX S 3M, vidutinių dažnių garsiakalbis

S 3M garsiakalbis yra tobulas komponentas kiekvienai kokybiškai 2-jų juostų garso sistemai.

  • Rekomenduojama stiprintuvo galia: 75W.
  • Dažnių juosta: 400 Hz - 6,000 Hz.
  • Rezonansinis dažnis: 130 Hz.
  • Varža: 4 Omai.



HELIX S 3M

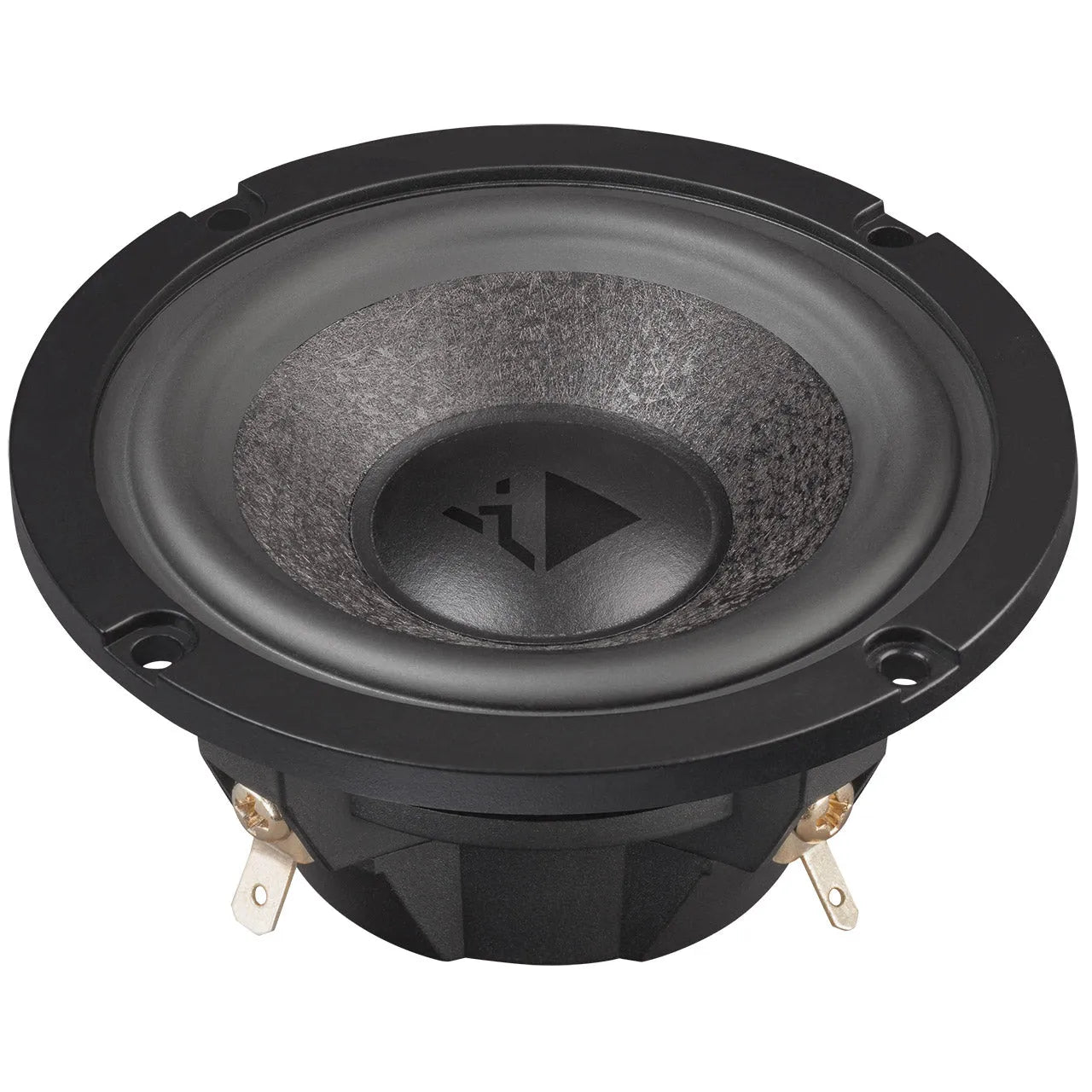

A cone midrange driver in an elegant design, trimmed for maximum sound quality – and thus the perfect addition to any fully active 3-way speaker system.

The highly rigid membrane consists of a novel basalt fiber-paper compound. An ideal combination to ensure clear and precise sound even at high volumes  In addition to maximum uncoloured mid-range reproduction, the S 3M also offers extremely low distortion thanks to the linear neodymium magnet system.

The dream team is the combination with the S 1T tweeter and a S 6B or S 4B woofer. Driven by a power amplifier from Audiotec Fischer, the S loudspeakers perform at their best and provide the perfect basis for absolute top sound systems!

Features

  • 3” / 75 mm cone midrange speaker with novel basaltfiberpaper compound cone – a perfect combination of lowest weight, high stiffness and perfect inner damping
  • Highly efficient, compact neodymium magnet system for linear drive and minimum distortion
  • Low-resonant basket made from glassfiber reinforced plastic with optimized voice coil cooling for high power handling

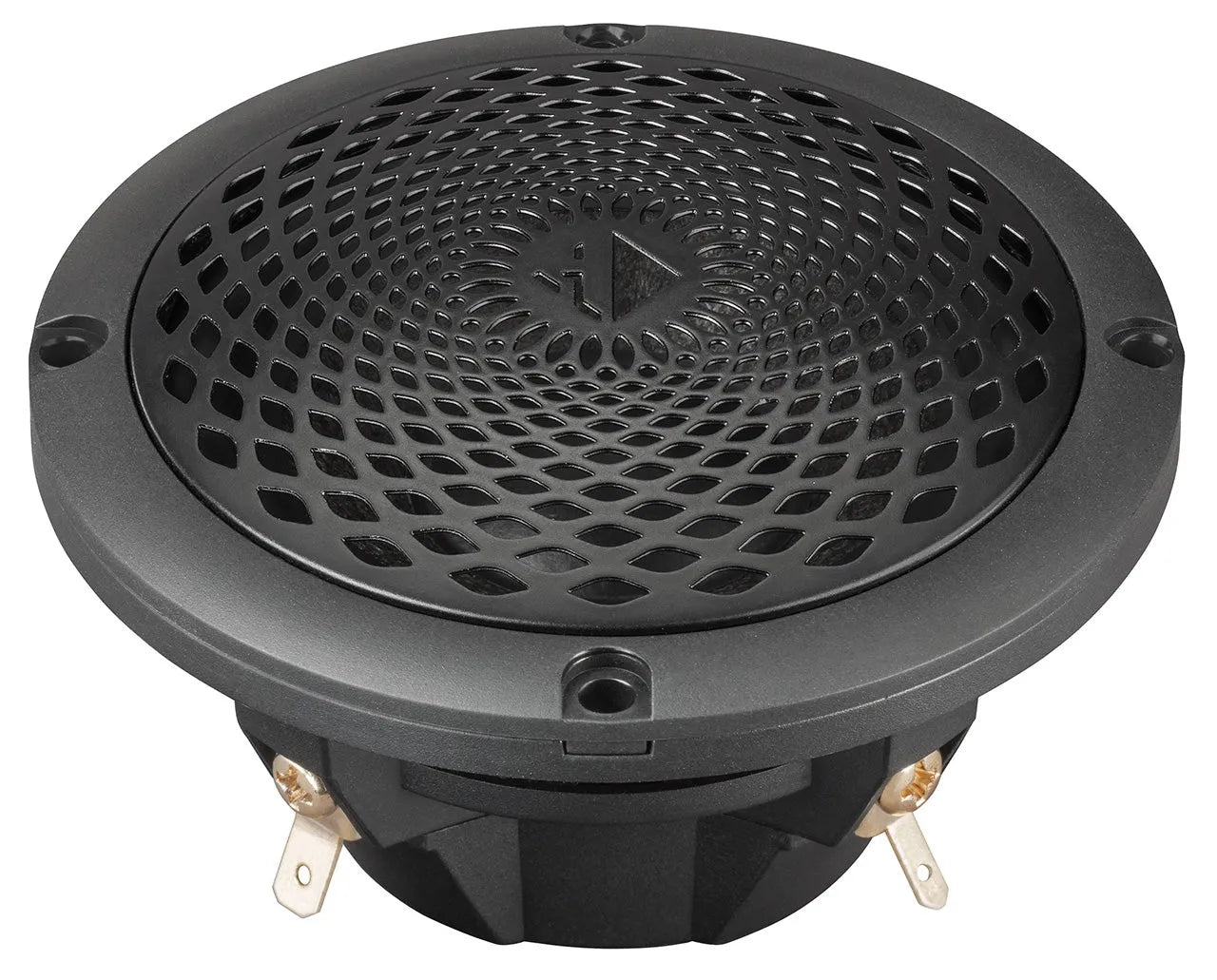

  • Grille included

    SPECIFIKACIJOS

    Power RMS / max.

    P

    75 / 150 Watts
    (highpass > 400 Hz at 24 dB/Oct.)
    Impedance  Z 4 Ω
    DC resistance  Re 3.2 Ω
    Frequency response   400 Hz - 6,000 Hz
    Resonance frequency  Fs 130 Hz
    Mechanical Q factor  Qms 4.47
    Electrical Q factor  Qes 0.48
    Total Q factor Qts 0.43
    Compliance Cms 396 µm/N
    Equivalent air volume Vas 0.57 L
    Force factor  B*I 4.6 Tm
    Efficiency 1 W / 1 m SPL 86 dB
    Cone area  Sd 32 cm²
    Moving mass  Mms 3.8 g
    Cone material   Basalt-fiber-paper compound
    Mechanical resistance  Rms 0.69 kg/s
    Voice coil diameter ø 25 mm
    Voice coil winding height   8 mm
    Max. linear excursion  Xmax +/- 2 mm
    Outer diameter ø 90 mm / 3.54"
    Installation diameter ø 73 mm / 2.87"
    Installation depth   37 mm / 1.46"

    Recommended enclosure volumes
    Sealed box with minimum 200 ml net volume
    Net volumes   Recommended DSP / amplifier settings
    0.2 liter (System resonance: 230 Hz)   Crossover frequency: 500 Hz
    Min. filter slope: 12 dB/Oct.
    0.4 liter (System resonance: 190 Hz)   Crossover frequency: 450 Hz
    Min. filter slope: 18 dB/Oct.
    0.6 liter (System resonance: 170 Hz)   Crossover frequency: 400 Hz
    Min. filter slope: 24 dB/Oct.

    Note: The enclosure should always be filled with appropriate damping material.

    Kas pakuotėje?

    2 x Midrange speaker HELIX S 3M
    2 x Grille
    1 x Data sheet
    1 x Mounting pattern



    INSTRUKCIJOS

    User Manual (EN).
