Hertz CENTO CP 1.2K, 1 kanalo mono garso stiprintuvas 1200W

INFORMACIJA

2K - yra aukšto efektyvumo mono stiprintuvas, skirtas užtikrinti galingą ir aiškų žemų dažnių garsą. Jis pasižymi daugiau nei 89 % efektyvumu ir kompaktišku aliuminio korpusu. Šis stiprintuvas lengvai pritaikomas įvairiose transporto priemonėse, įskaitant elektromobilius, dėl plataus veikimo įtampos diapazono (9–18 V).

Galia: 1200 W (1 kanalas)
Efektyvumas: Daugiau nei 85 %
Kompaktiškas dizainas: Aliuminio korpusas su LED indikatoriumi
Išsamūs garso nustatymai: Reguliuojami įėjimo lygiai, aukšto/vidutinio/žemo dažnio filtrai, žemų dažnių stiprinimas, kintamos fazės kontrolė, subsoninis filtras.
Lengvas pajungimas: Molex jungtys, automatinis įjungimas/išjungimas
Universalus suderinamumas: Tinka tiek standartinėms, tiek OEM garso sistemoms
Papildomos galimybės: Suderinamas su HRC 02 nuotoliniu valdymu (parduodamas atskirai)

APRAŠYMAS

Step into a world of refined bass with the Hertz CENTO POWER CP 1.2K This mono amplifier is engineered for high efficiency, reaching an efficiency greater than 89% within a compact, robust aluminum diecast casing. The CP 1.2K is designed to integrate seamlessly into both traditional and modern vehicle setups, thanks to its Universal Speaker Simulator and a wide operating voltage range suitable for electric vehicles. It features advanced noise rejection capabilities to ensure crystal-clear sound quality. With adjustable input levels, a low-pass crossover filter, a bass boost, and a subsonic filter, this amplifier allows for precise customization of your sound, making it an ideal choice for those seeking powerful, immersive bass without compromise.

• Optimal Power-to-Size Ratio: Encased in a compact aluminum diecast body, this monophonic ADC (Advanced Class-D) amplifier provides high efficiency over 85%, while being fully bridgeable.

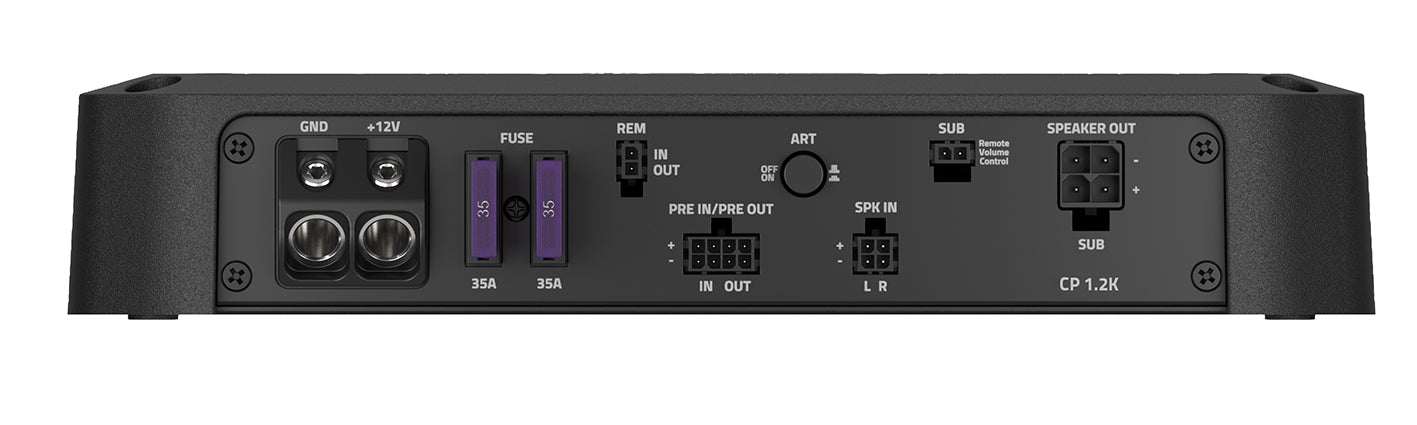

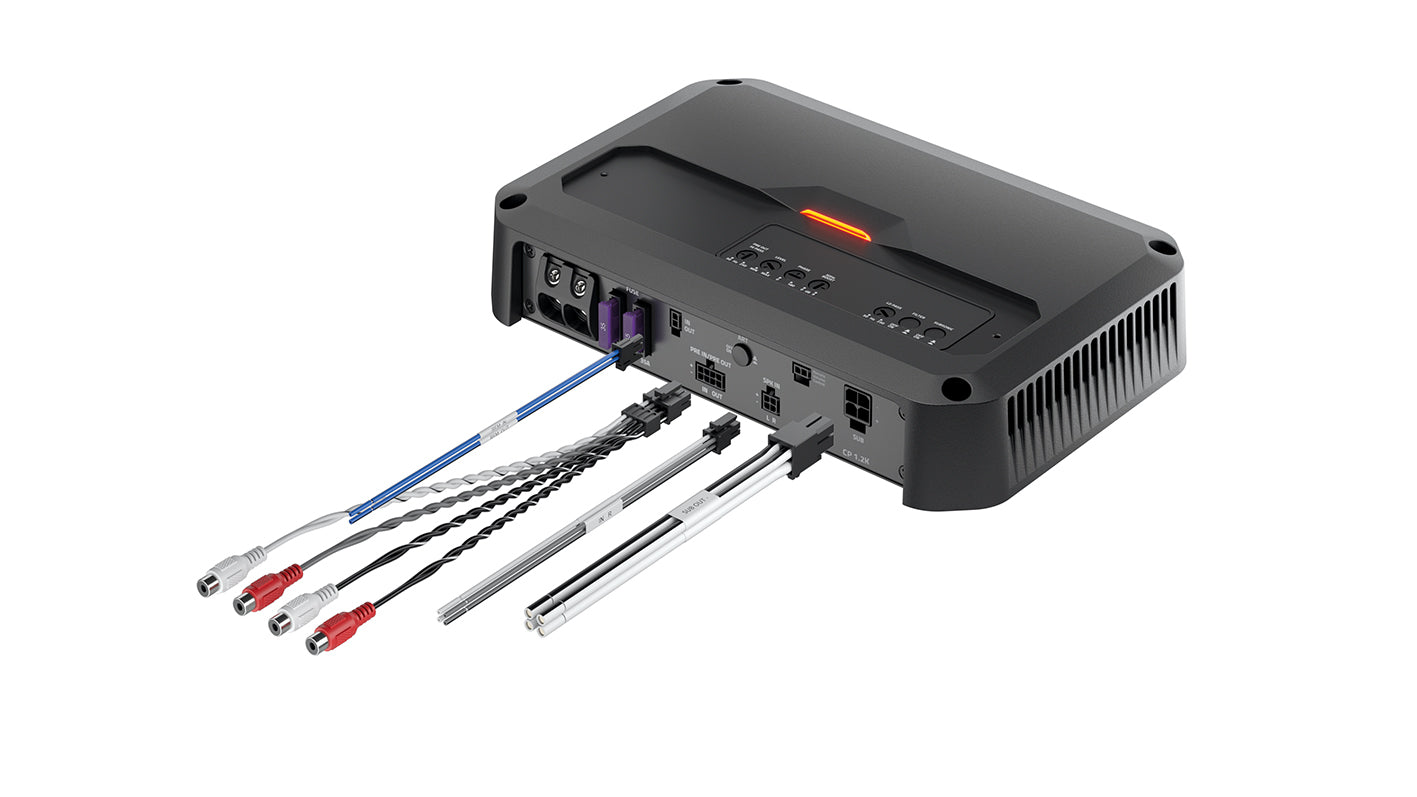

• Ready to Plug Connections: Designed for easy installation with durable long-term Molex connections.

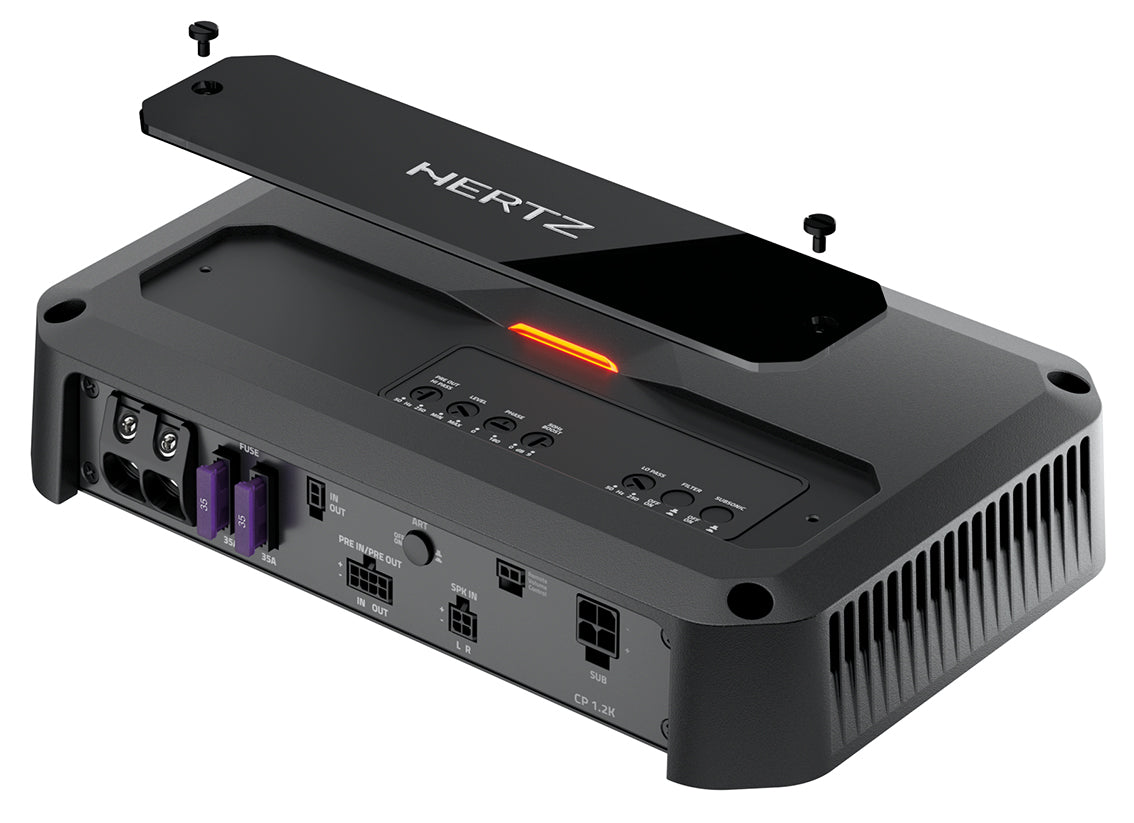

• Sophisticated Design: Features an elegant LED status indicator, solid machined terminal block, and a removable top panel that shields the control panel.
• Accessible Top Controls: Ensures all adjustments are easily reachable, even after installation.
• Comprehensive Control Settings: Includes adjustable input levels, high/band/low-pass crossover filters, bass boost, variable phase control, and a subsonic filter for fine-tuning sound.
• Universal Compatibility: Comes with an integrated Universal Speaker Simulator, adapting input sensitivity from 1.6 to 40 Vrms for compatibility with new class SB Head Units.
• Electric Vehicle Ready: Functions optimally with a power supply range of 9 to 18 Vdc, suitable for electric vehicles.
• Advanced Noise Rejection: Features balanced input circuitry for both Pre-in and Speaker-in connections.
• Automatic Remote Turn-On/Off: Activated by OEM radio speaker outputs.
• Full-Range Pre-Outs: Available with both Speaker-In and Pre-in level inputs.
• HRC 02 Remote Control Compatibility: Allows for customized subwoofer level adjustments.

Technologies

Up to 89% efficiency thanks to ADC (Advanced D-Class) output stage.

Thanks to the built-in USS technology (Universal Speakers Simulator), DIECI POWER amplifiers can be correctly connected to head units with a “speaker load detection” function that monitors the presence of a low-impedance load to enable the audio outputs.

Cento Power amplifiers are ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or the factory amp area.

TECHNINIAI DUOMENYS

General Specs
Channels    1
Amp class    D
POWER SUPPLY
Nominal power supply voltage (fuse)    11 ÷ 15 VDC (2 x 35 A)
Operating power supply voltage    9 ÷ 18 VDC
Idling current    0.85 A
Standby current draw    4.5 uA
Consumption, MIN load impedance (Max Musical Power)    50 A
Remote IN    4 ÷ 17 VDC (1 mA)
ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only)    1.5 VDC
Efficiency    89%
AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 70% Rated Power    0,03 %
Damping factor @ 1 kHz, 1W    140
Bandwidth @ -3 dB    10 Hz ÷ 500 Hz
S/N ratio (A-weighted @ 1 V Input)    102 dBA
Minimum load impedance
@ 1 Ch:    2 Ω
Adjustable Crossovers    yes
Output Power
Output power (RMS) @ 1% THD:
1Ch @ 4Ω    650 W x 1
1Ch @ 2Ω    1200 W x 1
Total Power    1200 W
INPUTS / FILTERS
Inputs    Pre-In / Speaker-In
Pre Out    Hi-Pass 50 ÷ 250Hz @ 12 dB/Oct.
Pre-In sensitivity    0.32 ÷ 8 VRMS
Speaker-In sensitivity    1.6 ÷ 40 VRMS
Sub Ch Lo-Pass    OFF / 50 ÷ 250 Hz @ 24 dB/Oct.
Bass Boost 50Hz    0 ÷ 9 dB
Subsonic Hi-Pass    OFF / 25 Hz @ 24 dB/Oct.
Sub Remote Volume Control    -20 ÷ 6 dB (Active on Rear Ch with LPF ON)
Physical Specs

Weight    Kg    lbs
2.44    5.37
