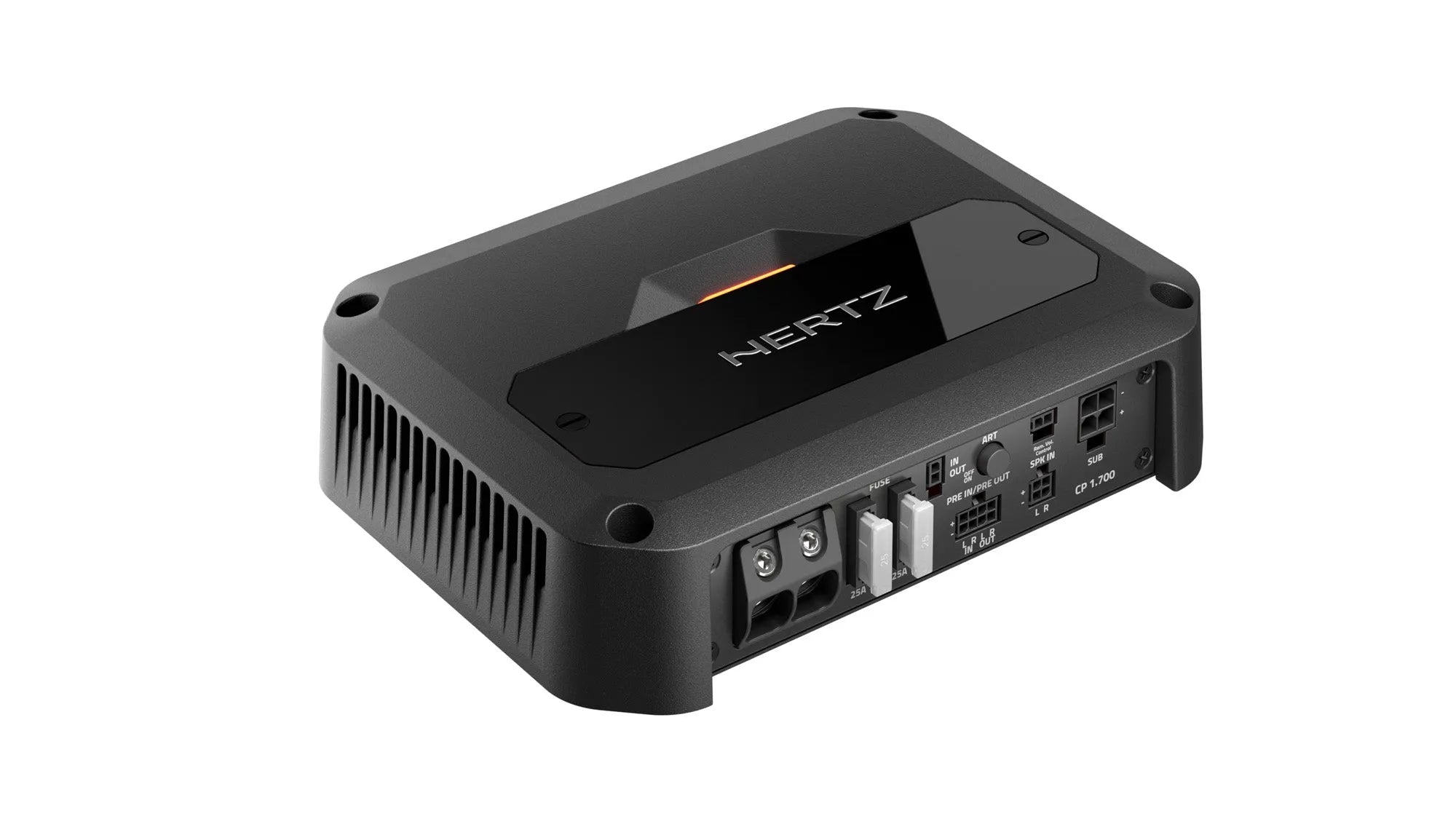

Hertz CENTO CP 1.700, 1 kanalo mono garso stiprintuvas 700W

INFORMACIJA

700 - tai vieno kanalo (mono) automobilinis stiprintuvas, pasižymintis 700 W galia ir itin aukštu efektyvumu (daugiau nei 89 %). Jis sukurtas taip, kad užtikrintų galingą ir švarų garsą tiek tradicinėse, tiek elektromobilių garso sistemose. Šis stiprintuvas – puikus pasirinkimas norintiems kompaktiško, bet itin galingo žemų dažnių sprendimo automobiliui.

Galia: 700 W (1 kanalas)
Efektyvumas: Daugiau nei 89 %
Kompaktiškas dizainas: Tvirtas aliuminio korpusas su LED indikatoriumi
Lengvas pajungimas: Ilgaamžės Molex jungtys užtikrina patikimą instaliaciją
Universalus suderinamumas: Integruotas „Universal Speaker Simulator“, palaikantis įėjimo jautrumą nuo 1.6 iki 40 Vrms
Tinka elektromobiliams: Veikia esant 9–18 V įtampai
Išplėstinis triukšmo slopinimas: Subalansuota įvesties grandinė „Pre-in“ ir „Speaker-in“ jungtims
Automatinis įjungimas/išjungimas: Aktyvuojamas originalios automobilio garso sistemos išvestimis
Nuotolinio valdymo palaikymas: Suderinamas su „HRC 02“ nuotolinio valdymo pulteliu

APRAŠYMAS

Enhance your audio system with the Hertz CENTO POWER CP 1.700, a mono amplifier that combines superior power handling and sophisticated sound control technologies. Boasting a superior power-to-size ratio with an efficiency of over 89%, this amplifier accommodates a broad voltage range, suitable for both conventional and electric vehicles. The CP 1.700 steps up with additional sound customization features, including a variable phase control to fine-tune the audio output to your preferences. Its high-noise rejection and balanced input circuitry maintain the integrity of the sound, while the inclusion of a full-range pre-out ensures flexible system expansion. Designed for durability and performance, the CP 1.700's elegant design and accessible top panel controls make it a top choice for audiophiles looking to push the limits of their car's audio system.

• Optimal Power-to-Size Ratio: Encased in a compact aluminum diecast body, this monophonic ADC (Advanced Class-D) amplifier provides high efficiency over 89%, while being fully bridgeable.

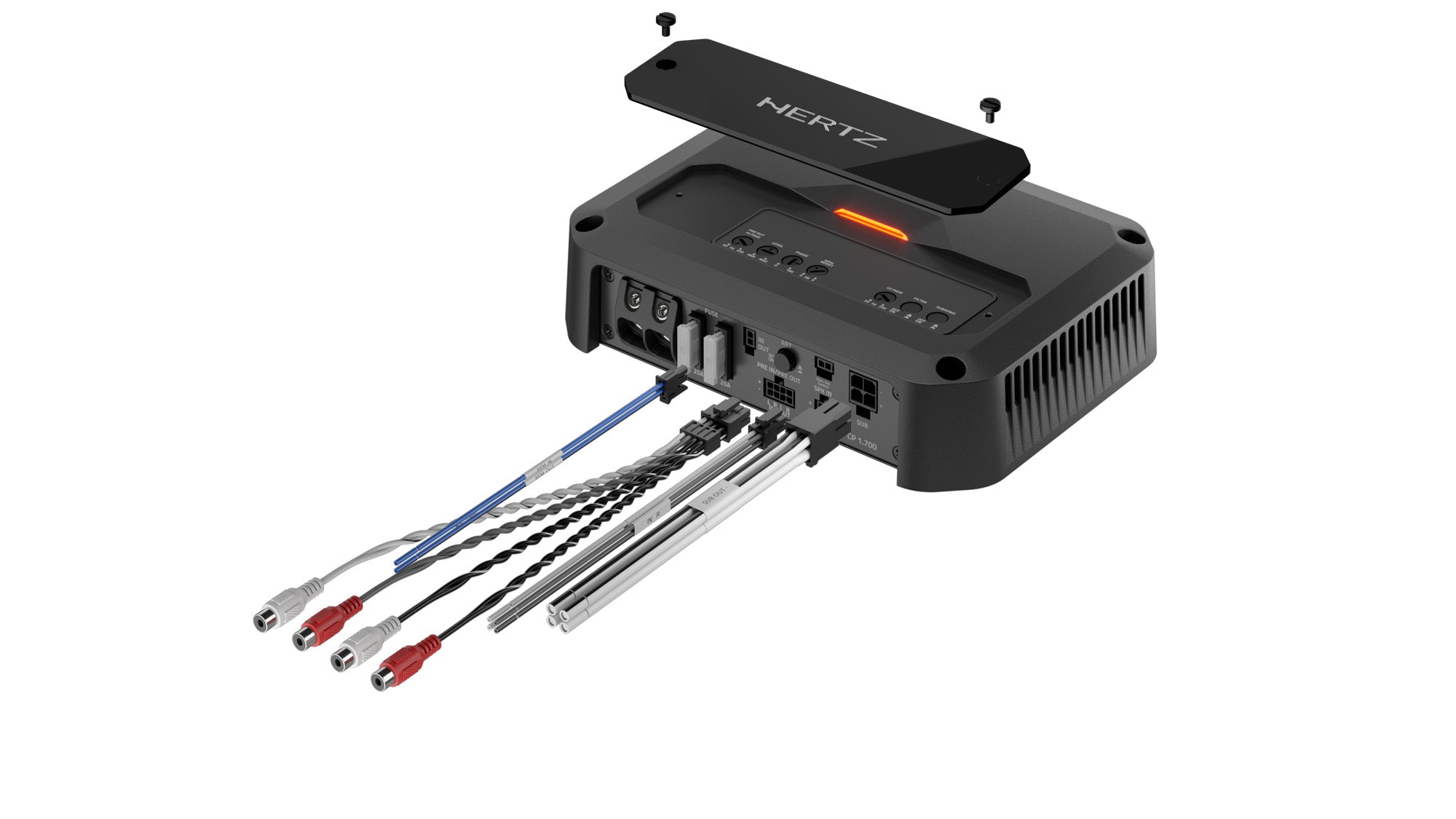

• Ready to Play Connections: Designed for easy installation with durable long-term Molex connections.

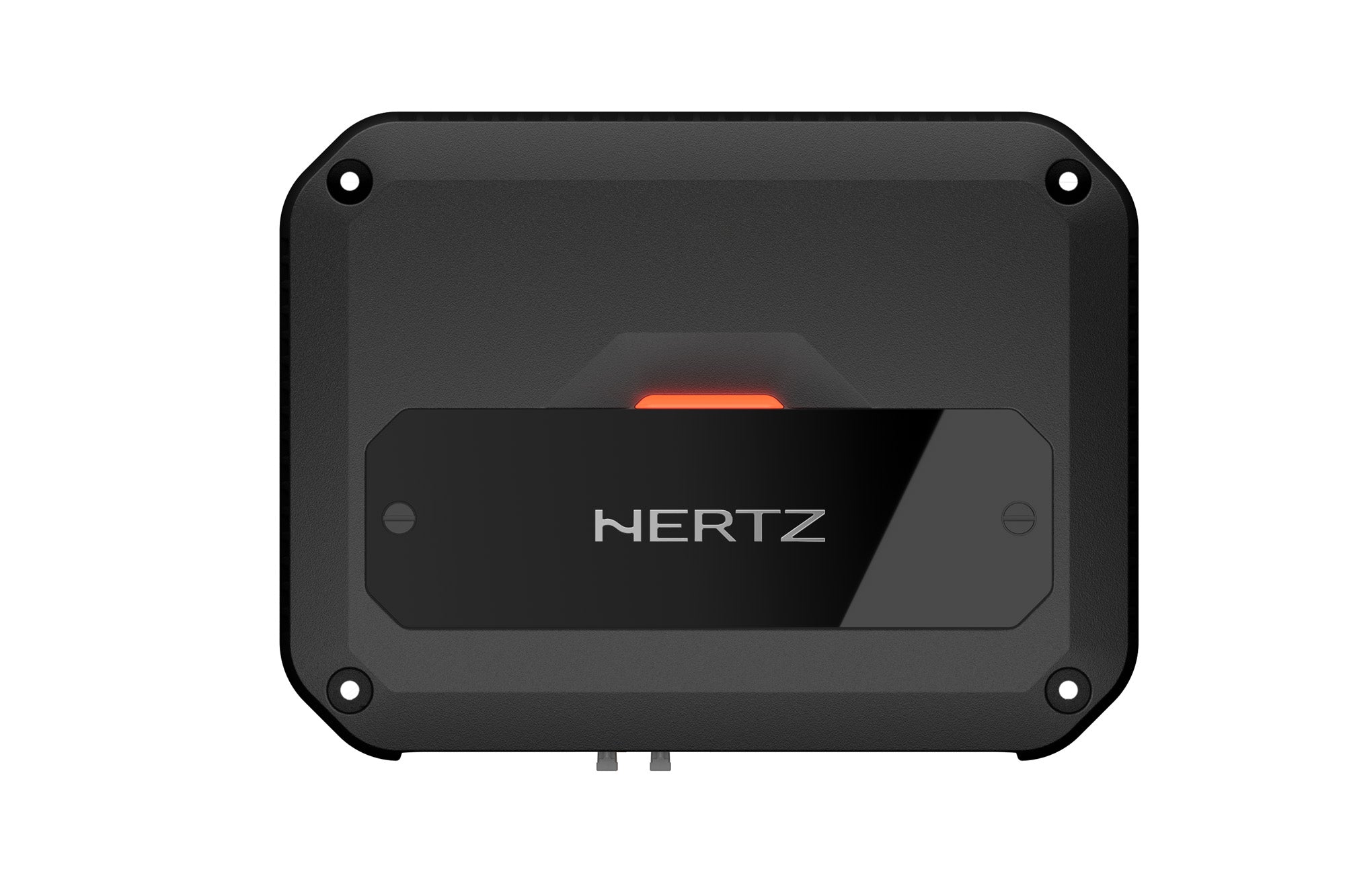

• Sophisticated Design: Features an elegant LED status indicator, solid machined terminal block, and a removable top panel that shields the control panel.

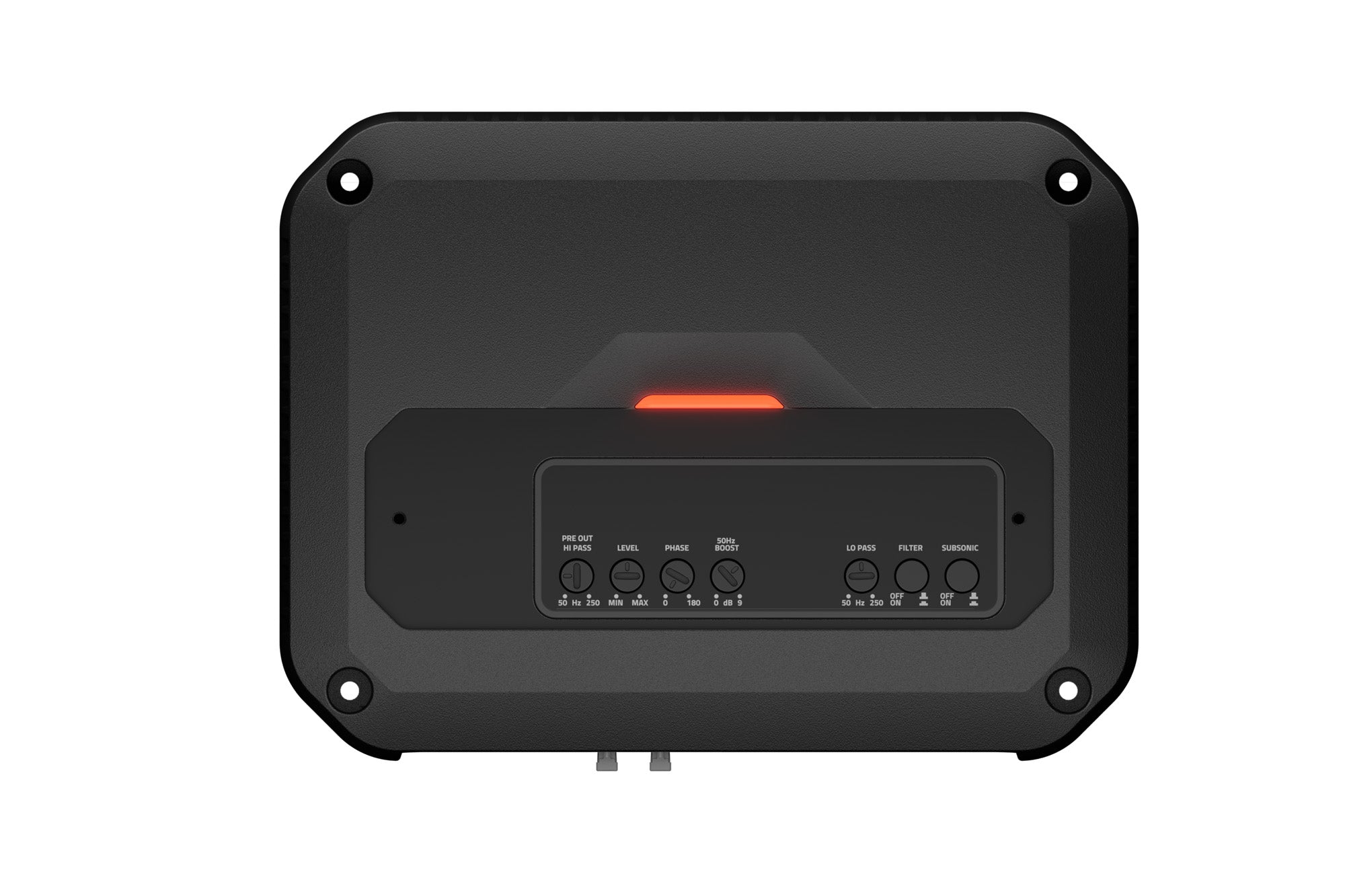

• Accessible Top Controls: Ensures all adjustments are easily reachable, even after installation.
• Comprehensive Control Settings: Includes adjustable input levels, high/band/low-pass crossover filters, bass boost, variable phase control and a subsonic filter for fine-tuning sound.
• Universal Compatibility: Comes with an integrated Universal Speaker Simulator, adapting input sensitivity from 1.6 to 40 Vrms for compatibility with new class SB Head Units.
• Electric Vehicle Ready: Functions optimally with a power supply range of 9 to 18 Vdc, suitable for electric vehicles.
• Advanced Noise Rejection: Features balanced input circuitry for both Pre-in and Speaker-in connections.
• Automatic Remote Turn-On/Off: Activated by OEM radio speaker outputs.
• Full-Range Pre-Outs: Available with both Speaker-In and Pre-in level inputs.
• HRC 02 Remote Control Compatibility: Allows for customized subwoofer level adjustments.

Technologies

Up to 89% efficiency thanks to ADC (Advanced D-Class) output stage.

Thanks to the built-in USS technology (Universal Speakers Simulator), DIECI POWER amplifiers can be correctly connected to head units with a “speaker load detection” function that monitors the presence of a low-impedance load to enable the audio outputs.

Cento Power amplifiers are ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or the factory amp area.

TECHNINIAI DUOMENYS

General Specs
Channels    1
Amp class    D
POWER SUPPLY
Nominal power supply voltage (fuse)    11 ÷ 15 VDC (2 x 25 A)
Operating power supply voltage    9 ÷ 18 VDC
Idling current    1.10 A
Standby current draw    4.5 uA
Consumption, MIN load impedance (Max Musical Power)    33 A
Remote IN    4 ÷ 17 VDC (1 mA)
ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only)    1.5 VDC
Efficiency    89%
AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 70% Rated Power    0,01 %
Damping factor @ 1 kHz, 1W    350
Bandwidth @ -3 dB    10 Hz ÷ 500 Hz
S/N ratio (A-weighted @ 1 V Input)    113 dBA
Minimum load impedance
@ 1 Ch:    2 Ω
Adjustable Crossovers    yes
Output Power
Output power (RMS) @ 1% THD:
1Ch @ 4Ω    400 W x 1
1Ch @ 2Ω    700 W x 1
Total Power    700 W
INPUTS / FILTERS

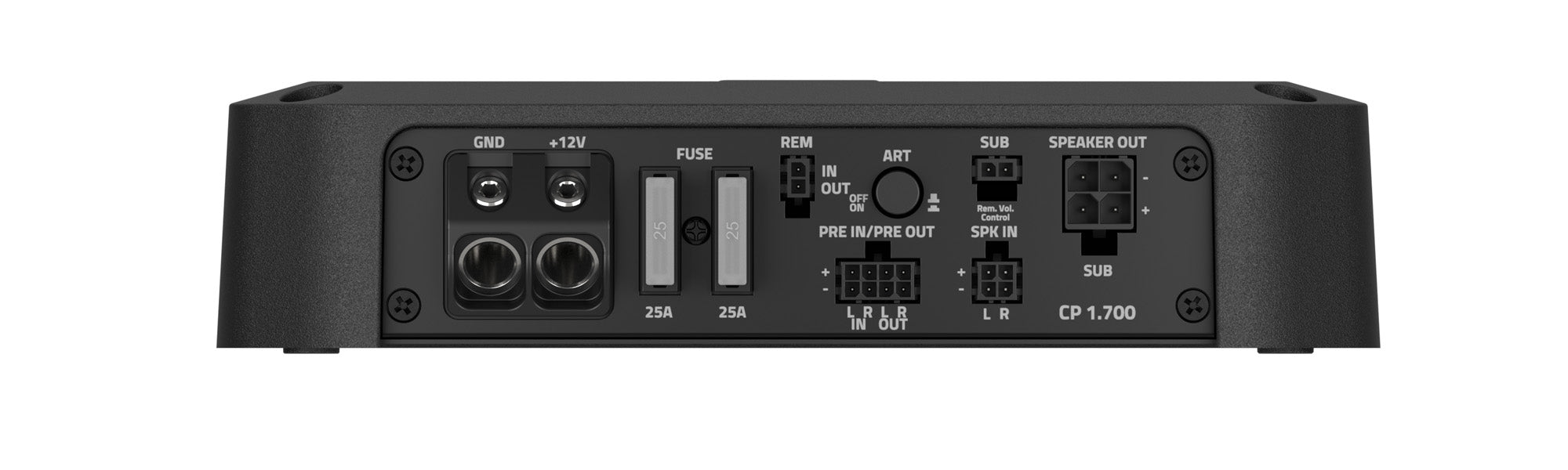

Inputs    Pre-In / Speaker-In
Pre Out    Hi-Pass 50 ÷ 250Hz @ 12 dB/Oct.
Pre-In sensitivity    0.32 ÷ 8 VRMS
Speaker-In sensitivity    1.6 ÷ 40 VRMS
Sub Ch Lo-Pass    OFF / 50 ÷ 250 Hz @ 24 dB/Oct.
Bass Boost 50Hz    0 ÷ 9 dB
Subsonic Hi-Pass    OFF / 25 Hz @ 24 dB/Oct.
Sub Remote Volume Control    -20 ÷ 6 dB (Active on Rear Ch with LPF ON)

Weight    (Kg)  2.44
