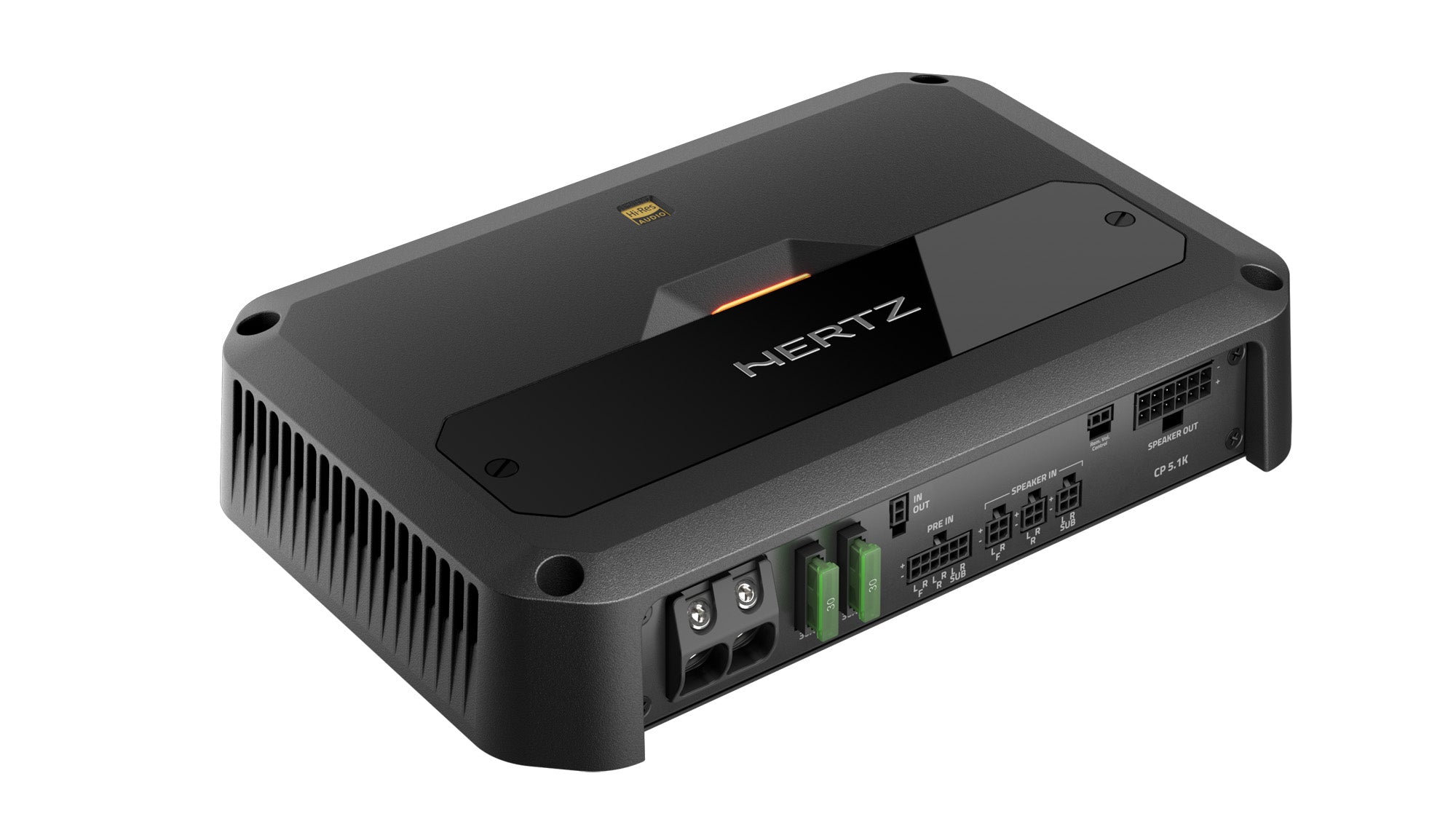

Hertz CENTO CP 5.1K, 5-kių kanalų garso stiprintuvas 1030W

• Hi-Res Audio Certified: Delivers outstanding sound quality with a frequency response from 10 Hz to 41 kHz.
• Optimal Power-to-Size Ratio: Encased in a compact aluminum diecast body, this 5-channel ADC (Advanced Class-D) amplifier provides a high efficiency of over 85%, while being fully bridgeable.
• Ready to Plug Connections: Designed for easy installation with durable long-term Molex connections.
• Sophisticated Design: Features an elegant LED status indicator, solid machined terminal block, and a removable top panel that shields the control panel.
• Accessible Top Controls: Ensures all adjustments are easily reachable, even after installation.
• Comprehensive Control Settings: Includes adjustable input levels, high/band/low-pass crossover filters, bass boost, and a subsonic filter for fine-tuning sound.
• Universal Compatibility: Comes with an integrated Universal Speaker Simulator, adapting input sensitivity from 1.6 to 40 Vrms for compatibility with new class SB Head Units.
• Electric Vehicle Ready: Functions optimally with a power supply range of 9 to 18 Vdc, suitable for electric vehicles.
• Advanced Noise Rejection: Features balanced input circuitry for both Pre-in and Speaker-in connections.
• Automatic Remote Turn-On/Off: Activated by OEM radio speaker outputs.
• Full-Range Pre-Outs: Available with both Speaker-In and Pre-in level inputs.
• HRC 02 Remote Control Compatibility: Allows for customized subwoofer level adjustments.

Hi-Res Audio certification featuring a frequency response of 10 Hz – 41 kHz.

Up to 85% efficiency thanks to ADC (Advanced D-Class) output stage.

Thanks to the built-in USS technology (Universal Speakers Simulator), DIECI POWER amplifiers can be correctly connected to head units with a “speaker load detection” function that monitors the presence of a low-impedance load to enable the audio outputs.

Cento Power amplifiers are ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or the factory amp area.

 TECHNINIAI DUOMENYS

General Specs
Channels    5 - 3
Amp class    D
POWER SUPPLY
Nominal power supply voltage (fuse)    11 ÷ 15 VDC (2 x 30 A)
Operating power supply voltage    9 ÷ 18 VDC
Idling current    1.90 A
Standby current draw    4 uA
Consumption, MIN load impedance (Max Musical Power)    48 A
Remote IN    4 ÷ 17 VDC (1 mA)
ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only)    1.5 VDC
Efficiency    83%
AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 70% Rated Power    0,01 % (F/R Ch) - 0,06 % (SUB Ch)
Damping factor @ 1 kHz, 1W    160 (F/R Ch) - 180 (SUB Ch)
Bandwidth @ -3 dB    10Hz ÷ 47kHz (F/R Ch) - 10Hz ÷ 500Hz (SUB Ch)
S/N ratio (A-weighted @ 1 V Input)    101 dBA (F/R Ch) - 116 dBA (SUB Ch)
Minimum load impedance
@ 5 Ch:    2 Ω
@ 3 Ch:    4 Ω + 4 Ω + 2 Ω
Adjustable Crossovers    yes
Output Power
Output power (RMS) @ 1% THD:
5Ch @ 4Ω    80 W x 4 + 330 W x 1
5Ch @ 2Ω    130 W x 4 + 510 W x 1
3Ch @ 2Ω / 4Ω    260 W x 2 + 510 W x 1
2Ch @ 4Ω    260 W x 2 + 320 W x 1
Total Power    1030 W
INPUTS / FILTERS
Inputs    Pre-In / Speaker-In
Pre Out    Full Range (Front)
Pre-In sensitivity    0.32 ÷ 8 VRMS
Speaker-In sensitivity    1.6 ÷ 40 VRMS
Front Ch Hi-Pass    Full / 50-5000Hz 12dB/Oct.
Rear Ch Lo-Pass    Full / 50-5000Hz 12dB/Oct.
Sub Ch Lo-Pass    50 ÷ 500 Hz @ 24 dB/Oct.
Bass Boost 50Hz    0 ÷ 9 dB
Subsonic Hi-Pass    25 Hz @ 24 dB/Oct.
Sub Remote Volume Control    -20 ÷ 6 dB (Active on Sub Ch)
Physical Specs

Weight (Kg)  2.27


Optional remote volume control

CP 5.1k subwoofer level can be adjusted (-20 ÷ 6 dB) using the optional HRC 02 remote control. HRC 02  is ready for tape surface mounting, screw surface mounting, and recessed mounting, thanks to the provided accessories.
