Hertz  |  Brūkšninis kodas: 8018823126878

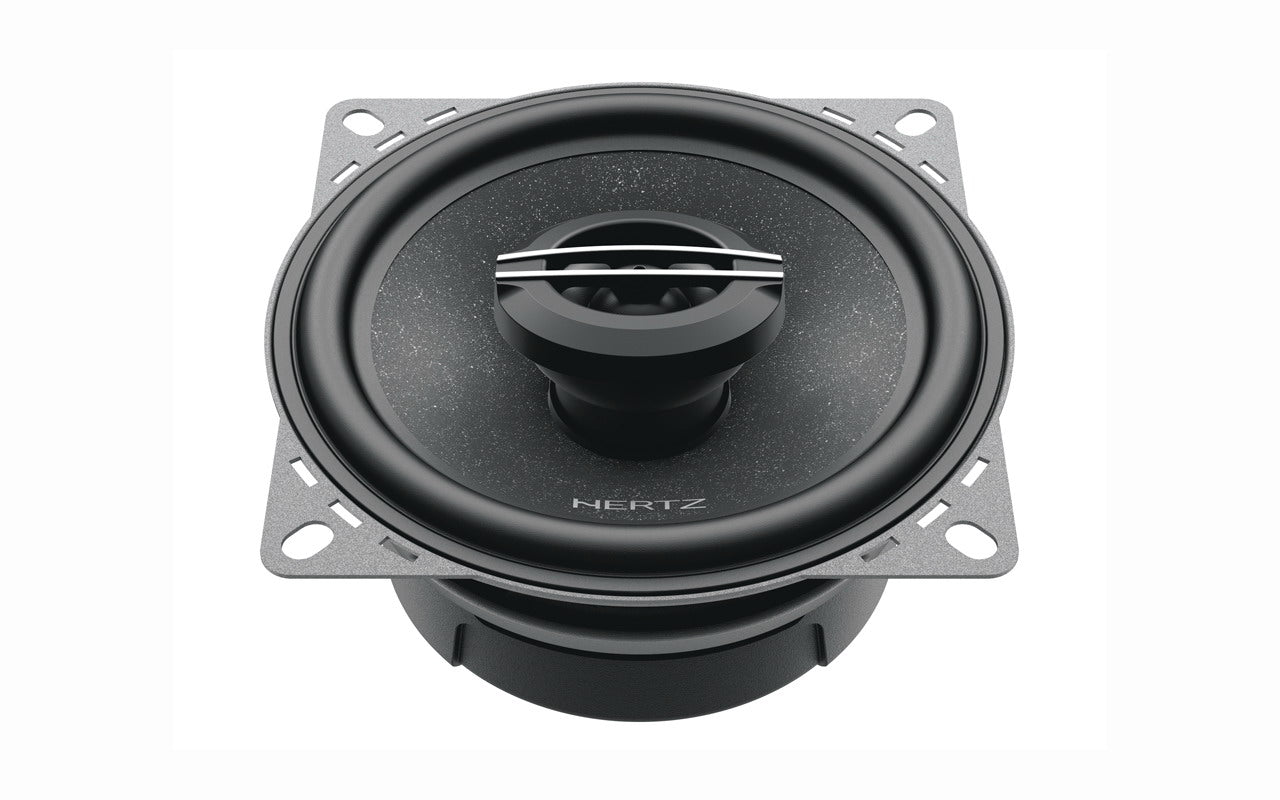

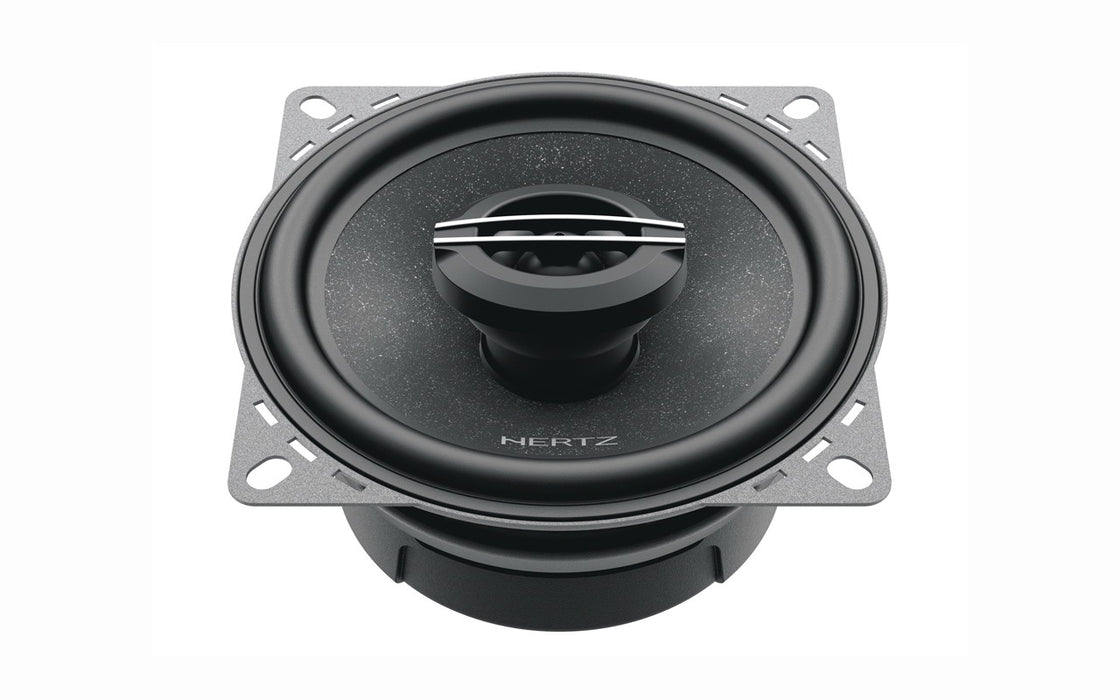

Hertz CX 100, automobilinis koaksialinis garsiakalbis

CENTO serijos automobilinis koaksialinis garsiakalbis, kuris pasižymi nemenka galia bei ypatinga surinkimo kokybe!

  • Galia: 120 W.
€86.00 EUR

Hertz CX 100, automobilinis koaksialinis garsiakalbis - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Pristatymas

Lietuvoje siuntas pristatome iki durų DPD kurjeriu per 1-2 darbo dienas, už 4.99€. Užsisakius virš 100€ - pristatymas nemokamas.

Siuntų pristatymas už Lietuvos ribų per 4-10 darbo dienų. Pristatymo kainos nuo 15.00€.

Prekių atsiėmimas parduotuvėje

Užsakytas prekes internetu galite atsiimti mūsų parduotuvėje adresu Armatūrininkų g. 1, Kaunas. Turėkite su savimi užsakymo nr.

Prieš atvykstant rekomenduojame pasiskambinti +370 683 90000

Darbo laikas: I-V 9:00-18:00

INFORMACIJA

.
  • Dažnių juosta: 80 ÷ 22k Hz.
  • Jautrumas; 92 dB.
  • RHFC™ technologija.
  • SPP-M technologija.

    •

    APRAŠYMAS

    Coaxial loudspeakers represent a major design challenge due to the critical nature of their acoustic output, being installed in an OEM placement often unfavorable to reproduction. For this reason, in order to achieve high performance, a great engineering effort was put into place, promptly addressed by our R&D team. The Cento two-way coaxials CX 100 features the new 24 mm (0.9 in.) Tetolon® dome tweeter that delivers a more musical and detailed sound compared to the more traditional plastic materials. The dispersion has been optimized for off-axis listening. The  SPP-M cone (Semi Pressed Paper-Mica) ensuring superior acoustic and damping characteristics.

    Features

    1. Soft Tetolon® fiber 24 mm (0.9 in.) dome tweeter cooled with ferrofluid, for extended and natural high frequencies.

    2. RHFC ™ (Rotary High Frequency Contour) tweeter angled and directable to the listener for a perfect frequency response in any installation scenario.

    3. Tweeter faceplate geometry optimized with FEM simulations (Finite Element Modeling), to provide an extremely linear frequency response in off-axis installations.

    4. 25 mm (1 in.) woofer voice coil featuring an aluminum former to guarantee high excursion and power handling.

    5. 100 mm (5 in.) semi-pressed paper cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping.

    6. High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.

    7. Compact and transparent three-spoke basket acoustically combined with a rubber magnet cover for total damping of spurious vibrations.

    8. Elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh, available as optional.





    Technologies

    • SPP-M

      SPP-M (Semi Pressed Paper-Mica) cone enhanced with Mica powder for an excellent balance between lightness and damping.

    • RHFC™

      RHFC™ (Rotary High Frequency Contour) tweeter angled and directable to the listener for a perfect frequency response in any installation scenario.



    TECHNINIAI DUOMENYS

    SPECIFIKACIJOS

    Power Handling - Peak W 120
    Power Handling - Continuous W 40
    Impedance Ω 4
    Frequency response Hz 80 ÷ 22k
    Sensitivity dB SPL 92
    Woofer size mm (in.) 100(4)
    Tweeter size mm (in.) 24 (0.9)
    Woofer Voice Coil Ø mm (in.) 25 (1)
    Tweeter voice coil Ø mm (in.) 13 (0.5)
    Woofer magnet High density flux ferrite
    Tweeter magnet Neodymium
    Woofer cone Semi-pressed paper + Mica
    Tweeter dome Tetolon®



    DOKUMENTAI

    INSTRUKCIJOS

    User Manual (EN).
