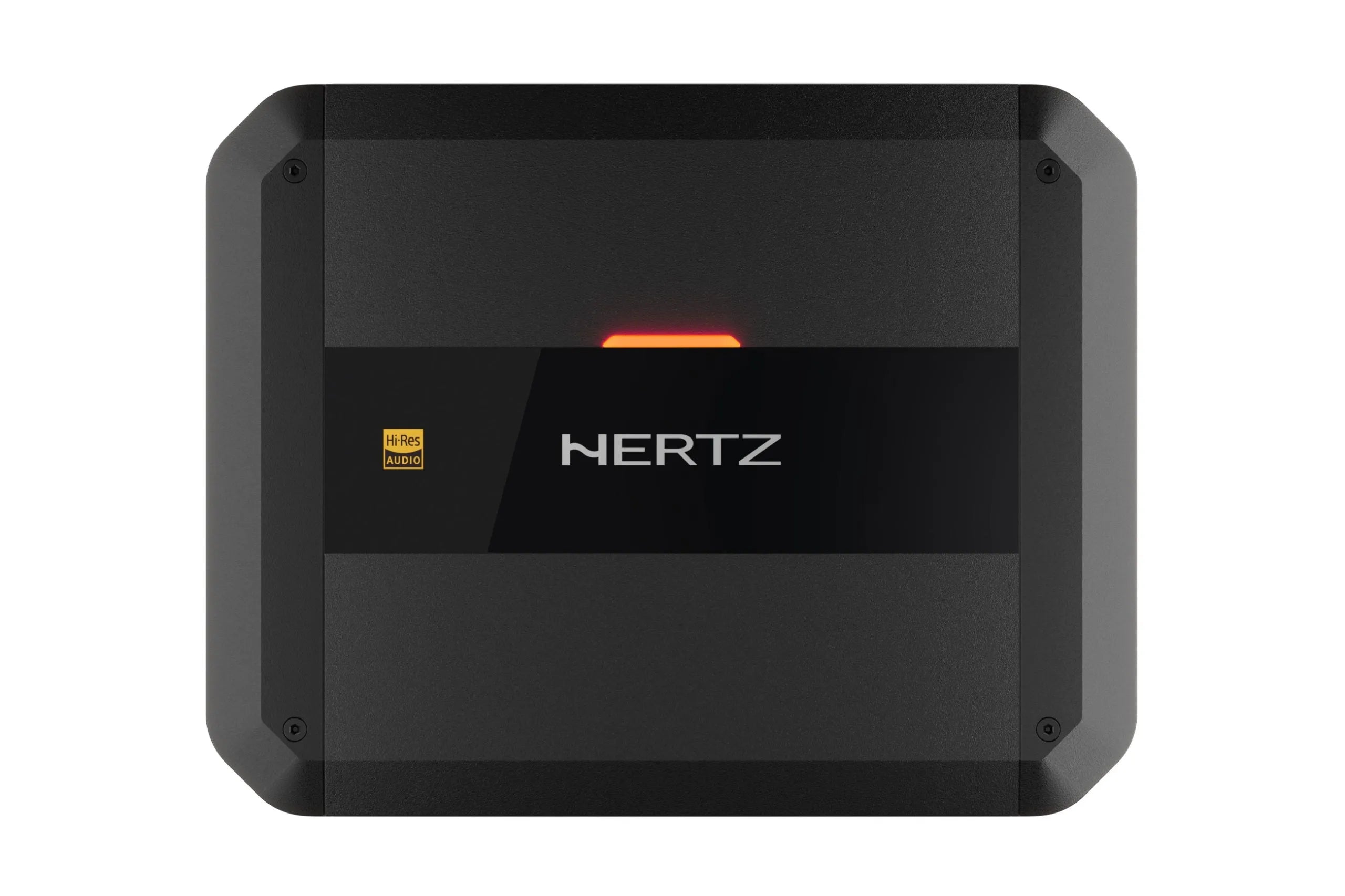

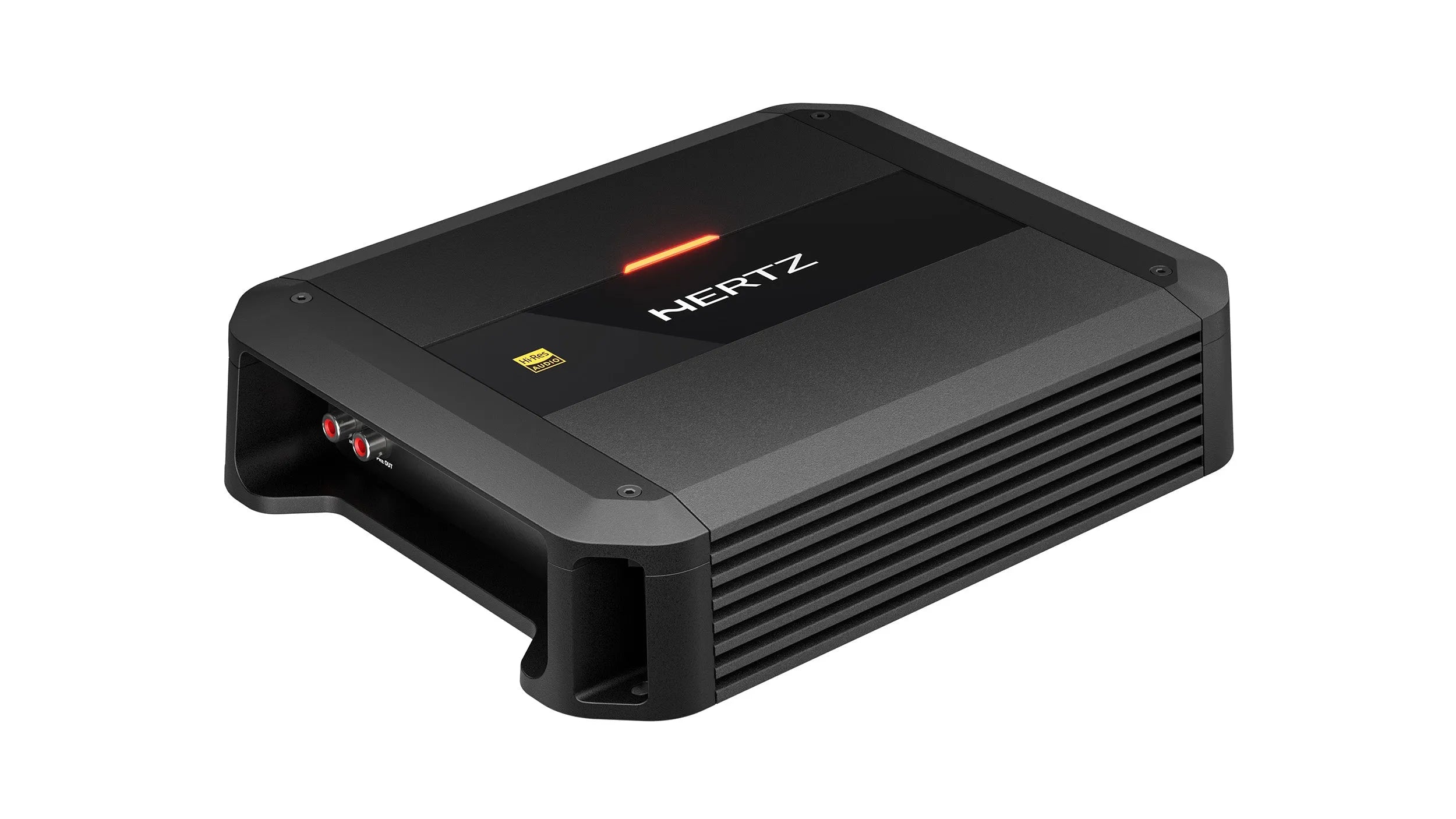

Hertz DP 2.200, 2-jų kanalų automobilinis garso stiprintuvas 260W

INFORMACIJA

200 - tai aukštos klasės automobilinis garso stiprintuvas, skirtas perteikti muziką su išskirtiniu tikslumu ir galia. Nepaisant kompaktiško dydžio, šis 2 kanalų Class AB tipo stiprintuvas užtikrina įspūdingą garso kokybę bei išskirtinį patikimumą.

Kanalų skaičius: 2 - 1
Galia (RMS, @ 1 % THD, 14.4 V): 2 kanalai @ 4 Ω: 80 W x 2, 2 kanalai @ 2 Ω: 110 W x 2, 1 kanalas @ 4 Ω (bridged): 220 W x 1
Maksimali galia (@ 10 % THD, 14.4 V): 2 kanalai @ 4 Ω: 95 W x 2, 2 kanalai @ 2 Ω: 130 W x 2, 1 kanalas @ 4 Ω: 260 W x stipr
Bendra galia: 260 W
Triukšmo ir signalo santykis: 100 dBA (A svertinis @ 1 V)
Efektyvumas: 60 %
Dažnių diapazonas: 10 Hz – 45 kHz (–3 dB)
Aukštų dažnių filtras (Hi-Pass): 50–4000 Hz, 12 dB/Okt.
Žemų dažnių filtras (Lo-Pass): 50–4000 Hz, 12 dB/Okt.
Bass Boost (50 Hz): 0 – 9 dB

APRAŠYMAS

Hertz DIECI POWER amplifier DP 2.200 is an audio powerhouse designed to elevate your car audio experience to unprecedented heights. Boasting High-Resolution Audio Certification, this amplifier delivers an impressive frequency response of 10 Hz to 45 kHz, ensuring that every nuance of your music is faithfully reproduced with crystal-clear precision.

Despite its compact size, the DP 2.200 packs a punch with its maximum power output, featuring fully bridgeable 4-channel Class-AB amplification and 2Ω stability. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint.

The amplifier's aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior.

Universal compatibility is a key feature of the DP 2.200, offering an operating supply voltage ranging from 6.5 to 16.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources.

Experience high-noise rejection with the balanced input circuitry of the Pre-in and Speaker-in, allowing for clean and interference-free signal transmission. The full set of controls, including adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost, provides users with the flexibility to fine-tune the audio to their preferences.

Convenience meets intelligence with the Automatic Remote Turn-On/Off feature, seamlessly triggered by OEM radio speaker outputs. This ensures hassle-free operation and an efficient power management system.

Whether utilizing Speaker-In or Pre-In level inputs, the DP 2.200 offers full-range pre-outs, providing further flexibility in system configuration. Elevate your car audio system with the Hertz DIECI POWER Amplifier DP 2.200 – where power, precision, and style converge for an unparalleled listening experience on the road.

TECHNINIAI DUOMENYS

Physical Specs

Dimension	mm	in
A	240	9.44
B	202	7.95
C	190	7.48
D	166	6.53
E	50	1.96
Weight	Kg	lbs
	1.95	4.3
