Hertz  |  Brūkšninis kodas: 8018823123587

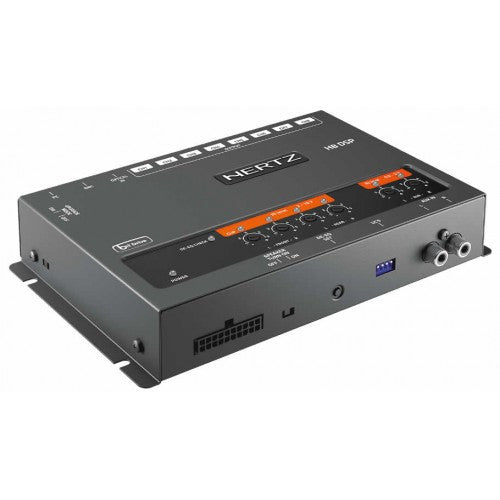

Hertz H8 DSP, skaitmeninis garso procesorius

€441.00 EUR

Hertz H8 DSP, skaitmeninis garso procesorius - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Pristatymas

Lietuvoje siuntas pristatome iki durų Venipak kurjeriu per 1-2 darbo dienas, už 4.99€. Užsisakius virš 100€ - pristatymas nemokamas.

Siuntų pristatymas už Lietuvos ribų per 4-10 darbo dienų. Pristatymo kainos nuo 15.00€.

Prekių atsiėmimas parduotuvėje

Užsakytas prekes internetu galite atsiimti mūsų parduotuvėje adresu Armatūrininkų g. 1, Kaunas. Turėkite su savimi užsakymo nr.

Prieš atvykstant rekomenduojame pasiskambinti +370 683 90000

Darbo laikas: I-V 9:00-18:00

INFORMACIJA

Naujasis Hertz H8 DSP garso procesorius turi galimybę būti sujungtas su analoginiu arba skaitmeniniu šaltiniu, transformuojantis paprasta garsa į aukštos klasės integruotą sistemą.

  • Kanalų atskirimas 1kHz : 85dB,
  • Jautrumas(Kolonėlių/AUX): 2,2 kOhm/15kOhm,
  • 1x USB jungtis, AUX IN, Digital Optical IN 94/24bit,
  • 32 bit Cirrus Logic,
  • ART automatizuota kontrolė,
  • 31-band grafinis ekvalaizeris,



APRAŠYMAS

Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency. The Hertzaudio car amplifier ML Power 4 (4 x 250 W 2 Ω) is the obvious choice for a top level front-rear Mille system.

Technologies H8 DSP Powered by bit Drive technology

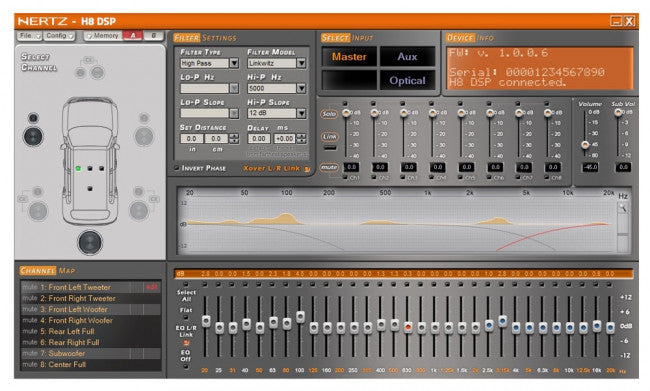

The H8 DSP firmware, based upon Flash memory, can be updated at any time without having to disassemble the device from the system: the software checks on the available updates from the bit Drive portal (https://bitdrive.it) guiding the user through all of the upgrade phases.

 H8 DSP USS technology

Thanks to the built-in USS technology (Universal Speakers Simulator), H8 DSP can also be correctly connected to head units with “speaker load detection” function that monitors the presence of a low-impedance load to enable the audio outputs.


TECHNINIAI DUOMENYS

SPECIFIKACIJOS

General Specifications
POWER SUPPLY
Operating power supply voltage 10.8 ÷ 14.4 VDC
Power supply 7.5 ÷ 15 VDC
Idling current 0,4 A
Switched off without DRC 2,5 mA
Switched off with DRC 4 mA
Remote IN voltage 6,5 ÷ 15 VDC (1,3 mA)
Remote OUT voltage 12 VDC (130 mA)
Audio Specifications
Distortion - THD @ 1 kHz, 1V RMS Output 0,005%
Bandwith @ -3 dB 10 ÷ 22k Hz
S/N Ratio @ A weighted
Digital input
Master Input
AUX Input 96
105 dBA
95 dBA
96 dBA
Channel Separation @ 1 kHz 85 dB
Input sensitivity (Speaker In) 2 ÷ 15 V RMS
Input sensitivity (AUX In) 0,6 ÷ 5 V RMS
Input impedance (Speaker In) 2,2 kΩ
Input impedance (AUX) 15 kΩ
Max Output Level (RMS) @ 0.1% THD 4 V RMS

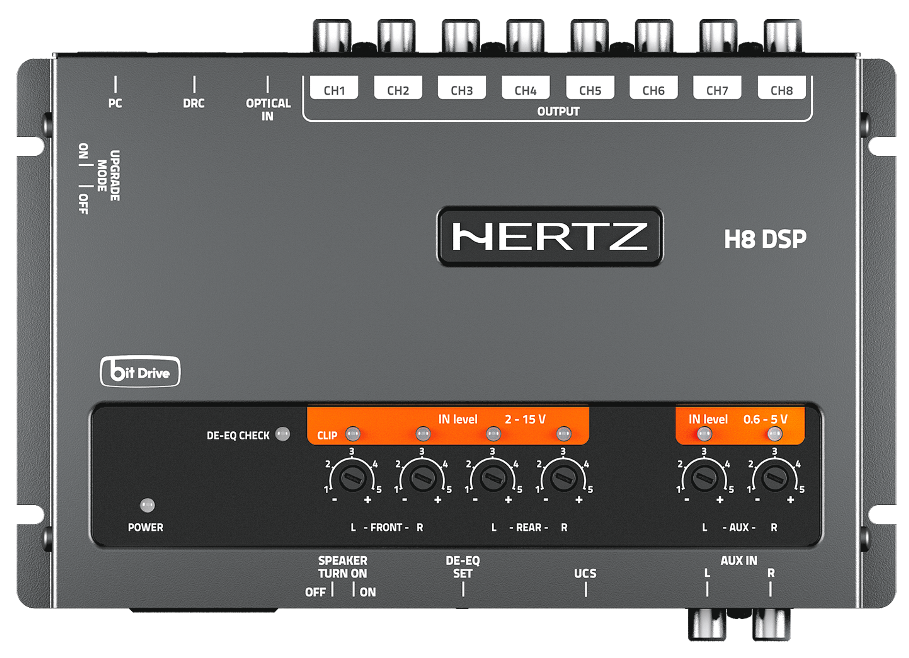

Digital Signal Processor
INPUT STAGE
High Level (Speaker) FL - FR - RL - RR
Low Level (Pre) AUX IN
Digital Optical IN (S/PDIF max 96 kHz/24bit) OPTICAL IN
OUTPUT STAGE
Low Level Pre (default) FRONT TW L/R, FRONT WF L/R REAR L/R, SUB, CENTER
CONNECTIONS
From / To Personal Computer 1 x USB / B
DRC HE Audio controls and Memory / Inputs selection
Optical / AUX select Optical In / Aux wire control + 12V / GND enable
Memory A / Memory B Memory A / B wire control + 12V / GND enable
CROSSOVER N.8 (one for each output channel)
Filter Type Full / High Pass / Low Pass / Band Pass
Filter mode and slope Linkwitz @ 12 / 24 dB
Butterworth @ 6 / 12 / 18 / 24 dB
Crossover frequency 68 steps @ 20 ÷ 20k Hz
Phase control 0° ÷ 180°
EQUALIZER
On Hi-Levels input (Speaker In) Automatic De-Equalization On
Outputs N.8 Graphic: ±12 dB @ 31 Band ISO 1/3 Oct. 20 ÷ 20k Hz
TIME ALIGNMENT
Distance 0 ÷ 510 cm / 0 ÷ 200.8 inch
Delay 0 ÷ 15 ms
Step 0.08 ms; 2,8 cm / 1.1 inch
Fine set 0.02 ms; 0,7 cm / 0.27 inch


DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).
