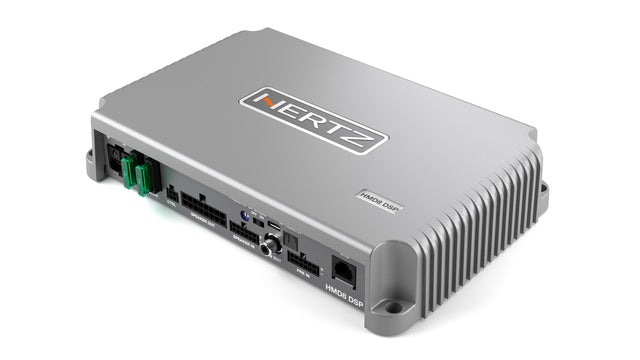

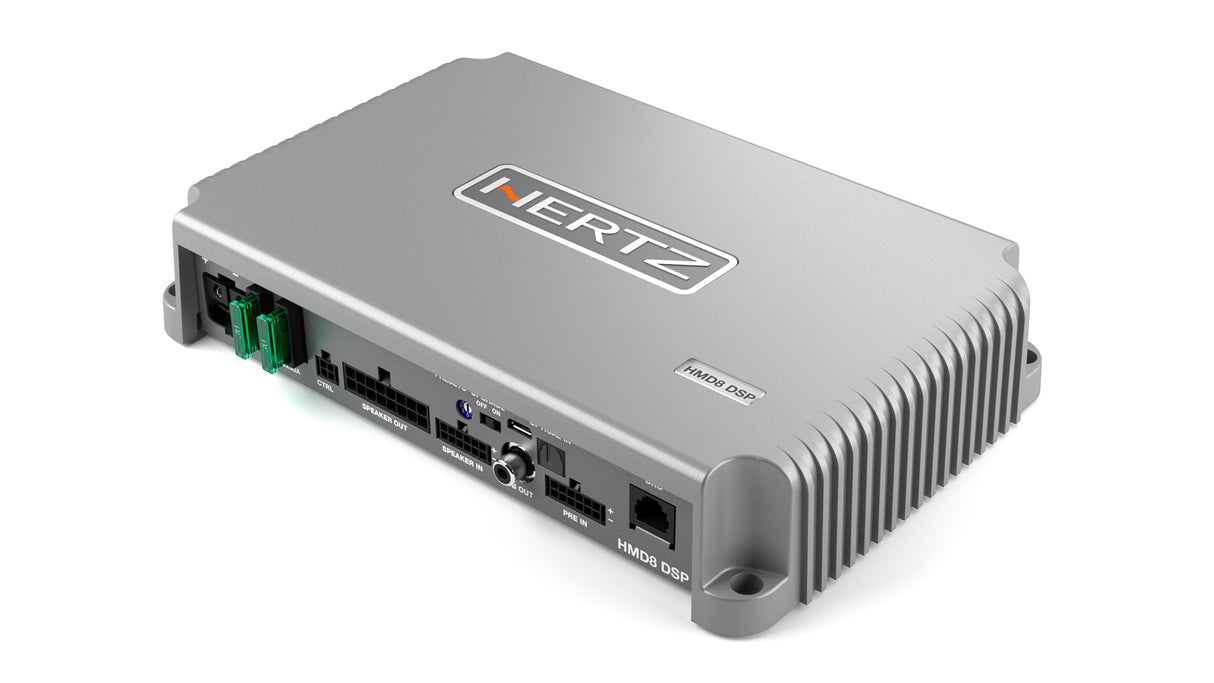

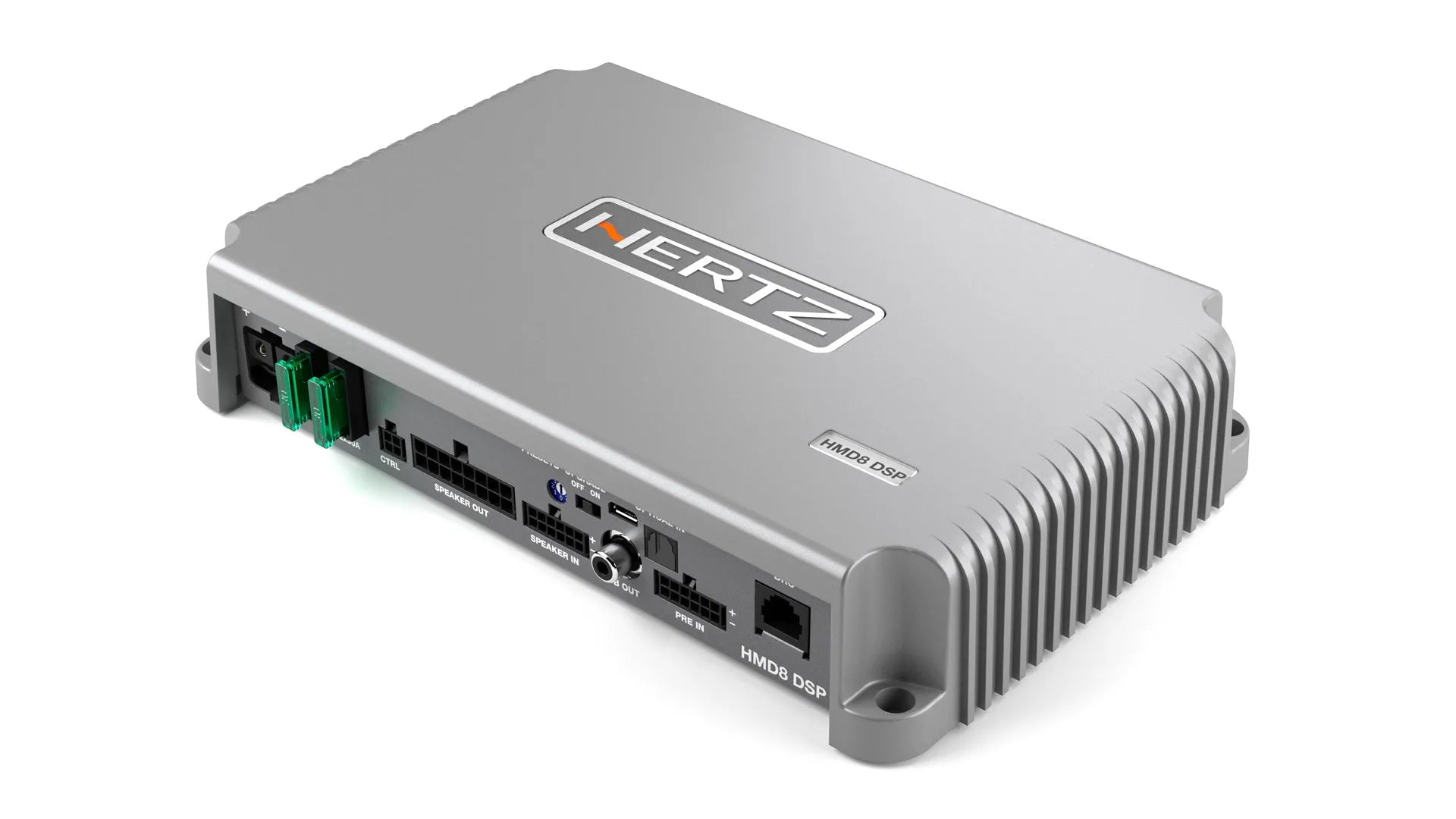

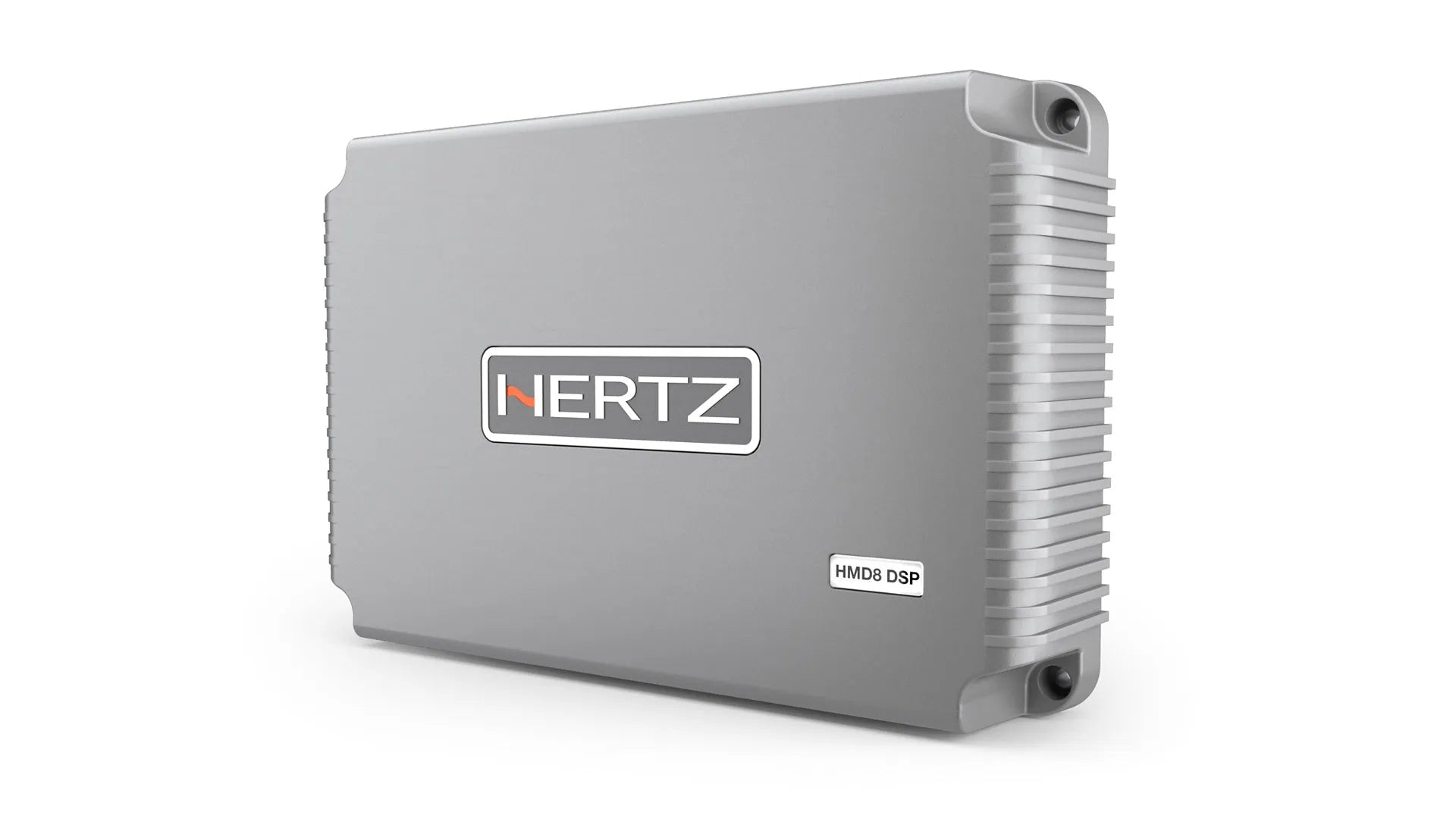

Hertz HMD8 DSP 24V, Vandens transportui skirtas garso stiprintuvas

€1,078.00 EUR

Hertz HMD8 DSP 24V, Vandens transportui skirtas garso stiprintuvas - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Vandens transportui skirtas 8-nių kanalų garso stiprintuvas, kuris užtikrins kokybišką garsą Jūsų kateryje ar jachtoje.

  • Galia: 260 W x 4  (4 Ω).
  • Įmontuotas DSP.
  • THD: 0.6 %.
  • S/N dažnis: 105 dB.
  • D-klasės stiprintuvas.

The HMD8 DSP 24V, powered by Hertz Marine DSP technology, rich new highs of listening pleasure during navigation. DSP user friendly PC-Software interface make the setup process a breeze, exploiting every single pills of performance from the installed speaker system. The amazing power of 8 * 85 W or 4 * 260 W (RMS@ 4Ω) gives the HMD 8DSP the capability to drive with authority the complete speaker system generating tons of crystal clear SPL up to 3 different zone of the vessel. “Power for the Waves” design philosophy features a sturdy enclosure made of extruded aluminum with an anti-corrosion treated PCB to ensure years of listening pleasure in open water.

Technologies



  • BUILT-IN DSP

    Hertz marine dsp technology allows you to move freely in the boat preserving a perfect surround effect, even with outdoor listening.
  • MULTI ZONE SETUP

    Hertz Marine DSP optimizes acoustic performance for each of the 3 configurable listening zones, regardless of where the speakers are installed and the point of the passenger within the zone, maximizing listening pleasure while cruising.
  • CROSSOVER FILTER

    Filter Type
    Full / High pass / Low pass / Band pass
    Filter model and slope
    Butterworth, Linkwitz-Riley, Bessel, Chebyshev, QLP quasi-linear phase
  • SPEAKERS EMISSION TIME ALIGMENT

    0 - 510 cm (0 - 200.8 inches)
  • GRAPHIC PARAMETRIC EQ

    n. 10 parametric poles (Peaking, High Shelf, Low Shelf, Notch, All pass) ±12 dB gain, variable Q (0.5 – 16.0)
    n. 10 graphic poles
  • PC-SOFTWARE

    Hertz Navigator software allow to create pre-optimized software setup files for a specific boat model and the related audio system installed, ensuring a correct acoustic result in a very short time.
  • ADVANCE D-CLASS

    Thanks to the Hertz advanced D-CLASS output stage, HMD8 DSP joins maximum sound quality with unmatched efficiency to be very compact and easily installed in any position of the boat.
  •



    SPECIFIKACIJOS

    DIGITAL SIGNAL PROCESSOR

    Filter type

    Full / High pass / Low pass / Band pass

    Filter model and slope

    Butterworth (6, 12, 18, 24, 30, 36, 42, 48, 54, 60 dB/oct)

    Linkwitz-Riley (12, 24, 36, 48, 60 dB/oct)

    Bessel (6, 12, 18, 24, 30, 36, 42, 48, 54, 60 dB/oct)

    Chebyshev (6, 12, 18, 24, 30, 36, 42, 48, 54, 60 dB/oct)

    QLP quasi-linear phase (6, 12 dB/oct)

    Crossover frequency

    20 Hz – 20000 Hz integer values

    Phase control

    0 ° – 180°, all pass equalizer poles

    Bass boost

    Analog input equalizer

    Output equalizer

    Graphic and Parametric modes

    n. 10 parametric poles (Peaking, High Shelf, Low Shelf, Notch, All pass) ±12 dB gain, variable Q (0.5 – 16.0)

    n. 10 graphic poles

    Time alignment distance

    0 – 510 cm (0 – 200.8 inches)

    Time alignment delay

    0 – 15 ms

    Time alignment step

    1 cm

    Time alignment fine set step

    1 sample

    Memories

    n. 2 memories

    n. 3 parametric poles for each memory (Peaking, High Shelf, Low Shelf) ±12 dB gain, variable Q (0.5 – 16.0)

    Preset

    Rotary switch for 7 installation presets

    AMPLIFIER STAGE

    Distortion – THD @ 1 kHz, 4Ω, 70% Rated Power

    0,06%

    Damping factor @ 1 kHz, 4Ω, 2 VRMS

    > 110

    Bandwidth @ -1.5 dB

    10Hz ÷ 22kHz

    S/N ratio (A weighted @ 1 V Input) Master Input

    100 dBA

    S/N ratio (A weighted @ 1 V Input) Optical Input

    105 dBA

    Input sensitivity Pre-In

    0.6 ÷ 6 VRMS

    Input sensitivity Speaker-In

    2.2 ÷ 22 VRMS

    Minimum load impedance

    8Ch: 2Ω

    4Ch – (Bridge 1/2; 3/4; 5/6; 7/8) : 4Ω

    OUTPUT POWER (RMS) @14.4 VDC, 1% THD:

    8Ch @ 4Ω

    85 W x 8

    8Ch @ 2Ω

    130 W x 8

    4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω

    260 W x 4



    INSTRUKCIJOS

    User Manual (EN).
