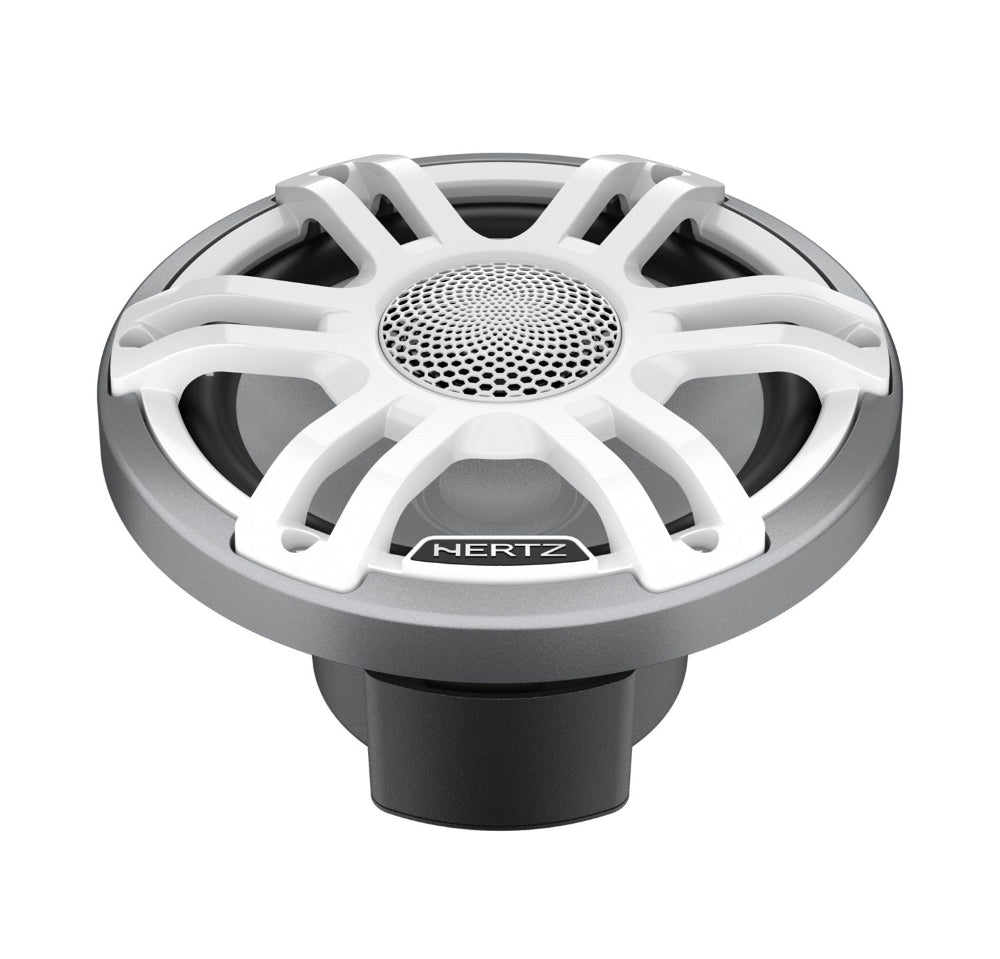

Hertz HMX 7.7 S-LD-SW.2, Marine koaksialiniai garsiakalbiai, 19.6 cm, 100W RMS

INFORMACIJA

Hertz HMX 7.7 S-LD-SW.2 - 19.6 cm jūriniai koaksialiniai garsiakalbiai, sukurti kokybiškam ir galingam garsui kateriuose, valtyse bei kitose vandens transporto priemonėse. Atnaujintas krosoveris ir 1,4″ neodimio aukštų dažnių garsiakalbis užtikrina aiškų, dinamišką garsą bei gerą jo sklaidą net atviroje erdvėje. Tvirta Marine Grade konstrukcija pritaikyta sudėtingoms lauko sąlygoms  IP65 apsauga saugo nuo vandens srovių, o specialios medžiagos atsparios UV spinduliams, druskai ir korozijai. Garsiakalbiai pasižymi 100 W RMS galia, o integruotas RGB LED apšvietimas suteikia galimybę pritaikyti jų išvaizdą prie laivo interjero ir norimos atmosferos.

Dydis: 196 mm / 7,7″
RMS galia: 100 W
Maksimali galia: 200 W
Varža: 4 Ω
Dažnių diapazonas: 45 Hz–25 kHz
Jautrumas: 91 dB
Montavimo gylis: 113 mm

Kaina nurodyta už porą.

APRAŠYMAS

HMX 7.7 S-LD-SW.2

196 (7.7) mm (in.) | 113 (4.4) mm (in.) | Hi-end Led Coax | 200 W | 4 Ohm

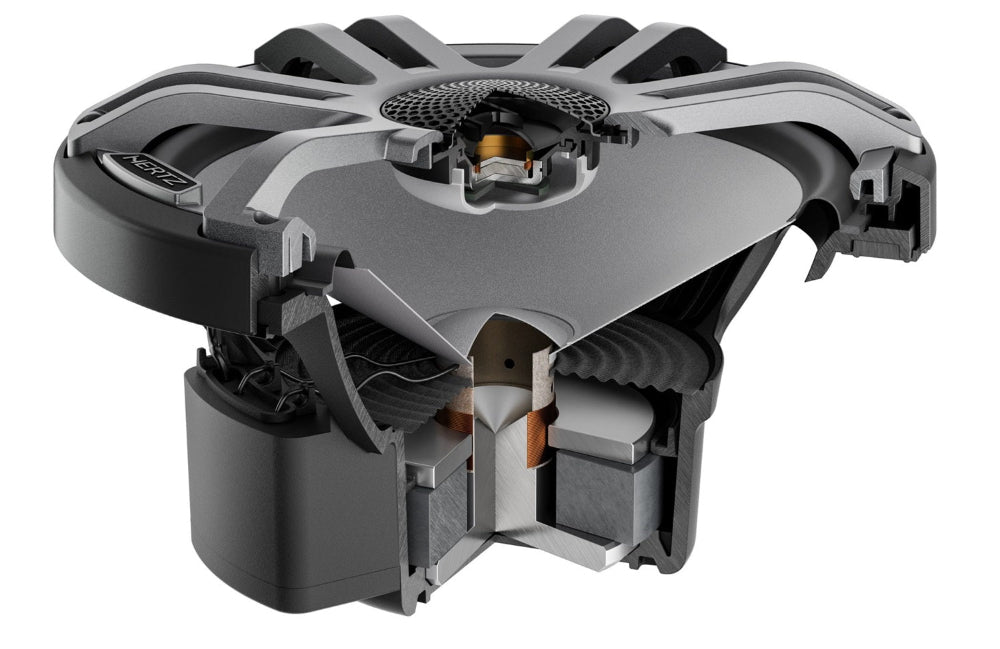

The HMX 7.7 S-LD-SW.2 represents the evolution of the Hertz Marine SPORT line, engineered to deliver superior audio performance and a distinctive visual impact in any marine environment. This new generation introduces a refreshed design featuring a redesigned central element with parametric mesh grille, ensuring a modern look and seamless integration with today’s boat styles. At the core of the upgrade is the completely re-engineered crossover, developed to deliver a more exciting and engaging sound experience, with enhanced clarity and dynamics even in open-air conditions. Built with marine-grade materials – including UV- and salt-resistant ASA grille, polypropylene cone, and Santoprene™ surround – the HMX SPORT.2 ensures long-lasting durability and reliability in the harshest environments. The integrated RGB LED lighting allows full customization of the onboard atmosphere, perfectly matching any vessel style.

Features

Hertz Pure Marine Certified: IP65 protection grade, compliant with ASTM-D4329 (UV resistance) and ASTM-B117 (salt fog), ensuring long-term durability in harsh marine environments

Completely re-engineered crossover, sealed and protected, with resettable solid-state tweeter protection for a more engaging, dynamic, and reliable sound performance

1.4” Neodymium tweeter with PEI dome, optimized with faceplate and acoustic lens for superior off-axis dispersion and higher SPL

Sport grille with parametric mesh design, acoustically transparent for efficient high-frequency transfer, enhanced protection, and a bold, modern look

Long-throw woofer with 25 mm (1”) voice coil, specifically tuned for infinite baffle applications to deliver powerful and controlled low-end

Marine-grade construction, including UV- and salt-resistant materials for maximum reliability over time

Gold-plated corrosion-resistant terminals, ensuring stable and long-lasting electrical connections

Integrated RGB LED lighting, for full customization of the onboard atmosphere

Technologies

RGB MULTICOLOR
Built-in RGB led lighting creates sophisticated atmosphere, adding tons of class to your vessel.

IP 65 CERTIFICATION

WATER JET TESTED
The protection grade IP65 for speakers define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.

UV RESISTANT
According to the severe ASTM-D4329 standards for UV resistance, all the materials used for Hertz Marine products are designed to face long time exposition to UV radiations while cruising on the open sea.

SALT FOG TESTED
To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.

TECHNINIAI DUOMENYS

Component    HI-END LED COAX
Size mm (in.)    196 (7.7)
Power Handling - Continuous W    100
Power Handling - Peak W    200
Impedance Ohm    4
Depth mm (in.)    113 (4.4)
Tweeter diaphragm mm (in.)    36 (1.4)
Woofer Voice Coil Ø mm (in.)    32 (1.26)
Tweeter Voice Coil Ø mm (in.)    20 (0.8)
Frequency Response Hz    45 ÷ 25k
Woofer Magnet size D x d x h mm (in.)    90 x 40 x 20 (3.54 x 1.57 x 0.79)
Tweeter Magnet size D x h mm (in.)    19,7 x 3 (0.78 x 0.12)
Weight of one speaker kg (lb.)    1,66 (3.66)
Woofer Magnet    High density flux ferrite
Tweeter Magnet    Neodymium
Cone    Polypropylene with UV inhibitors
Dome    PEI
Xmech mm (in.)    ±8,5 (0.33)
Technical Specs
D mm    146
Xmax mm    6
Re Ohm    3.3
Fs Hz    60
Le mH    0.56
Vas I    12.50
Mms g    22
Cms mm/N    0.32
BL T*m    6
Qts    0.72
Qes    0.76
Qms    11.8
Spl dB    91

A    196 mm    7.7 in.
B    158 mm    6.2 in.
C    113 mm    4.4 in
D    79 mm    3.1 in.
F    34 mm    1.3 in.
