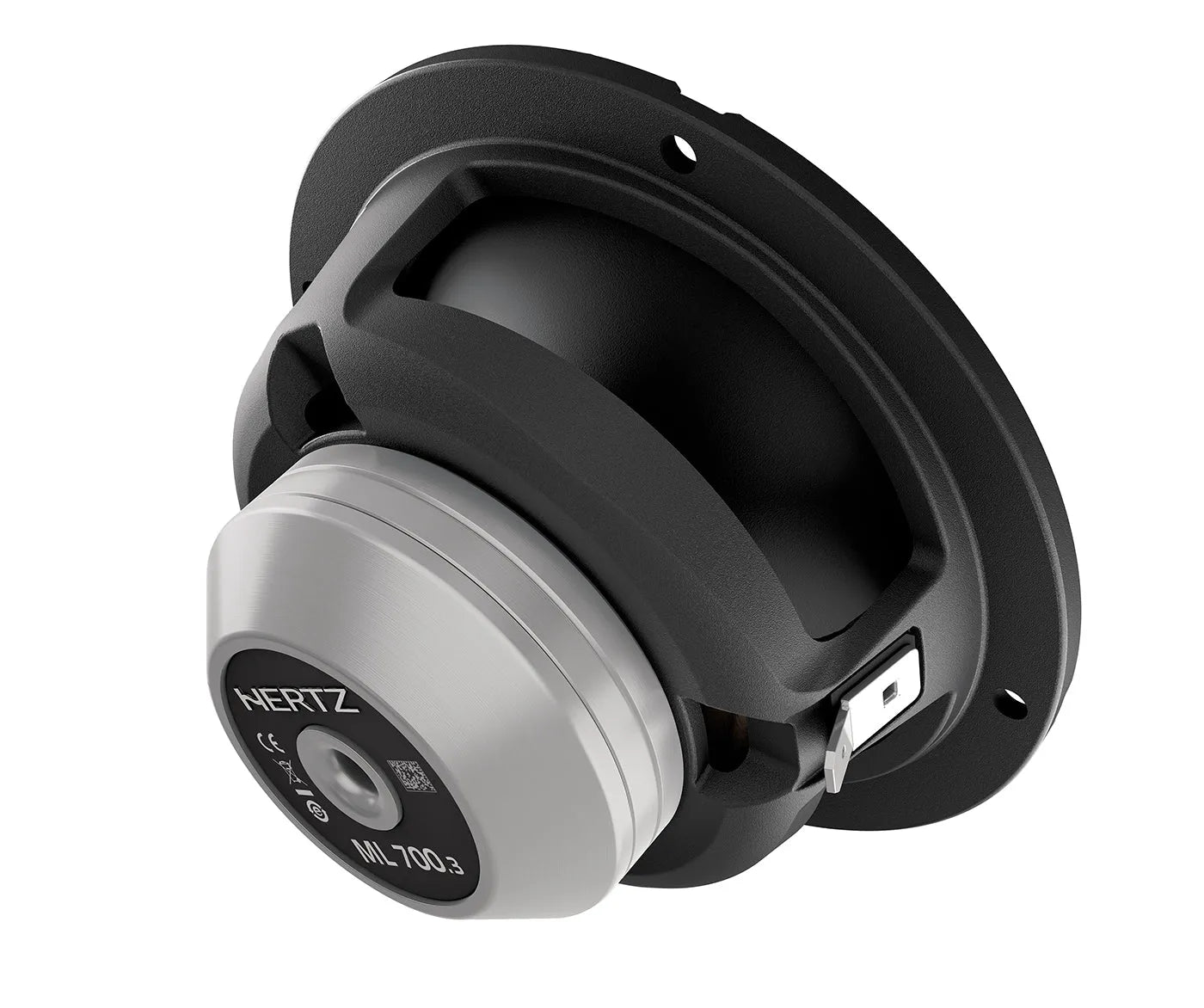

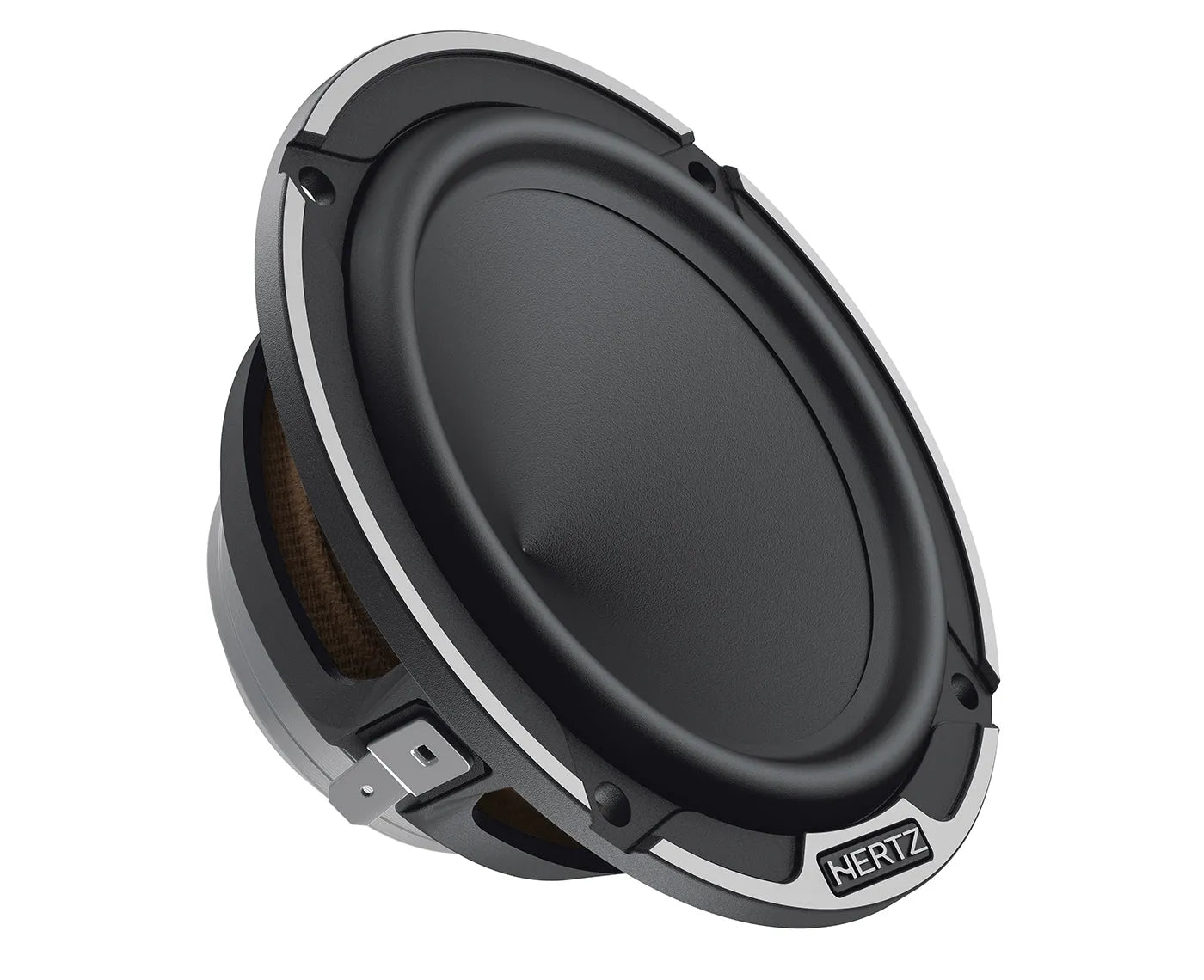

Hertz Mille ML 700, vidutinių dažnių garsiakalbis

"ML 700.3 Legend" automobilinės garso sistemos vidutinių dažnių garsiakalbis turi V formos kūgio geometrijos patobulinimą, neodimio magneto mazgą ir trijų dalių antirezonansinį aliuminio lydinio krepšelį su ventiliacijos angomis.

check_circle_outline highlight_off
Yra prekyboje Išparduota
Nuolaida: 199.00 €
Kaina: 199.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Hertz Mille ML 700, vidutinių dažnių garsiakalbis

"ML 700.3 Legend" automobilinės garso sistemos vidutinių dažnių garsiakalbis turi V formos kūgio geometrijos patobulinimą, neodimio magneto mazgą ir trijų dalių antirezonansinį aliuminio lydinio krepšelį su ventiliacijos angomis.

  • Galia: 100W.
  • (Hi-Pass filtras @ 250 Hz - 12 dB okt.).
  • Dažnių juosta: 200 - 20k Hz.
  • Varža: 4 Omai.



The ML 700.3 Legend car audio midrange features the V-cone geometry upgrade, the Neodymium magnet assembly and the threespoke anti-resonant aluminium alloy basket with vented holes.
Thanks to these technologies, as well as the Boundary Free Surround, taking the diameter emission from 60 to 65 mm, the midrange will provide extended, properly damped low frequency response, as the component will be filtered especially at the low frequencies, for excellent combination with the ML 1800.3 Legend, to build an ultra-performing system for competitions.
1. Neodymium magnet optimized with FEA simulations, for superior dynamics and control.
2. Very low carbon content CNC machined plates, for maximum magnetic permeability and low distortion at high power levels.
3. Extremely pure copper covered central pole and one-layer mobile coil, for a wider extension in the high frequency range.
4. Exponential V-cone® with optimized geometry for utmost linearity and dispersion.
5. CONEX spider with optimized profile, for maximum transparent acoustics at mid-high frequency.
6. “Boundary Free” IIR rubber surround, for better efficiency and wider mid-bass frequency.
7. Pressed-pulp cone with cotton fibres, combining stiffness and lightweight, to achieve wide frequency response and limited break-ups at high frequency.
8. Junction point between cone and former with geometry optimized with FEA methods, allowing a more integral coupling, thus ensuring wider extension at high frequency.
9. Three-spoke, very acoustically transparent anti-resonant aluminium alloy basket featuring built-in venting holes.
10. CNC machined elegant diamond-cut basket edge featuring the Hertz logo.
11. Die-cast aluminium factory provided grille featuring diamond-cut aluminium Hertz logo.

SPECIFIKACIJOS

Component Mid-range
Size mm (in.) 70 (3)
Power Handling - Peak W 100
Power Handling - Peak Note (Hi-Pass filtered @ 250Hz - 12dB Oct.)
Impedance Ohm 4
Voice Coil Ø 20 (0.8)
Frequency Response Hz 200 - 20k
Magnet size D x d x h mm (in.) 45 x 25 x 3,5 (1.77 x 0.98 x 0.13)
Weight of one speaker kg (lb.) 0,21 (0.46)
Magnet Neodymium
Cone Pressed-pulp cone with cotton fibres

INSTRUKCIJOS

User Manual (EN).
