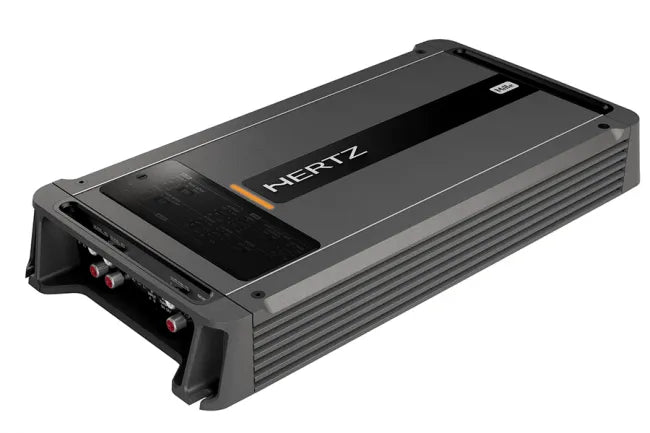

Hertz ML Power 5, Automobilinis garso stiprintuvas

Stiprintuvas sukurtas išnaudoti pilną Jūsų automobilinės garso sistemos potencialą!

check_circle_outline highlight_off
Yra prekyboje Išparduota
Nuolaida: 415.00 €
Kaina: 415.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Hertz ML Power 5, Automobilinis garso stiprintuvas

Stiprintuvas sukurtas išnaudoti pilną Jūsų automobilinės garso sistemos potencialą!

  • Galia: 3 Ch 200 W x 2 (4Ω) + 550 W x 1 (2Ω).
  • Iškraipymai - THD (100Hz @ 4Ω): 0.08 %.
  • Slopinimo koeficientas (100Hz @ 4Ω): 50 A ir B Ch - 90 C Ch.



Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency.  The ultra-versatile Hertzaudio car amplifier ML Power 5 (100 W x 4 + 550 W 2 Ω) provides the ability to drive a Mille system including the subwoofer. The HRC BM (Hertz Remote Control Bass Management), low frequencies level remote control, is optional.

Technologies ML Power 5 ADVANCED D-CLASS TECHNOLOGY

Ensures pure listening pleasure while keeping a compact size with unmatched power efficiency.

ML Power 5 LEDS STATUS DISPLAY

It monitors the amplifiers operating status in real time pointing out possible faults such as overheating, excessive loads on the outputs or short-circuits on cables or loudspeakers. This information allows the user to identify possible issues with the installation and to intervene before the amplifier goes into protection to prevent any damages.

ML Power 5 HDP IN & ART(TM)

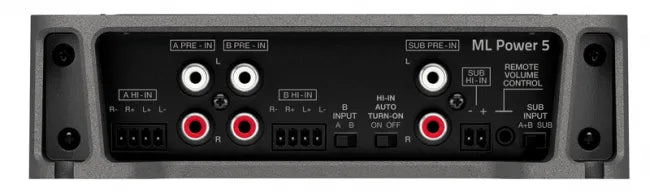

The ML Power IN module features a Speaker In input (with balanced circuitry minimizing noise) for OEM head units and an RCA IN input for aftermarket sources. When the Speaker In is used, the ART™ function (Automatic Remote Turn On-Off) is enabled, managing the amplifier remote turn on to avoid unpleasant “bumps”.

ML Power 5 ADVANCED HEATSINK

The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency.



SPECIFIKACIJOS

General Specs
Channels 5 - 3
Power supply voltage: 11÷15 VDC
Idling current: 3 A
Idling current when off: 0.04 mA
Consumption @ 1Ω, 14.4 VDC
(Max Musical Power)
50 A
Distorsion - THD (100 Hz @ 4Ω): 0.08 %
Bandwidth A & B Ch (-3 dB): 5 ÷ 50k Hz
Bandwidth C Ch (-3 dB): 5 ÷ 500 Hz
S/N Ratio A & B Ch (A weighted @ 1 V) 100 dB
S/N Ratio C Ch (A weighted @ 1 V): 106 dB
Damping factor A & B Ch (100 Hz @ 4Ω): 50
Damping factor C Ch (100 Hz @ 4Ω): 90
Pre-In sensitivity: 0.2 ÷ 5 V RMS
Pre-In impedance: 15 kΩ
Speaker-In sensitivity: 0.8 ÷ 20 V RMS
Speaker-In impedance: 470 Ω
Load impedance:
5 Ch
3 Ch
4 x 2Ω + 1 x 2Ω
2 x 4Ω + 1 x 2Ω
Remote In: 4 ÷ 15 VDC - 1 mA
ART™: Automatic Remote Turn-On/Off with Speaker-In

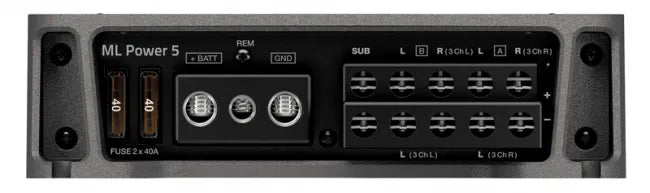

Fuse: 2 x 40 A
Max size (mm/inches): 170 x 349 x 46.70 / 6.69 x 13.74 x 1.84
Weight (kg/lb):
Adjustable Crossovers yes
Output Power
CEA 2006-A RATINGS
RMS Power (4 Ω, ≤ 1 % THD+N, 14.4 V): 60 W x 4 Ch + 310 W x 1 Ch
S/N Ratio (ref. 1 W output): 60 W Channel: 80 dBA
310 W Channel: 84 dBA
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:
5 Ch
5 Ch
3 Ch
3 Ch
70 W x 4 + 380 W x 1 (4Ω)
100 W x 4 + 550 W x 1 (2Ω)
200 W x 2 (4Ω) + 380 W x 1 (4Ω)
200 W x 2 (4Ω) + 550 W x 1 (2Ω)
Total Power RMS 950 W
INPUTS / FILTERS
Inputs: Pre IN / Speaker IN
A Ch filters: Full / Hi-Pass / Band-Pass 40 ÷ 150 Hz (HI) 80 ÷ 3.3k Hz (LO) @ 12 dB/Oct.
B Ch filters: Full / Hi-Pass 80 ÷ 3.3k Hz @ 12 dB/Oct.
C Ch filters: Lo-Pass 50 ÷ 500 Hz @ 24 dB/Oct.
Remote SUB volume: (-50 ÷ 6) dB



INSTRUKCIJOS

User Manual (EN).
