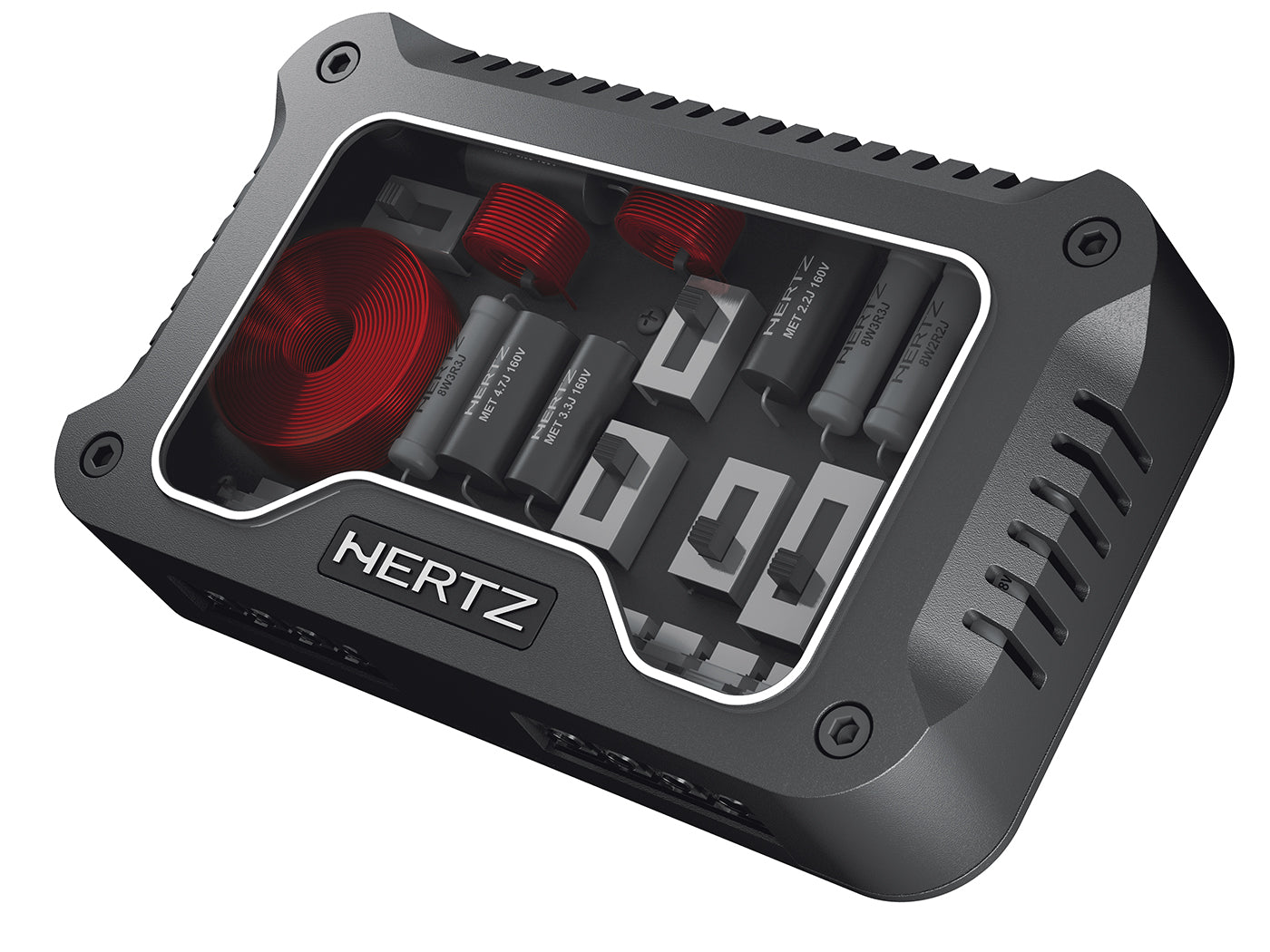

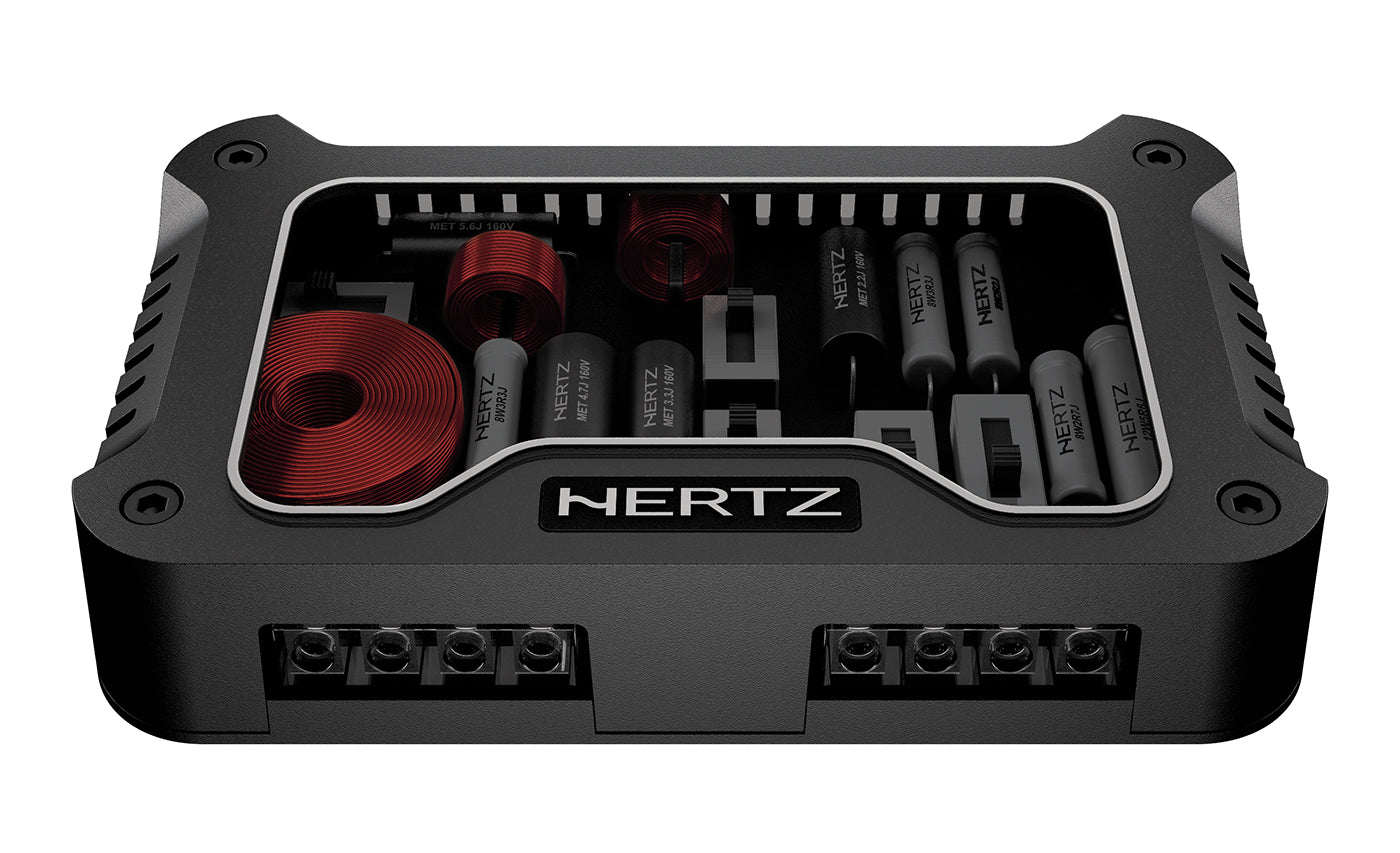

Hertz MLCX 2 TW.3 LEGEND, krosoveris-stiprintuvas

"Hertz" MLCX 2 TW.3 automobilinio garso krosoveris suteikia galimybę sukurti dvivamzdę sistemą, t. y. prie krosoverio prijungti du stiprintuvus arba du atskirus kanalus, todėl žemų ir aukštų dažnių garsiakalbius galima valdyti atskirai.

check_circle_outline highlight_off
Yra prekyboje Išparduota
Nuolaida: 159.00 €
Kaina: 159.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Hertz MLCX 2 TW.3 LEGEND, krosoveris-stiprintuvas

"Hertz" MLCX 2 TW.3 automobilinio garso krosoveris suteikia galimybę sukurti dvivamzdę sistemą, t. y. prie krosoverio prijungti du stiprintuvus arba du atskirus kanalus, todėl žemų ir aukštų dažnių garsiakalbius galima valdyti atskirai.

  • Galia: 150W.
  • Žemų dažnių garsiakalbis Lo-pass 6 dB Spalio mėn.
  • Aukštųjų dažnių garsiakalbis Hi-pass 12 dB Okt.
  • 2,5 kHz (Mid/Hi-Cont. = ON).



1. Bi-amplification available, selectable through appropriate hi-current rating switch with hi-current carrying capability.
2. Mid-Contour two-position control, for a linear mid-bass frequency response according to the woofers position in the car and the listener s favourite sound.
3. Hi-Contour two-position control, to select the tweeter hi-pass crossover point selection according to the tweeter position/angle towards the listener.
4. Mid-Contour in conjunction with Hi-Contour provides the ability to use MLCX 2 TW.3 to build a two way system based on ML 1650.3 or ML 1800.3 woofer together with ML 280.3 tweeter.
5. Three-position switch for tweeter level adjustments in 2 dB steps, to fine-tune the
transducer s emission.
6. Hi-Boost control, selectable through appropriate switch, to provide better linearity of the tweeter emission above 10kHz when positioned not on axis to with the listener.
7. Extremely high quality bi-metallized 160V polyester film capacitors with ultra-low DF, for maximum sound transparency and neat mid/hi-frequencies.
8. Air wound inductors built on pure copper-wire with up to 1mm diameter, for high saturation threshold of the magnetic flux and low losses on the woofer section where high transient currents are demanded.
9. High power rating Wirewound resistors, to ensure performance stability even at high operating temperature. The Wirewound build construction grants low parasitic series inductance thus reducing losses at high frequencies, especially for resistors in series to the tweeter.

SPECIFIKACIJOS

ComponentCrossoverPower Handling - Peak W300Power Handling - Peak Note150Depth mm (in.)41 (1.68)Adjustment

Tweeter            +2 / 0 / -2 dB
Hi-Boost           ON / OFF
Hi-Contour       ON / OFF
Mid-Contour    ON / OFF
Bi-Amp              ON / OFF

Weight of one component - Crossover kg (lb)0,57 (1.26)Crossover

Woofer      Lo-pass 6 dB Oct.
Tweeter     Hi-pass 12 dB Oct.
Cut-off        2.5 kHz (Mid/Hi-Cont. = ON)
3.5 kHz      (Mid/Hi-Cont. = OFF)

INSTRUKCIJOS

User Manual (EN).
