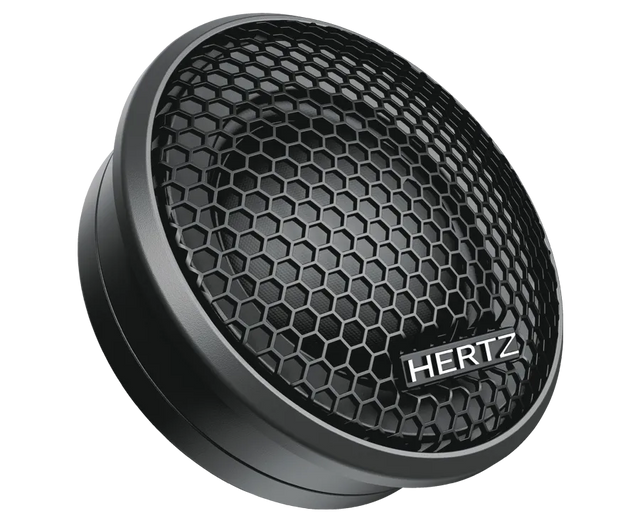

Hertz MP 25.3 PRO, automobilinis aukštų dažnių garsiakalbis

105.00 €

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Automobilinis aukštų dažnių garsiakalbis, kuris pasižymi itin puikiu skambesiu bei ypatinga garso kokybe!

  • Galia: 120 W
  • Dažnių juosta: 1.4k ÷ 22.5k Hz.
  • Jautrumas: 91 dB.
  • Neodimio magnetas.

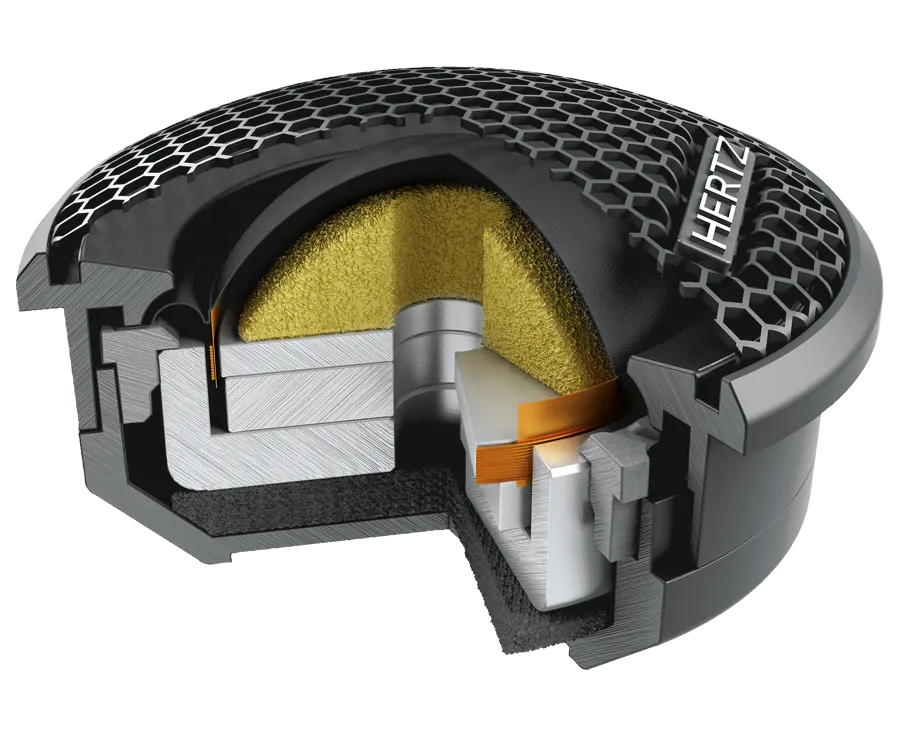

The MP 25.3 car audio tweeters, featuring Tetolon dome and 25 mm voice coil, provides a very wide, linear frequency response.
Thanks to its “Center Tuning Duct”, positioned in the center of the powerful Neodymium magnetic circuit, exchange of air between dome and rear load chamber is ensured, fine-tuning the acoustics to perfection.
The resulting very low resonance frequency is also functional for the woofer crossover point, elevating the sound stage.



1. Tetolon fiber soft dome, for a natural yet detailed reproduction of musical nuances.
2. “Center Tuning Duct” geometry, for lower resonance frequency and reduced harmonic distortion.
3. High density flux Neodymium magnet, optimized for utmost control during high energy dynamic transients in the mid-high frequency range.
4. 25mm ferrofluid-cooled mobile voice coil.
5. Rear chamber filled with selected damping material and sized for lower Fs, to ensure a well damped high pass frequency roll-off, allowing low cut-off frequency crossover point.
6. Faceplate featuring FEM (Finite Element Modeling) optimized geometry, for high linearity in off-axis installations.
7. Wide array of installation accessories, for an easy OEM integration.






SPECIFIKACIJOS

Size mm (in.) 29 (1.14)
Power Handling - Peak W 120 (Hi-Pass filtered @ 2,5kHz - 12 dB Oct.)
Impedance  4
Frequency response Hz 1.4k ÷ 22.5k
Sensitivity dB SPL 91
Voice coil Ø mm (in.) 25 (1)
Magnet Neodymium
Cone/Dome Tetolon



INSTRUKCIJOS

User Manual (EN).
