Hertz MPS 250 S4, automobilinis žemų dažnių garsiakalbis

MPS 250 S4 optimizuotas darbui itin kompaktiškose sandariose dėžutėse, kurių vertė - tik 14 Lt (0,49 Cf). Tipiškas pavyzdys - žemųjų dažnių garsiakalbių korpusas po galiniu pikapų suoleliu, kur vietos - ir aukščio - yra nedaug.

• Rekomend. stiprintuvo galia: 500W.
• Dažnių juosta: 25 - 400 Hz.
• Varža: 4 Omai.

Mille PRO shallow subwoofers have been designed to achieve exceptional performance even when there is very little space available to install the subwoofer box.

MPS 250 S4 is optimized to work in ultra-compact sealed boxesstarting from only 14 Lt (0.49 Cf). A typical example is a subwoofer enclosure under the rear bench of pickup trucks, where the space - and the height - are limited.

Mille PRO subwoofer have a depth/performance ratio never achieved before thanks to the impressive cone excursion capacity which is 20% higher than a traditional design.

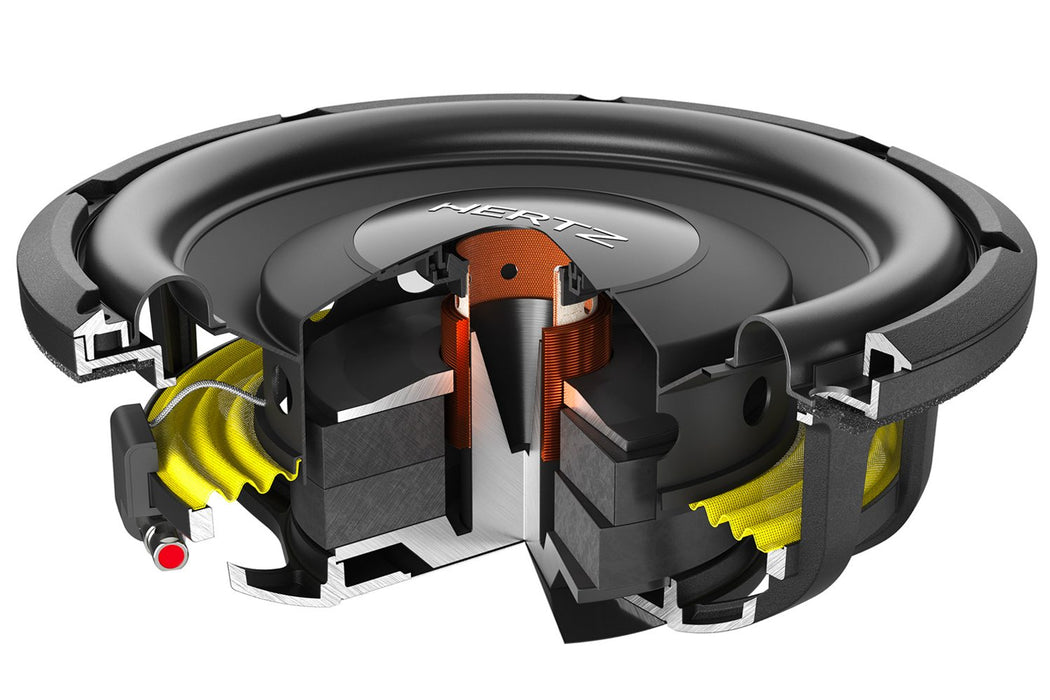

This exceptional target has been achieved thanks to the ingenious suspension group design featuring a dedicated support structure for spider and coil. This solution has allowed to move the magnetic group inwards, reducing the depth and at the same time maximizing cone linear excursion.

 1. Ultra-shallow overall depth

 2. 500W continuous power handling

 3. Optimized for extremely-compact sealed enclosure 12-14L (0.4-0.5CF)

 4. Air Intercooling Revolution (A.I.R.) prevents air-compression-related limitations

 5. Unrivalled mechanical excursion, +20% over traditional designs

 6. Six-layer copper voice coil (38mm/1.5 in.) ensures high thermal capacity

 7. Non-vented rear design allows reduced enclosure depth

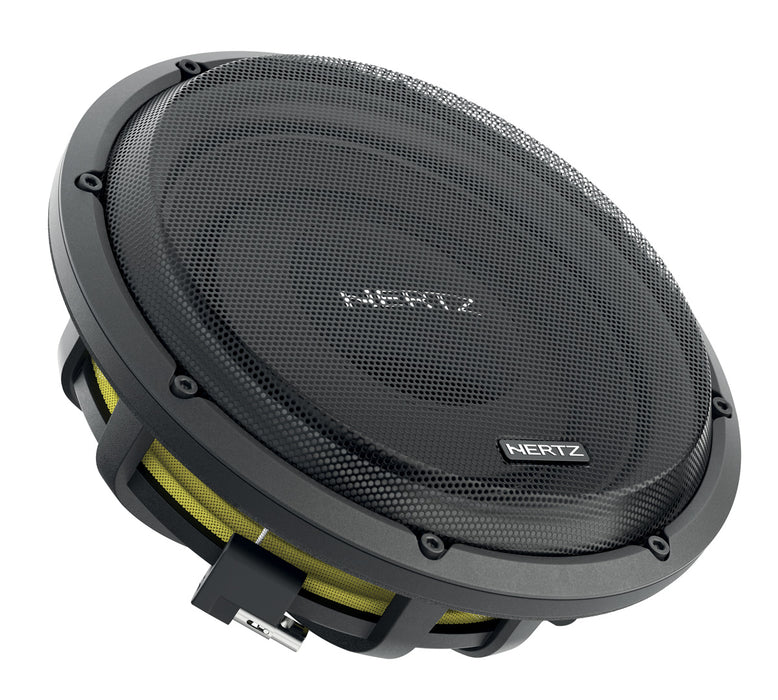

 8. Robust screw-less mesh grille included with black screws provided

 9. Die-cast aluminum frame

10. Solid horizontal 8AWG spring-loaded terminals

11. EID: Scan, Discover, Identify



Technologies eID (Elettromedia Identification)

The exclusive technology providing the traceability of the Mille.3 products from their birth on. Once the test phase has been passed, the code linked to destination country/market is applied. When purchasing the product, by scanning the code, the user can check through the web the information about the product and can log into the registration page.

Air Innovative Route

Hertz R&D has developed the proprietary AIR (Air Intercooling Revolution) technology, optimizing the fluid dynamics inside the voice coil inner chamber and the magnetic group to minimize the internal compression of air and maximize cooling capacity.

SPECIFIKACIJOS

INSTRUKCIJOS

User Manual (EN).
