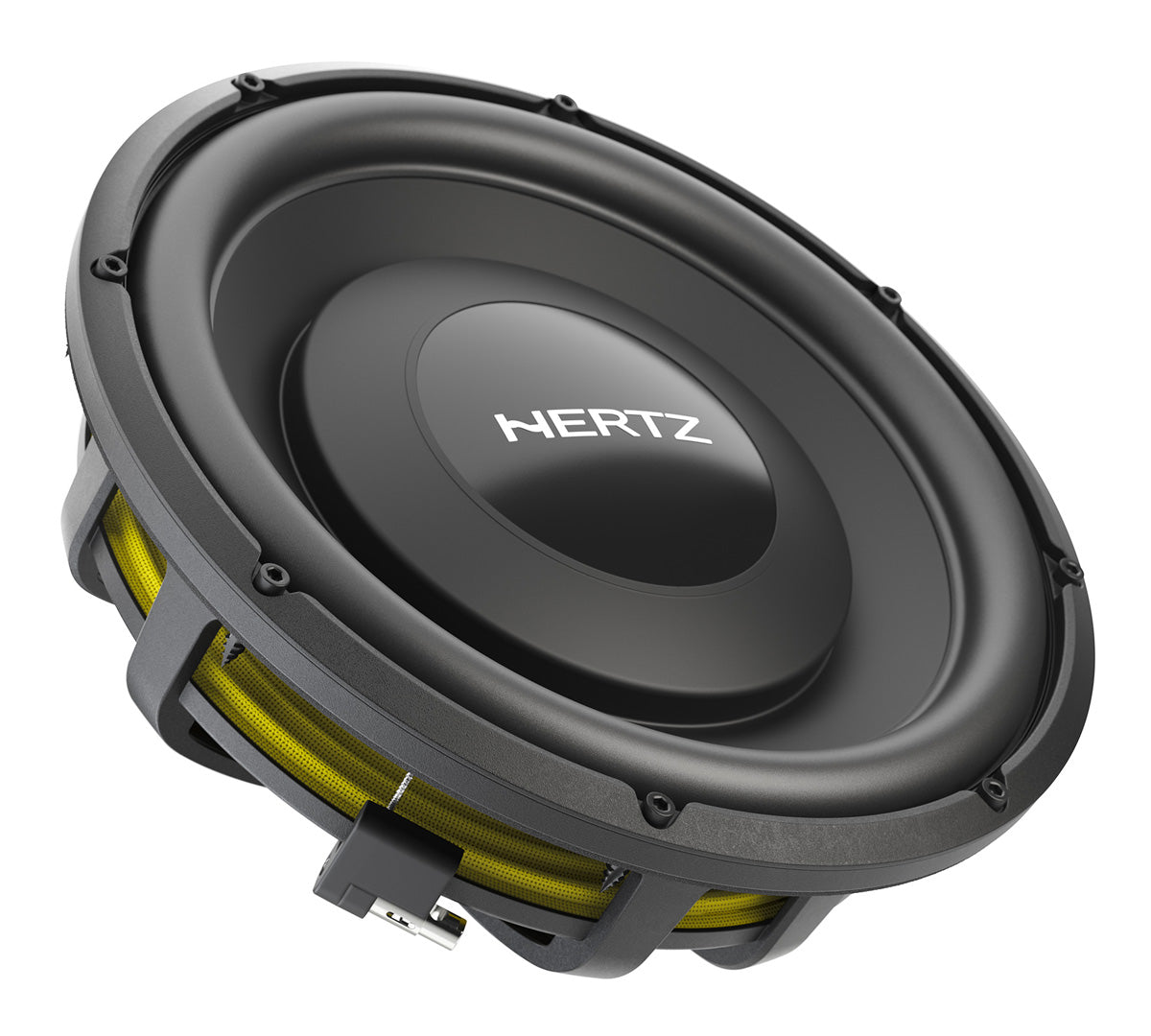

Hertz MPS 300 S4, automobilinis žemų dažnių garsiakalbis

373.00 €

Hertz MPS 300 S4, automobilinis žemų dažnių garsiakalbis yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

MPS 300 S4 negilus žemų dažnių garsiakalbis sukurtas taip, kad užtikrintų išskirtinį veikimą net tada, kai žemų dažnių garsiakalbio dėžėjei įrengti yra labai mažai vietos.

  • Rekomend. stiprintuvo galia: 500W.
  • Dažnių juosta: 25 - 400 Hz.
  • Varža: 4 Omai.



MPS 300 S4 shallow subwoofer has been designed to achieve exceptional performance even when there is very little space available to install the subwoofer box.

MPS 300 S4 is optimized to work in ultra-compact sealed boxesstarting from only 22,7 Lt (0.8 Cf). A typical example is a subwoofer enclosure under the rear bench of pickup trucks, where the space - and the height - are limited.

MPS 300 S4 has a depth/performance ratio never achieved before thanks to the impressive cone excursion capacity which is 20% higher than a traditional design.

This exceptional target has been achieved thanks to the ingenious suspension group design featuring a dedicated support structure for the spider and coil. This solution has allowed the movement of the magnetic group inwards, reducing the depth and at the same time maximizing cone linear excursion.

Features

MPS 300 S2

 1. Ultra-shallow overall depth

 2. 500W continuous power handling

 3. Optimized for extremely-compact sealed enclosure 20-24L (0.7-0.8CF)

 4. Air Intercooling Revolution (A.I.R.) prevents air-compression-related limitations

 5. Unrivalled mechanical excursion, +20% over traditional designs

 6. Six-layer copper voice coil (38mm/1.5 in.) ensures high thermal capacity

 7. Non-vented rear design allows reduced enclosure depth

 8. Robust screw-less mesh grille included with black screws provided

 9. Die-cast aluminum frame

10. Solid horizontal 8AWG spring-loaded terminals

11. EID: Scan, Discover, Identify

Technologies MPS 300 S2 eID (Elettromedia Identification)

The exclusive technology providing the traceability of the Mille.3 products from their birth on. Once the test phase has been passed, the code linked to destination country/market is applied. When purchasing the product, by scanning the code, the user can check through the web the information about the product and can log into the registration page.

MPS 300 S2 Air Innovative Route

Hertz R&D has developed the proprietary AIR (Air Intercooling Revolution) technology, optimizing the fluid dynamics inside the voice coil inner chamber and the magnetic group to minimize the internal compression of air and maximize cooling capacity.



SPECIFIKACIJOS

Size mm (in.) 300 (12)
Power Handling - Continuous W 500
Power Handling - Peak W 1000
Impedance Ohm 4
Depth mm (in.) 88 (3.46)
Voice Coil Type single
No Filter Component Subwoofers
Voice Coil Ø 38 (1.5)
Frequency Response Hz 25 - 400
Magnet size D x d x h mm (in.) 156 x 60 x 36 (6.14 x 2.36 x 1.42)
Weight of one component kg (lb.) 6,64 (14.64)
Magnet High density flux ferrite
Cone Polypropylene
Xmech mm (in.) 20 (0.79)
D mm 262,59
Xmax mm 16,80
Re Ohm 1,9
Fs Hz 24
Le mH 1,48
Vas I 64,9
Mms g 295
Cms mm/N 0,16
BL T*m 12,3
Qts 0,51
Qes 0,55
Qms 7,5
Spl dB 84,5
Electro-acoustic Specs

INSTRUKCIJOS

User Manual (EN).

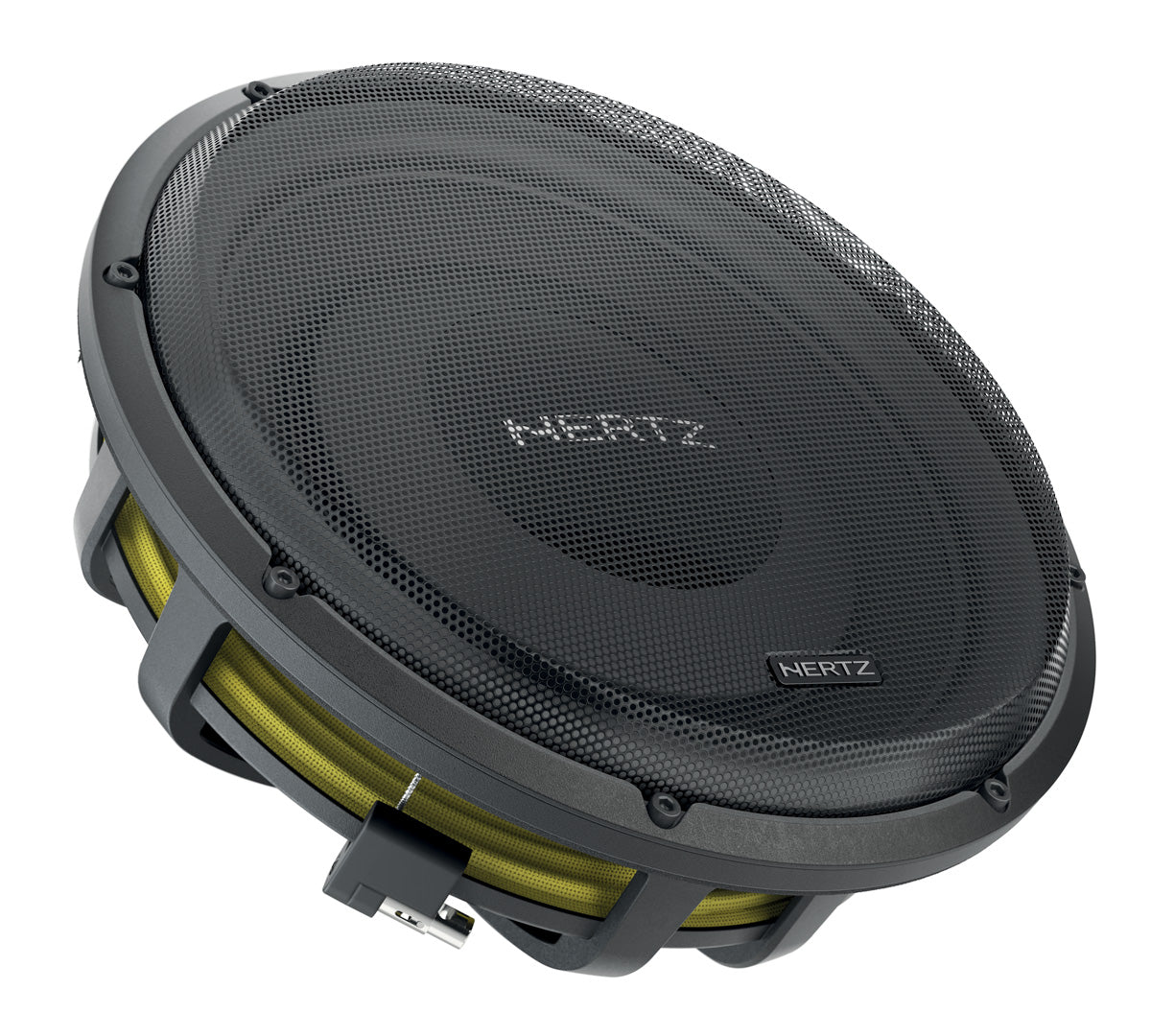

Hertz MPS 300 S4, automobilinis žemų dažnių garsiakalbis- grotelės
