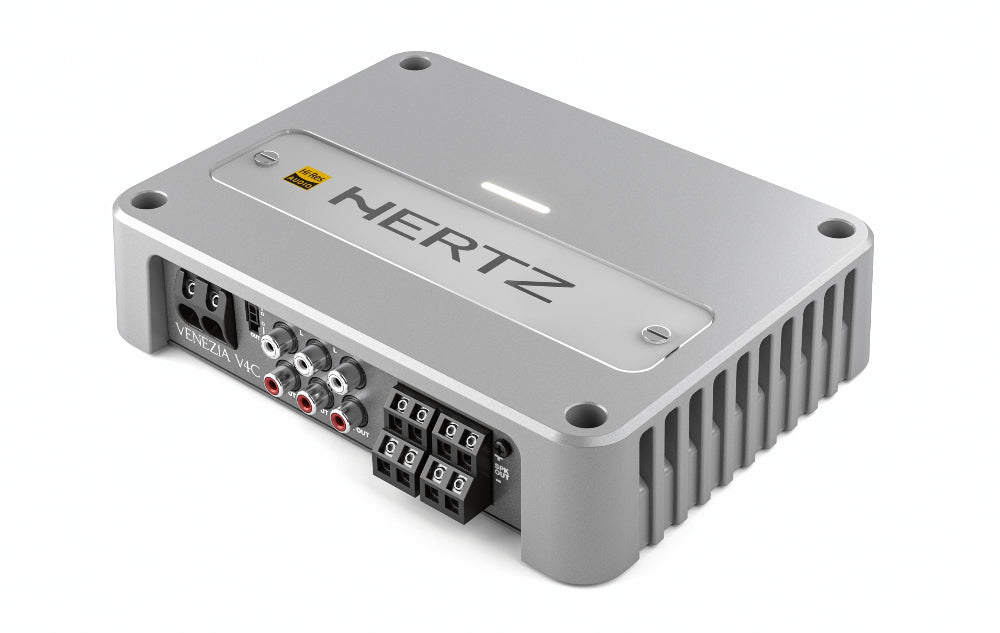

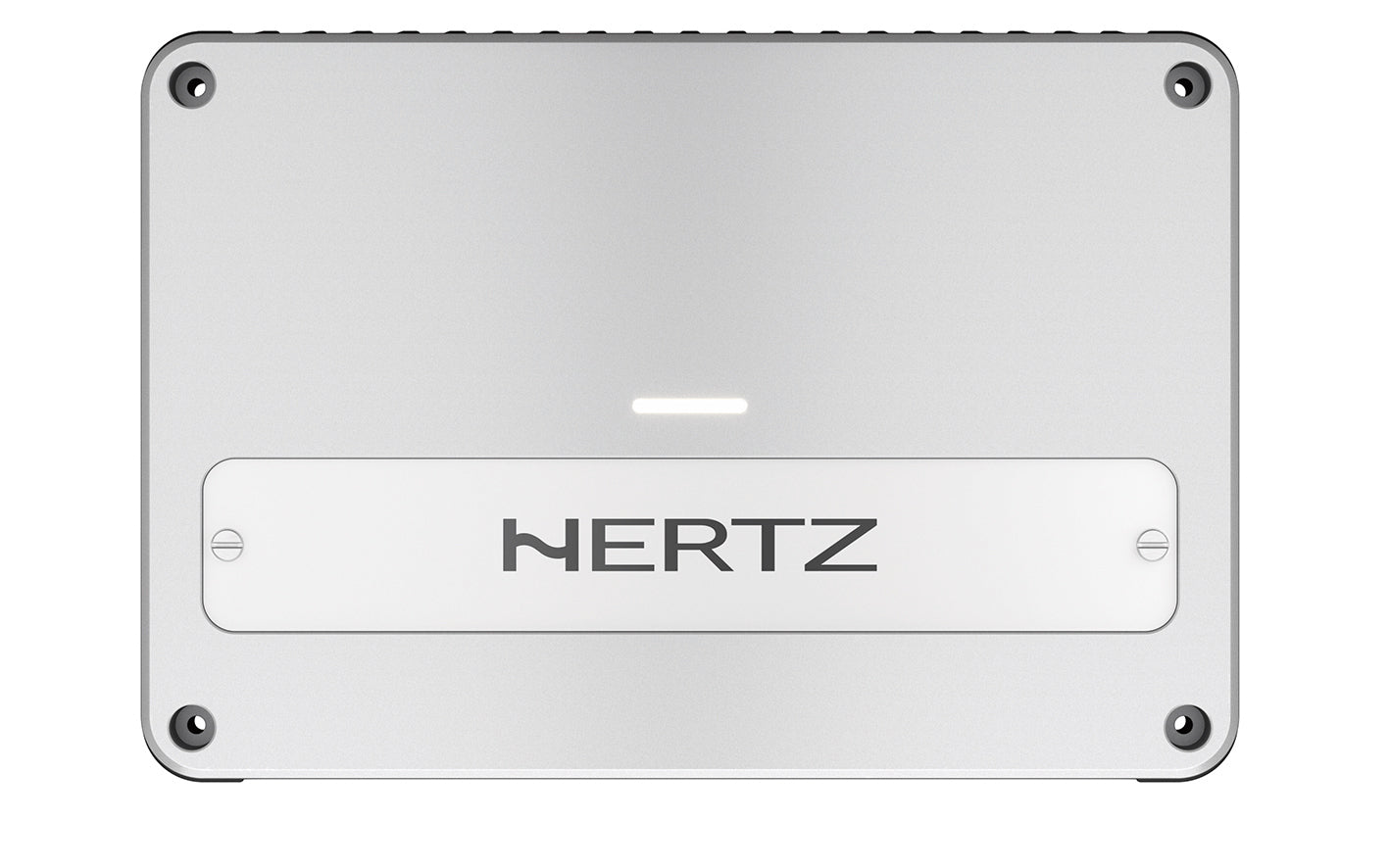

Hertz Venezia V4C, 4-rių kanalų Marine garso stiprintuvas

INFORMACIJA

Hertz Venezia V4C - kompaktiškas ir galingas 4 kanalų Marine stiprintuvas, sukurtas aukštos kokybės garsui laivuose, kateriuose ir kitose sudėtingose aplinkose. Moderni Hertz Advanced Class-D technologija užtikrina didelį efektyvumą, mažą kaitimą ir švarų garsą net esant dideliam garsumo lygiui. Stiprintuvas turi 4 × 110 W galią prie 4 Ω arba 2 × 380 W tilteliniu režimu, todėl puikiai tinka tiek garsiakalbiams, tiek žemų dažnių garsiakalbiams. Hi-Res Audio sertifikatas leidžia atkurti itin detalų garsą iki 40 kHz dažnio. Integruota apsaugos sistema nuo perkaitimo, perkrovos ir trumpo jungimo padidina saugumą bei ilgaamžiškumą. Kompaktiškas aliuminio korpusas su pasyviu aušinimu leidžia lengvai montuoti net ribotoje erdvėje.

Kanalų skaičius: 4 / 3 / 2
Galia 4 Ω: 4 × 110 W
Galia 2 Ω: 4 × 190 W
Tiltelinis režimas: 2 × 380 W
Dažnių diapazonas: 10 Hz – 42 kHz
THD: <0.06 %
Signalo ir triukšmo santykis: 102 dB

APRAŠYMAS

Venezia V4C compact marine amplifier features an optimized power/size ratio boosting 110 W x 4 (4Ω) and 380 W x 2 (4Ω)! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability deliver the output levels needed in the marine environment. Venezia V4C is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V4C is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.

Features
Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
ADC (Advanced D-Class) Technology 2Ω (1Ω for mono models) stable output stage providing Hi-Res certified audio performance with superior efficiency.
Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
Balanced fully-differential input circuitry to reject electromagnetic disturbances.
Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.

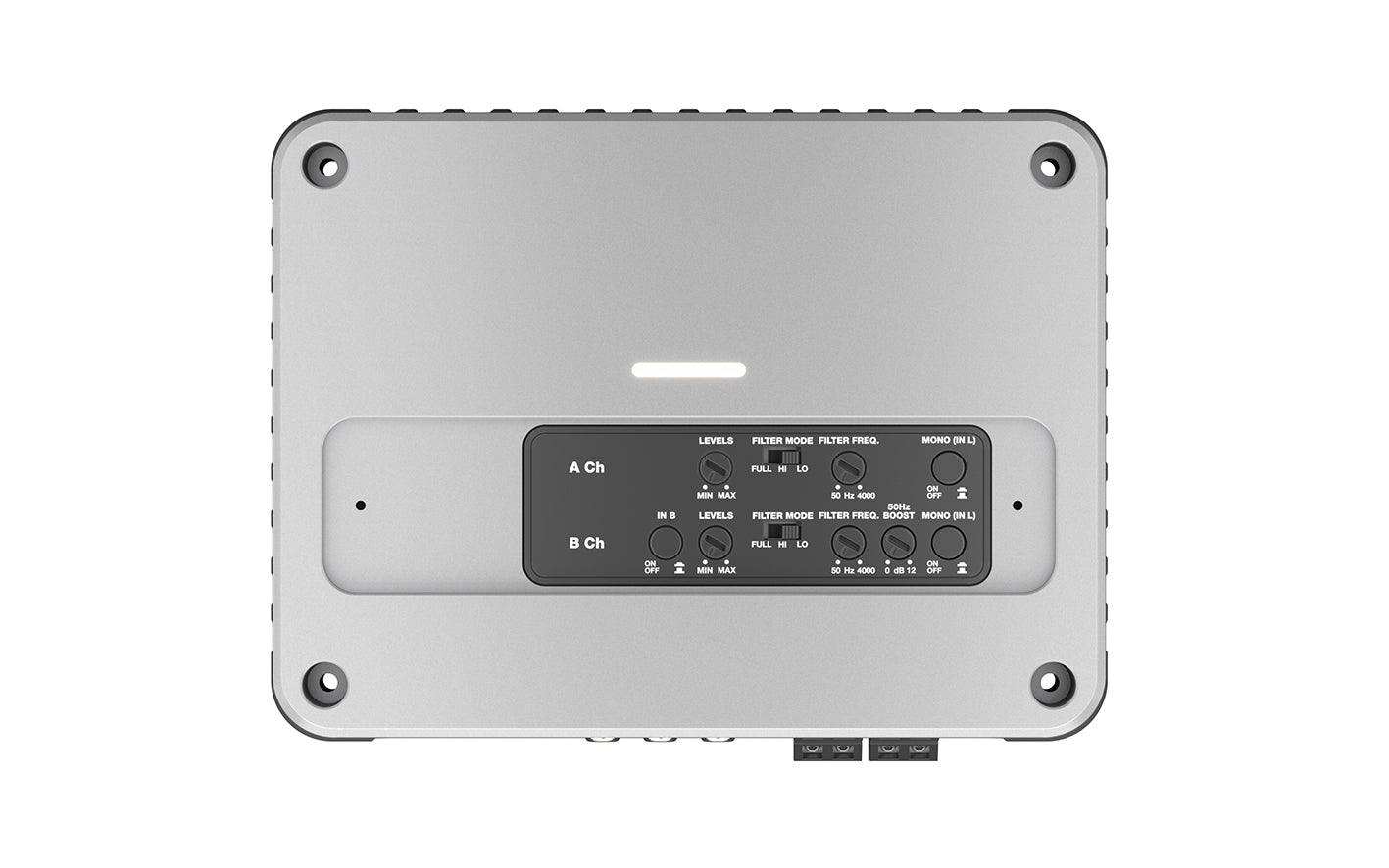

Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
Short-circuit, overload, and thermal protections with auto-resetting.

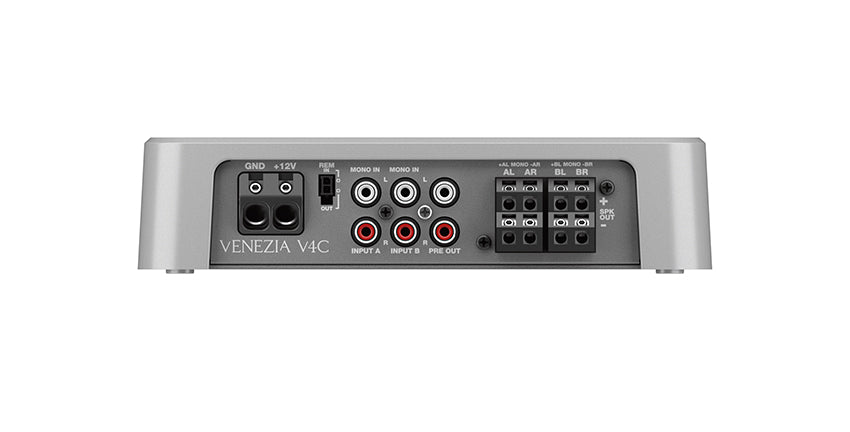

Plug&Play Input and Output connections with safe-lock.
Proprietary Plug&Play Power Supply Connector with safe-lock.

Technologies
VENEZIA V4C
ADC
Hertz Advanced Class D architecture maximizes efficiency and power while minimizing heat and electromagnetic radiation – without penalizing sound quality! High-powered channels with bridging capability deliver the output levels needed in the marine environment.

Hi-Res
Hi-Res certified performance, with an extended audio band up to 40 kHz.

CORROSION RESISTANT
Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marinegrade (epoxy coated) PCB boards.

SALT FOG TESTED
To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.

WATER JET RESISTANT
This Hertz Marine amplifier is IPX2 certified when installed vertically with connections facing downward.

TECHNINIAI DUOMENYS

Channels    4 - 3 - 2
POWER SUPPLY
Power supply voltage    9 ÷ 16 VDC
ldling current (power ON/OFF):    1 A / 0.04 mA
Consumption@ 2Ω, 14.4 VDC (Max Musical Power):    21 A
Remote In:    7 ÷ 15 VDC - 1 mA
AMPLIFIER STAGE
Distorsion - THD (100Hz @ 4Ω):    <0,06%
Bandwidth:    10 ÷ 42 kHz
S/N Ratlo (A welghted @ 1 V):    102 dB
Damping factor (100Hz @ 4Ω)    150
Pre-ln sensitivity:    0.2 ÷ 5 VRMS
Load impedance (MIN)
@4Ch:
@3Ch:
@2Ch:
2 Ω + 2 Ω + 4 Ω
2 Ω
4 Ω
Weight (kg/lb):    2.62 / 5.77
Adjustable Crossovers    yes
Output Power
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
4Ch    110 W x 4 (4Ω)
4Ch    190 W x 4 (2Ω)
3Ch    110 W x 2 (4Ω) + 380 W x 1 (4Ω)
3Ch    190 W x 2 (2Ω) + 380 W x 1 (4Ω)
2Ch    380 W x 2 (4Ω)
Total Power    760 W
INPUTS / FILTERS
lnputs:    PRE IN
Pre Out FULL range (FRONT)    Yes
FRONT Ch. filters FULL:    Yes
Hi-Pass :    50 ÷ 4k Hz @ dB/Oct
Lo-Pass:    50 ÷ 4k Hz @ dB/Oct
REAR Ch. filters FULL:    Yes
Hi-Pass:    50 ÷ 4k Hz @ dB/Oct
Lo-Pass:    50 ÷ 4k Hz @ dB/Oct
FRONT Ch. MONO (on/off):    Yes
REAR Ch. MONO (on/off):    Yes
BOOST 50 Hz (adjust):    (0 ÷ 12) dB
Physical Specs
VENEZIA V4C
mm    in
A    205    8.07
B    175    6.88
C    155    6.1
D    125    4.92
E    40.5    1.59
