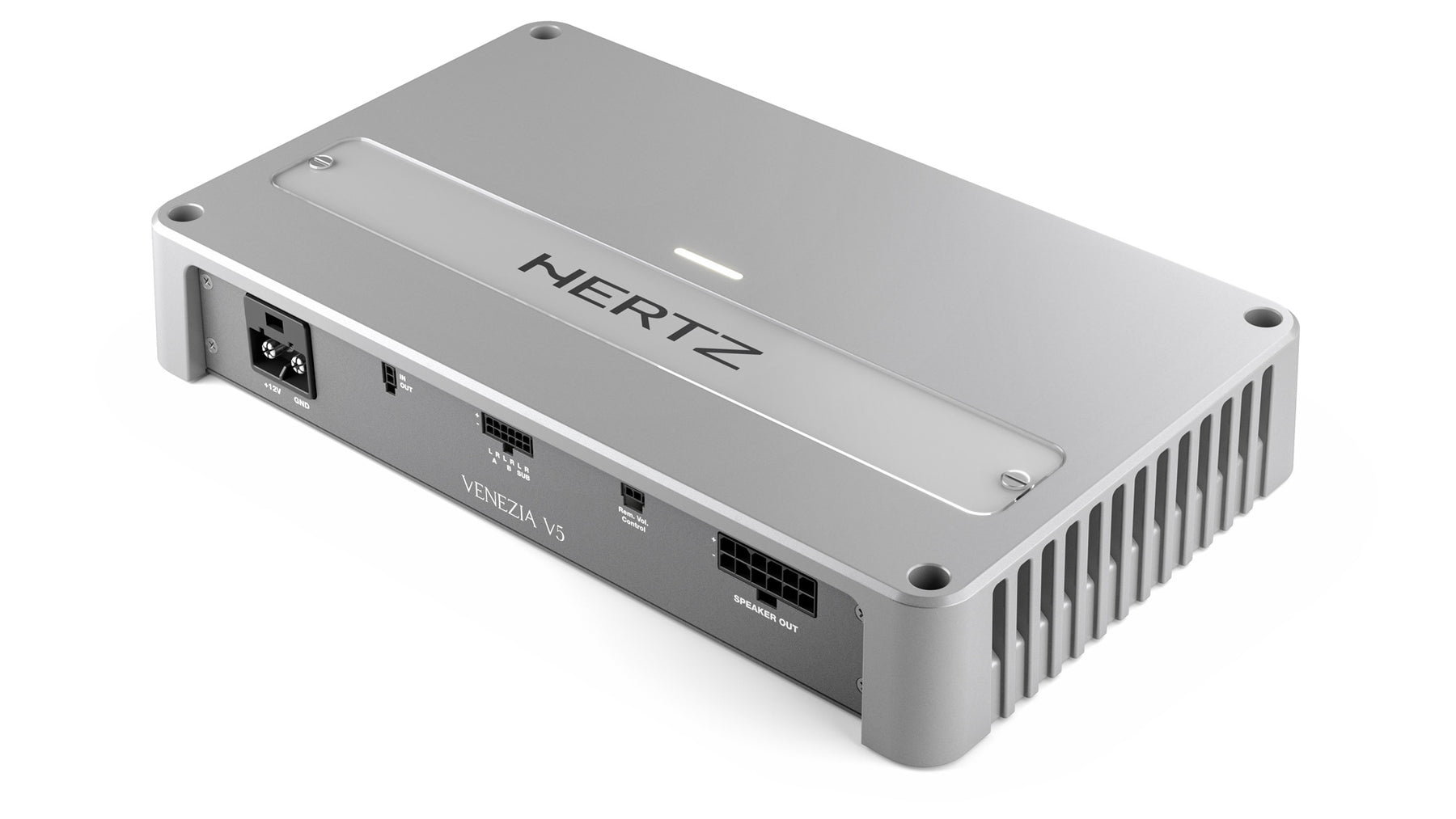

Hertz VENEZIA V5, garso stiprintuvas skirtas vandens transportui

735.00 €

Hertz VENEZIA V5, garso stiprintuvas skirtas vandens transportui yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.


Siuntimas ir pristatymas

Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.

"Venezia V5" yra galingiausias visų laikų penkių kanalų "Hertz" stiprintuvas, skirtas vandens transportui

  • Galia: 4 x 130W.
  • ADC technologijos D- klasės stiprintuvas.
  • Hi-Res garso kokybė.
  • Atsparus vandeniui bei drėgmei.



VENEZIA V5

  • Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
  • ADC (Advanced D-Class) Technology 2Ω stable output stage providing Hi-Res certified audio performance with superior efficiency.
  • Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
  • Balanced fully-differential input circuitry to reject electromagnetic disturbances.
  • Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.
  • Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
  • Short-circuit, overload, and thermal protections with auto-resetting.
  • Plug&Play Input and Output connections with safe-lock.
  • Proprietary Plug&Play Power Supply Connector with safe-lock.



Technologies VENEZIA V5 ADC

Hertz Advanced Class D architecture maximizes efficiency and power while minimizing heat and electromagnetic radiation – without penalizing sound quality! High-powered channels with bridging capability deliver the output levels needed in the marine environment.

VENEZIA V5 Hi-Res

Hi-Res certified performance, with an extended audio band up to 40 kHz.

VENEZIA V5 CORROSION RESISTANT

Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marinegrade (epoxy coated) PCB boards.

VENEZIA V5 SALT FOG TESTED

To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.

VENEZIA V5 WATER JET TESTED

This Hertz Marine product is IPX2 certified when installed with the cables facing down.



Designed to be the new reference, the Venezia line reaches an unmatched power/size ratio thanks to Hertz ADC (Advance D-Class), maximizing efficiency that reach 85% while enhancing sound quality that obtains the Hi-Res certification by JAS. Hertz ADC high efficiency design reduces battery consumption featuring a higher power than Class-AB traditional layout. ADC provides cleaner output to speaker system, especially when driving subwoofers.

KEY FEATURES

  • Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
  • ADC (Advanced D-Class) Technology 2Ω(1Ω for mono models) stable output stage providing Hi-Res certified audio performance with a superior efficiency.
  • Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
  • Balancedfully-differential input circuitry to reject electro-magnetic disturbances.
  • Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.
  • Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
  • Short-circuit,overload and thermal protections with auto resetting.
  • Plug&Play Input and Output connections with safe-lock.
  • Proprietary Plug&Play Power Supply Connector with safe-lock.

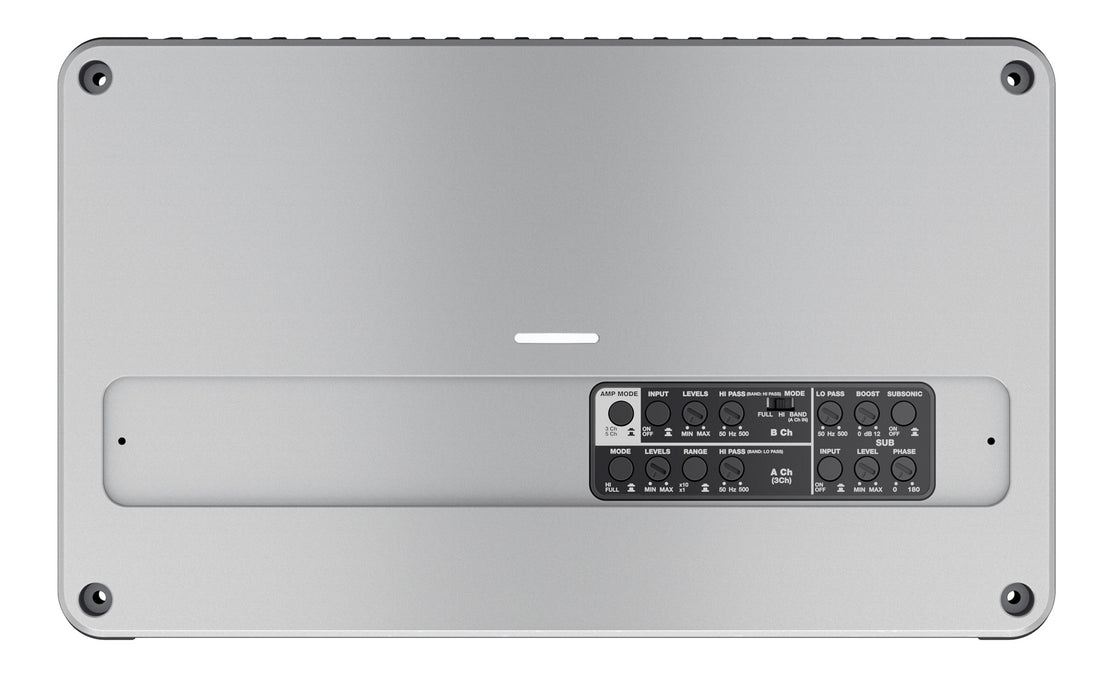

Venezia amplifiers feature variable low/ high pass crossover filters, adjustable bass boost and a subsonic filter for an optimal tuning in every boat. The controls are protected by a polycarbonate panel located on the  upper side, to be easily reached from above even after the product has been installed. When the system includes a processor like S8 DSP, the filter section can be totally excluded.

Venezia amplifiers heat sink has been crafted from extruded aluminum, a material unmatched for lightness, robustness and heat dissipation. The oversized fin layout maximizes the surface area for optimal heat dissipation.

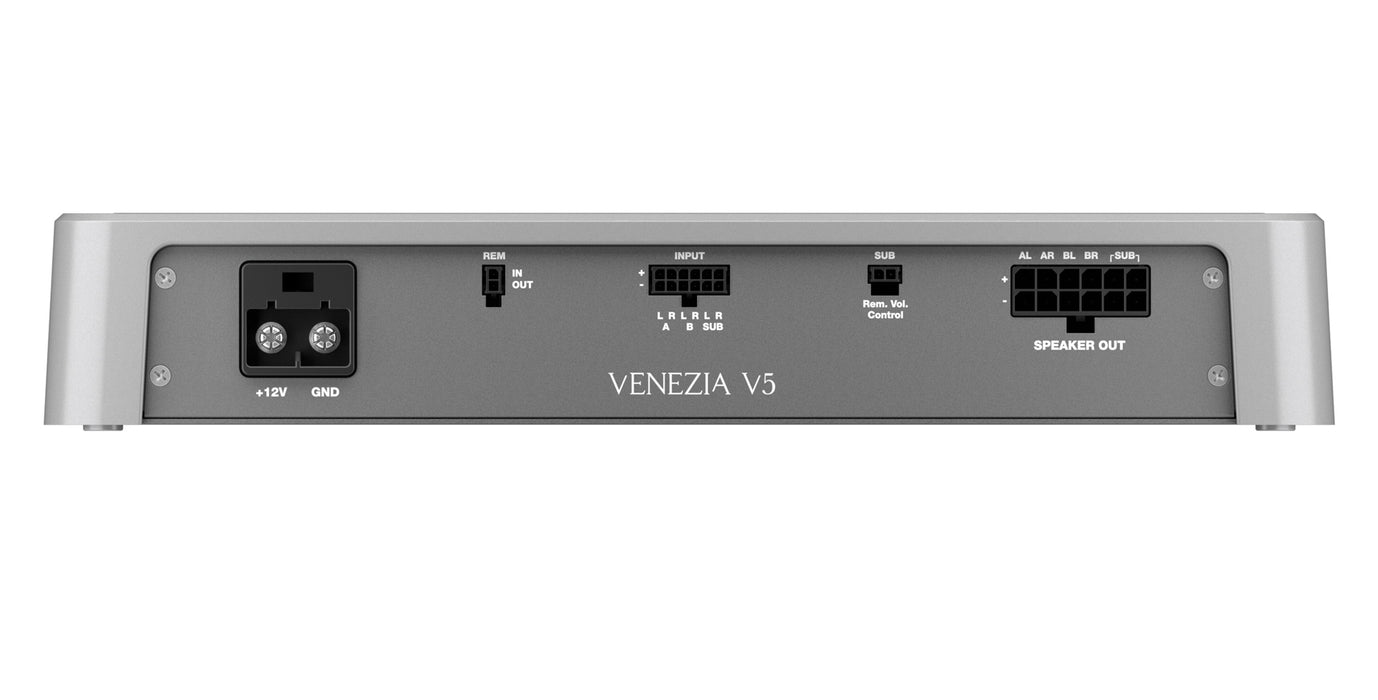

The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. Not availabe for compact models.

The conformal coated PCBs provides superior protection against corrosion agents.



HERTZ_Marine_Amplifier_VENEZIA-V6_Panel





SPECIFIKACIJOS

General Specs
Channels 5 - 3
POWER SUPPLY
Power supply voltage 9 ÷ 16 VDC
ldling current (power ON/OFF): 1.8 A / 0.04 mA
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 70 A
Remote In: 7 ÷ 15 VDC - 1 mA
AMPLIFIER STAGE
Distorsion - THD (100Hz @ 4Ω): <0,05%
Bandwidth: 10 ÷ 42 kHz
S/N Ratlo (A welghted @ 1 V): 102 dB
Damping factor (100Hz @ 4Ω) 130
Pre-ln sensitivity: 0.2 ÷ 5 VRMS
Pre-ln impedance: 10 kΩ
Load impedance (MIN)
@5Ch:
@3Ch:


4Ω + 4Ω + 2Ω
Weight (kg/lb): 3.72 / 8.2
Adjustable Crossovers yes
Output Power
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
5Ch 130 W x 4 (4Ω) + 490 x 1 (4Ω)
5Ch 220 W x 4 (2Ω) + 820 W x 1 (2Ω)
3Ch 440 W x 2 (4Ω) + 490 W x 1 (4Ω)
3Ch 440 W x 2 (4Ω) + 820 W x 1 (2Ω)
Total Power RMS 1700 W
INPUTS / FILTERS
lnputs: A Ch. Pre in
B Ch. Pre in
Sub Ch. Pre in
Pre Out: No
A Ch. filters: Yes
By-Pass Yes
Hi-Pass : 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
B Ch. filters:
By-pass: Yes
Hi-Pass: 50 ÷ 500 Hz @ 12 dB/Oct
Band-Pass: 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
Sub Ch. filters:
By-pass: No
Low-Pass: 50 ÷ 250 Hz @ 24 dB/Oct
Phase (adjust°): (0 ÷ 180°)
Subsonic: 25 Hz @ 24 dB/Oct
Boost 50 Hz (adjust): (0 ÷ 12) dB
Physical Specs VENEZIA V5
mm in
A 330 13
B 300 11.8
C 200 7.87
D 170 6.7
E 54 2.12
kg lb
Weight: 3.72 8.2





INSTRUKCIJOS

User Manual (EN).
